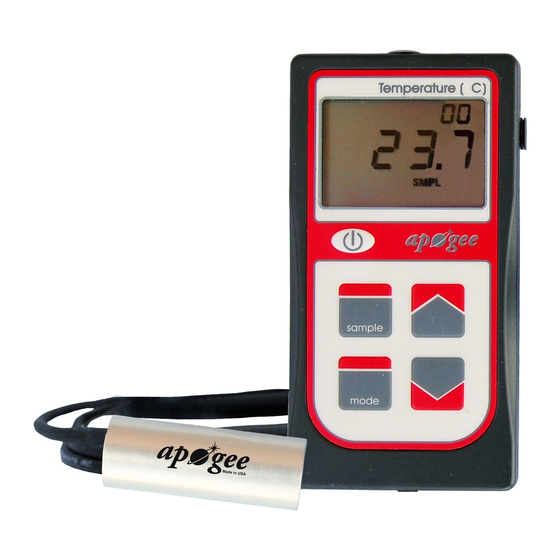

OWNER'S MANUAL

INFRARED TEMPERATURE METER
Models MI-210, MI-220, MI-230, and MI-2H0
APOGEE INSTRUMENTS, INC. | 721 WEST 1800 NORTH, LOGAN, UTAH 84321, USA
TEL: (435) 792-4700 | FAX: (435) 787-8268 | WEB: APOGEEINSTRUMENTS.COM
Copyright © 2016 Apogee Instruments, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MI-210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Apogee MI-210

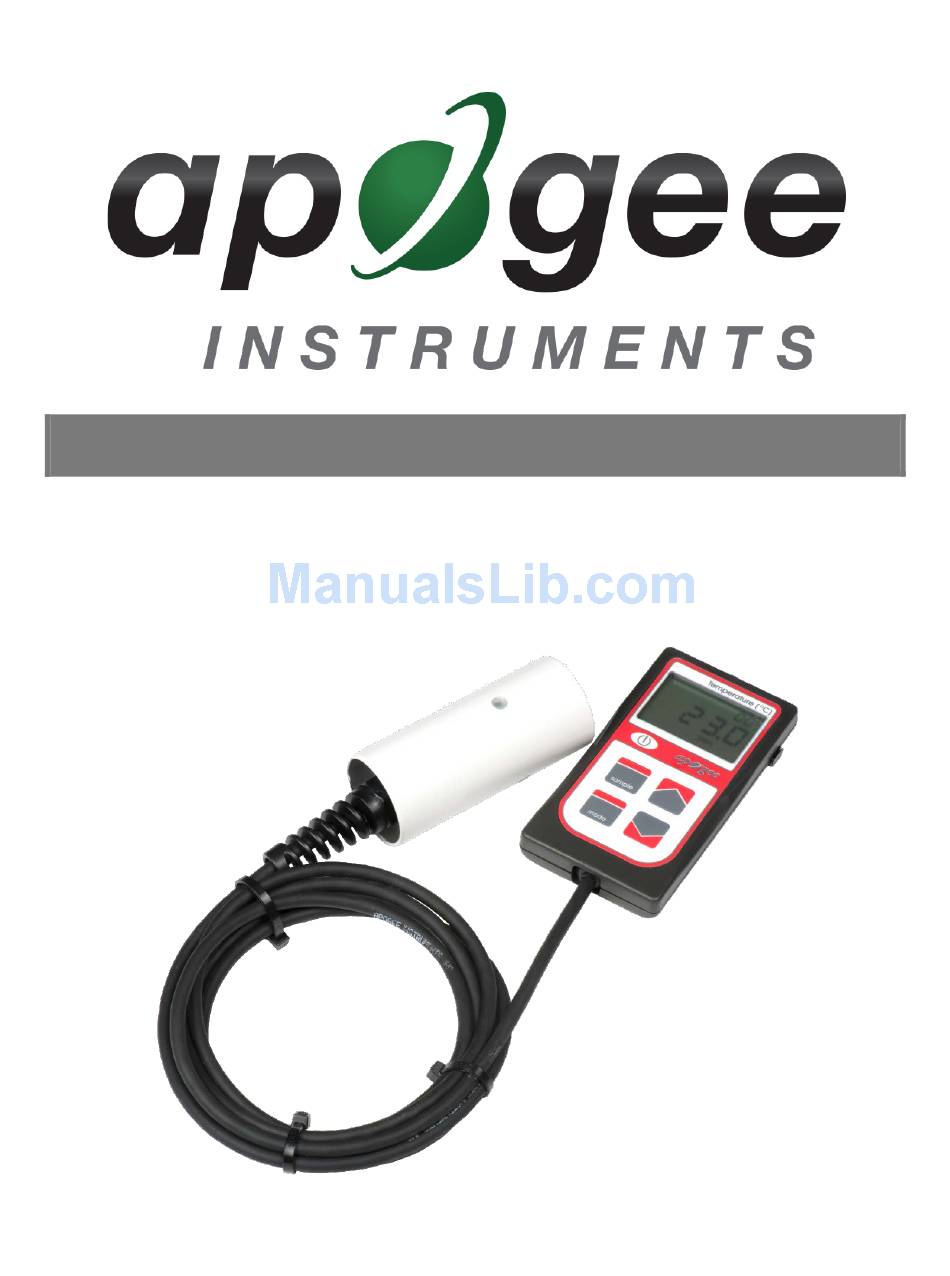

  • Page 1: Owner's Manual

    OWNER’S MANUAL INFRARED TEMPERATURE METER Models MI-210, MI-220, MI-230, and MI-2H0 APOGEE INSTRUMENTS, INC. | 721 WEST 1800 NORTH, LOGAN, UTAH 84321, USA TEL: (435) 792-4700 | FAX: (435) 787-8268 | WEB: APOGEEINSTRUMENTS.COM Copyright © 2016 Apogee Instruments, Inc.
  • Page 2: Table Of Contents

    CONTENTS Owner’s Manual ..........................................1 Certificate of Compliance ....................................3 Introduction ..........................................4 Sensor Models ......................................... 5 Specifications ........................................... 6 Deployment and Installation ....................................7 Operation and Measurement ..................................... 9 Maintenance and Recalibration ..................................12 Troubleshooting and Customer Support..............................13 Return and Waranty Policy ....................................
  • Page 3: Certificate Of Compliance

    (PBB), polybrominated diphenyls (PBDE). Further note that Apogee Instruments does not specifically run any analysis on our raw materials or end products for the presence of these substances, but rely on the information provided to us by our material suppliers.
  • Page 4: Introduction

    (soil, vegetation, water, snow) temperature measurement in energy balance studies. Apogee Instruments MI series infrared meters consist of a handheld meter and a dedicated infrared radiometer, which includes a thermopile detector, germanium filter, precision thermistor (for detector reference temperature measurement), and signal processing circuitry mounted in an anodized aluminum housing.
  • Page 5: Sensor Models

    SENSOR MODELS Apogee MI series infrared meters covered in this manual are self-contained and come complete with handheld meter, sensor, and radiation shield. Sensor model number and serial number are located on a label on the backside of the handheld meter.
  • Page 6: Specifications

    Calibration Traceability Apogee MI series infrared temperature meters are calibrated to the temperature of a custom blackbody cone held at multiple fixed temperatures over a range of radiometer (detector/sensor body) temperatures. The temperature of the blackbody cone is measured with replicate precision thermistors thermally bonded to the cone surface. The precision thermistors are calibrated for absolute temperature measurement against a platinum resistance thermometer (PRT) in a constant temperature bath.
  • Page 7: Deployment And Installation

    The green cap can be used as a protective covering for the sensor, when it is not in use. An Apogee Instruments model AM-210 mounting bracket is recommended for mounting the sensor to a cross arm or pole.
  • Page 8 (distance and angle combinations) produce different target shapes and areas, as shown below. A simple FOV calculator for determining target dimensions based on infrared radiometer model, mounting height, and mounting angle, is available on the Apogee website: http://www.apogeeinstruments.com/using-your-apogee-instruments-...
  • Page 9: Operation And Measurement

    OPERATION AND MEASUREMENT MI series infrared temperature meters are designed with a user-friendly interface allowing quick and easy measurements. To power the meter, slide the included battery (CR2320) into the battery holder, after removing the battery door from the meter’s back panel. The positive side (designated by a “+” sign) should be facing out from the meter circuit board. Press the power button to activate the LCD display.
  • Page 10 (http://www.apogeeinstruments.com/ac-100-communcation-cable/). Sensor Calibration Apogee MI series infrared temperature meters are calibrated in a temperature controlled chamber that houses a custom-built blackbody cone (target) for the radiation source. During calibration, infrared radiometers (detectors) are held in a fixture at the opening of the blackbody cone, but are thermally insulated from the cone. Detector and target temperature are controlled independently.
  • Page 11 ⋅ σ ⋅ ε ⋅ σ − ⋅ ε ⋅ σ Sensor Background where T [K] is temperature measured by the infrared radiometer (brightness temperature), T [K] is actual temperature Sensor Target of the target surface, T [K] is brightness temperature of the background (usually the sky), and σ is the Stefan- Background Boltzmann constant (5.67 x 10 ).
  • Page 12: Maintenance And Recalibration

    Use only gentle pressure when cleaning the filter with a cotton swab, to avoid scratching the outer surface. The solvent should be allowed to do the cleaning, not mechanical force. It is recommended that infrared radiometers be recalibrated every two years. See the Apogee webpage for details regarding return of sensors for recalibration (http://www.apogeeinstruments.com/tech-support-recalibration-repairs/).
  • Page 13: Troubleshooting And Customer Support

    Error codes will appear in place of the real-time reading on the LCD display and will continue to flash until the problem is corrected. Contact Apogee if the following fixes do not rectify the problem. Err 1: battery voltage out of range. Fix: replace CR2320 battery and perform master reset.
  • Page 14 See Apogee webpage for further details on how to extend sensor cable length: (http://www.apogeeinstruments.com/how- to-make-a-weatherproof-cable-splice/).
  • Page 15: Return And Waranty Policy

    RETURN AND WARANTY POLICY RETURN POLICY Apogee Instruments will accept returns within 30 days of purchase as long as the product is in new condition (to be determined by Apogee). Returns are subject to a 10 % restocking fee. WARRANTY POLICY...
  • Page 16 5. Upon receipt, Apogee Instruments will determine the cause of failure. If the product is found to be defective in terms of operation to the published specifications due to a failure of product materials or craftsmanship, Apogee Instruments will repair or replace the items free of charge.
