2.3

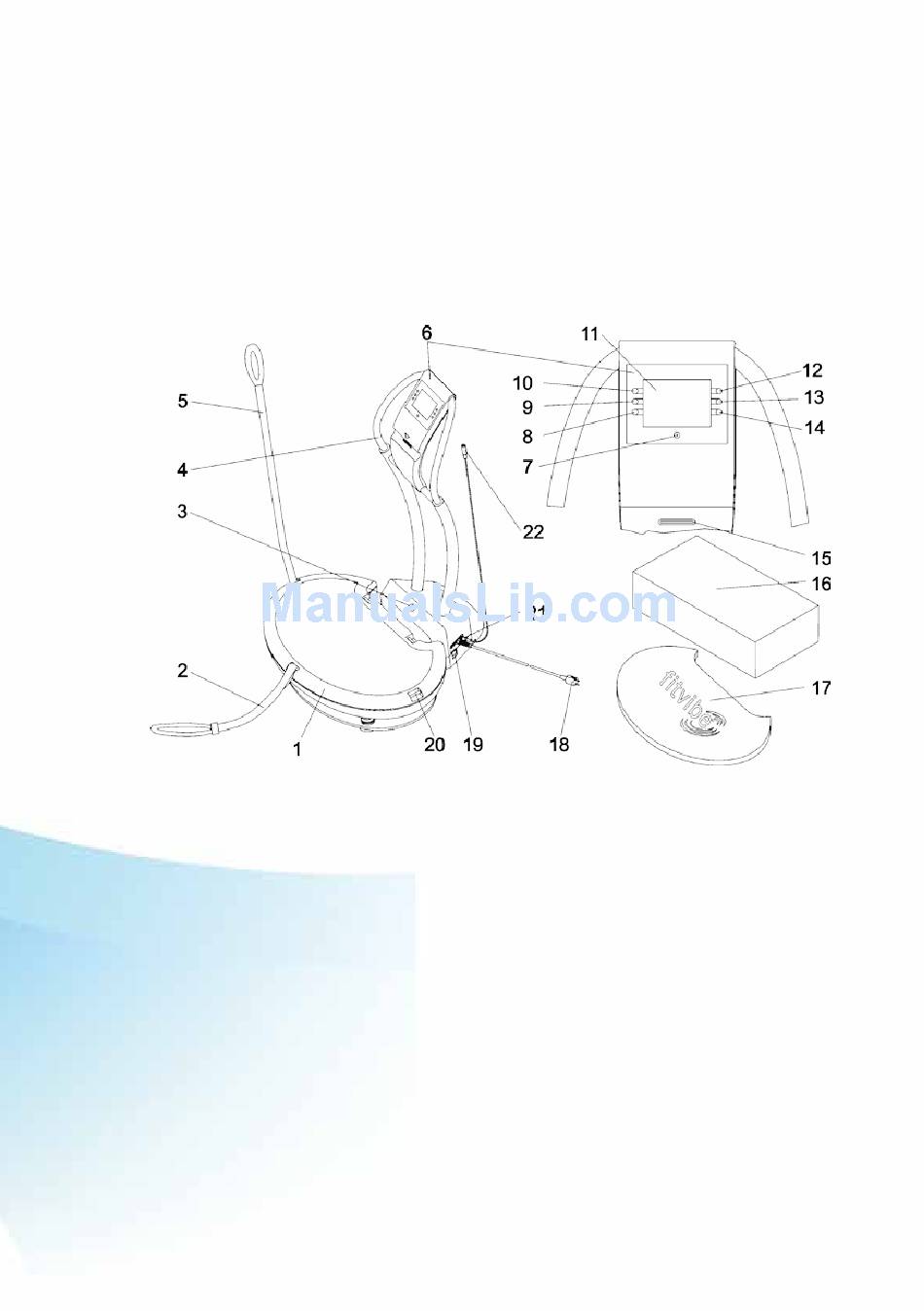

Description of the control buttons and accessories

The numerals used in the list below correspond to those used in the
diagram.
1. Vibrating platform
2. Foot strap
3. Foot switch (start/stop)
4. Handlebar
5. Hand strap
6. Control panel/display
7. "Start/Stop" button
8. Button
9. Button
10. Button
11. Display
12. Button
13. Button
14. Button
15. Card slot
16. Cushion (Optional)
17. Mat
18. Mains cable
19. Mains switch
20. Attachment point for arm or foot
strap
21. Connection socket for
hand-held remote switch
22. Hand-held remote switch
with Start/Stop button
User manual Fitvibexcel Pro Medical
- 11 -
