2. Use the Ethernet crossover cable supplied with the Ethernet Smart Cable to connect
the Ethernet Smart Cable to the host PC's Ethernet port.
3. Connect the 5 V DC power supply to the Ethernet Smart Cable power connector. As a
result, the green PWR and RUN LEDs will illuminate. The green link LED on the
Ethernet Smart Cable's RJ-45 connector illuminates (see
ing a live Ethernet connection. The green activity LED on the Ethernet Smart Cable
RJ-45 connector flickers, indicating network activity.
4. On the host PC, open the Windows Control Panel and double-click the
Internet Connections
shown in Figure 2.
UM020705-1012
icon. The Network Connections

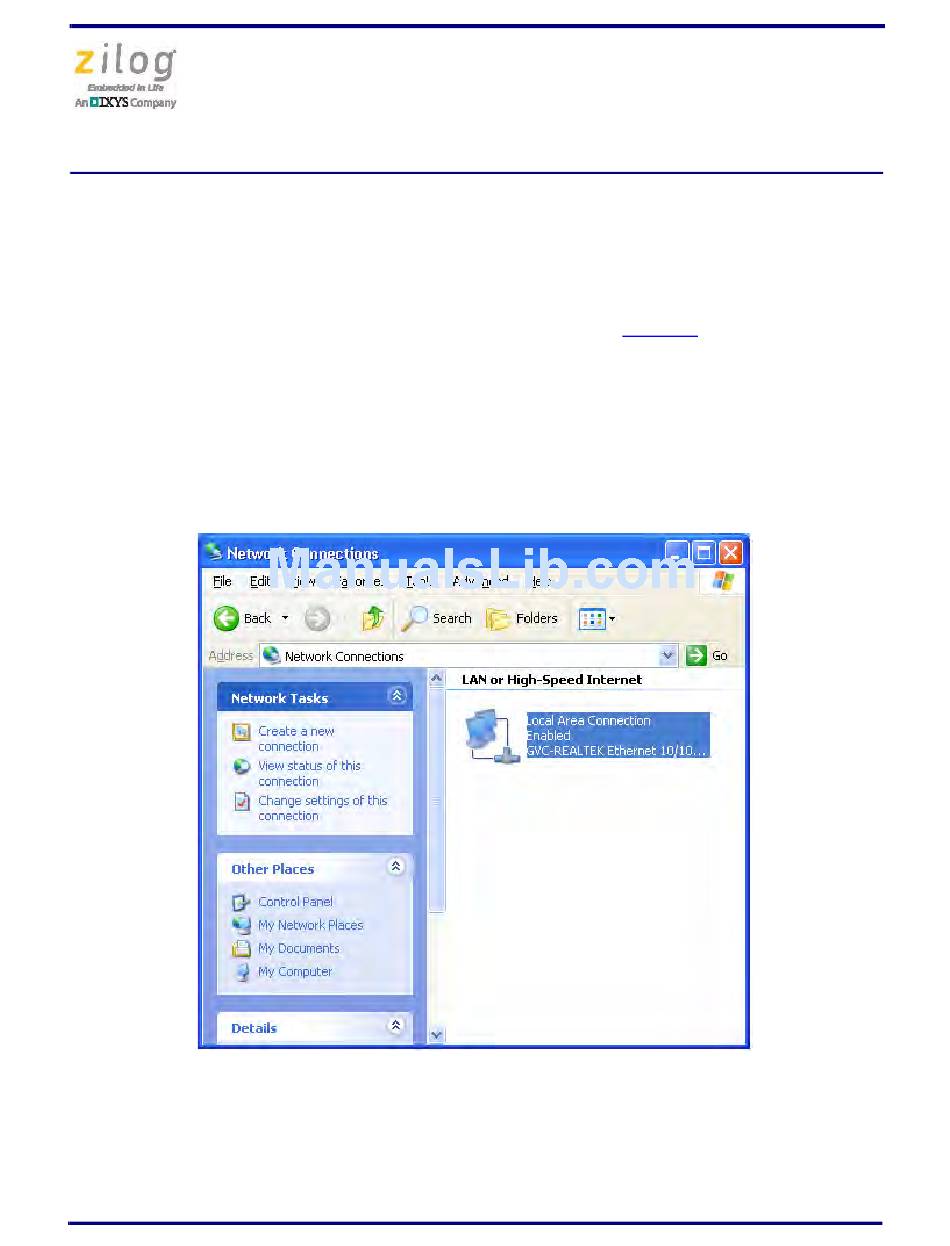

Figure 2. The Network Dialog
Ethernet Smart Cable
User Manual
Figure 1 on page 3), indicat-
Network and
dialog box will appear, as
