Summary of Contents for Kennmex POS 608

  • Page 2 Copyright Notice The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    Chapter 1 Introduction 1.1 About the Products ---------------------------------------------------------------------------------------------- 4 1.2 Specification ------------------------------------------------------------------------------------------------------ 5 Chapter 2 Hardware Setup 2.1 Unpacking POS60 ------------------------------------------------------------------------------------------------ 6 2.3 Install the Peripherals -------------------------------------------------------------------------------------------- 7 Chapter 3 Driver Installation 3.1 Install Preparation ----------------------------------------------------------------------------------------------- 8 3.2 Touch Driver Installation --------------------------------------------------------------------------------------- 8 Chapter 4 I/O Definition 4.1 IDE Disk Driver Connector ------------------------------------------------------------------------------------- 14...

  • Page 4: About The Products

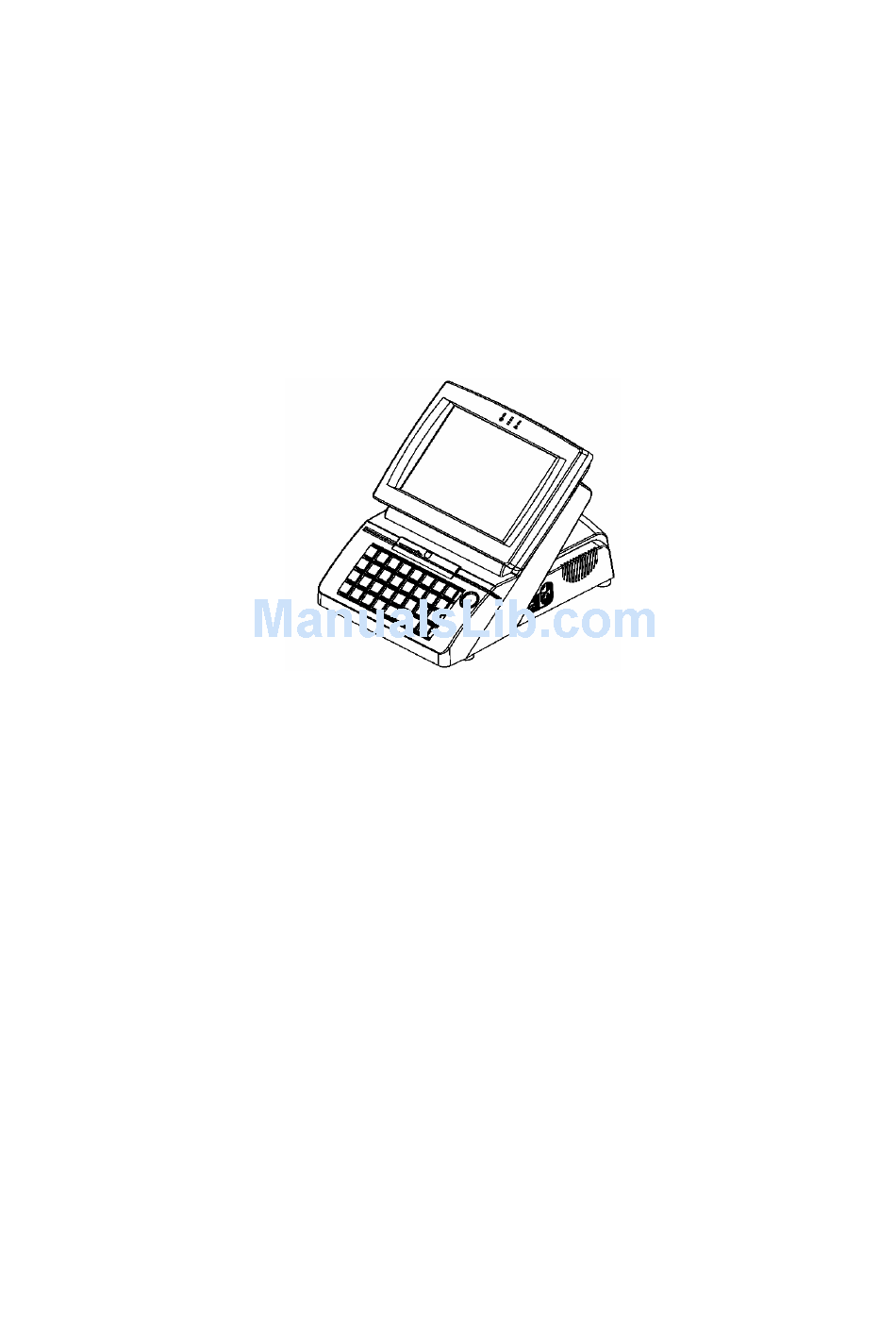

    Introduction ’ ’ The design of Solid POS60 series is a compact, extra small foot print and fan-less, providing low cost solution for budget and space saving uses. The fancy outlook of the system integrated with full functional peripherals such as touch screen, 32keys pad, Dallas I-Button Key and MSR.
  • Page 5 Main Board Celeron 400 / 650MHz System Memory 128MB DDR266, Up to 1GB Display POS 608 POS 612 TFT LCD Size 8.4" 12.1” Brightness 180nits 200nits Resolution 800x600 800x600 Touch Screen 4 / 5 Wire Resistive Type Tilt Angle 45° to 90°...

  • Page 6: Hardware Setup

    Chapter 2 Hardware Set up 2.1 Unpacking the POS60 Check that the following 3 items are presented and in good conditions: a. Main Unit b. CD: Quick Guide & Driver Bank c. Power Adapter with Power Cord: Optional USA, Europe, UK or Australia. If any of these items is missing or damaged, contact the dealer from whom you purchased the product.

  • Page 7: Install The Peripherals

    a. Remove the front cover by manual screws on bottom of base as following picture. b. Install all of peripherals to the I/O ports, then recovery the cover and screw up the manual screws.

  • Page 8: Driver Installation

    Chapter 3 Driver Installation 3.1 Install Preparation a. Please prepare 1 set of external USB CDROM. b. Connect CDROM to the USB port of right side of system. c. Turn on the system and enter to CMOS Set Up. d. Check and change “the Boot Device” to USB CDROM. e.

  • Page 14: I/O Definition

    Chapter 4 I/O Definition Please refer the detailed technical information about all of I/O ports as followings. 4.1 IDE Disk Drive Connector You can attach two IDE (Integrated Device Electronics) hard disk drives on one channel. These connectors support Ultra-DMA133 IDE devices. •...

  • Page 15: Fan Connector

    • CN6: Compact Flash Storage Card Socket Description Description GROUND CARD DETECT1 CS1# CS3# GROUND IOR# IOW# OBLIGATORY TO PULL HIGH IRQ15 MASTER/SLAVE RESET# IORDY ACTIVE# PDIAG# CARD DETECT2 GROUND 4.2 Fan Connector The system provides CPU cooling fan connector, chassis fan connector. These connectors can supply 12V/500mA to the cooling fan.

  • Page 16: Power Connector

    GROUND • COM4: CN15 for Touch screen. Description 4.4 Power Connector The pin assignments are as following: • CN19: Power Connector Description GROUND GROUND GROUND +12V +12V 4.5 VGA Connector The pin assignments are as following. • CN2: 10-pin Connector Description Description DDCDAT...

  • Page 17: Irda Interface Port

    TXOUT1+R GROUND TXOUT2-R TXOUT2+R GROUND TXCLK0-R TXCLK0+R GROUND GROUND GROUND 4.7 IrDA Interface Port The system built-in an IrDA port which support Serial Infrared (SIR) or Amplitude Shift Keyed IR (ASKIR) interface. When use the IrDA port have to set SIR or ASKIR model in the BIOS’s Peripheral Setup’s COM2. Then the normal RS-232 COM2 will be disabled.

  • Page 18: Keyboard Connector

    4.10 Keyboard Connector • PS1: Keyboard Connector DESCRIPTION KB CLK KB CLK1 KB DATA KB DATA1 GROUND 4.11 Button • CN1: ATX Power button Description Power button GROUND 4.12 Parallel Port The system includes an on-board parallel port (DSUB). • CN18 DESCRIPTION DESCRIPTION STROBE#...

  • Page 19: Cash Drawer

    4.14 Cash Drawer Connectors • Cash Drawer: CN12 Connector Cash Drawer DESCRIPTION DESCRIPTION GROUND DOUT_0 DIN_0 +12 V GROUND Note: a. Power pin 12V select by jumper setting on bottom of system. b. I/O Address: 280H for Cash Drawer which is controlled by Data bit as DIN0=>Bit0, DOUT0=>Bit4 Example:...

  • Page 20: Jumper Setting

    Chapter 5 Jumper Setting Following main board with connector location, which is indicated hardware setup of system. 5.1 Clear CMOS Setup If you want to clear the CMOS Setup (for example forgot the password you should clear the setup and then set the password again.), you should close the JP1 about 3 seconds, then open again.

  • Page 21: Lcd Power Setting

    • J JP2: This jumper is for the setting of LCD panel voltage. Description +3.3V • JP2: This jumper is for the setting of LCD panel shift clock. Description Inverted Normal 5.3 COM Port RI and Voltage Selection • JP3: is for setting COM1,2,3 RI and Voltage. Description COM1 RI Pin Use +12V COM1 RI Pin Use +5V...

  • Page 22: Bios Setup

    Chapter 6 BIOS Setup Introduction This chapter discusses the Setup program written in the BIOS. It will give you a step-by-step guidance to configure your system. The user-defined configuration is then stored in battery-backed CMOS RAM, which retains the customized information while the power is off. Starting Setup The BIOS is immediately active when you turn on the computer.
  • Page 23 Using Setup In general, you can use the arrow keys to highlight items, press <Enter> to select, use the Page Up and Page Down keys to change entries and press <Esc> to quit. The following table provides more details about how to navigate in the Setup program using the keyboard. Function Up Arrow Move to the previous item...
  • Page 24 Main Menu Once you enter the AMIBIOS™ CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to go through the items and press <Enter> to accept and enter the sub-menu. AMIBIOS HIFLEX SETUP UTILITY –...
  • Page 25 Selecting these options allow the user to configure the drive named in the option. Select Auto-Detect Hard Disks to allow AMIBIOS to automatically configure the drive. A list of drive parameters the appears on the screen. Change User Password: Change the user password. Change Supervisor Password: Change the supervisor password.
  • Page 26 Floppy A, B Move the cursor to these fields and select the floppy type. Primary/Secondary Master/Slave LBA Mode LBA (Logical Block Addressing) is a new IDE HDD access method to developed to overcome the 528-megabyte capacity bottleneck. If your IDE hard disk capacity is greater than 528MB, AMIBIOS can enable this LBA mode feature.
  • Page 27 Advanced BIOS Features AMIBIOS SETUP – ADVANCED CMOS SETUP (C)2001 American Megatrends, Inc. All Rights Reserved Quick Boot Enabled Available Options: 1st Boot Device Disabled Disabled 2nt Boot Device Disabled > Enabled 3rd Boot Device Disabled Try Other Boot Devices Boot From Lan Support Disabled S.M.A.R.T.
  • Page 28 Try Other Boot Devices Set this option to Yes to instruct AMIBIOS to attempt to boot from any other drive in the system if it cannot find a boot drive among the drives specified in the 1st Boot Device, 2nd Boot Device, 3rd Boot Device, 4th Boot Device options.
  • Page 29 Enabled: The contents of the video ROM area from C0000h – C7FFFh are copied (shadowed) from the ROM to the RAM for faster execution. C800,16k Shadow These options enable shadowing of the contents of the ROM area named in the option title. The settings are Enable Disable, Cached.
  • Page 30 Advanced Chipset Features AMIBIOS SETUP – ADVANCED CHIPSET SETUP (C)2001 American Megatrends, Inc. All Rights Reserved ********* DRAM Timing ********* Available Options: Configure SDRAM Timing by SPD Enabled Disabled SDRAM Frequency > Enabled Auto SDRAM CAS# Latency SDRAM Bank Interleave Disabled SDRAM Command Rate Memory Hole...
  • Page 31 Integrated Peripherals AMIBIOS SETUP – POWER MANAGEMENT SETUP (C)2001 American Megatrends, Inc. All Rights Reserved ACPI Aware O/S Available Options: ACPI Standby State S1/POS USB Device wakeup Function Enabled > Yes Re-Call VGA BIOS at S3 Resuming Enabled Power Management/APM Enabled Video Power Down Mode Disabled...
  • Page 32 Hard Disk Power Down Mode Set this option to Enabled to allow the IDE drive to be powered down by BIOS. Standby Time Out (Minute) This option specifies the length of a period of system inactivity while in Full power on state. When this length of time expires, the computer enters Standby power state.
  • Page 33 Power Management Setup AMIBIOS SETUP – PCI / PLUG AND PLAY SETUP (C)2001 American Megatrends, Inc. All Rights Reserved Plug and Play Aware O/S Available Options: OnChip VGA Frame Buffer Size 16MB PCI Latency Timer (PCI Clocks) > Yes Primary Graphics Adapter Boot Device Select CRT+LCD LCD Expansion Support...
  • Page 34 PNP/PCI Configurations AMIBIOS SETUP – PERIPHERAL SETUP (C)2001 American Megatrends, Inc. All Rights Reserved On Board Serial Port 3 3E8h Available Options: Serial Port 3 IRQ Disabled On Board Serial Port 4 2E8h > 3E8h Serial Port 4 IRQ 2E8h On Board Serial Port 5 2E0h 2E0h...
  • Page 35 Parallel Port IRQ This option specifies the IRQ used by the parallel port. The settings are Auto, (IRQ) 5, (IRQ) 7. Parallel Port DMA Channel This option is only available if the setting for the Parallel Port Mode option is ECP. This option sets the DMA channel used by the parallel port.
  • Page 36 APPENDIX A ADDRESS MAP IO Address Map I/O address Range Description 000-CF7 DMA Controller 040-043 System timer 060-060 Keyboard Controller 061-061 System speaker 064-064 Keyboard Controller 070-071 Real time Clock 081-08F DMA Controller 0C0-0DF DMA Controller 0F0-0FF Numeric data processor 170-177 Secondary IDE Channel 1F0-1F7...
  • Page 37 DMA Channel Assignments Channel Function Available Available Floppy disk (8-bit transfer) Available Cascade for DMA controller 1 Available Available Available...
