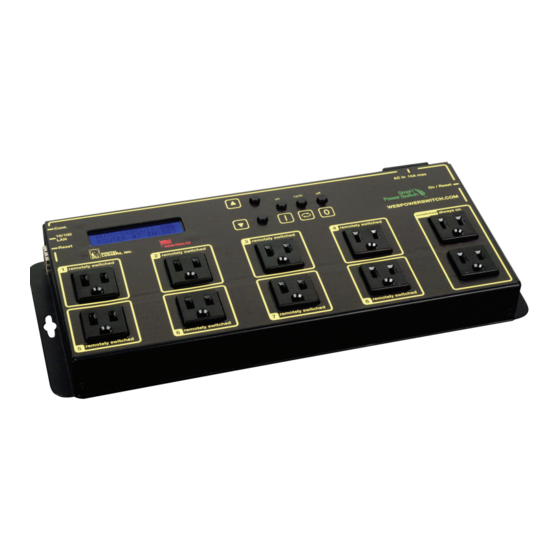

  • Page 1 Web Power Switch 7 USER’S GUIDE...

  • Page 2: Product Features

    The administrator selects which outlets each user can control. Sequenced “On Timer” A programmable delay timer allows outlets to be switched on in sequence, rather than simultaneously. Most devices draw more power when they are initially switched on. Using this timer, more Web Power Switch 7 digital-loggers.com...

  • Page 3: Standard Package Contents

    Firmware is fi eld upgradeable via Ethernet using the web or a command line utility on AC powered products only. Standard Package Contents • Web Power Switch 7 • Power Cord • Registration Card • Manual Please contact the shipping carrier immediately if your package appears opened or damaged in transit.

  • Page 4: Quick Setup

    2. Attach the power cord to a protected power source with a capacity of at least 15 amperes. 3. Attach the cable from the controller to a port on your Web Power Switch 7 digital-loggers.com...
  • Page 5 IP such as 192.168.0.50 Before adding an IP, close programs and browsers. After the link is established, you can revert to DHCP if desired or use a combination of DHCP and static IPs. Web Power Switch 7...
  • Page 6 The second step is adding an IP such as 192.168.0.50. If you are using DHCP, it’s easiest to temporarily disable it while confi guring the switch. Select Internet Protocall TCP/IP V4 Properties and click Properties. Enter a compatible static IP such as this: Web Power Switch 7 www.digital-loggers.com...

  • Page 7: Keypad Setup

    Most network settings can also be changed from the keypad. Learn how at www.digital-loggers.com/keypad.html Basic Operation After power-up, the controller performs a sequence of self-tests to ensure reliability. Network settings on the Settings page are used: Web Power Switch 7...
  • Page 8 URL fi eld of your web browser. The default is http://192.168.0.100. Home (Outlet Control) Page To access the home page, fi rst enter the IP address in web browser URL fi eld, then log in. User admin has access to all Web Power Switch 7 digital-loggers.com...
  • Page 9 Learn more: digital-loggers.com/auto-ping.html. System Log The power controller keeps a log of system events including logins (successful and attempted), outlet switching, power interruptions, and Auto-Ping events. Recent events are stored in the log and Web Power Switch 7...
  • Page 10 Use the keypad for local control: Select an outlet using the arrow keys, then press on, off, or cycle. Press ON or OFF for 5 seconds to lock or unlock an outlet. Locking prevents web access. Admin may disable the keypad on the setup page. Web Power Switch 7 digital-loggers.com...

  • Page 11: Setup Page

    This delay helps prevent power surges and blown circuit breakers which can occur when multiple devices are switched on simultaneously. A delay of 60 seconds is Web Power Switch 7...
  • Page 12 Setup page. For example, enter “Site Two Power Controller” in the description fi eld with a URL of “192.168.0.250” These links appear on the home page. Access Control The administrator can restrict user permissions to certain outlets. Web Power Switch 7 digital-loggers.com...
  • Page 13 Use the checkboxes in the Auto-Ping section to correlate the IP address to one or more outlets. If communications to the target IP is lost, these outlets will be Web Power Switch 7...
  • Page 14 Since the switch is connected inside the router, we select a target IP of 8.8.8.8. This is a multi-cast address which connects to a multidude of Google name servers. We can safely assume that if Web Power Switch 7 digital-loggers.com...

  • Page 15: Mobile Device Access

    The internal Real-Time-Clock (RTC) is provided. This clock can be set manually using the Date/Time link. The time zone can be selected based on GMT. To syncronize the clock to a networked time standard, an NTP command is provided in the scripting Web Power Switch 7...
  • Page 16 A Windows utility can be used to record activity and notify you when specifi ed trigger events occur. This utility also logs power consumption and generates reports when used in conjunction with larger power controllers. Learn more and download the utility free at digital-loggers.com/pcl.html Web Power Switch 7 digital-loggers.com...
  • Page 17 15-25A AC/DC, 1/2HP Software Controls Individual outlets on/o , all on/ o /cycle. Net settings, Web UI Surge Protection 3600WMetal Oxide Varistor Size (Single-Pack Carton) 2.4x7.7x15.8” Weight (bare) Single unit 3.6 lbs excl. cord & packaging. Web Power Switch 7...

  • Page 18: Limited Five Year Warranty

    FDA Class III applications. DIGITAL LOGGERS, INC. 2695 Walsh Avenue Santa Clara, CA 95051 Fax (408) 541-8459 SUPPORT@DIGITAL-LOGGERS.COM © 2016 DLI This product is protected by pending US patents and foreign patents Release 1.8.1 7/20/2016 Web Power Switch 7 digital-loggers.com...
