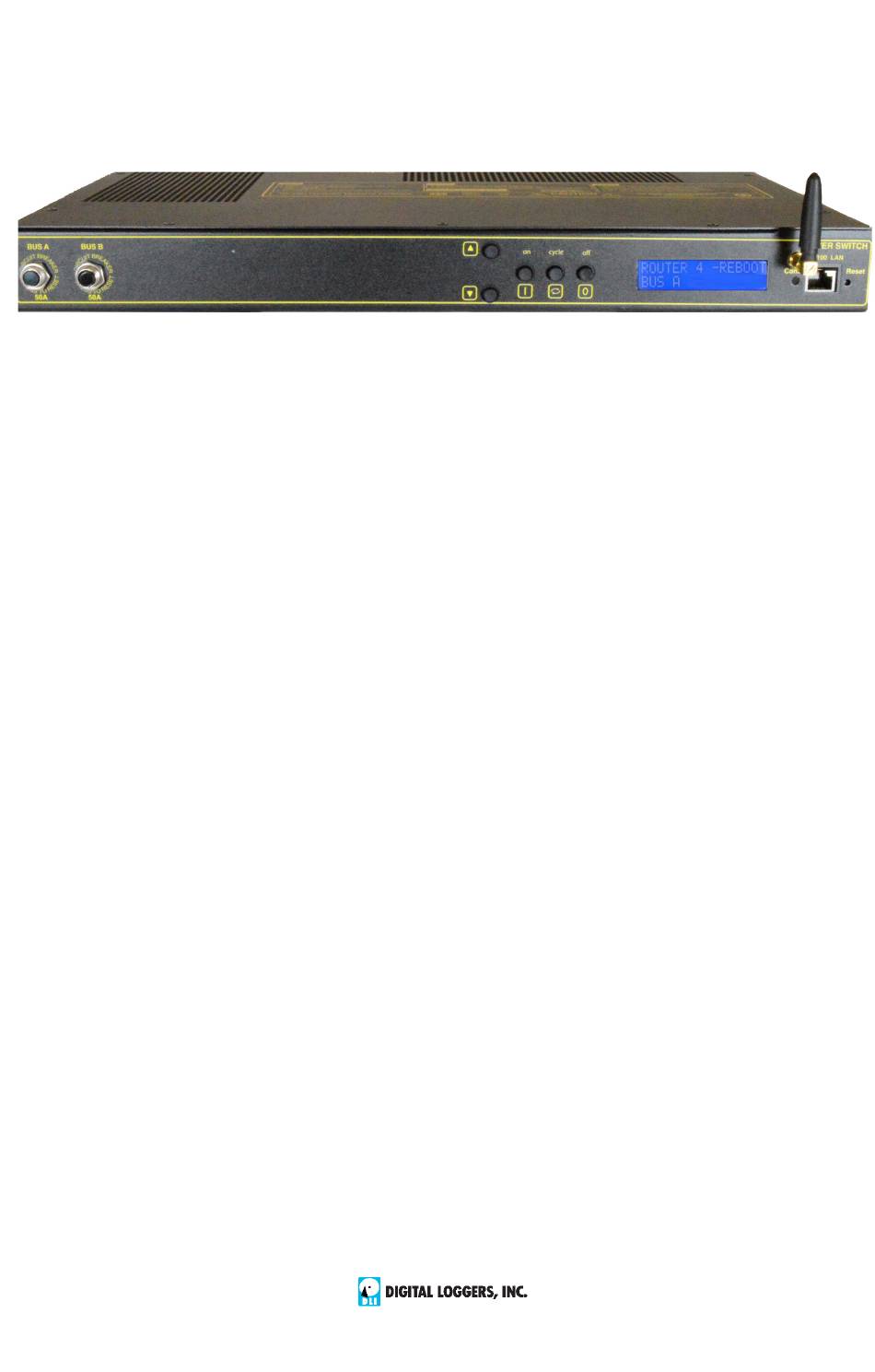

- Page 1 32-Port DC Smart Switch USER’S GUIDE...
-
Page 2: Product Features
Using this timer, more equipment can share a single circuit without overloads due to startup surge current. Lua scripts can be used to create customized power-up and shut-down sequences with variable timing. 32-Port DC Smart Switch digital-loggers.com... -
Page 3: Package Contents
Please contact the freight carrier immediately if your package appears opened or damaged in transit. Call DLI at (408) 330- 5599 for tech support, service, and hardware upgrades. The product performs a brief self-test when first powered up. 32-Port DC Smart Switch... -
Page 4: Quick Setup
100ms on both the A & B bus simultaneously • Configure the switch as described below. After each change, click Submit and wait for the page to refresh before continuing. A digital meter is handy for checking configuration and Tip: actual current drains. 32-Port DC Smart Switch digital-loggers.com... - Page 5 >Network Settings. Click Change Adapter Settings or Adapter Options. Right click on your connected network and select Properties. Proceed to step 2. Windows Step 2 The second step is adding an IP such as 192.168.0.50 Temporarily disable DHCP while configuring the switch. 32-Port DC Smart Switch...
-
Page 6: Network Configuration
Make changes shown. Point a browser to 192.168.0.100 Log in. Find Mac setup details at digital-loggers.com/mac_ip_setup Network Configuration HTTPS is disabled by default. WiFi is enabled with a random key. Start by establishing a hard-wired network connection to 32-Port DC Smart Switch digital-loggers.com... - Page 7 After setup, the HTTP and SSH ports (if enabled) may be moved to improve security. For example, changing the HTTP port to 2015 requires a browser URL of 192.168.0.100:2015 to reach the switch. Note that some browsers will deny connections to ports under 1024. 32-Port DC Smart Switch...
- Page 8 The Lua language lets you easily customize the switch. Scripts may be started manually, automatically on power-up, by external http commands, or by AutoPing events. Find a list of commands and examples at: digital-loggers.com/scripts.html AutoPing The AutoPing page lets you set parameters to automatically 32-Port DC Smart Switch digital-loggers.com...
- Page 9 Locking prevents web access. To change the display mode, press the up and down arrows simultaneously. The keypad may be disabled on the Setup page. You may also want to Cycle an attached device. This feature is 32-Port DC Smart Switch...
-
Page 10: Setup Page
This delay helps prevent power surges and blown circuit breakers which can occur when multiple devices are switched on simultaneously. A delay of 60 seconds is suggested for server applications. 32-Port DC Smart Switch digital-loggers.com... - Page 11 URL of “192.168.0.250” These links appear on the left side of the web pages. Access Control The administrator can grant users access to only certain circuits. To set permissions, login as admin first, then create a permissions 32-Port DC Smart Switch...
- Page 12 Use the checkboxes in the AutoPing section to correlate the IP address to one or more outlets. If communications to the target IP is lost, these outlets will be rebooted. Four main parameters control AutoPing: 32-Port DC Smart Switch digital-loggers.com...
- Page 13 In this example, we use AutoPing to automatically reboot a DSL router. Since the switch is connected inside the router, we select a target IP of 8.8.8.8 This is a multi-cast address which connects to a multitude of Google name servers. We can safely assume 32-Port DC Smart Switch...
-
Page 14: Internet Access
DLI. Learn more: digital-loggers.com/mobile.html Real-Time Clock An internal Real-Time-Clock (RTC) is provided. This clock can be set manually using the Date/Time link. The time zone is set based on GMT. Batteries have an estimated 15-year lifetime. 32-Port DC Smart Switch digital-loggers.com... -
Page 15: Safety Shutdown
Use the following QR codes for current manuals, and do take advantage of the FAQ page: digital-loggers.com/dc3faqs.html Your Suggestions Are Appreciated! At DLI, we listen to customers. Please send suggestions to engineering@digital-loggers.com. 32-Port DC Smart Switch... - Page 16 Latest Manual AutoPing AC Model Scripting DLI Homepage 32-Port DC Smart Switch digital-loggers.com...
-
Page 17: Specifications
Single unit 11lbs 4.8kg WiFi Atheros 9331 2.4G 802.11n RP-SMA - FCC Note: The switch may only be used with (1) the manu facturer supplied antenna (Gain: 2.0dBi),or (2) a 50 Ohm antenna of equal or lesser gain. 32-Port DC Smart Switch... -
Page 18: Limited Five Year Warranty
FDA Class III applications. DIGITAL LOGGERS, INC. 2695 Walsh Avenue Santa Clara, CA 95051 Digital-Loggers.com Support@Digital-Loggers.com © 2017 DLI This product is protected by pending US patents and foreign patents Released 5/21/2017 32-Port DC Smart Switch digital-loggers.com... -
Page 19: Related Products
Related Products: 90-240VAC Smart PDU Web Enabled DIN Relay Web Power Switch Pro Smart PoE Injector Call (408) 330-5599 32-Port DC Smart Switch... - Page 20 2695 Walsh Ave, Santa Clara, CA 95051 (408) 330-5599 digital-loggers.com...
