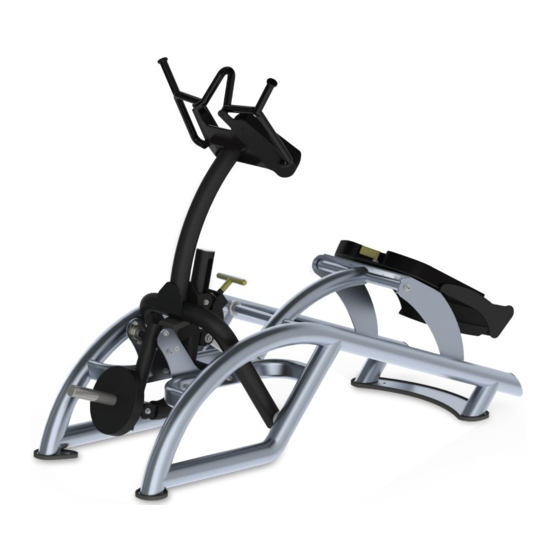

True SC1010 Owner's Manual

Ab crunch-back row composite
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

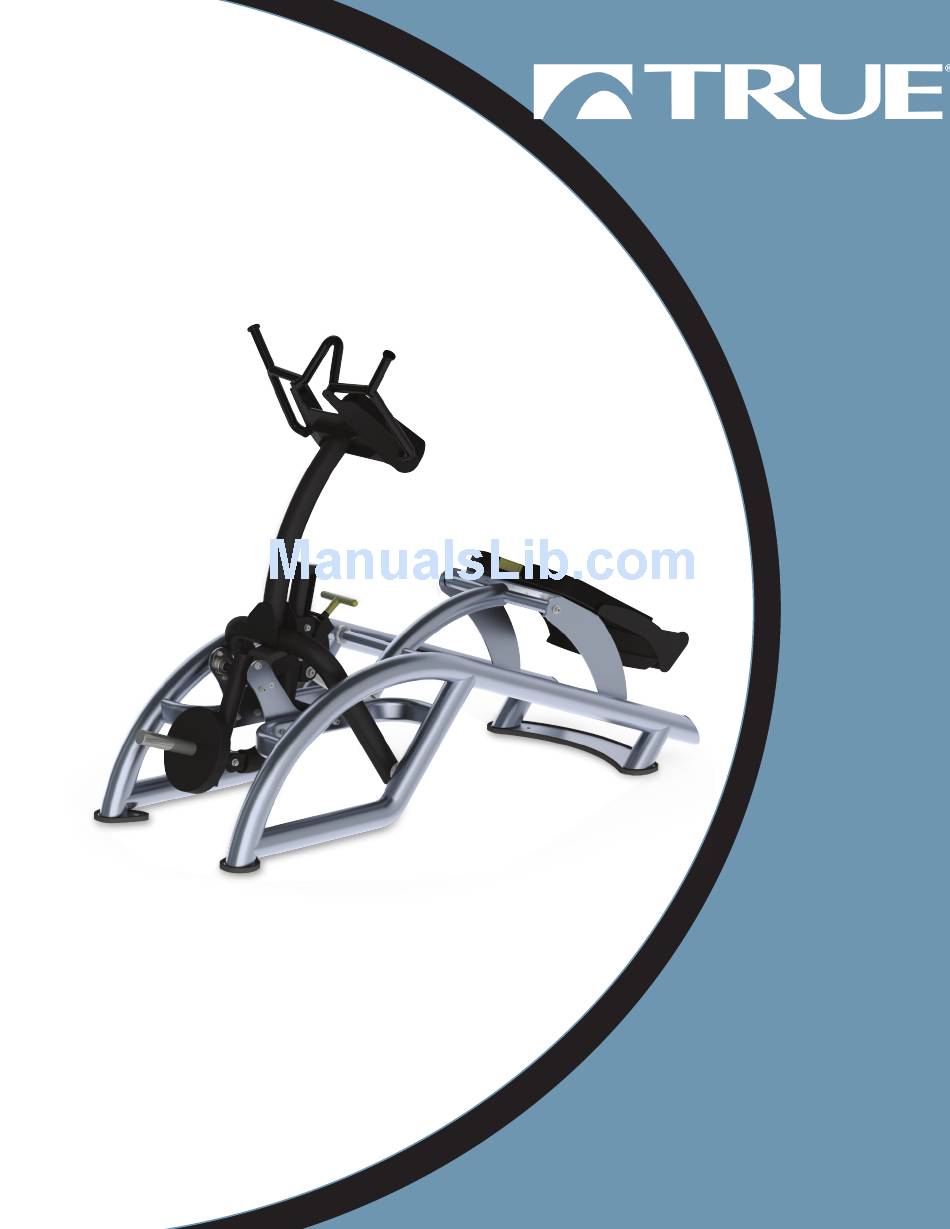

Ab Crunch-Back Row
Composite
Model # SC1010
Revision 062717
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC1010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for True SC1010

Summary of Contents for True SC1010

  • Page 1 Ab Crunch-Back Row Composite OWNER’S MANUAL Model # SC1010 Revision 062717...
  • Page 2 Технические характеристики, особенности и программного обеспечения могут быть изменены без предварительного уведомления. Для получения самой последней на сегодняшний день руководство по эксплуатации пожалуйста, посетите www.truefitness.com .Для документов на другие языки, пожалуйста, посетите www.truefitness.com/resources/document-library/ Page # 2 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 3 The proud manufacturing tradition of quality and the culture of innovation at TRUE have given rise to a full line of extraordinary cardio and strength equipment. As a result, people all over the world are benefiting from the TRUE experience.

  • Page 4: Table Of Contents

    CHAPTER 4: CUSTOMER SERVICE ..........................40 • CONTACTING SERVICE: ......................40 • CONTACTING SALES: .......................40 • REPORTING FREIGHT OR PARTS DAMAGE: ..............41 CHAPTER 5: ADDITIONAL INFORMATION: ......................42 Page # 4 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 5: Chapter 1: Safety Instructions

    9. If the machine appears damaged or inoperable, contact a facility staff member to place an “OUT OF ORDER, DO NOT USE” sign on the machine until it is repaired. Only use TRUE supplied replacement components to service this machine.
  • Page 6 3. Install this piece of equipment on a solid level surface that does not deviate more than 1/8” over a 10’ distance (or as defined and required by local building and architectural codes.) 4. TRUE strongly recommends that all equipment be anchored to the floor to prevent movement and increase stability.
  • Page 7 • Frames and Lifting Arms: Inspect weekly for integrity and function. Replace any component at first signs of wear. Use only TRUE supplied components. 4. Replace any warning label at the first sign of wear. Labels and the facility safety sign may be obtained from TRUE.
  • Page 8 Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your TRUE dealer or TRUE Fitness Technology at (800)883-8783 or service@truefitness.com. Page # 8 of 46...

  • Page 9: Commerical Maintenance Schedule

    CLEAN: Guide rods and lubricate with a teflon lubricant if equipped. CLEAN: Upholstery LUBRICATE: Pivot bearings and linear bearings. REPLACE: Cables if equipped. Page # 9 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 10: Chapter 2: Assembly Guide

    Maximum user weight is 400 lb. (182 kg.) • Maximum free weight per weight horn is 4 x 45 lb. (25 kg.) weight plates. 85" 31" 61" Page # 10 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 11: Required Tools

    Allen wrench (supplied): • 3 mm COMPLIANCES: This equipment complies with all fitness product standards. For a complete list of compliances, please visit www. TrueFitness.com. Page # 11 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 12: Pre-Assembly Checklist

    Right Main Frame item numbers shown in the SC10MF400X Footplate owner’s manual. SC10WH000 Weight Horn CW35 Counterweight SC10MF300X Weight Arm SC10LK000X Center Linkage SC10LK100X Middle Linkage Page # 12 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 13 Nylon Rod Carriage Assembly). SC10LK200X Front 4-Link Assy SC10LK300X Rear 4-Link Assy SC10CA000X Seat Carriage Assy SC10MF000X Pull Arm SC10MF200X Frame Brace SC10MF100X Lever Arm Page # 13 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 14 Note: Hardware item CW35 Counterweight, 35 lb. numbers on the tooling card may not match the harware item numbers shown in the owner’s manual. Page # 14 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 15: Assembly Steps

    The screw for the left main frame rail is used to secure the footplate in Step 8 (Footplate Assembly [Cont.]) Page # 15 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 16 Note: Use caution until the main frame SC10MF000X PULL ARM is secured with the hardware identified SC10LK000X CENTER LINKAGE in Step 3 (Frame Brace Assembly) to ASSEMBLY prevent injury. Page # 16 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 17 SHCS 3/8”-16 UNC X identified hardware. 2.75” C 754C 3/8 SAE WASHER ZINC C1024 NUT CAP 3/8”-16 UNC X 11.5MM SC10MF200X FRAME BRACE ASSY Page # 17 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 18 SC10BR003 FLANGE BEARING SC10MF200X FRAME BRACE ASSEMBLY Note: Ensure the lever arm assembly is SC10MF000X PULL ARM seated behind the pull arm. Page # 18 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 19 C1073 SHCS 3/8”-16 UNC X using the identified hardware. 3.25” C 754C 3/8 SAE WASHER ZINC C1024 NUT CAP 3/8”-16 UNC X 11.5MM Page # 19 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 20 C1023 HEX SOCKET CAP HEAD 3/8-16 UNC x 1” SC10CP200 CAP O.D. 76 mm C1042 FHSCS 10-24 x 5/8” Page # 20 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 21 SHORT CONNECTING SHAFT SC10SS000 SHAFT SLEEVE SHORT C1072 FLAT WASHER 10.5 mm x 21 mm x 1.8 mm C1023 HSCS 3/8”-16 UNC x 1” Page # 21 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 22 SC10SF000X LEFT MAIN FRAME SC10MF400X FOOTPLATE ASSEMBLY C 658 FLAT HEAD HEX CAP SCREW 3/8”-16 UNC X 1” Page # 22 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 23 C 754C 3/8” SAE WASHER ZINC with the designated holes on the pull arm. C1023 HSCS 3/8”-16 UNC x 1” Page # 23 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 24 Inser the forearm pad assembly into the front linkage using the orientation shown below. Note Ensure the selector pin aligns with one of the selector holes. Page # 24 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 25 Note: The connecting shafts can only be inserted in the link assemblies as shown due to the shaft flat ends matching up with the designated holes on the pull arm. Page # 25 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 26 Only the right pad is shown for reference, but both forearm pads must be installed during this step. Note: The forearm pads are left and right dependent. Page # 26 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 27 Part Number Description Quantity the forearm pad assembly using the C 754C 3/8” SAE WASHER ZINC identified hardware. C1023 HSCH 3/8”-16 UNC x 1” Page # 27 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 28 SCREW M5 x 0.8 x 10mm SC10SD002 RIGHT SHROUD SC10SD000 LEFT SHROUD Note: The housing covers are left and SC10SH002 SHROUD CONNECTING right dependent. SHAFT Page # 28 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 29 Note: Do not use any lubricant inside of the main frame rails or directly on the knee seat assembly wheels. Page # 29 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 30 CONNECTING SHAFT 538 mm C1072 FLAT WASHER 10.5 mm x 21 mm x 1.8 mm C1023 HSCH 3/8”-16 UNC x 1” SC10SS000 SHAFT SLEEVE SHORT Page # 30 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 31 SC10CA000X SEAT CARRIAGE ASSEMBLY C 658 FLAT HEAD HEX CAP SCREW 3/8”-16 UNC x 1” SC10PD200 KNEE PAD Page # 31 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 32 Secure the end caps to the main frame Item Part Number Description Quantity rails using the identified hardware. C1017 FLAT HEAD SOCKET SCREW #10-24 UNC x 1/2” SC00CP000 END CAP Page # 32 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 33 BACK LINKAGE BRACE secure as shown using the identified SC10CP100 LOCKING CAP SC10SH000 STAINLESS STEEL SHAFT hardware . 120 mm C1012 SH SCREW 3/8”-16 x 2-3/8” Page # 33 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 34 Step 19 (Weight Arm Assembly): Secure the weight arm to the identified Item Part Number Description Quantity items as shown below. SC10BR003 FLANGE BEARING SC10MF300X WEIGHT ARM ASSEMBLY Page # 34 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 35 3/8” SAE WASHER ZINC identified hardware. SC10MF200X FRAME BRACE ASSEMBLY C1024 NUT CAP 3/8”-16 UNC x 11.5” C 625 3/8”-16 x 1-1/2” SHCS ZINC Page # 35 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...
  • Page 36 SC10WH000 WEIGHT HORN the identified hardware. CW35 COUNTER WEIGHT 35 lbs. C 754C 3/8” SAE WASHER ZINC C 622 3/8”-16 x 3/4” SHCS ZINC Page # 36 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 37: Care & Maintenance

    The following items are critical to the safety of users and maintenance staff as well as ensuring the optimum performance of the machines. These inspections should be performed each day before the equipment is subject to use. TRUE Fitness is not responsible for performing or scheduling regular maintenance or inspections.

  • Page 38: Other Scheduled Preventive Maintenance

    CAUTION: Do not use any acidic cleaners. Doing so will weaken the paint or powder coatings and may void the TRUE Fitness Warranty. Never pour or spray liquids on any part of the equipment. Allow the equipment to dry completely before using.

  • Page 39: Cable Inspection & Maintenance

    If any of these conditions are apparent, the machine should immediately be taken out of service and repaired. Be sure to use only cables supplied by TRUE Fitness. DO NOT use cables that have fittings attached with hand- crimp tools.
  • Page 40 Ensure that the snap-link opens and closes easily and is fully engaged when closed. Replace the snap-link as needed. Page # 40 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com Truefitness.com / 800.426.6570 / 636.272.7100...

  • Page 41: Chapter 4: Customer Service

    HOURS OF OPERATION: 8:30 A.M. - 5:00 P.M. CST E-MAIL: service@truefitness.com CONTACTING SALES: Interested in TRUE products? Please contact us with any sales or product inquires so that we may direct you to the appropriate sales representative to answer your questions. TRUE FITNESS HOME OFFICE 865 HOFF ROAD ST.

  • Page 42: Reporting Freight Or Parts Damage

    Obvious damage to external packaging / internal product. Please refuse the shipment and it will be returned to TRUE Fitness by the carrier. Contact the TRUE Fitness customer support team by calling 800.883.8783 or sales support team by calling 800.426.6570 Monday-Friday during normal hours of operation to notify us that the shipment has been refused.
  • Page 43 The multi-grip handle bars provide added user stability during exercise and allow users to find the most Page # 43 of 46 comfortable position for precise exercise execution. True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com...

  • Page 44: Chapter 5: Additional Information

    Warranties outside the U.S. and Canada may vary - Please contact your dealer for details. Specifications subject to change without notice. Page # 44 of 46 True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truefitness.com t r u e f i t n e s s . c o m 8 0 0 .
  • Page 45 Hours of operation 8:30am - 5:00 pm CST workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings.
  • Page 46 DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TRUE within 30 days of purchaser’s receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.
  • Page 47 If you prefer to mail your warranty card, have the owner of the product complete the information below and return it to TRUE Fitness within 30 days from the date of equipment installation.
