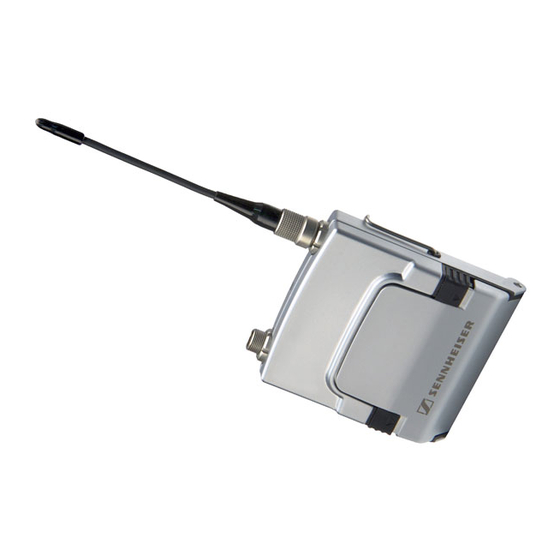

Sennheiser SK 5012 Instruction Manual
Wireless miniature bodypack transmitter
Hide thumbs
Also See for SK 5012:
- Product sheet (1 page) ,
- Instruction manual (113 pages) ,
- Instruction manual (113 pages)
Related Manuals for Sennheiser SK 5012
Summary of Contents for Sennheiser SK 5012
- Page 1 SK 5012 GEBRAUCHSANLEITUNG INSTRUCTION MANUAL NOTICE D´EMPLOI ISTRUZIONI PER L´USO INSTRUCCIONES PARA EL USO GEBRUIKSAANWIJZING BRUKSANVISNING...
-
Page 3: Delivery Includes
Delivery includes - SK 5012 - Antenna - 2 Batteries - Attachment clip - Screwdriver SK 5012 - 3... - Page 4 Operating Elements 1 Mikrofone input 2 LED for operation, battery status and peak indication 3 Antenna socket 4 Sensitivity switch 5 Channel selector switch 6 Frequency/channel data plate 7 Type plate (in battery compartment) 8 ON/OFF switch SK 5012 - 4...
- Page 5 Sennheiser a world-leading company in this field. Due to its extremely flat design and small dimensions, the SK 5012 is espe- cially suitable for applications where a very unobtrusive transmitter is being required.
- Page 6 • Voltage converter ensures constant output power until the batteries are completely discharged • LED operation indicator: LED lights up dimly • LED “low-battery“ indicator: LED blinks periodically • LED peak indicator: LED flashes brightly • Reliable, easy-to-use clip attachement SK 5012 - 6...
-
Page 7: Inserting Batteries
Insert the two batteries into the battery compartment. When closing the transmitter, make sure that the two catches at the sides lock into place. The transmitter can also be powered by rechargeable batteries. SK 5012 - 7... -
Page 8: Turning The Transmitter On
(IEC LR 03). Turning the transmitter on Set the ON/OFF switch to ON. The red LED lights up dimly. This LED also serves as a peak indicator (LED flashes brightly) and “low battery“ indicator (LED blinks periodi- cally) SK 5012 - 8... - Page 9 LED starts blinking periodi- cally.. As the batteries discharge, the blinking of the LED accelera- tes. Note If the transmitter is powered by rechargeable batteries, the LED only starts blinking shortly before the batteries are com- pletely discharged. SK 5012 - 9...
-
Page 10: Connecting Microphones
Connect the microphone’s Lemo plug to the socket at the top of the transmitter and lock the connection by screwing down the coupling ring. SK 5012 - 10... -
Page 11: Selecting A Channel
Selecting a channel Set the channel selector switch to the desired position. The assign- ment of a switch position /channel to a frequency is listed on the fre- quency/channel data plate (see inside battery compartment cover) SK 5012 - 11... -
Page 12: Attachment Of The Bodypack Transmitter
(e.g. pocket, waistband, belt) by means of the supplied clip. To avoid kinking the antenna, the clip can be withdrawn from its fixing points and attached the other way round. Make sure not to kink the antenna. SK 5012 - 12... -
Page 13: Adjusting The Sensitivity
Position 1 = high-frequency, loud audio material with many plosives Position 2,3 = loud voices, vocals, theater applications (close-miking) Position 3,4,5 = normal voices, talkshows, Position 6 = soft voices SK 5012 - 13... - Page 14 HiDyn plus This transmitter is equiped with HiDyn plus , the Sennheiser noise reduc- tion system that reduces RF interference. Together with a receiver which is also equipped with HiDyn plus (e.g. EM 1046), an RF link of excellent operational reliability and high transmission quality can be set up.
- Page 15 Accessories Only use original Sennheiser accessories and spare parts. Attention Components from other manufacturers may cause damage to the unit and will invalidate the warranty! The following “lavalier“-clip-on-microphones are available: • MKE 2-4, MKE 102-4 (omnidirectional pick-up pattern) • MKE 40-4, MKE 104-4 (cardioid pick-up pattern) Please order from your local Sennheiser dealer.
-
Page 16: If Problems Occur
Receiving antenna within the transmitter’s range? Transmitter shielded by metal constructions or metallic clothing (or antenna in direct contact with the skin)? If the problem resists, please contact your specialist dealer for assistance. Attention Never open the device! SK 5012 - 16... -
Page 17: Technical Data
AF: 3-pin Lemo RF: special co-ax Lemo Weight with batteries approx. 230 g Operating time with primary cells with alkaline manganese batteries = approx. 7 h Oper. time with rechargeable batt. (2 cells)with 700 mAH per cell = approx. 5.5 h SK 5012 - 17... - Page 18 SK 5012 - 18...
- Page 19 Vor Inbetriebnahme sind die jeweiligen, länderspezifischen Vorschriften zu beachten! Approval Sennheiser electronic GmbH & Co.KG declare that this device is in com- pliance with the applicable CE standards and regulations. Before putting this device into operation, please observe the respective...
- Page 20 !Antes de la puesta en funcionamento deberán observarse los respectivos reglamientos nacionales! Vergunning Sennheiser electronic GmbH & Co.KG verklaren, dat dit toestel voldoet de toepasselijke CE-normen en voorschriften. Voor inbedrijftstelling dient u de afzonderlijke landspecifieke voorschriften in acht te nemen!
- Page 22 Ä n d e r u n g e n v o r b e h a l t e n S u b j e c t t o a l t e r a t i o n s S o u s r é...
