Sennheiser SK 5212-II Product Sheet

SK 5212-II
Features
·
Switching bandwidth up to 184 MHz
·
Switchable transmission power
·
1 battery for 5½ hours of transmission power
·
Very small, sturdy housing
·
Sensitivity from -30 to +40 dB
·
Tunable in 5 kHz steps
·
Easy operation via jog dial
·
Adjustable low-cut filter
Architects Specifications
It shall be possible to attach a versatile
bodypack transmitter inconspicuously
to clothing due to a compact design.
With a bandwidth of up to 184 MHz, it
shall be compatible with the EM
3731/3732-II true diversity receiver
and have a sensitivity of -30 dB to
+40 dB. Operation shall be quick and
reliable. The bodypack transmitter shall
also be energy-saving with one AA
battery and shall last for at least 5½
hours of operation.

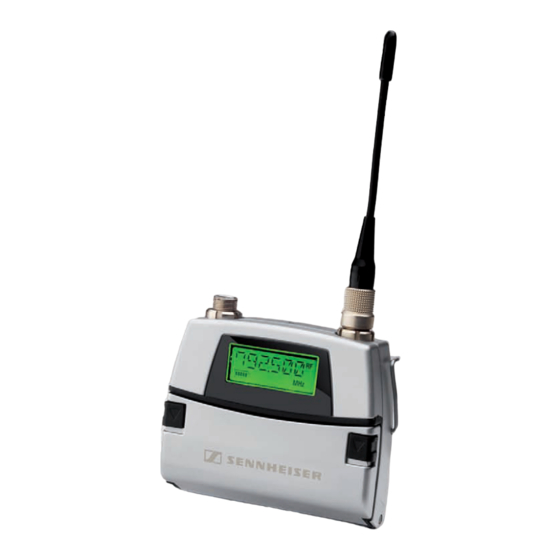

The versatile bodypack
transmitter SK 5212-II
is inconspicuous and very comfortable to
wear due to its compact design.
The transmission power can be adjusted
to increase transmission duration and
to adapt to regional regulations. The
new Low Intermodulation Mode ("LoI")
increases interference immunity, espe-
cially during multi-channel operation. The
switching bandwidth of up to 184 MHz,
more than double that of its predeces-
sors, provides extra flexibility. An input
sensitivity range of -30 to +40 dB makes
the transmitter suitable for use in quiet
interview situations as well as with very
powerful singing voices in musicals. The
SK 5212-II requires only one AA battery
for at least 5½ hours of operation and is
available in L, N, N-US and P frequency
variants.
Technical Data
RF CHARACTERISTICS
Frequency ranges . . . . . . . . . . . . . . . L: 470 - 638 MHz
Switching bandwidth . . . . . . . . . . . . up to 184 MHz
Transmission frequencies . . . . . . . . . frequency bank „FIX" with up to 59 factory-preset
RF output power . . . . . . . . . . . . . . . . switchable, typ.: 50 mW (PWR.Hi)
Frequency stability . . . . . . . . . . . . . . ±10 ppm
NF CHARACTERISTICS
Compander . . . . . . . . . . . . . . . . . . . . . Sennheiser HiDyn plus™
AF frequency response . . . . . . . . . . . 60 to 20,000 Hz
Nominal/peak deviation . . . . . . . . . . ±40 kHz/±56 kHz
Signal-to-noise ratio . . . . . . . . . . . . . typ. 110 dB(A)
THD (at 1 kHz, nominal deviation) . < 0.3 %
Sensitivity . . . . . . . . . . . . . . . . . . . . . . –30 to +40 dB, adjustable in 1 dB steps
Low-cut frequency (–3 dB) . . . . . . . adjustable: flat, 120 Hz
OVERALL DEVICE
Power supply . . . . . . . . . . . . . . . . . . . 1 AA size battery, 1.5 V
Power consumption . . . . . . . . . . . . . . PWR.LO: approx. 150 mA (10 mW) at 1.5 V
Operating time . . . . . . . . . . . . . . . . . . PWR.LO: approx. 11 hrs
Connectors . . . . . . . . . . . . . . . . . . . . . AF: 3-pin special audio socket
Dimensions . . . . . . . . . . . . . . . . . . . . . approx. 53 x 60 x 17 mm
Weight . . . . . . . . . . . . . . . . . . . . . . . . . approx. 120 g incl. battery and antenna
OPERATING CONDITIONS
Ambient temperature . . . . . . . . . . . . –10 °C to +55 °C
Relative humidity . . . . . . . . . . . . . . . . max. 90 % (non condensing)
N: 614 - 798 MHz
N-US: 614 - 697.9 MHz
P: 776 - 866 MHz
channels, frequency bank „VAR" with 20 freely tunable
channels (in 5 kHz steps)
10 mW (PWR.LO)
10 mW (PWR.LoI)
rms
PWR.HI: approx. 220 mA (50 mW) at 1.5 V
PWR.LoI: approx. 220 mA (10 mW) at 1.5 V
PWR.HI: approx. 5.5 hrs
PWR.LoI: approx. 5.5 hrs
RF: coax socket
