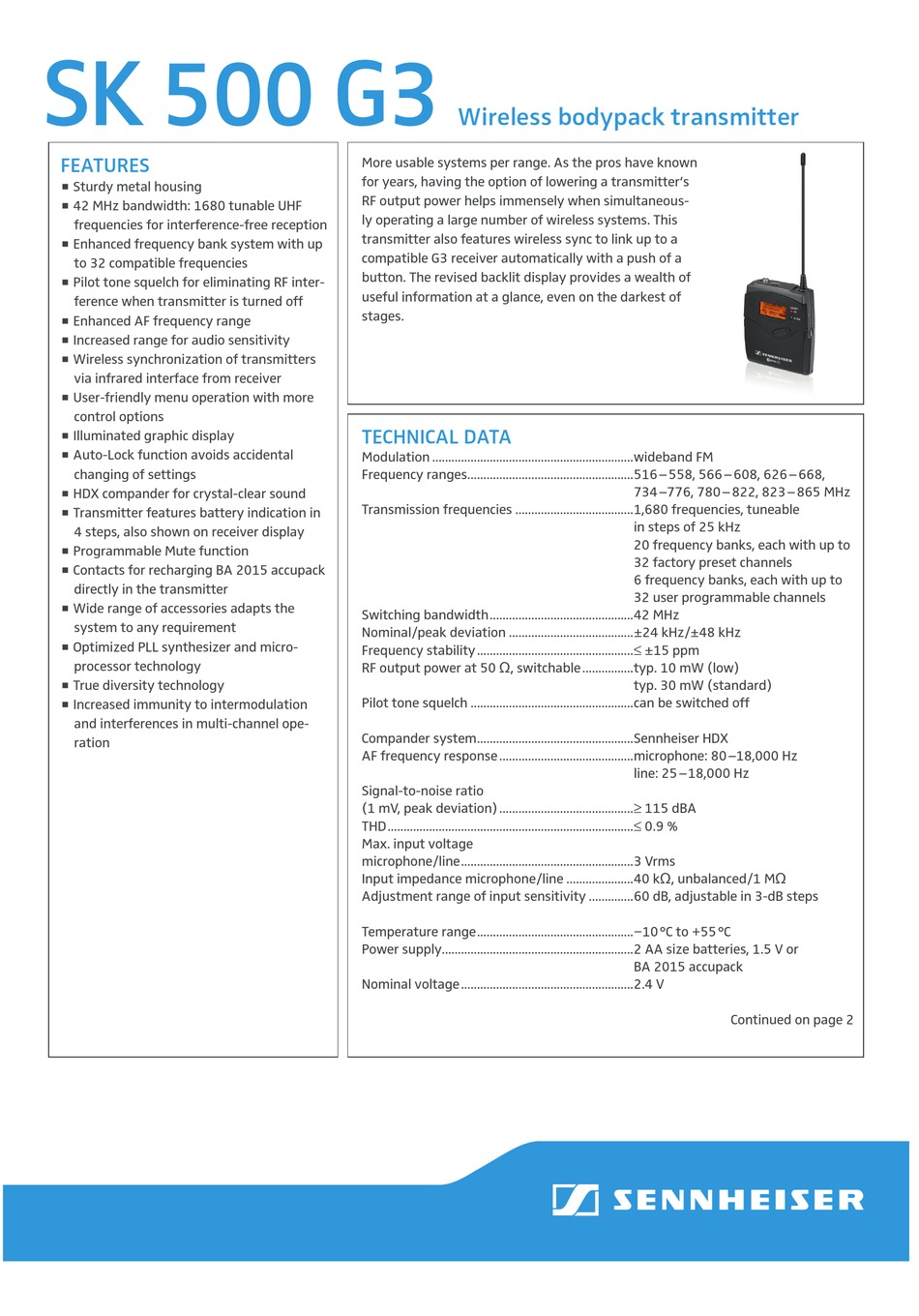

Sennheiser SK 500 G3 Specifications

SK 500 G3
FEATURES
Sturdy metal housing
42 MHz bandwidth: 1680 tunable UHF
frequencies for interference-free reception
Enhanced frequency bank system with up
to 32 compatible frequencies
Pilot tone squelch for eliminating RF inter-
ference when transmitter is turned off
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of transmitters
via infrared interface from receiver
User-friendly menu operation with more
control options
Illuminated graphic display
Auto-Lock function avoids accidental
changing of settings
HDX compander for crystal-clear sound
Transmitter features battery indication in
4 steps, also shown on receiver display
Programmable Mute function
Contacts for recharging BA 2015 accu pack
directly in the transmitter
Wide range of accessories adapts the
system to any requirement
Optimized PLL synthesizer and micro-
processor technology
True diversity technology
Increased immunity to intermodulation
and interferences in multi-channel ope-
ration
Wireless bodypack transmitter
More usable systems per range. As the pros have known
for years, having the option of lowering a transmitter's
RF output power helps immensely when simultaneous-
ly operating a large number of wireless systems. This
transmitter also features wireless sync to link up to a
compatible G3 receiver automatically with a push of a
button. The revised backlit display provides a wealth of
useful information at a glance, even on the darkest of
stages.

TECHNICAL DATA

Modulation ...............................................................wideband FM
Frequency ranges.................................................... 516 – 558, 566 – 608, 626 – 668,
Transmission frequencies ..................................... 1,680 frequencies, tuneable
Switching bandwidth .............................................42 MHz
Nominal/peak deviation .......................................±24 kHz/±48 kHz
Frequency stability .................................................≤ ±15 ppm
RF output power at 50 O, switchable ................ typ. 10 mW (low)
Pilot tone squelch ...................................................can be switched off
Compander system .................................................Sennheiser HDX
AF frequency response .......................................... microphone: 80 –18,000 Hz
Signal-to-noise ratio
(1 mV, peak deviation) ..........................................≥ 115 dBA
THD .............................................................................≤ 0.9 %
Max. input voltage
microphone/line ......................................................3 Vrms
Input impedance microphone/line .....................40 kO, unbalanced/1 MO
Adjustment range of input sensitivity ..............60 dB, adjustable in 3-dB steps
Temperature range .................................................−10 °C to +55 °C
Power supply............................................................ 2 AA size batteries, 1.5 V or
Nominal voltage ......................................................2.4 V
734 –776, 780 – 822, 823 – 865 MHz
in steps of 25 kHz
20 frequency banks, each with up to
32 factory preset channels
6 frequency banks, each with up to
32 user programmable channels
typ. 30 mW (standard)
line: 25 –18,000 Hz
BA 2015 accupack
Continued on page 2
