ClearCube CD7424SFPST Quick Start Manual

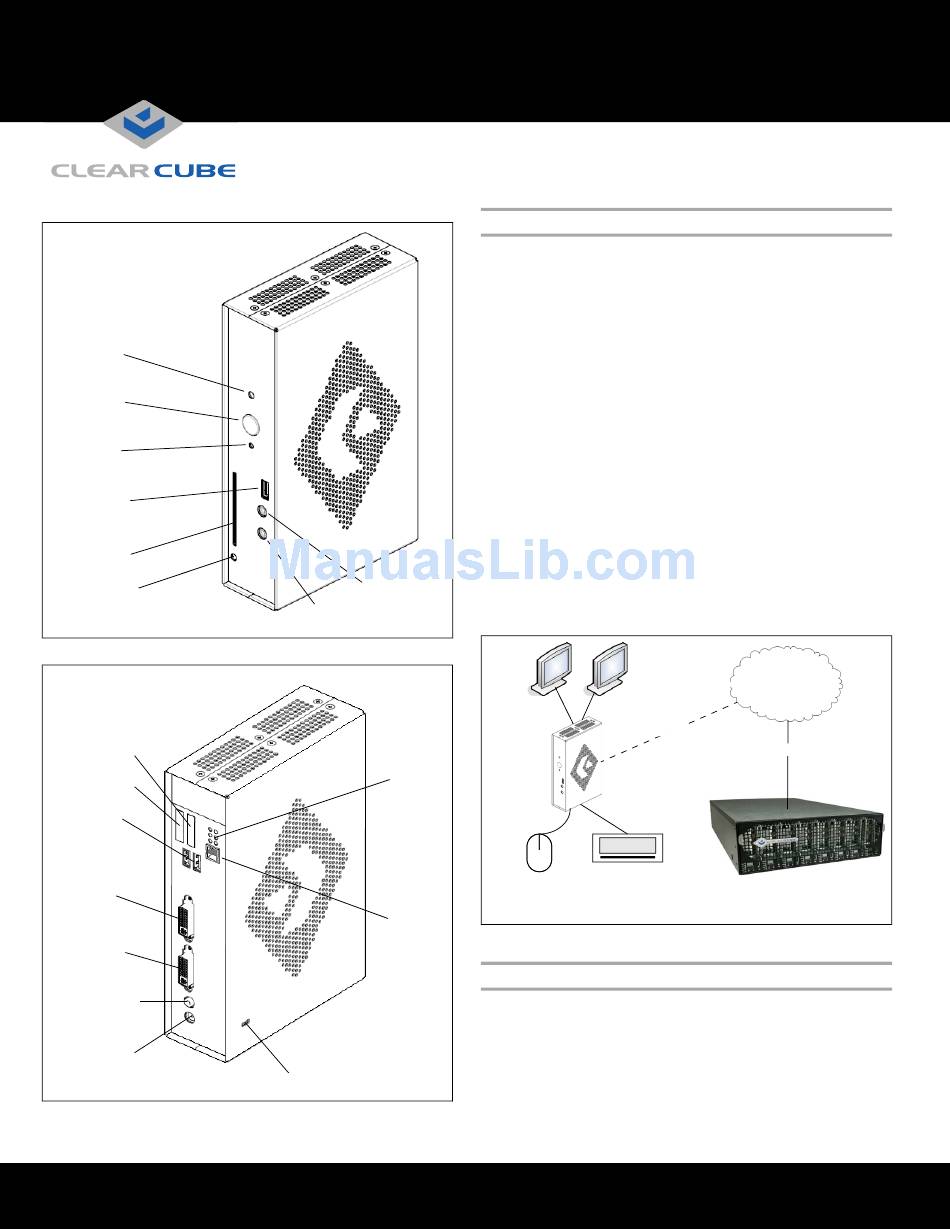

Front
PCoIP Session
Indicator
Client Power &
Indicator
Remote PC
Power
USB Port
Smart Card
Reader
Reader Activity
Indicator
Rear Rear
Serial Number
MAC Address
USB Ports
DVI #1
DVI #2
HD Audio Out
Power Jack
Kensington Security Slot
ClearCube Technology
Quick Start Guide
CD7424SFPST Zero Client
HD Audio Out
HD Audio In
Connection
Status
Indicators
SFP
Connector
8834 Capital of Texas Hwy N
Zero Client Overview
®
ClearCube CD7424SFPST Zero Clients connect to supported
ClearCube PC blades and virtual machines containing V5x20
Dual Host cards to provide the following:
• Small form-factor pluggable (SFP) socket, accepting various
Gigabit Ethernet modules
• Support for multi-mode, single-mode, and WDM single-mode
fiber media and for copper media
• Integrated smart card reader
• Support for up to two independently-configurable monitors
• PC–over–IP™ (PCoIP™) processors, delivering PC video and
audio over an IP network
• Three USB ports
• HD audio in (front) and HD 4.0 audio out
ClearCube PC blades are typically located in remote data centers.
Each blade user has a CD7424SFPST Zero Client on their desk, which
they use to connect to a remote blade or VM over an IP network
(consisting of fiber and Ethernet segments). Users connect monitors,
pointing devices, and other peripherals to their client, enabling them
to work on the blade or VM as if it is a local PC. The connection
between the zero client and the remote device is over PCoIP protocol.
Inside the blade, a V5x20 Dual Host card manages the PCoIP session.
Displays
CD7424SFPST
Zero Client
Keyboard
Mouse
* Media can vary depending on SFP module connected to zero client.
Zero client connected to blade or VM with V5x20 host card
Ensuring Client & Host Firmware Compatibility
ClearCube PCoIP zero clients and host cards must use identical
firmware versions. If you are upgrading portions of existing
ClearCube deployments, ensure that all PCoIP devices use the same
firmware version. Additionally, devices must use firmware version
3.0 or higher in a VMware
Guide and PCoIP Firmware Support and Compatibility Guide on
the ClearCube Support site for instructions about identifying and
updating PCoIP device firmware.
—Continued on Reverse—
Austin, Texas 78759 voice 512 652 3500 www.clearcube.com
Network
Infrastructure
* Fiber
Copper
Chassis with Blades and VMs
®
View environment. See PCoIP User's
