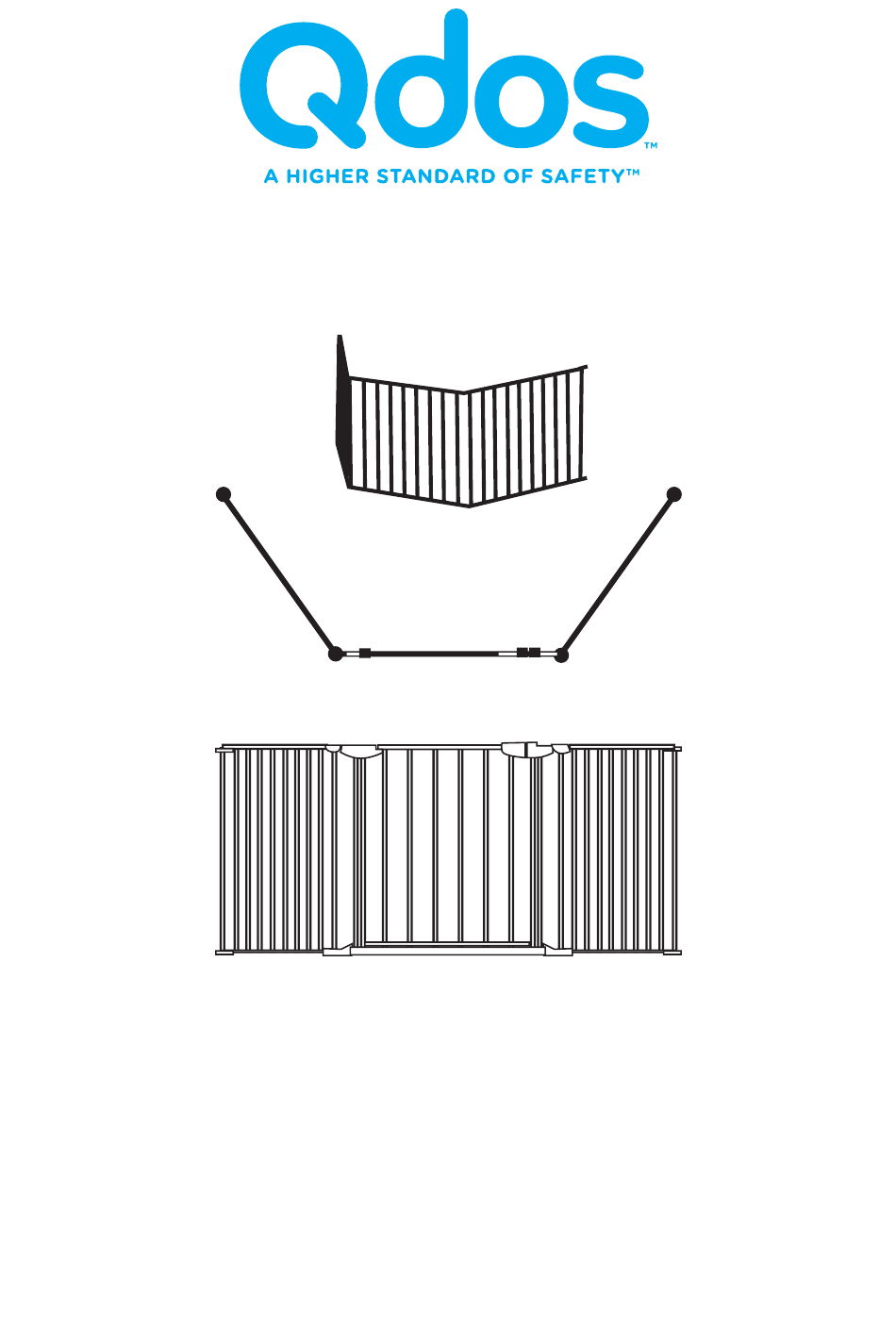

USER GUIDE
Construct-A-SafeGate
Height 30" (76 cm)
Maximum Opening 79" (202 cm) with included hardware
Add additional extensions to fit any opening
IMPORTANT:
Qdos wants to keep your children safe
and for that we need you to do your part by carefully
reading and following the instructions below. Please read
through the instructions before starting the installation.
For installation videos and FAQ go to: QdosSafety.com
Advertisement
Table of Contents
Related Manuals for Qdos Construct-A-SafeGate
Summary of Contents for Qdos Construct-A-SafeGate
- Page 1 Maximum Opening 79” (202 cm) with included hardware Add additional extensions to fit any opening IMPORTANT: Qdos wants to keep your children safe and for that we need you to do your part by carefully reading and following the instructions below. Please read through the instructions before starting the installation.
-
Page 2: Maintenance And Cleaning
• Intended for use with children from 6 months up to 24 months of age. Qdos will either repair, or at its option replace, free of • NEVER use this gate immediately at top of stairs charge, any parts necessary to correct any defect in as the bottom cross bar creates a tripping hazard. -
Page 3: Part List
PART LIST: 1x Door Section 2 x Side Panels 1x Under Hinge Cover 2x Top Hinge Covers Large Small opening opening 2x Wall Bracket A 2x Wall Bracket B 8x Short 3/4” (19 mm) 8x Long 1.5” (38 mm) with bigger (1.5”/38 mm) with smaller (1”/25 mm) Screws Screws... - Page 4 ASSEMBLY Flush hinge General The following assembly instructions work for all sections and extensions of the Construct-A-SafeGate. The sections and extensions can be assembled and reassembled in any Open hinge order to fit the location. Floor Insert the Connecting Spindle with the shiny end and the Step 1 Allen Wrench opening toward the the top.
-
Page 5: Mounting To The Wall
MOUNTING TO THE WALL The Construct-A-Gate must be secured to a wall, except when used as a free standing playard. Always secure the gate with both the top and bottom Wall Brackets. Only screw the Connecting Spindle in partially by hand Step 6 to allow possible angle adjustments of the gate without having to disassemble. - Page 6 Insert the Under Hinge Cover on the Top Hinge on the Slide the second Wall Bracket A onto the Connecting same side of the gate, then slide Wall Bracket B over the Spindle with the cone shaped end down. top hinge and insert the Connecting Spindle. Wall Bracket A Wall Bracket B Flat hinge...
- Page 7 Step 11 the drywall. Then use the Long Screws 1.5” (38 mm) to mount the gate into the stud. Remove the Wall Plates from the Wall Brackets by depressing the locking tab. Any other surface If mounting into drywall, brick or other surface, use only the appropriate hardware for that surface.
-
Page 8: Gate Operation
FREE STANDING PLAYARD To assemble as a free standing playard begin by following Steps 1 through 5. You then connect the ends of the enclosure together as instructed. GATE OPERATION To open – Slide locking button back and at the same time lift the door. - Page 9 Distributed by Regal Lager, Inc. Kennesaw, GA 30144 USA 1-800-593-5522 • www.QdosSafety.com ©2018 Qdos All rights reserved. Qdos is a trademark of Regal Lager, Inc. Made in China 05/2018...
