Summary of Contents for Rexing F10
-

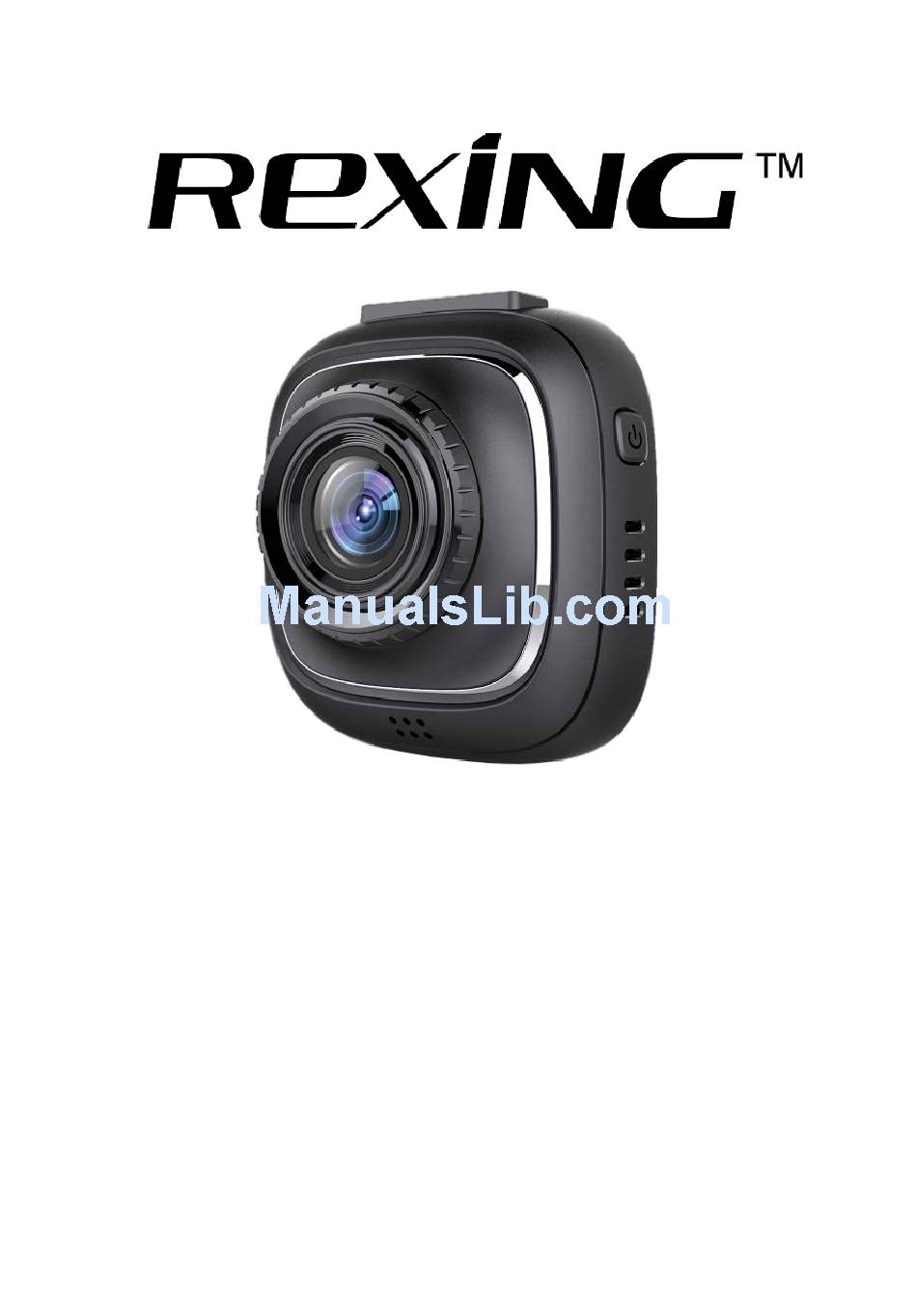

Page 1: User Manual
USER MANUAL The information in this manual is subject to change without notice. www.rexingusa.com 11/2017 © 2 0 1 7 R E X I N G A l l R i g h t s R e s e r v e d . -
Page 2: Safety Information
Failure to comply with safety warnings and regulations can result in serious injury or death. Rexing Dash Cam is not intended to be touched, modified, or calibrated while operating a vehicle. Rexing is not responsible for any damages resulting from the user's misuse of the camera. - Page 3 • your device. Using an incompatible charger can cause serious personal injury or damage to your device. Rexing cannot be responsible for the user’s safety when using • accessories or supplies that are not approved by Rexing. Do not drop the charger or device, or subject them to impact. Handle and dispose of the charger and device with care.
- Page 4 hazard. If children use the device, make sure they use the device properly. Never use a damaged charger. • Do not handle a damaged or leaking lithium ion (Li-Ion) battery. For safe disposal of your Li-Ion battery, contact your nearest authorized service center. ©...
- Page 5 If you notice strange smells or sounds coming from your device, or if you see smoke or liquid leaking from the device, stop using the device immediately and take it to a Rexing Service Center. Failure to do so may result in fire or explosion.
- Page 6 Do not store your device in excessively hot, cold, damp or dry locations. Doing so may cause the screen to malfunction, result in damage to the device, or cause the battery to explode. Your device is recommended for use within a temperature range of -10 °C to 70 °C, and a humidity range of 10% to 80%.
- Page 7 Clean your device and charger by wiping with a towel or eraser. Do not use chemicals or detergents. Doing so can discolor or corrode the outside of the device, and may result in electric shock or fire. Do not distribute copyright-protected material. Doing so without the permission of the content owners may violate copyright laws.
-
Page 8: Correct Disposal Of This Product
Correct disposal of this product (applicable in countries with separate waste collection systems) Waste Electrical & Electronic Equipment This symbol, found on the device, accessories or accompanying literature, indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material... - Page 9 ANY CONTENT OR SERVICE MADE AVAILABLE THROUGH THIS DEVICE AND UNDER NO CIRCUMSTANCES, INCLUDING NEGLIGENCE, SHALL REXING BE LIABLE, WHETHER IN CONTRACT OR TORT, FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, ATTORNEY FEES, EXPENSES, OR ANY OTHER DAMAGES...
- Page 10 Third party services may be terminated or interrupted at any time, and Rexing makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Rexing has no control.
-
Page 11: About This Manual
• Content may differ from the final product or from software provided by service providers, and is subject to change without prior notice. For the latest version of this manual, refer to the Rexing website at • www.rexingusa.com. Available features and additional services may vary by device and software. -
Page 12: Table Of Contents
Contents PRODUCT SPECIFICATIONS ............15 GETTING STARTED ..............16 Device Layout................16 Buttons ................... 17 Status Icons ................18 Package Contents ..............20 Installation ................21 Charging the battery ............... 22 Inserting the Memory Card ............ 23 Removing the Memory Card ........... 25 Formatting the Memory Card .. - Page 13 Exposure ................. 29 Motion Detection ..............30 Recording Audio ..............30 Date Stamp ................30 Gravity Sensing ............... 30 SYSTEM SETTINGS ............... 31 WiFi ..................31 Date/ Time Setup ..............31 Auto Power Off ............... 31 Beep Sound ................31 Language .................
- Page 14 Resolution ................34 Sequence ................34 Quality..................34 Sharpness ................35 White Balance ................. 35 Color..................35 ISO ................... 35 Exposure ................. 36 Anti-Shaking ................36 Quick Review ................36 Date Stamp ................36 Updating Firmware ..............37 Playback Mode ................38 Deleting Files................
-
Page 15: Product Specifications
PRODUCT SPECIFICATIONS Image Sensor 5MP CMOS Lens Fixed-focus with full-glass elements Aperture F = 2.8 Audio Built-in high-sensitivity microphone/speaker External Memory Class 10 or above MicroSD card (SDHC spec.) Gravity Sensor Low / Medium / High / OFF Shutter Electronic White Balance Auto Exposure... -
Page 16: Getting Started

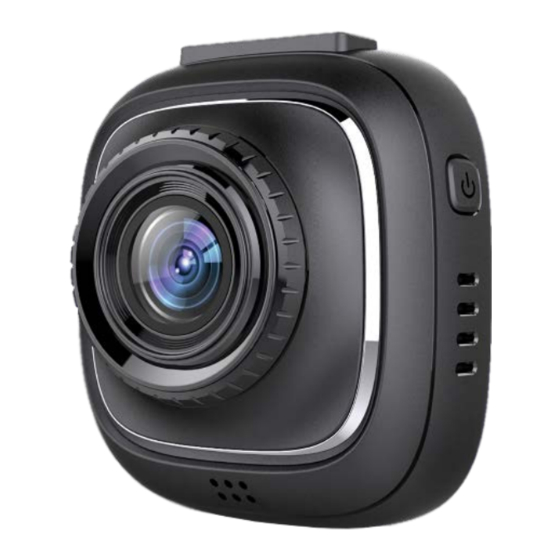

Getting Started Overview of your F10 Dashboard Camera GETTING STARTED Device Layout Power/OK Button MODE Button Up/Zoom In Button Down/Zoom Out Button MENU/WiFi Button Mini USB Port MicroSD Card Slot © 2 0 1 7 R E X I N G A l l R i g h t s R e s e r v e d . -
Page 17: Buttons
Getting Started Unpacking your F10 Dashboard Camera Buttons Button Functions • When in settings: Press to confirm a selection • Hold to turn the device on or off | OK • Press to start / stop recording • When not recording: Press to toggle between Recording /... -
Page 18: Status Icons
Getting Started Unpacking your F10 Dashboard Camera Status Icons Icon Meaning 1080FHD Video Resolution Wide Dynamic Range Charging via USB Charger Battery Power Level Microphone Mute Microphone On Video Recording Mode Video Playback Mode Photo Mode Loop Recording © 2 0 1 7 R E X I N G A l l R i g h t s R e s e r v e d . - Page 19 Getting Started Unpacking your F10 Dashboard Camera Memory Card Inserted White Balance Current video file locked © 2 0 1 7 R E X I N G A l l R i g h t s R e s e r v e d .
-
Page 20: Package Contents
Malfunctions resulting from the use of unapproved accessories are not covered by the warranty service. For more information about available accessories, refer to the Rexing website at www.rexingusa.com. © 2 0 1 7 R E X I N G A l l R i g h t s R e s e r v e d . -
Page 21: Installation
Getting Started Installing your F10 Dashboard Camera Installation Video guide: video.rexingusa.com 1. Attaching the front camera to the window mount Before the device can be used in a car, it is essential to first install a properly attached window mount. Make sure that you place the recorder in a safe, appropriate location where it will not obstruct the driver’s view. -
Page 22: Charging The Battery
Installing your F10 Dashboard Camera 3. Connecting the charger to the car's 12V DC outlet Be sure to connect only the Rexing-approved charger designed and supplied specifically for use with your device. Using an incompatible charger can cause serious personal injury or damage to your device. -
Page 23: Inserting The Memory Card
If the device is not charging properly, take the device and the charger • to an authorized Rexing Service Center or contact Customer Care. Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. - Page 24 Getting Started Installing your F10 Dashboard Camera It is recommended that you reformat a memory card after every time the images are transferred to a computer, or at least once a month. Reformatting a memory card keeps important elements of data and file structure clean, helping to prevent error messages and missing images.
-
Page 25: Removing The Memory Card
Do not remove the memory card while the device is transferring or accessing information. Doing so can result in data loss or corruption, or damage to the memory card or device. Rexing is not responsible for losses that result from the use of damaged memory cards, including the loss of data. -
Page 26: Turning The Device On And Off
To turn off the device, again press and hold the Power/OK button for a few seconds. A goodbye message will be displayed onscreen. Note: The F10 Dashboard Camera will switch on and off automatically if you keep it permanently connected to the car charger. If the car charging port provides a continuous flow of power, the camera will stay powered on at all times. -
Page 27: Basic Operation
Using your smart device (iPhone, Android, etc.), please download the “TimaCam” app from either the App Store or Google Play Store. After doing so, please follow the below instructions to connect your F10 to your smart device. Press the Power/OK button to stop recording. -
Page 28: Video Settings
Operating your F10 Dashboard Camera Settings VIDEO SETTINGS In Video Recording Mode, Press Power/OK to stop recording, then press MENU button once open the Video menu. Resolution Recommended setting: 1080FHD Use this setting to set the recording resolution. Approximate recording time:... -
Page 29: Loop Recording
Operating your F10 Dashboard Camera Settings Loop Recording Recommended setting: 3 Minutes With Loop Recording Mode enabled, the device will continuously erase older video as it records new video, keeping only the images captured over a user- selected time range. All video older than this range will be replaced with the newest video recorded. -
Page 30: Motion Detection
Operating your F10 Dashboard Camera Settings Motion Detection Recommended setting: Off Motion detection will record video when motion is detected by the device. Note: The device needs to be powered to use motion detection function. Recording Audio Recommended setting: On Allows you to record audio with your video, or turn off the microphone so that all your recordings will be without audio. -
Page 31: System Settings
Operating your F10 Dashboard Camera Settings SYSTEM SETTINGS In Video Recording Mode or Photo Mode, press MENU twice to open the Setup menu (in Video Recording Mode, you must first stop recording, done by pressing Power/OK). WiFi Used to enable/disable Wi-Fi function (See: Page 27). -
Page 32: Language
Operating your F10 Dashboard Camera Settings Language Use this setting to change the device’s language. Language availability may vary depending on the region. Frequency Recommended setting (for United States): 60Hz This option should be set according to the power supply specification used in your country or geographical region (U.S. -
Page 33: Format
Operating your F10 Dashboard Camera Settings Format Performing this operation will format the memory card. Note: All files in the memory card will be lost, including locked videos. Default Setting Performing this operation will reset all your device's settings to their original values. -
Page 34: Photo Settings
Operating your F10 Dashboard Camera Photo Settings PHOTO SETTINGS In Photo Mode, Press MENU once to open the Still Menu. Capture Mode Recommended setting: Single Allows you to set a timer that counts down before capturing images. Resolution Recommended setting: 5M This option allows you to set the pixel resolution for captured images. -
Page 35: Sharpness
Operating your F10 Dashboard Camera Photo Settings Sharpness Recommended setting: Normal This feature will automatically enhance captured images for a clearer, more distinct picture. White Balance Recommended setting: Auto This setting allows you to adjust the white balance for different lighting environments. -
Page 36: Exposure
Operating your F10 Dashboard Camera Photo Settings Exposure Recommended setting: +0.0 Allows you to adjust the camera exposure value to either brighten or darken your images. Anti-Shaking Recommended setting: Off This feature enables the image stabilizer function to reduce blurring of captured images. -
Page 37: Updating Firmware
Operating your F10 Dashboard Camera Updating Firmware Updating Firmware After locating the appropriate firmware from the Rexing website, follow these instructions to update the firmware for your F10 Dashboard Camera. 1. Download the firmware file to your computer 2. Unzip the file 3. -
Page 38: Playback Mode
Operating your F10 Dashboard Camera Playback Playback Mode To play back recorded video on your device: 1. Press Power/OK to stop recording in Video Recording Mode 2. Press MODE twice to switch from Video Recording Mode to Playback Mode 3. Use the ▲ ▼ buttons to navigate through your recordings 4. -
Page 39: Pc Playback Function
Operating your F10 Dashboard Camera Playback To delete all recordings: 1. Use the ▲ ▼ buttons to navigate through your recordings 2. Press MENU to view the following options for the selected recording: Delete/Protect/Slide Show 3. Press the ▼ button once to select "Delete"... -
Page 40: General Troubleshooting
Operating your F10 Dashboard Camera Troubleshooting General Troubleshooting Problem Possible Cause Solution Reformat memory card Memory card may be or replace with a new full or malfunctioning Images are not stored in memory card Image isn’t being Make sure to stop... - Page 41 Operating your F10 Dashboard Camera Troubleshooting Charge the battery for 3 hours, making sure the unit is off while Not holding charge Battery may be charging depleted Keeps rebooting Turn on the unit and Power cord may be unplug it; if it turns off...
- Page 42 Operating your F10 Dashboard Camera Troubleshooting May have saved to the RO folder Check the SD Card RO When you lock a file, it Can’t find locked files folder on your only saves the current computer recording, so the remainder of the video...
- Page 43 Operating your F10 Dashboard Camera Troubleshooting Check remaining space on memory card and delete files if necessary Memory card may be full Reformat your memory Unable to record card; if the issue videos persists, replace your Memory card may be...
- Page 44 Operating your F10 Dashboard Camera Troubleshooting Restore default settings Stops recording after 1- SD Card may not be Use a different SD 3 looped videos compatible Card Replace power cord “File error" is encountered when Memory card may be Format the memory...
- Page 45 Operating your F10 Dashboard Camera Troubleshooting This feature can only Car charging port has work if it is being used Auto On/Off function continuous flow of in a charging port that isn’t working power turns off with the vehicle Device is constantly...
