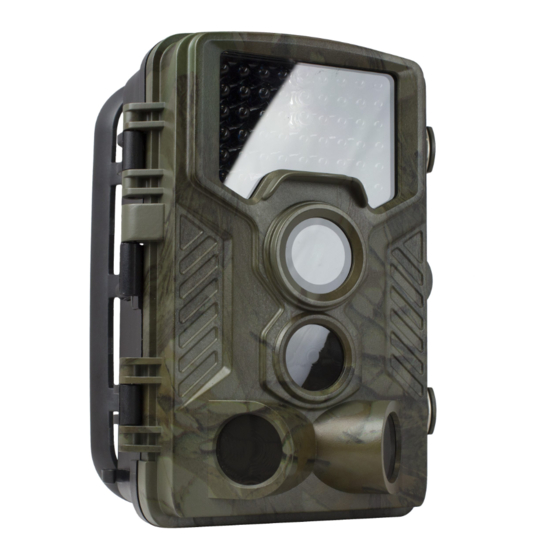

H1 Blackhawk
User Manual
The information in this manual is subject to change without notice.
Rexing All Rights Reserved
www.rexingusa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H1 Blackhawk and is the answer not in the manual?

Questions and answers

Related Manuals for Rexing H1 Blackhawk

Summary of Contents for Rexing H1 Blackhawk

  • Page 1 H1 Blackhawk User Manual The information in this manual is subject to change without notice. Rexing All Rights Reserved www.rexingusa.com...
  • Page 2 We hope you love your new products as much as we do. If you need assistance, or have any suggestions to improve it, please contact us. care@rexingusa.com (877) 740-8004 Our support team will respond you as soon as possible. Always a surprise in Rexing. Check us out here. • https://www.facebook.com/rexingusa/ • https://www.instagram.com/rexingdashcam/ • https://www.rexingusa.com/support/registration/...

  • Page 3: What's In The Box

    What’s in the box? H1 Blackhawk User Manual The information in this manual is subject to change without notice. www.rexingusa.com Installation Tool Rexing Woodlens H1 Blackhawk Camera USB to Mini-USB Cable Strip Mount AV Cable Screw Mount User Manual Mounting Screws (3x)
  • Page 4 1. Introduction Thank you for choosing one of our easy operation highly qualified products. You now may enjoy the excellences reflected on this series product. This camera was totally R&D by our diligent and smart engineers based on feedbacks and requirements from customers globally. May you enjoy and adore this product as we do.
  • Page 5 Warning • Do not mix old and new batteries. • Do not mix battery types - use ALL lithium or ALL alkaline. • Rechargeable batteries are not recommended. Power Adaptor - Security Surveillance Purpose This camera can also be powered by an external 6V/2A DC adapter. Recommend to remove the alkaline batteries when power adapter is used to avoid surcharging.
  • Page 6 1.4 Key Specification • 2MP CMOS sensor. • 42pcs IR LED flash to cover a range of 65 feet. • Adjustable PIR sensitivity. • Impressive quick trigger time: 0.2s • Adjustable delay between motions. • 4 or 8pcs AA alkaline batteries, stand by 6 months. •...

  • Page 7: Camera Overview

    2. Camera Overview Front Side Back Side...
  • Page 8 Right / Left Side Bottom Side...
  • Page 9 Buttons and Keys Menu Key Mode Key Shot Key LCD Screen Direction Key Battery Cover OK Button SD Card Slot USB Port DC In Port Tripod Receptacles Mode Switch Key...
  • Page 10 • Switch key ON gear, the device enters the automatic monitoring and shooting state, and automatically takes photos or videos. • SETUP gear, users can modify settings, preview, test shot and playback photo and video. • OFF gear, turn off the device. *MENU key Shift to Settings Menu.

  • Page 11: Getting Started

    3. Getting Started 3.1 Install SD card Open the latches and front housing , insert the SD card, push it until hearing a “Click” sound. 3.2 Install AA Battery Use 4 pcs or 8 pcs AA battery to power on the device. Open the latches and remove battery cover .
  • Page 12 3.4 Menu Setting Press MENU button to enter menu setting, press UP / DOWN button to choose and press OK button to enter submenu. Under submenu, press UP / DOWN button to choose and press OK button to confirm . Press MENU button to return to the previous menu.
  • Page 13 Sensitivity Middle Low / Middle / High Target On: Start: 00:00 - 23:59 Recording Time Off: Stop: 00:00 - 23:59 Time Lapse Normal / TL video / Off Language English English/Deutsch/Dansk/Suomi/Svenska/ Español/Français/Italiano/Nederlands/ Português/Simplified Chinese/ Traditional Chinese/Japanese Endless Capture On/Off Time & Date yyyy/mm/dd 24h Set time &...

  • Page 14: Playback Mode

    3.5 PIR Mode - ON Gear Push the SWITCH button to ON gear after finishing setting on SETUP gear. The device will switch to PIR mode 10s later. The device will work according to the saved settings. 4. Playback Mode Photo files and video files recorded by the camera can be played back on the camera.

  • Page 15: Specification

    5. Specification Image Sensor 2M Sensor Lens FOV 55° IR light / Range 42 pcs IR LED / 50 feet SD/SDHC card, Max. to 128GB (Class10 or faster) Storage Format: JPEG / Resolution: VGA, 2MP, 3MP, 5MP, 8MP, 12MP, 16MP Photo Format: AVI / Resolution: VGA (640x480), 720P (1280x720), 1080P (1920x1080) Video...

  • Page 16: Troubleshooting

    6. Troubleshooting 6.1 Can’t switch on camera Please check if the batteries polarity is correct or check battery power level in daylight without enabling IR light. Reload the batteries and reboot the camera without inserting a SD card. If the above step can’t work, please format or replace your SD card and try again. 6.2 Picture color abnormal Turn off the camera and reload the batteries, and try to reboot the camera.

  • Page 17: Warranty And Support

    Warranty & Support Warranty The Rexing H1 Blackhawk comes with a full 12-month warranty. If you register your product on our official site (https://www.rexingusa.com/support/registration), you can extend the warranty to 18 months. Support If you have any questions regarding your product, please do not hesitate to contact us at care@rexingusa.com, or call us at...
