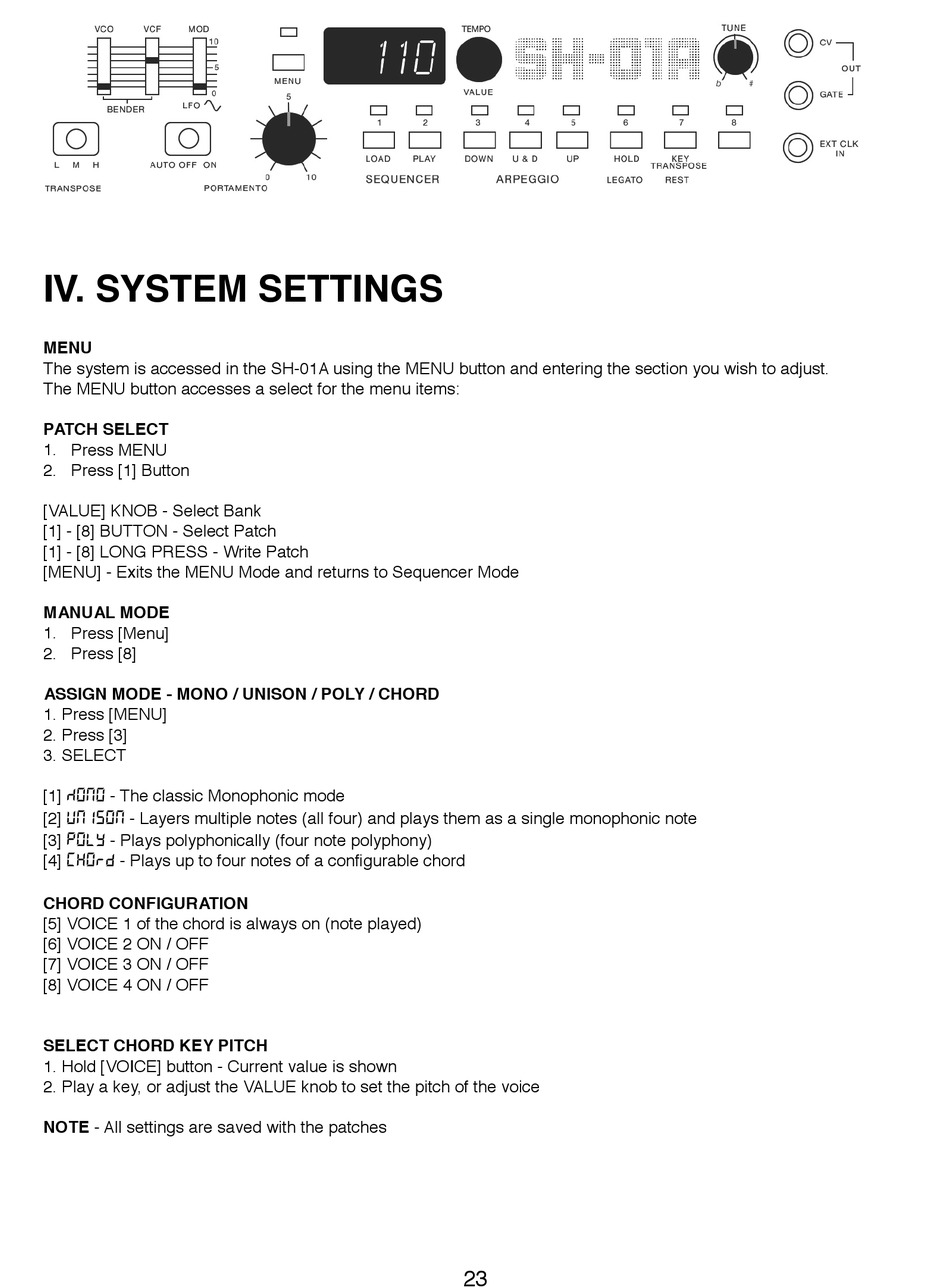

IV. SYSTEM SETTINGS

The system is accessed in the SH-01A using the MENU button and entering the section you wish to adjust.

The MENU button accesses a select for the menu items:

PATCH SELECT

1. Press MENU

2. Press [1] Button

[VALUE] KNOB - Select Bank

[1] - [8] BUTTON - Select Patch

[1] - [8] LONG PRESS - Write Patch

[MENU] - Exits the MENU Mode and returns to Sequencer Mode

MANUAL MODE

1. Press [Menu]

2. Press [8]

ASSIGN MODE - MONO / UNISON / POLY / CHORD

1. Press [MENU]

2. Press [3]

3. SELECT

[1] MONO - The classic Monophonic mode

[2] UNISON - Layers multiple notes (all four) and plays them as a single monophonic note

[3] POLY - Plays polyphonically (four note polyphony)

[4] CHORD - Plays up to four notes of a conﬁgurable chord

CHORD CONFIGURATION

[5] VOICE 1 of the chord is always on (note played)

[6] VOICE 2 ON / OFF

[7] VOICE 3 ON / OFF

[8] VOICE 4 ON / OFF

SELECT CHORD KEY PITCH

1. Hold [VOICE] button - Current value is shown

2. Play a key, or adjust the VALUE knob to set the pitch of the voice

NOTE - All settings are saved with the patches
