Intech Z-2400-A2R Installation Manual

Wireless repeater

Advertisement

Quick Links

Z-2400-A2R
®
Wireless Data Links Using ZIGBEE
For Analogue and Digital Interface.
FCC ID
2ACTT-1409
Installation Guide.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z-2400-A2R and is the answer not in the manual?

Questions and answers

Summary of Contents for Intech Z-2400-A2R

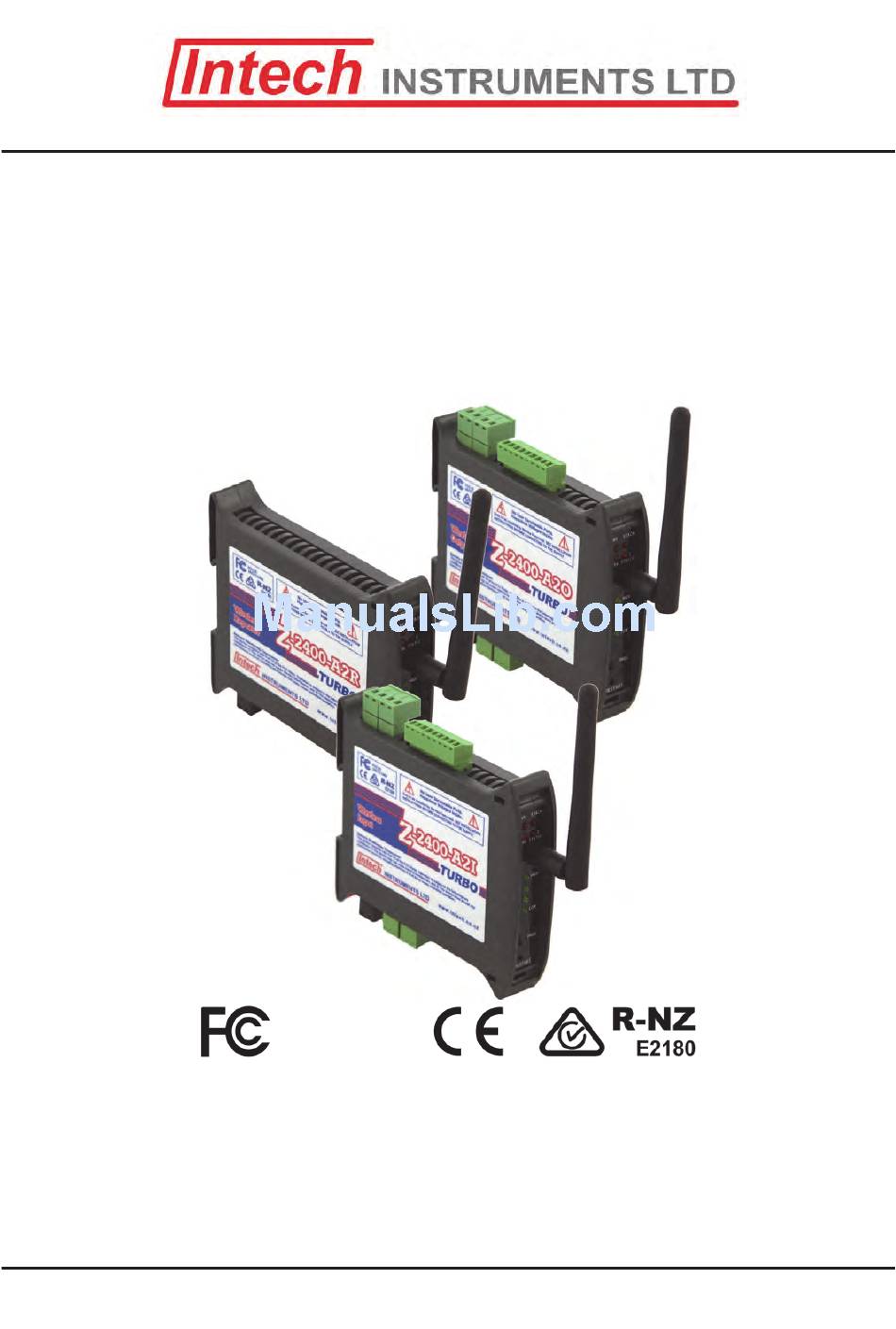

  • Page 1 Z-2400-A2R ® Wireless Data Links Using ZIGBEE For Analogue and Digital Interface. FCC ID 2ACTT-1409 Installation Guide.
  • Page 2: Table Of Contents

    Z-2400-A2R Wireless Repeater Installation Guide Index. Description. Page 3 Ordering Information. Page 3 Z-2400-A2R Specifications. Page 4 Physical Layout Z-2400-A2 Series. Page 5 Front Panel Connections and LEDs. Page 5 Z-2400-A2R Power Supply Connection. Page 5 Diagnostic LEDs. Page 6 RF Signal Quality LED Indication.
  • Page 3: Description

    Z-2400-A2 Wireless Series. In particular, consult this manual in all cases where hazard symbols are marked on your Z-2400-A2I, Z-2400-A2O and Z-2400-A2R nodes, in order to understand and avoid potential hazards. The safety of any system incorporating these units is the responsibility of the assembler of the system.
  • Page 4: Z-2400-A2R Specifications

    Z-2400-A2R Specifications. Power: Supply Voltage 9~36Vdc. Consumption 2.5VA Max. Environment: Operating Temperature -20~+55°C. Storage Temperature -20~+65°C. Operating Humidity 0~85%. Altitude 2000m. Transmission: RF Data Rate 250Kb/s. RF Frequency 2405~2475MHz. RF Channels RF Power 10mW or 100mW (User Selectable to comply with region wireless standards).
  • Page 5: Physical Layout Z-2400-A2 Series

    Additional High Gain Antennas Available. PROG: USB input to program Analogue Outputs via XU-USB Programming Kit. (Software: uP Configure version 1.2.8.0 or later.) RESTART: Button to reboot the Z-2400-A2 node. Z-2400-A2R Power Supply Connection. Power Supply: 9~36Vdc. Power Consumption: 2.5VA.
  • Page 6: Diagnostic Leds

     One illuminated LED indicates very weak or no signal.  Two illuminated LED’s indicates low signal level.  Three illuminated LED’s indicates medium signal level.  Four illuminated LED’s indicate high signal level. Z-2400-A2I Z-2400-A2R Z-2400-A2O Low Signal Level from Medium Signal Level from Medium Signal Level from Input node to Repeater node.
  • Page 7: Power And Zigbee Network Led Indication

    Set unique ZigBee Mesh ID networks to pair your Z-2400-A2 devices. (The Input and Output nodes are supplied paired to each other with a unique Mesh ID, however the Z-2400-A2R Repeater will always need to be paired to the unique Mesh ID.) ...
  • Page 8: Z-2400-A2 Usb Connection

    To run uP Configure, double click on the icon on your desktop. uP Configure Home Screen With your Z-2400-A2R connected to your computer via the XU-USB programming key, Click on the Connect button. The next screen that comes up is the ‘Overview’ of the Z-2400-A2 node connected.
  • Page 9: Configuring The Z-2400-A2R

    Configuring the Z-2400-A2R: With the Z-2400-A2R repeater node, there are only two parameters to configure: the ‘Mesh ID’ and the ‘Wireless Transmit Power’. Because the repeater is sold separate to the Input & Output nodes, it requires the Mesh ID pairing with your Input/Output Z-2400-A2 wireless set.
  • Page 10: Troubleshooting

    Troubleshooting. It is possible that the ZigBee® wireless nodes will fail to communicate if they are in too close a proximity to each other. If you are trying a lab test before you fully commission on site, as is recommended, then make sure the distance between the Z-2400 wireless nodes is at least one metre.
  • Page 12 Christchurch Ph: +64 3 343 0646 Auckland Ph: 09 827 1930 Email: sales@intech.co.nz Z-2400-A2R 071017 ® ZigBee is a registered trademark of the ZigBee Alliance, Inc.

This manual is also suitable for:

Z-2400-a2 series
