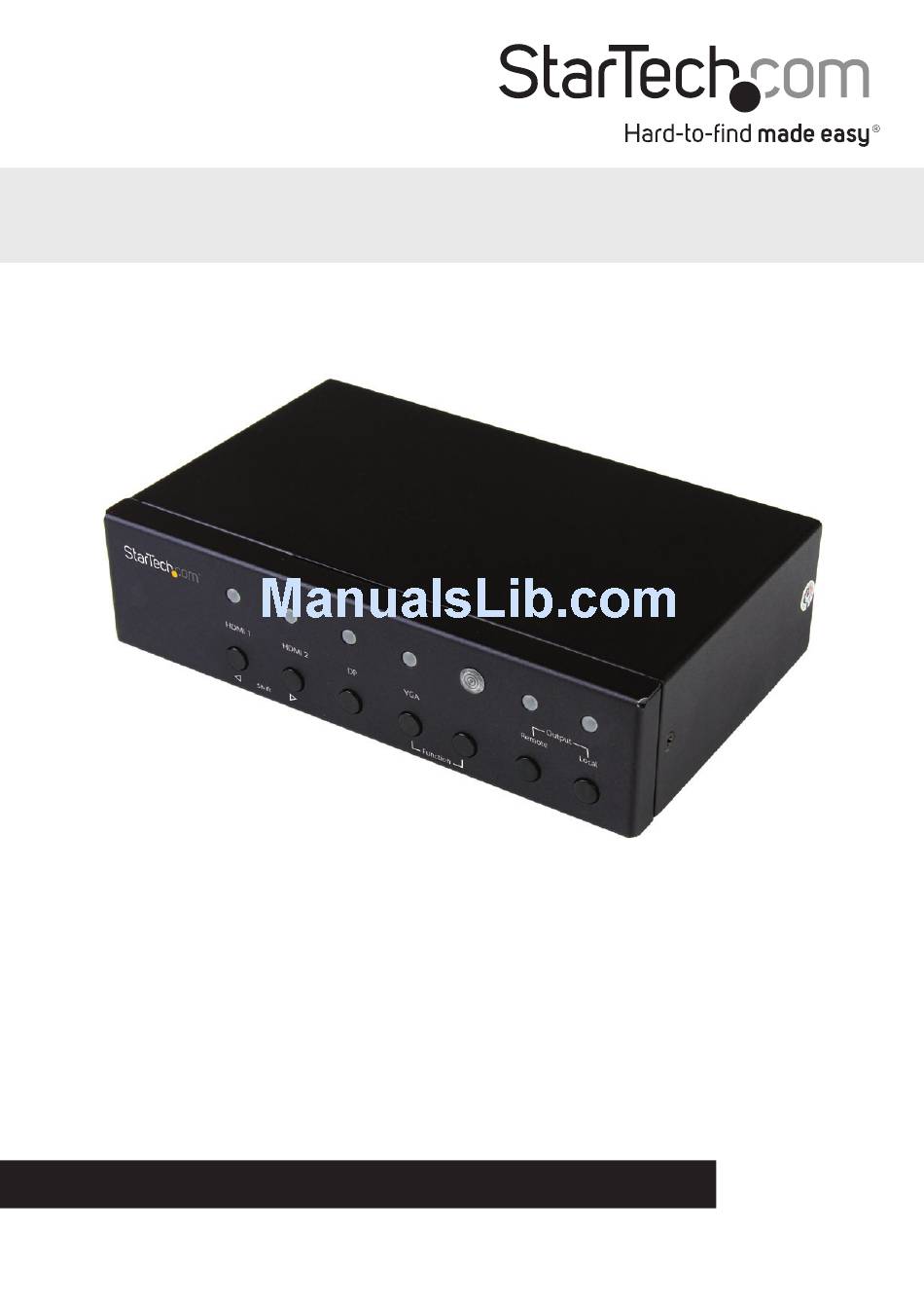

- Page 1 HDMI®, VGA and DP to HDMI Converter Switch - 4K HDVGADP2HD *actual product may vary from photos FR: Guide de l’utilisateur - fr.startech.com DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Switch diagram ....................1 Front view ..............................1 Rear view ..............................2 Introduction ......................3 Packaging contents ..........................3 System requirements ..........................3 Installation ......................4 Operation ......................5 Mode selection and switch operation ....................5 VGA screen shifting ..........................6 Manual operation with serial control .................... -
Page 4: Switch Diagram
Switch diagram Front view 1. Selected port LEDs 2. Input selection buttons 3. IR sensor 4. Function button 5. Status LED 6. Power button... -
Page 5: Rear View
Rear view 1. DC12V power adapter port 8. DisplayPort input port 2. Control port (RJ11 serial jack) 9. HDMI input port #1 3. (In) Control port (IR extender) 10. HDMI input port #2 4. HDMI output port 5. Mode switch 6. -
Page 6: Introduction
Introduction Packaging contents • 1 x converter switch • 1 x IR remote control • 1 x screw kit • 1 x mounting bracket kit • 1 x footpad set • 1 x RJ11-to-RS232 converter • 1 x RJ11 cable •... -
Page 7: Installation
Installation Note: Ensure your display and video sources are powered off before you begin installation. 1. Connect each of your video sources to the input ports on the video converter switch using the required cabling (not included). 2. Connect an HDMI cable (not included) to your display and to the converter switch’s HDMI output port. -
Page 8: Operation
Operation Mode selection and switch operation This switch features multiple operating modes. Review the description and operating steps for each mode in this section, then use the Mode switch to the switch to your desired operating mode. Switch mode operation (1. Switch) Switch mode enables you to switch between video sources by pressing the Input selection button that corresponds with your desired video source. -
Page 9: Vga Screen Shifting
Manual operation with remote control 1. Press buttons 1 through 4 on the right side of the IR remote control to switch between the HDMI #1, HDMI#2, DisplayPort, and VGA ports respectively. 2. The active selected port LEDs will light up on the extender switch, indicating which port is selected, and your desired video source will appear on the HDMI and HDMI display. -
Page 10: Manual Operation With Serial Control
Manual operation with serial control 1. Configure the settings on your serial port according to the values shown below. Baud Rate: 38400 bps Data Bits: 8 Parity: None Stop Bits: 1 Flow control: None 2. Open your terminal software and configure it to communicate through the COM port that the switch is connected to. - Page 11 You can enter each of these commands into your terminal and press Enter to control the switch. A general description of each primary command is listed in the table below. Primary command codes Action Value(s) required? Switches the selected inputs Enables the HDMI output Disables the HDMI output Displays various current settings...
- Page 12 If the command requires a value, the command will be listed in your terminal readout with =n next to it and a brief explanation of how the value should be utilized. If multiple values are required, the command is listed in your terminal readout with =n,a1,a2 If the command you’re entering requires a single value, the command needs to be modified to Command=Value1.
-
Page 13: Led Indicators
LED indicators This switch has LED indicators that light up with different colors to notify you of the device status. The table below lists the activity for each of these LEDs as well as the corresponding status. Activity Status Illuminates blue and flashes An active video source without three times. -
Page 14: Technical Support
Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
