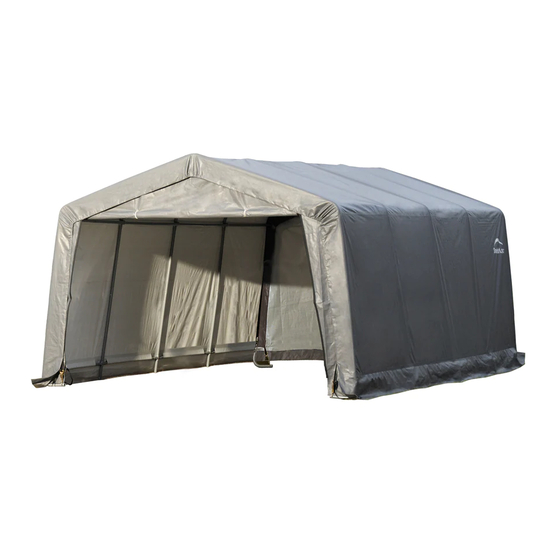

12' x 16' x 8' Garage-in-a-Box Compact
®
Peak Style Shelter
Assembly Instructions
DeSCrIPtIon
MoDel #
62697
12' x 16' x 8' Garage-in-a-Box Compact
- Gray
®
reCoMMenDeD toolS
Please read instructions COMPLETELY before assembly. This shelter MUST be securely anchored.
THIS IS A TEMPORARY STRUCTURE AND NOT RECOMMENDED AS A PERMANENT STRUCTURE.
Before you start: 2+ individual recommended for assembly, approximate time 2 hr.
VIeW An onlIne InStrUCtIonAl
VIDeo oF A GArAGe BeInG BUIlt!
www.Shelterlogic.com
1-800-524-9970
150 Callender Road
Canada:
Watertown, CT 06795
1-800-559-6175
www.shelterlogic.com
1/5/11
Page 1
05_62697_0C
Advertisement
Table of Contents
Related Manuals for ShelterLogic 62697
Summary of Contents for ShelterLogic 62697
- Page 1 12' x 16' x 8' Garage-in-a-Box Compact ® Peak Style Shelter Assembly Instructions DeSCrIPtIon MoDel # 62697 12' x 16' x 8' Garage-in-a-Box Compact - Gray ® reCoMMenDeD toolS Please read instructions COMPLETELY before assembly. This shelter MUST be securely anchored.
- Page 2 AttentIon: This shelter product is manufactured with quality materials. It is designed to fit the ShelterLogic custom fabric cover included. ® , LLC ShelterLogic Shelters offer storage and protection from damage caused by sun, light rain, tree sap, animal - bird excrement ®...
- Page 3 12' x 16' x 8' Garage-in-a-Box Compact - Parts List - Model #62697 ® Description of Parts: Quantity Part # Rafter / Cross Rail 48 1/2" 802130 Cross Rails, Swedge 49 3/4" 802129 Cross Rails 46 1/8" 802695 Corner Tube 39 1/2"...
- Page 4 1. lAY oUt rooF FrAMe SIDE BEND CONNECTOR TOP BEND CONNECTOR USE BOLTS 03032 & 802630 USE BOLTS 03032 802692 802691 802692 802692 802692 802692 802692 802130 802129 802129 802129 802130 802130 802130 802130 802130 802691 802691 802691 802691 802691 802130 802129 802129...
- Page 5 3. ASSeMBle leGS & AttACH to rooF FrAMe Use bolts as shown in illustrations. A. Assemble Corner and Middle legs. B. Attach legs with bolts on one side of roof frame, let the other side of roof frame rest on the ground. C.
- Page 6 C. Wrap cable provided through the eyelet of the anchor and around the frame as shown below. Secure the cable with the clamps provided. NOTE: 15" Augers are for temporary use only! For best results ShelterLogic recom- mends using our Easy Hooks (#10036 4-pack, #10035 6-pack, or #10038 8-pack) or 30" Augers (#10075 4-pack,...
- Page 7 7. Door AnD SolID enD PAnel InStAllAtIon A. Hold end panel at the top center with white inner surface facing inside of the shelter. Wrap the edges of the fabric panel around the end rib. B. Disconnect top rail (the horizontal pipes that run from front to back along the top) from the end rib. Pull the webbing (the black strap) below the cross rail.
- Page 8 D. Disassemble cover rails and slide through fabric pockets at each leg and reattach with clamps to each leg. Repeat this on other side. Push down on cover rails to tighten cover, before tightening bolts completely. E. Check and tighten Ratchets and Cover Rails monthly to ensure the cover is tight. NOTE: The ShelterLogic logo should ®...
