The appearances of this adapter and Toyota 17Pin SEMI-CIRCULAR adapter
are exactly same, however, the internal wiring and circuit are different. Check
the engraved name and the body color of the adapter carefully before use.
Improper adapter connection may result in serious malfunction of either
control system and MULTISCAN plus head unit

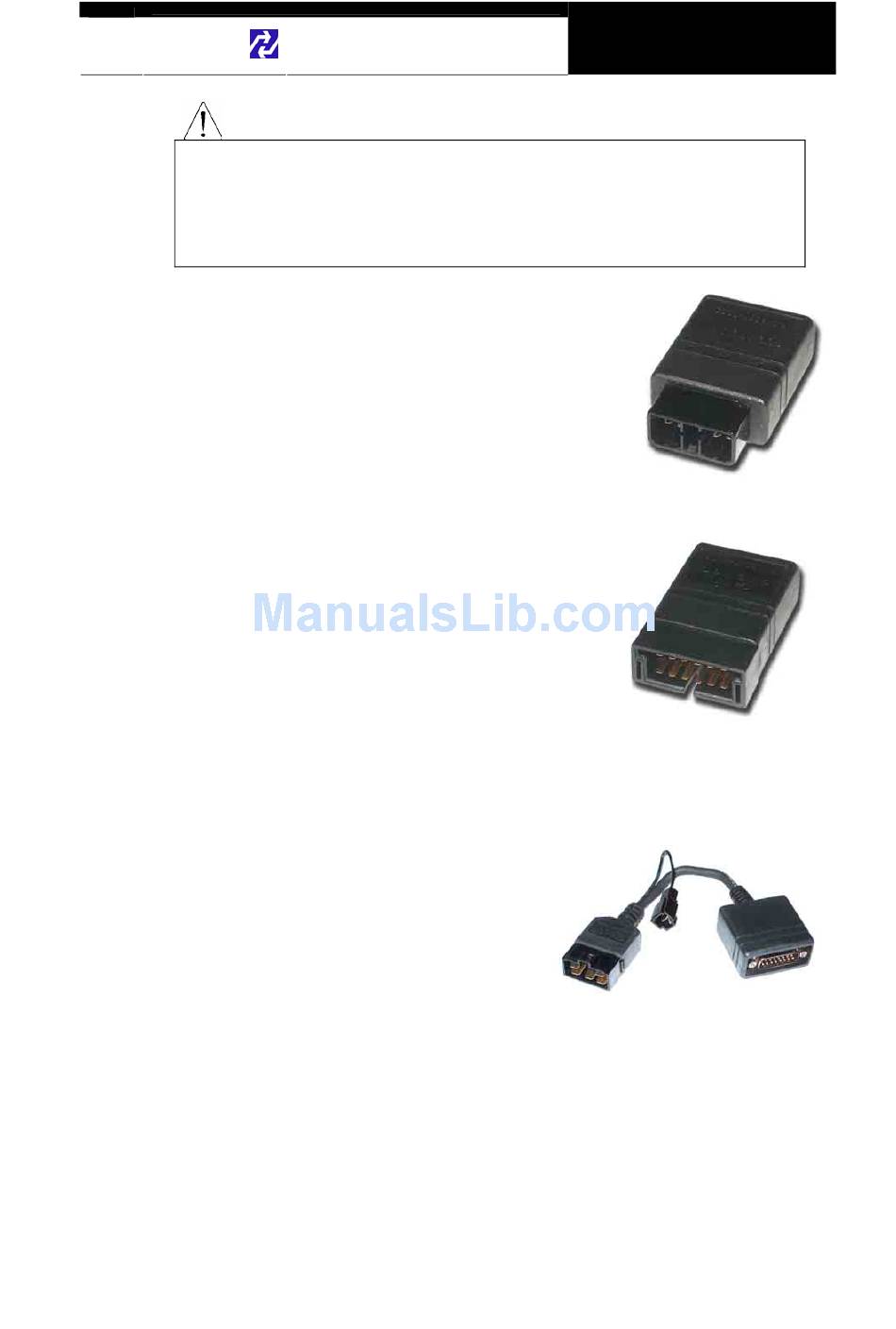

9. Subaru 9Pin Adapter

Used for the communication with Subaru cars of
OBD generation 1.
The vehicle side DLC is generally located
beneath the dashboard.

10. GM Daewoo 12Pin Adapter

(P/N. 3001-1002)
Used for the communication with Daewoo cars
of OBD generation 1.
The vehicle side DLC is generally located
beneath the glove box, door side.

11. Kia 6Pin Adapter

Used for the communication with old
Kia cars of OBD generation 1.
Only the Diagnostic Trouble Code
reading function is available for the
cars with this type of adapter as only
the slow pulse signal is transmitted
through the vehicle side DLC.
The split wire of the adapter is to be connected to the ground terminal of
the vehicle side DLC.
WARNING
(P/N. 3001-0022)
(P/N. 3001-0003)
