Hanatech Co., Ltd.

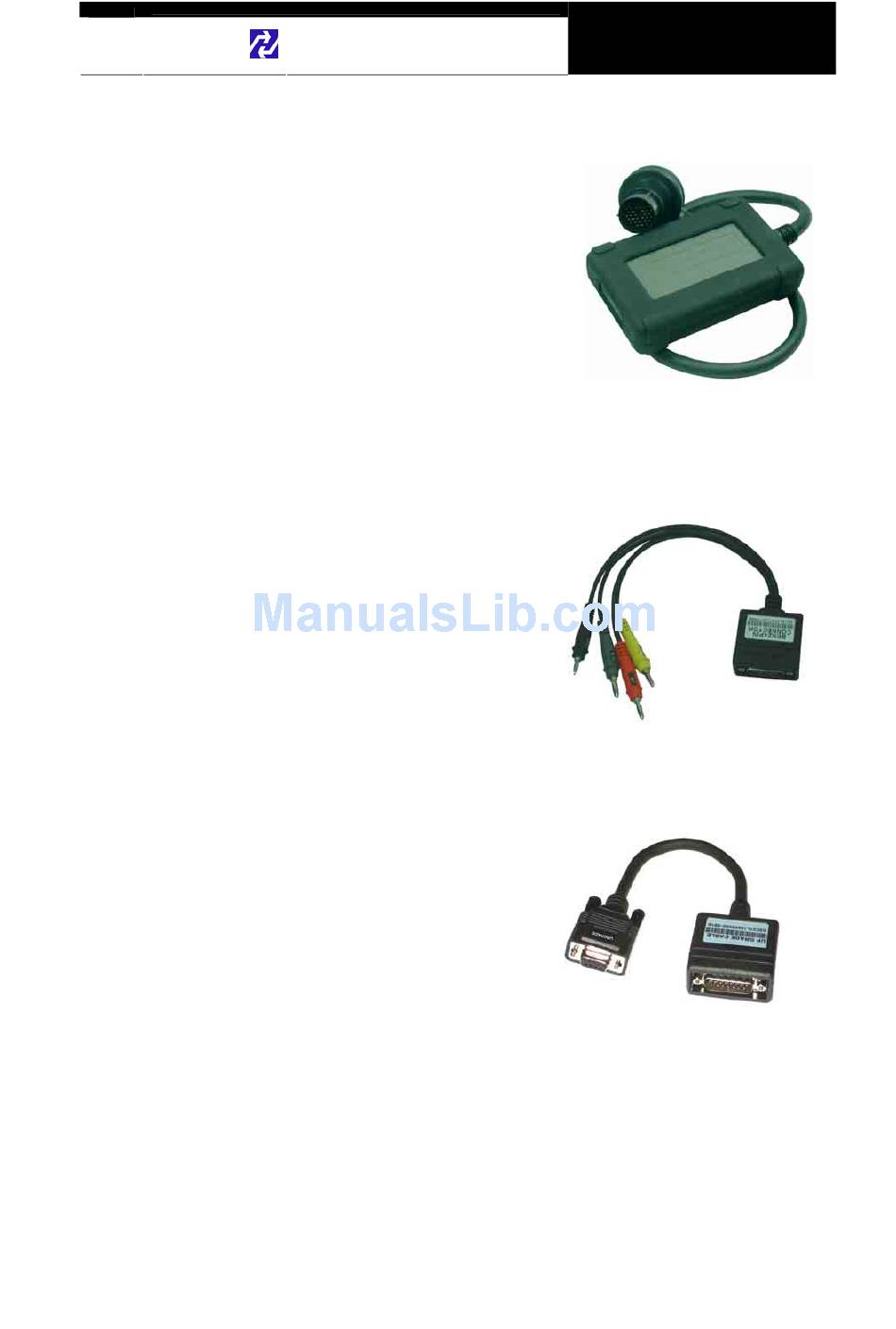

21. Mercedes Benz 38Pin Adapter
Used
for
the
Mercedes Benz cars equipped with 38Pin
vehicle side DLC.
Applied with C202, CLK208, E210, E124,
S140, SL129, SLK170, G463, G461.
22. Mercedes Benz 4Pin Adapter
Used for the communication with Mercedes Benz cars equipped with
8Pole or 16Pole vehicle side DLC.
(Red: Battery +, Gray: K Line,, Yellow :
Ignition check, Black: Ground)
Applied with C201, E124, S126, SL107,
G463
23. Upgrade cable
To be connected to main data link
cable
for
updating
MULTISCAN plus software by
downloading updated codes from
your PC. Refer to the related
chapter in this manual.
(P/N. 3001-0015)
communication
with
(P/N. 3001-0009)
(P/N. 3000-0010)
your
Chapter 2 - 13
Chapter 2
