Toyota/Lexus 17Pin Semi-Circular Adapter; Honda 3 Pin Adapter And 2 Pin Jump Wire - Hanatech MULTISCAN plus User Manual

Hanatech Co., Ltd.

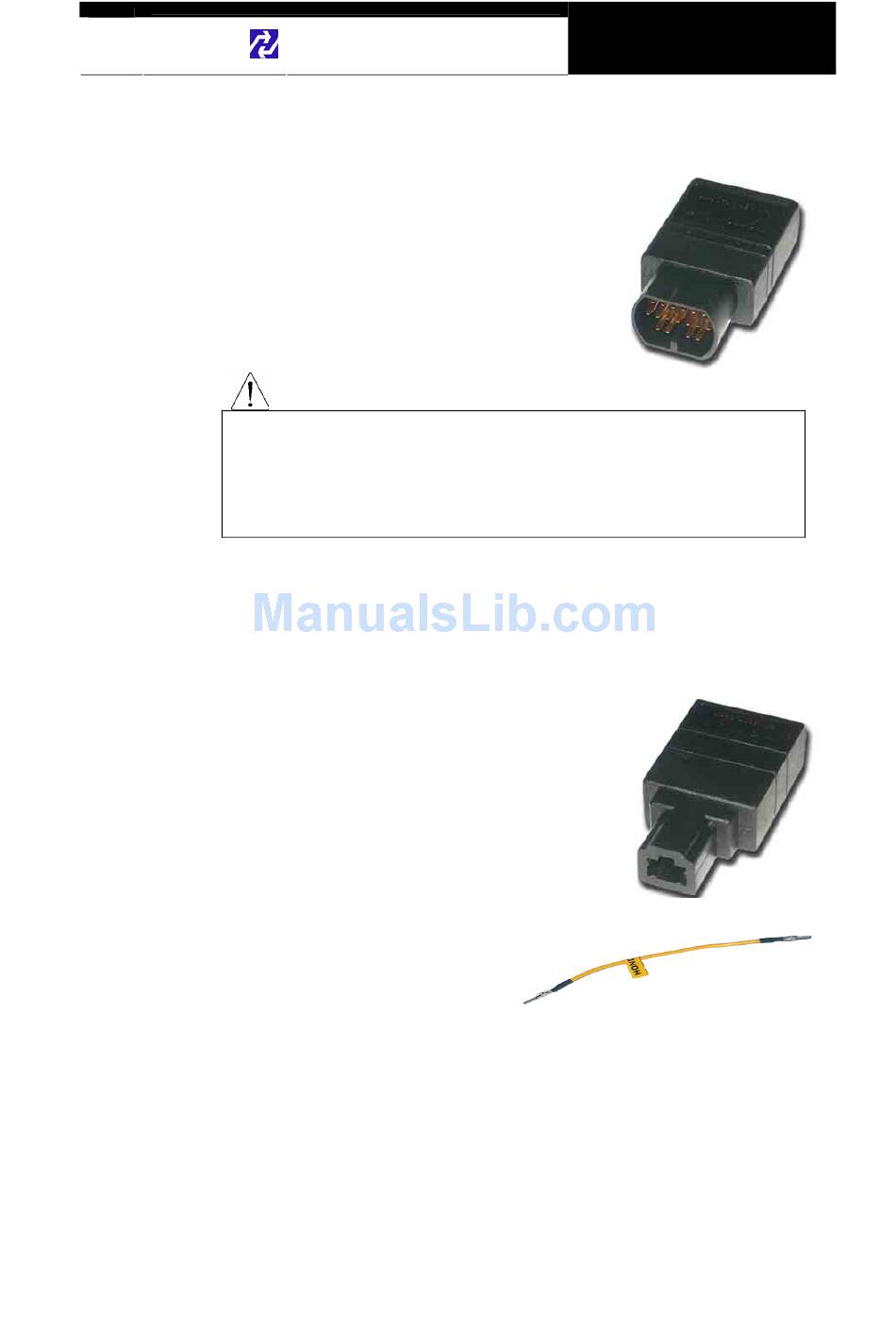

3. Toyota/Lexus 17Pin Semi-circular Adapter

Also used for the diagnosis of Toyota and
Lexus of OBD generation 1.
The vehicle side DLC is generally found
beneath the dashboard.
Refer to the following warning message.
The appearances of this adapter and MAZDA 17Pin adapter are exactly
same, however, the internal wiring and circuit are different. Check the
engraved name and the body color of the adapter carefully before use.
Improper adapter connection may result in serious malfunction of
either control system and MULTISCAN plus head unit.

4. Honda 3 Pin Adapter and 2 Pin Jump Wire

(P/N. 3-pin: 3001-0014, 2-pin wire: 3001-0023)
3-pin adapter is used for the diagnosis of Honda
cars of OBD generation 1 that support DTC
read and erase as well as data stream.
Older Honda cars have 2-pin DLC that supports
DTC read only. The jump wire is used for these
older cars to bridge the 2-pin DLC terminals.
The vehicle side DLC is generally located under
the dashboard or the glove box.
WARNING
Chapter 2 - 7
Chapter 2
(P/N. 3001-0012)
