B. Diagnostic Adapters
Diagnostic adapters may be sold separately, therefore check if all the
adapters you ordered are included in the package upon delivery.

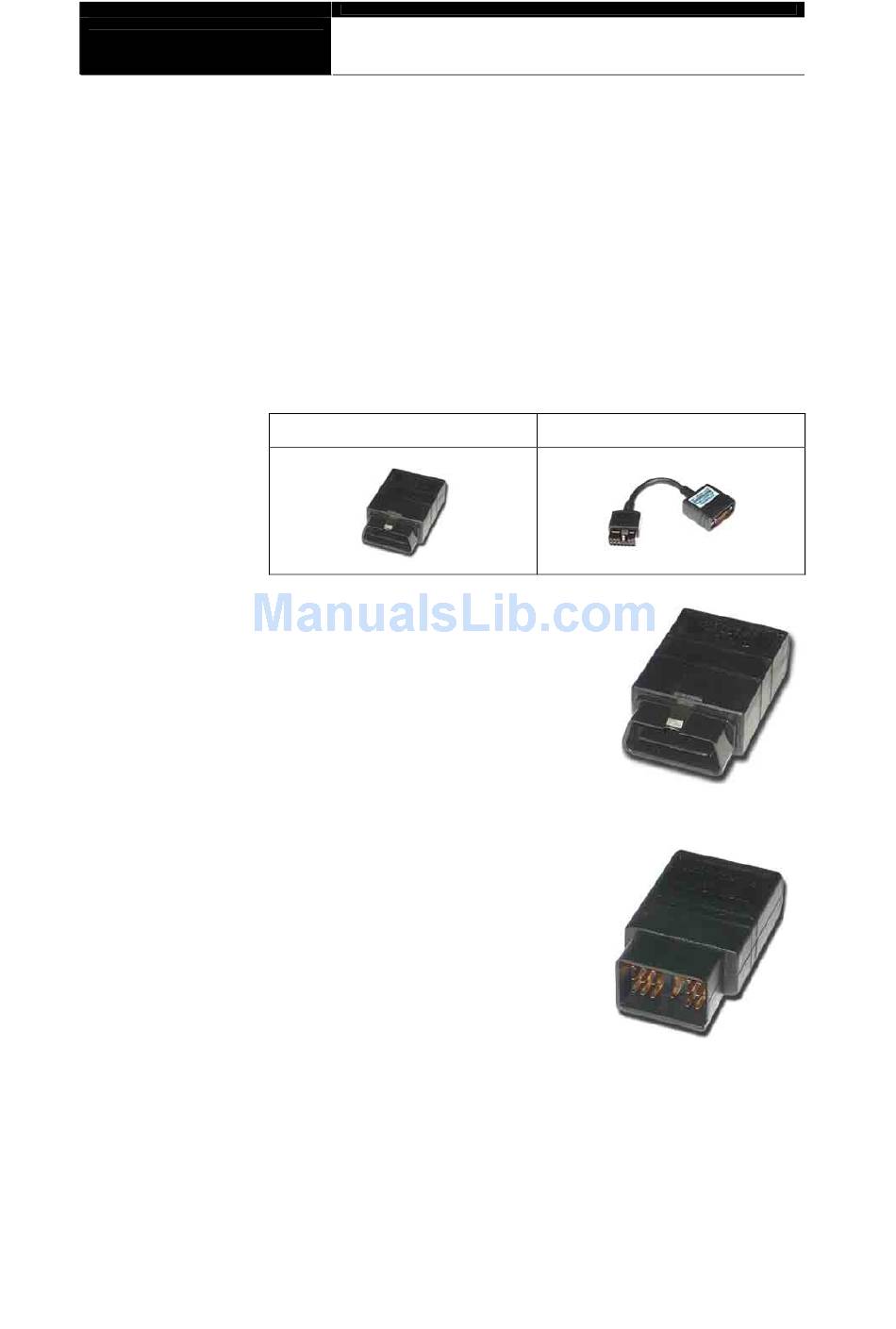

There are two types of adapters: capsulated and wired types.
Most of MULTISCAN adapters are capsulated for better durability and
storage, however, sometimes it is difficult or almost impossible to connect the
capsulated adapter to vehicle side DLC when it is located deep inside
beneath the dashboard. We use wire type adapters for the cars such as
Hyundai and Kia that we were reported to have such connecting difficulties.

1. OBD2 Standard Adapter

(P/N. 3001-0010)
Used for all OBD generation 2 and EOBD
compatible vehicles.
generally located near the driver's seat and
most frequently found beneath the dash panel.
2. Toyota / Lexus 17Pin Rectangular
Adapter
Used for the diagnosis of Toyota and Lexus
of OBD generation 1. Vehicle side DLC of
this type is generally located in the engine
compartment.
For MULTISCAN plus
Capsule type
Vehicle side DLC is
(P/N. 3001-0011)
Chapter 2 - 6
Wire type
