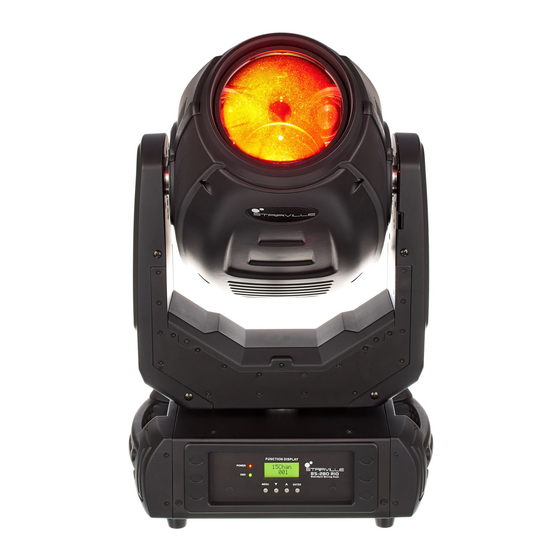

thomann Stairville BS-280 R10 BeamSpot User Manual

Moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

BS-280 R10 BeamSpot
moving head
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stairville BS-280 R10 BeamSpot and is the answer not in the manual?

Questions and answers

Related Manuals for thomann Stairville BS-280 R10 BeamSpot

Summary of Contents for thomann Stairville BS-280 R10 BeamSpot

  • Page 1 BS-280 R10 BeamSpot moving head user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Strasse 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 31.03.2017, ID: 399585...

  • Page 3: Table Of Contents

    Table of contents Table of contents General notes..........................4 1.1 Further information......................4 1.2 Notational conventions....................4 1.3 Symbols and signal words................... 4 Safety instructions......................... 6 Features............................9 Installation..........................10 Starting up..........................12 Connections and controls....................13 Operating..........................16 7.1 Starting the device....................... 16 7.2 Main menu........................

  • Page 4: General Notes

    Our products are subject to a process of continuous development. Thus, they are subject to change. 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download.
  • Page 5 General notes Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a possible dangerous situation that can result in death or serious injury if it is not avoided.

  • Page 6: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as moving-head spotlight. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage.
  • Page 7 Safety instructions WARNING! Eye damage caused by high light intensity The lamp used in this device produces an intense beam of visible and invisible light radiation. Do not start the operation of the device without completely fixed covers. Never look directly into the light source. WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy.
  • Page 8 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is pro‐...

  • Page 9: Features

    Features Features The moving head is particularly suitable for professional lighting tasks, for example at events, on rock stages, in theatres and musicals or in discotheques. Special features of the device: Control via DMX (15 or 21 channels) and via buttons and display on the unit Colour wheel with 13 indexable colours, split colours and white Two gobo wheels (one with 14 static gobos, one with 9 freely indexable and rotatable gobos), variable rotation speed and direction...

  • Page 10: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. You can install the device standing or hanging.
  • Page 11 Installation NOTICE! Possible damage caused by movements of the device Always ensure that enough space is free around the device for the movements of the head (pan, tilt). NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordinary microphone cables.

  • Page 12: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.

  • Page 13: Connections And Controls

    Connections and controls Connections and controls Overview 1 Rotating end carriage 2 Moving head 3 Handles 4 Control panel with display 5 Fastening element 6 Connection panel with power supply, fuse holder and DMX ports. BS-280 R10 BeamSpot...
  • Page 14 Connections and controls Control panel, connection panel 7 [POWER] The LED indicates that the device is connected to the power grid. 8 [DMX] The LED indicates that a DMX signal is being received. 9 Display 10 [MENU] Activates the main menu. Increases the displayed value by one.
  • Page 15 Connections and controls 17 [Power OUT] Lockable PowerTwist output connector. 18 Fuse holder If the fuse blows, replace it with a new fuse of the same type. You must first disconnect the device from the power supply. BS-280 R10 BeamSpot...

  • Page 16: Operating

    Operating Operating 7.1 Starting the device CAUTION! Risk of injury due to movements of the device The head of the device can move quickly (pan, tilt) and can produce very bright light. This is also valid immediately after you turn on the device, when the device operates in automatic mode or under remote control and when you turn off a DMX controller that is connected to the device.
  • Page 17 Operating Blackout function Press [MENU] repeatedly until the display shows ‘DMX State’ . Use to now select between ‘Hold’ (continues the last operating mode) and ‘Blackout’ . If the display shows the required value, press [ENTER] and then [MENU]. To return to the main menu without making changes, wait around 30 seconds.

  • Page 18: Calibration

    Operating Firmware version Press [MENU] repeatedly until the display shows ‘Firmware Version’ . Press [ENTER]. The display shows the device’s firmware version. Press [MENU] to close the display of the firmware version. Loading default settings Press [MENU] repeatedly until the display shows ‘Default’ . Use to now select between ‘no’...

  • Page 19: Menu Overview

    Operating 7.4 Menu overview 7.5 Gobos Gobo wheel 1 BS-280 R10 BeamSpot...

  • Page 20: Functions In 15-Channel Dmx Mode

    Operating Gobo wheel 2 The following figure shows the available gobos and their numbers. 7.6 Functions in 15-channel DMX mode Channel Value Function 0…255 Rotation (pan) (0° to 540°) 0…255 Inclination (tilt) (0° to 270°) 0…255 Speed of rotation (pan) and inclination (tilt), fast to slow Special functions 0…69 Unused...
  • Page 21 Operating Channel Value Function 210…219 Blackout during pan or tilt movement or rotation of the gobo wheel or colour wheel 220…229 No blackout during pan or tilt movement or rotation of the gobo wheel or colour wheel 230…239 Switch lamp off 240…255 Unused Colour wheel...
  • Page 22 Operating Channel Value Function 61…63 Colour 27 64…127 Index 128…189 Rotation, decreasing speed 190…193 Rotation stopped 194…255 Rotation, increasing speed Gobo wheel 1 0…4 Gobo 1 5…8 Gobo 2 9…12 Gobo 3 13…16 Gobo 4 17…20 Gobo 5 21…24 Gobo 6 25…28 Gobo 7 29…32...
  • Page 23 Operating Channel Value Function 118…122 Gobo 13 shake 123…127 Gobo 14 shake 128…189 Rotation, decreasing speed 190…193 Rotation stopped 194…255 Rotation, increasing speed Gobo wheel 2 0…6 Open 7…12 Gobo 1 13…19 Gobo 2 20…25 Gobo 3 26…32 Gobo 4 33…38 Gobo 5 39…44...

  • Page 24: Functions In 21-Channel Dmx Mode

    Operating Channel Value Function 192…255 Rotation, increasing speed Prism 0…7 White, no prism 8…63 Prism effect 1 64…255 Prism effect 2 Prism rotation 0…127 Index position (0° to 360°) 128…190 Rotation, decreasing speed 191…192 Rotation stopped 193…255 Rotation, increasing speed 0…255 Zoom from 0 to 100 % 0…255...
  • Page 25 Operating Channel Value Function Special functions 0…69 Unused 70…79 Blackout during Pan or Tilt movement 80…89 Disabled blackout while pan/tilt moving 90…99 Blackout during colour wheel movement 100…109 Disabled blackout while colour wheel moving 110…119 Blackout during gobo wheel movement 120…129 Disabled blackout while gobo wheel moving 130…139...
  • Page 26 Operating Channel Value Function 88…95 Macro 11 96…103 Macro 12 104…111 Macro 13 112…119 Macro 14 120…127 Macro 15 128…135 Macro 16 136…143 Macro 17 144…151 Macro 18 152…159 Macro 19 160…167 Macro 20 168…175 Macro 21 176…183 Macro 22 184…191 Macro 23 192…199...
  • Page 27 Operating Channel Value Function 21…22 Colour 9 23…24 Colour 10 25…27 Colour 11 28…29 Colour 12 30…31 Colour 13 32…33 Colour 14 34…36 Colour 15 37…38 Colour 16 39…40 Colour 17 41…42 Colour 18 43…45 Colour 19 46…47 Colour 20 48…49 Colour 21 50…51...
  • Page 28 Operating Channel Value Function 33…36 Gobo 9 37…40 Gobo 10 41…44 Gobo 11 45…48 Gobo 12 49…52 Gobo 13 53…57 Gobo 14 58…62 Gobo 1 shake 63…67 Gobo 2 shake 68…72 Gobo 3 shake 73…77 Gobo 4 shake 78…82 Gobo 5 shake 83…87 Gobo 6 shake 88…92...
  • Page 29 Operating Channel Value Function 52…57 Gobo 8 58…64 Gobo 9 65…71 Gobo 1 shake 72…78 Gobo 2 shake 79…85 Gobo 3 shake 86…92 Gobo 4 shake 93…99 Gobo 5 shake 10…16 Gobo 6 shake 17…113 Gobo 7 shake 114…120 Gobo 8 shake 121…127 Gobo 9 shake 128…189...
  • Page 30 Operating Channel Value Function 0…255 Frost effect from 0 to 100 %), if channel 11 = 0… 6 Strobe effect 0…7 Closed (blackout) 8…15 Open 16…131 Shutter, increasing speed 132…167 Shutter closes quickly and opens slowly 168…203 Shutter closes slowly and opens quickly 204…239 Shutter, increasing speed 240…247...

  • Page 31: Maintenance

    Maintenance Maintenance 8.1 Installing / replacing the light source DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Completely disconnect the device from the power supply before you open or remove covers. Mount all covers and attach them firmly before connecting the device again.
  • Page 32 In this device, a bayonet, single-capped metal vapour discharge lamp is used as the light source. Suitable replacement lamps (type designation depending on the manu‐ facturer, for example Sirius HRI 280W 7800K) can be found at www.thomann.de. Observe the safety instructions of the light source manufacturer.

  • Page 33: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating envi‐ ronment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 34: Troubleshooting

    4. Check to see if the DMX cables run near or alongside to high voltage cables, that may cause damage or interference to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. moving head...

  • Page 35: Technical Specifications

    Technical specifications Technical specifications Number of DMX channels 15 or 21, depending on operating mode Light source e.g. Osram Sirius HRI 280W 7800K Maximum rotation angle (pan) 540° Maximum inclination angle (tilt) 270° Dimmer mechanical, 0…100 % Operating supply voltage 100 –...

  • Page 36: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equipment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 37: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging material For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 38 Notes moving head...
  • Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
