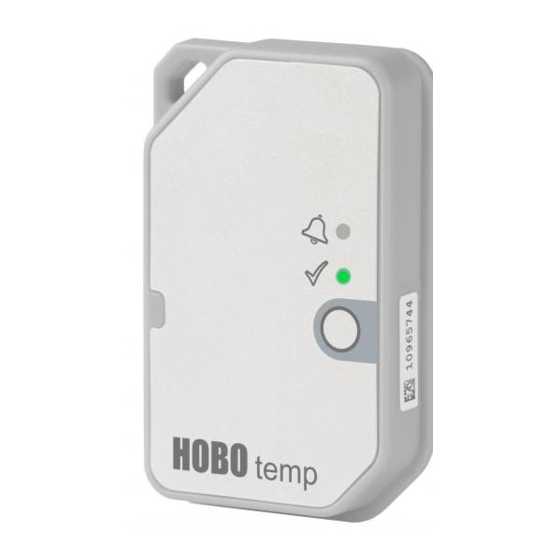

HOBO® MX100 Temp Logger Manual
HOBO MX100
Temp Logger
Required Items:
• HOBOconnect app
• Mobile device with
Bluetooth and iOS,
iPadOS®, or
Android™, or a
Windows computer
with a native BLE
adapter or supported
BLE dongle
20813-J
The HOBO MX100 Temp logger measures temperature in indoor environments. With an IP67
environmental rating, the logger can be deployed indoors where moisture may form. This
Bluetooth® Low Energy (BLE)-enabled logger is designed for wireless communication with a
phone, tablet, or computer. Using the HOBOconnect® app, you can easily configure the logger
and then download logged data to view or export it for further analysis. The logger has a built-
in alarm you can configure to trip at thresholds you specify. Designed with a non-replaceable
lithium battery, this logger also has a power-saving mode that allows you to use the Bluetooth
signal only when needed to maximize battery life. Note: This logger is not supported by the
HOBO MX Gateway. Contact Onset Technical Support for questions on MX100 logger
compatibility with the gateway.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Drift
Response Time
Logger
Logger Operating Range
Radio Power
Transmission Range
Wireless Data Standard
Logging Rate
Time Accuracy
Battery
Battery Life
Memory
Full Memory Download
Time
Dimensions
Weight
Environmental Rating
Passed RTCA DO160G, part 21H
-30° to 70°C (-22° to 158°F)
±1.0°C from -30° to -5°C (±1.8°F from -22° to 23°F)
±0.5°C from -5° to 50°C (±0.9°F from 23° to 122°F)
±1.0°C from 50° to 70°C (±1.8°F from 122° to 158°F)
0.04°C (0.072°F)
<0.01°C (0.018°F) per year
6 minutes typical to 90% in open air moving 1 m/s, unmounted
-30° to 70°C (-22° to 158°F)
1 mW (0 dBm)
Approximately 30.5 m (100 ft) line-of-sight
Bluetooth Low Energy (Bluetooth Smart)
1 second to 18 hours
±1 minute per month at 25°C (77°F)
CR2450 3V lithium, not replaceable
1 year, typical with logging interval of 1 minute and Bluetooth Always On
enabled; 2 years, typical with logging interval of 1 minute and Bluetooth
Always On disabled. Faster logging intervals, remaining connected with
the app, excessive downloads, and paging may impact battery life.
30,000 measurements
Approximately 30 seconds; may take longer the farther the device is
from the logger
6.9 x 4.5 x 1.1 cm (2.71 x 1.76 x 0.42 inches)
25.5 g (0.90 oz)
IP67
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
See last page
Advertisement
Table of Contents
Related Manuals for Onset HOBO MX100
Summary of Contents for Onset HOBO MX100
- Page 1 HOBO® MX100 Temp Logger Manual The HOBO MX100 Temp logger measures temperature in indoor environments. With an IP67 environmental rating, the logger can be deployed indoors where moisture may form. This Bluetooth® Low Energy (BLE)-enabled logger is designed for wireless communication with a phone, tablet, or computer.
- Page 2 HOBO MX100 Temp Logger Manual • If your device can connect to the logger intermittently or Logger Components and Operation loses its connection, move closer to the logger, within sight if possible. Mounting Loop • If the logger appears in the app, but you cannot connect to it, close the app and then power down your device to force the previous Bluetooth connection to close.
- Page 3 HOBO MX100 Temp Logger Manual trips). You can temporarily turn on LEDs when Show LED is Tap this: To do this: disabled by pressing the button on the logger for 1 second. have the time to complete the entire update 11.
- Page 4 4. When the export file has successfully been created, tap discharge by grounding yourself to protect the logger. For more Done to return to the previous page or tap Share to use information, search for static discharge on the Onset website: your device’s usual modes of sharing. www.onsetcomp.com.
- Page 5 © 2016–2022 Onset Computer Corporation. All rights reserved. Onset, HOBO, HOBOconnect, and HOBOlink are registered trademarks of Onset Computer Corporation. App Store, iPhone, iPad, and iPadOS are service marks or registered trademarks of Apple Inc. Android and Google Play are trademarks of Google LLC. Windows is a registered U.S.
