Panasonic FV-051OVSCL1 Installation And Operating Instructions Manual

Panasonic

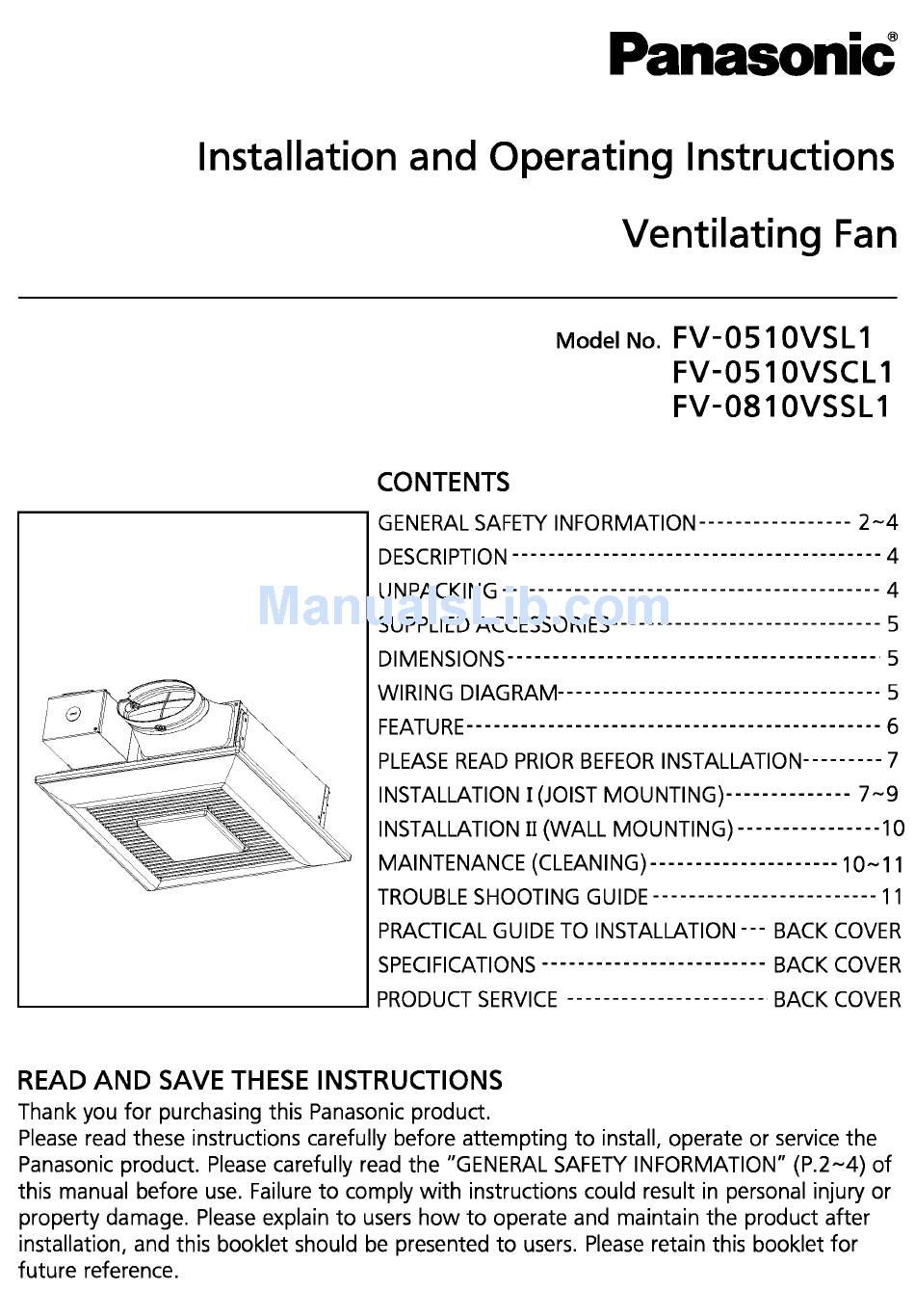

Installation and Operating Instructions
Ventilating Fan
CONTENTS
Model No.
FV-051OVSL1
FV-051OVSCL1
FV-081OVSSL1
GENERAL SAFETY INFORMATION----------------- 2-4
DESCRIPTION - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - 4
UNPACKING - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - 4
SUPPLIED ACCESSORIES------------------------------ 5
DIMENSIONS- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- - - - - - - - - · 5
WIRING DIAGRAM------------------------------------ 5
FEATURE- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -- 6
PLEASE READ PRIOR BEFEOR INSTALLATION--------- 7
INSTALLATION I (JOIST MOUNTING)-------------- 7-9
INSTALLATION II (WALL MOUNTING)----------------10
MAINTENANCE (CLEANING)---------------------10-11
TROUBLE SHOOTING GUIDE-------------------------11
PRACTICAL GUIDE TO INSTALLATION --- BACK COVER
SPECIFICATIONS------------------------- BACK COVER
~----------
PRODUCT SERVICE ---------------------- BACK COVER
READ AND SAVE THESE INSTRUCTIONS
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before attempting to install, operate or service the
Panasonic product. Please carefully read the "GENERAL SAFETY INFORMATION" (P.2-4) of
this manual before use. Failure to comply with instructions could result in personal injury or
property damage. Please explain to users how to operate and maintain the product after
installation, and this booklet should be presented to users. Please retain this booklet for
future reference.
