4 6 0 6

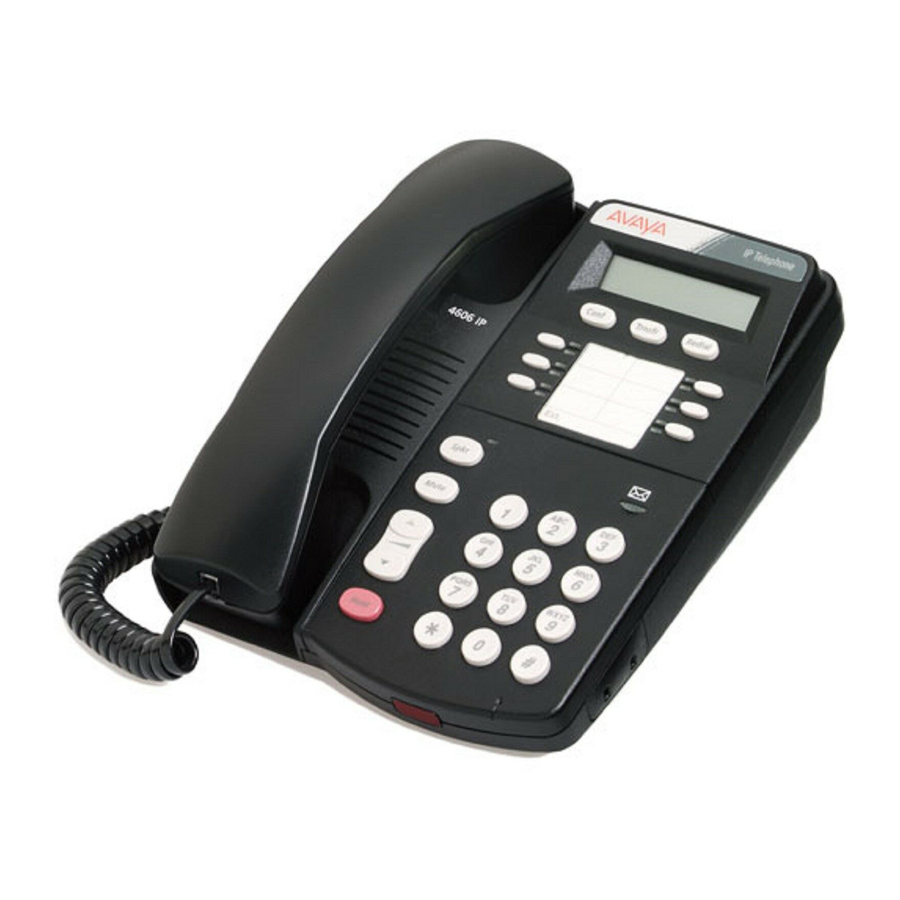

T h e 4 6 0 6 i s a n I P t e l e p h o n e w i t h 6 p r o g r a m m a b l e l i n e a n d f e a t u r e b u t t o n s ,
T
a t w o l i n e L C D d i s p l a y a n d a f u l l d u p l e x s p e a k e r p h o n e . T h e d i s p l a y i n f o r m s t h e
u s e r o f d a t e , t i m e , c a l l t i m e r, c a l l i n g p a r t y i n f o r m a t i o n a n d a c c e s s t o s t a t e
d e p e n d e n t u s e r f e a t u r e s . F e a t u r e a n d l i n e a p p e a r a n c e b u t t o n s h a v e a r e d a n d a
g r e e n L E D a s s o c i a t e d w i t h e a c h t o i n d i c a t e l i n e s t a t e s a n d f e a t u r e s t a t u s . T h e
4 6 0 6 w o r k s w i t h D E F I N I T Y ® I P S o l u t i o n s , p a r t o f t h e D E F I N I T Y ® E n t e r p r i s e
C o m m u n i c a t i o n s S e r v e r ( E C S ) .
F e a t u r e s
6 programmable feature buttons — pro-
grammed for line appearances or features
5 fixed feature buttons — Speaker, Mute, Hold,
Volume Up & Down
3 fixed feature buttons under display —
Conference, Transfer & Redial
Full Duplex Speakerphone with Echo
Cancellation
32 character LCD display (2 lines with
16 characters each)
Message waiting indicator
• 10/100BaseT Ethernet connection
I P
T e l e p h o n e
S p e c i f i c a t i o n s
Integrated Ethernet Repeater hub — connect
(optional) PC to telephone
G.711, G.723.1, G.723.1A, G.729A, & G.729B
audio voice coders
H.323 V2 & NetMeeting compatible (communi-
cates with other H.323 V2 products)
IP Address assignment — DHCP client or stati-
cally configured
Infrared port to support future applications
Integrated RJ-11 Headset Jack
Downloadable Firmware for future upgrades
Hearing aid compatible
Size: 6.75" W x 8.5" D x 2.9" H
(169mm x 213mm x 73mm)
Phone weight: (as shipped) 2.4 pounds (1.1 kg)
Color: white and black
2 Standard 10/100BaseT RJ-45 interfaces — one
for network to telephone and one "hub port"
for connection from telephone to PC
Operating Temperature: 40° to 120° F
(4° to 50° C)
Communication without boundaries
