Summary of Contents for FAME ML-20R

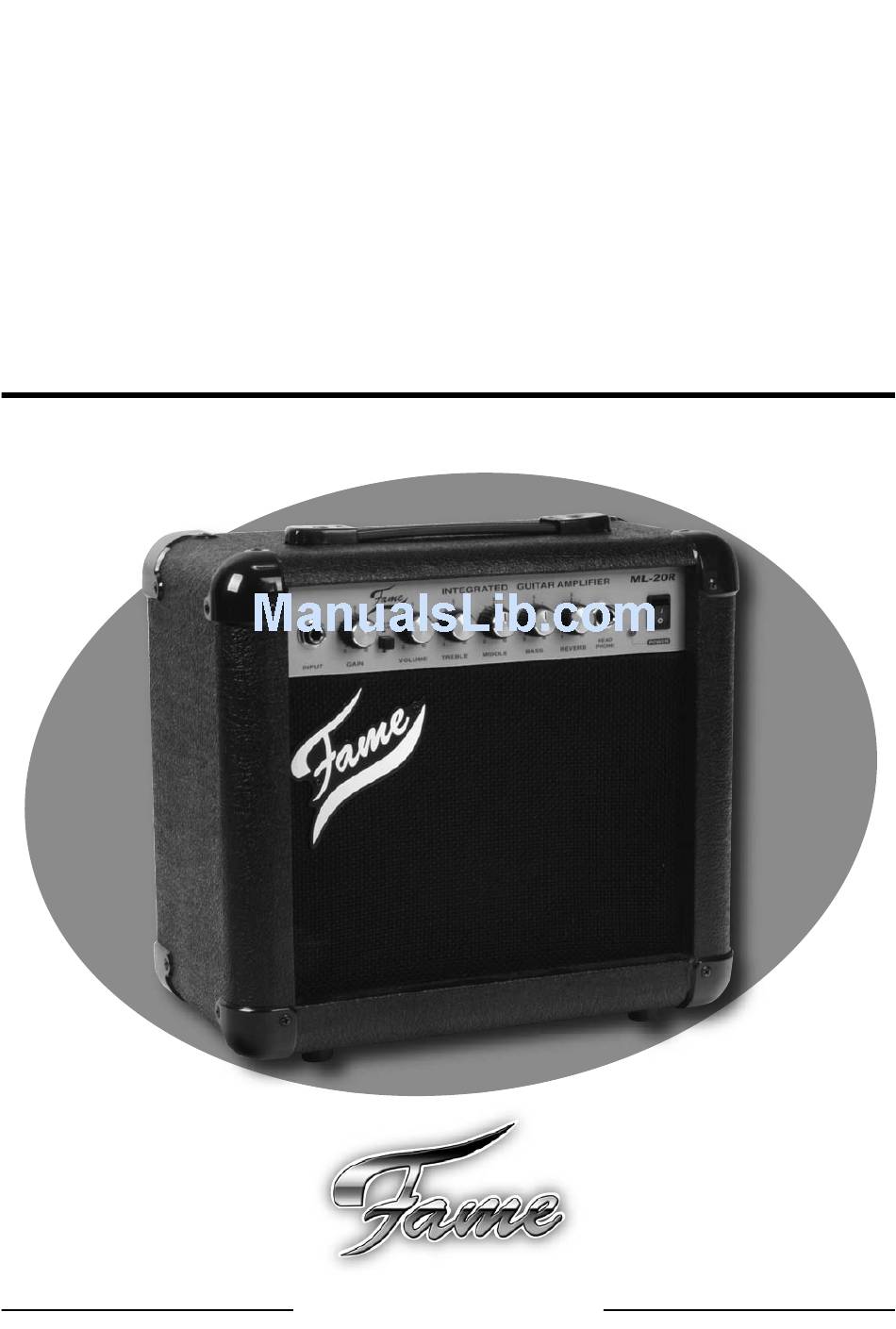

- Page 1 ELECTRIC GUITAR AMP Owner‘s Manual ML-20R...
- Page 2 Congratulations! We would like to thank you for purchasing the ML-20R Electric Guitar Amplifi er. It has been specially designed and developed for the use with electric guitars. Before using your new amplifi er, we advise to read the following pages carefully.
-
Page 3: Table Of Contents
Content Setting up the ML-20R ....................Peripheral Connections ....................Preamp Section ....................... Controls & Switches ......................Special Gimmicks ......................Specifi cations ........................ -
Page 4: Setting Up The Ml-20R
Setting up the ML-20R WARNING! To avoid electrical shock or any other damage, make sure that the ML-20R and all other devices are switched off before you start connecting them to the amplifi er! Power Connections/Mains Main Fuse Before connecting to a grounded power outlet,... -
Page 5: Peripheral Connections
Signal In Jack PREAMP SECTION OF THE ML-20R The ML-20R has a mono style input jack on the left Clean side if the front panel. To connect an electric guitar, please use a 1/4”... -
Page 6: Controls & Switches
Overdrive Mains This switches between Clean and Overdrive mode of This switches the ML-20R on or off. the ML-20R. If pushed in, the amplifi er works in the distorted mode. You will receive a clean sound when inactive. Volume Controls the overall volume of the ML-20R. -
Page 7: Special Gimmicks
Rotary or Vibe Analogue units will not harm the signal’s quality, but they Due to the fact that the ML-20R does not feature an fx are also limited and normaly produce only one overall loop, you will have to connect external effects devices sound. -
Page 8: Specifi Cations
Specifi cations 15 Watts Power Output: Speakers: 6,5“ Special Design Channel Switch (Overdrive), Mains Switches: Bass, Middle, Treble Equalization: Reverb Effects: Input Connection Jacks: Headphones 33 x 30 x 17 cm Dimensions: 6 kg Weight: Accessories: Owner‘s Manual, Power Cable Optional:... - Page 9 ML-20R 2007...
