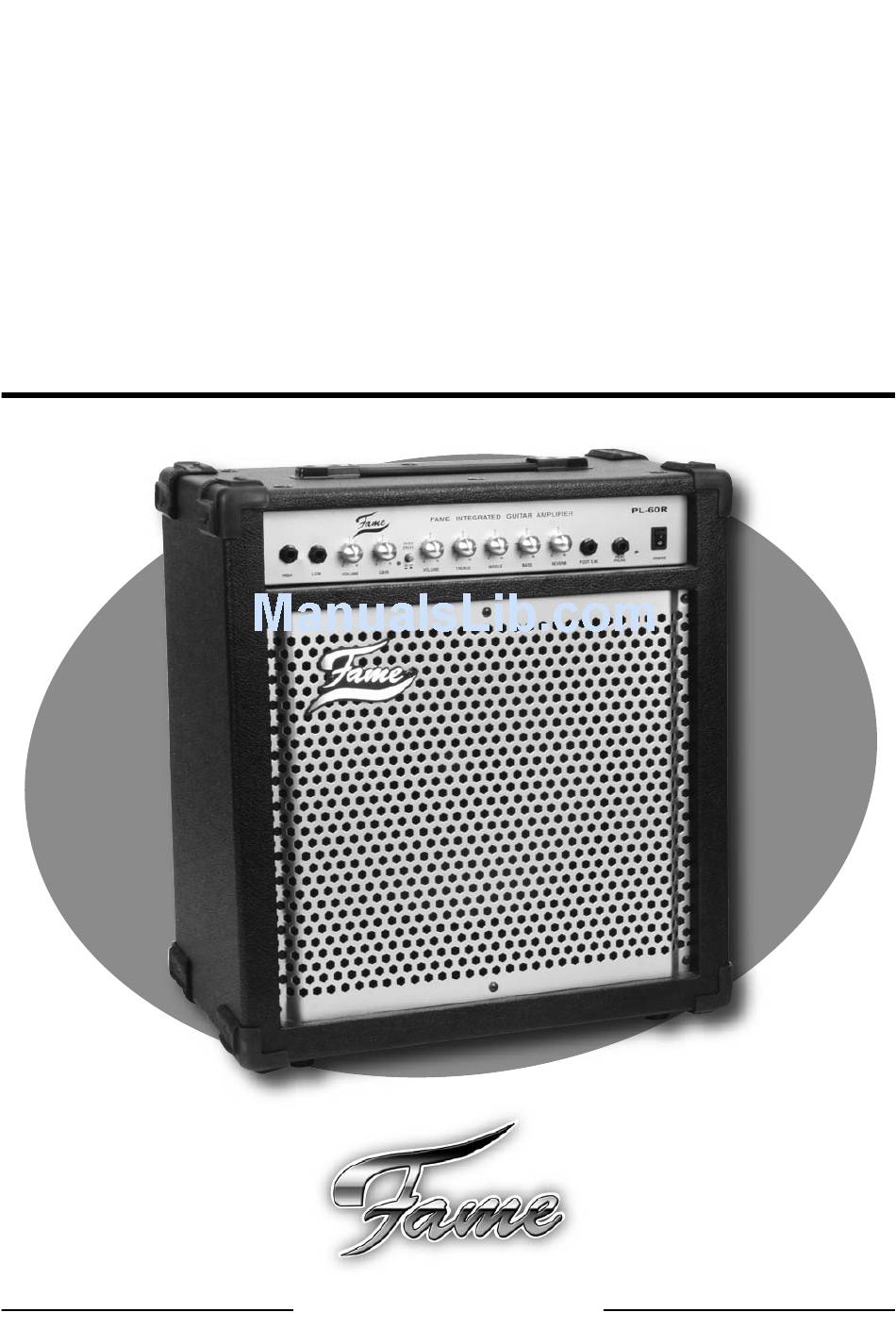

- Page 1 ELECTRIC GUITAR AMP Owner‘s Manual PL-60R...
- Page 2 Congratulations! We would like to thank you for purchasing the PL-60R Electric Guitar Amplifi er. It has been specially designed and developed for the use with electric guitars. Before using your new amplifi er, we advise to read the following pages carefully.
-
Page 3: Table Of Contents
Content Setting up the PL-60R ..................... Peripheral Connections ....................Preamp Section ....................... Channels ..........................Reverb ..........................Controls & Switches ......................Special Gimmicks ......................Specifi cations ........................ -
Page 4: Setting Up The Pl-60R
Setting up the PL-60R WARNING! To avoid electrical shock or any other damage, make sure that the PL-60R and all other devices are switched off before you start connecting them to the amplifi er! Power Connections/Mains Main Fuse Before connecting to a grounded power outlet,... -
Page 5: Peripheral Connections
Footswitch Mains With an optional footswitch, it is possible to con- This jack is used to connect the PL-60R to a grounded trol the PL-60R’s channel and reverb functions. We power outlet. recommend our heavy-rugged VM-38 footswitch for best performance. -
Page 6: Preamp Section
Preamp Section of the PL-60R Channel 1 The fi rst channel of the PL-60R will produce a very clean and brilliant sound with very rich harmonics and well balanced bass and mid- dle. We recommend, not to use this channel in a higher preamp level because it might overdrive the sound in a bad way. -
Page 7: Controls & Switches
It has no effect on the sound without activated These controls are responsible for the overall Overdrive switch. basic sound of the PL-60R. It has an effect on both channels. You can control the low, medium and high frequencies until you fi gure out your favourite sound. -
Page 8: Special Gimmicks
Analogue units will not harm the signal’s quality, but they While the last three effect groups can be inserted are also limited and normally produce only one overall in the fx loop of the PL-60R, level-related units must sound. always be connected between instrument and amplifi er. -
Page 9: Specifi Cations
Specifi cations 55 Watts Power Output: Speakers: 1 x 12“ Special Design Overdrive, Mains Switches: Bass, Middle, Treble Equalization: Reverb Effects: Input Connection Jacks: Headphones FX Send & Return Line Out Footswitch Dimensions: 51 x 47 x 25 cm 16 kg Weight: Accessories: Owner‘s Manual, Power Cable... - Page 10 PL-60R 2007...
