Space Temperature Averaging (Reliatel™ Only) - Trane RT-SVX38C-EN Installation, Operation And Maintenance Manual

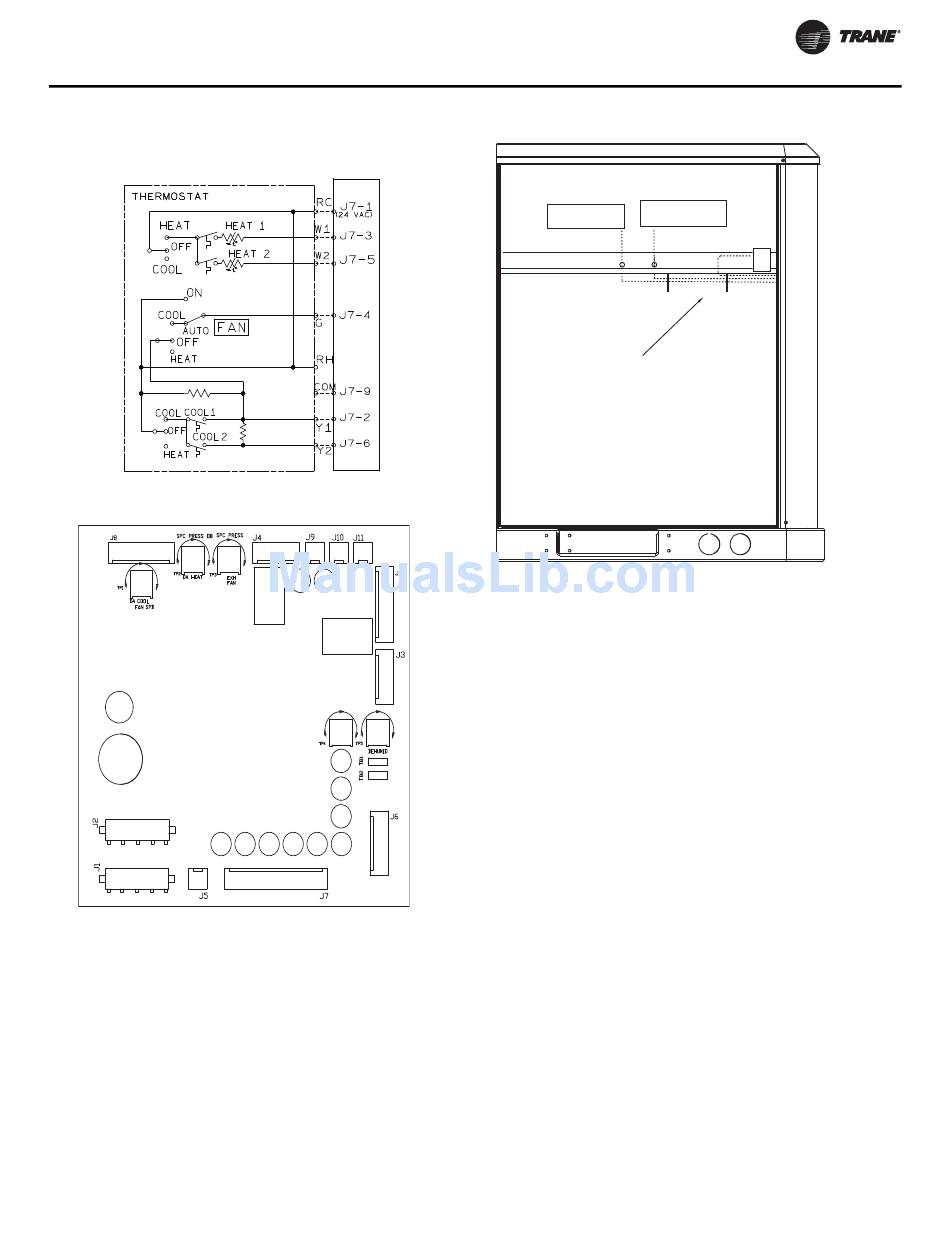

Figure 25. ReliaTel™ conventional thermostat field
wiring diagrams
Figure 26. ReliaTel options module
RT-SVX38C-EN
Figure 27.
RTRM
Space Temperature Averaging
(ReliaTel™ Only)
Space temperature averaging is accomplished by wiring a
number of remote sensors in a series/parallel circuit.
Using the BAYSENS016* or BAYSENS077*, at least four
sensors are required to accomplish space temperature
averaging. See
• Example #1 illustrates two series circuits with two
sensors in each circuit wired in parallel. The square of
any number of remote sensors is required.
• Example #2 illustrates three sensors squared in a
series/parallel circuit. Using BAYSENS077*, two
sensors are required to accomplish space temperature
averaging.
• Example #3 illustrates the circuit required for this
sensor.
resistance coefficient for all sensors.
ReliaTel control customer low voltage routing
Communication
Refrigeration
Interface
Module
ReliaTel Conventional Wiring
Route field wiring as shown and
secure with 2 wire ties.
Figure 28, p. 26.
Table 6, p. 28 lists the temperature versus
Installation
LTB
25
