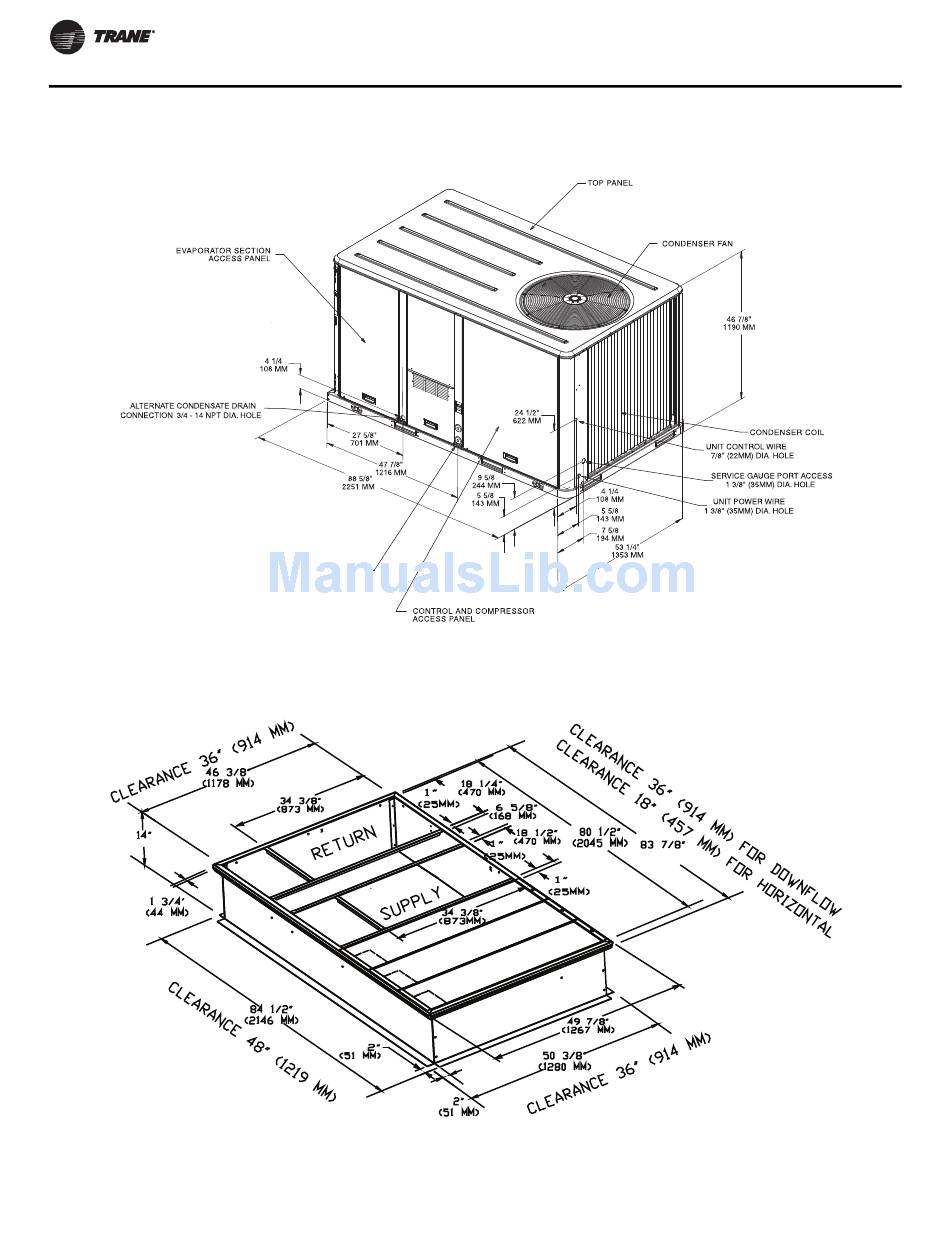

Unit Dimensions
Figure 8.
8½ to 10 tons standard efficiency
Note: All dimensions are in inches/millimeters.
Figure 9.
8½ to 10 tons standard efficiency—roof curb
Note: All dimensions are in inches/millimeters.
(356 MM)
14
1/2 NPT GAS CONNECTION
(80 mbh, 120 mbh)
3/4 NPT GAS CONNECTION
(150 mbh, 200 mbh, 250 mbh)
(YC MODELS)
(2130 MM)
RT-SVX38C-EN
