Trane RT-SVX38C-EN Installation, Operation And Maintenance Manual page 12

Packaged rooftop air conditioners precedent gas-electric
Hide thumbs
Table of Contents

Advertisement

Unit Dimensions

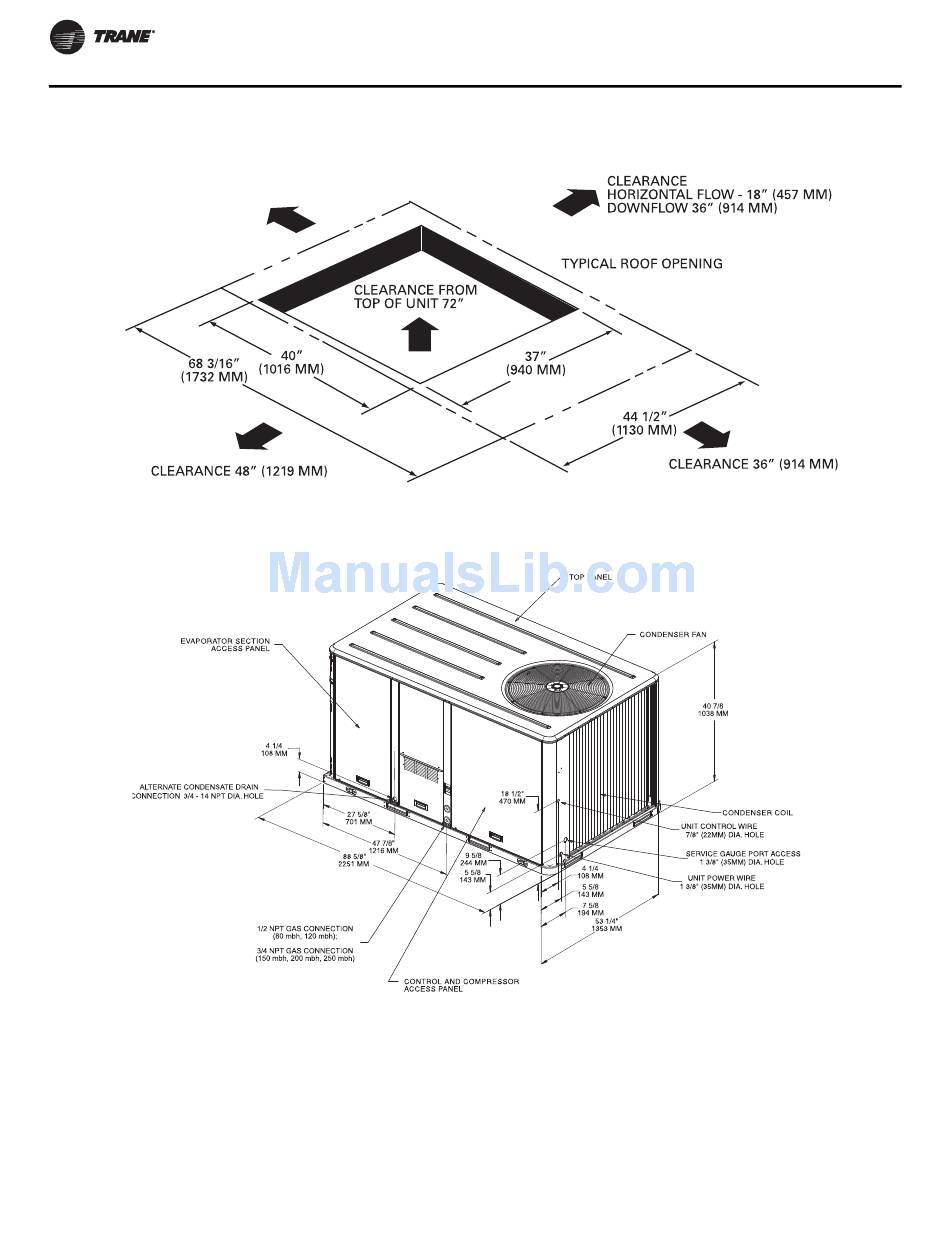

Figure 4.
5 tons standard efficiency—unit clearance and roof opening
Note: All dimensions are in inches/millimeters.
CLEARANCE 36" (914 MM)
Figure 5.
6, 7½ tons standard efficiency
Note: All dimensions are in inches/millimeters.
12
RT-SVX38C-EN
