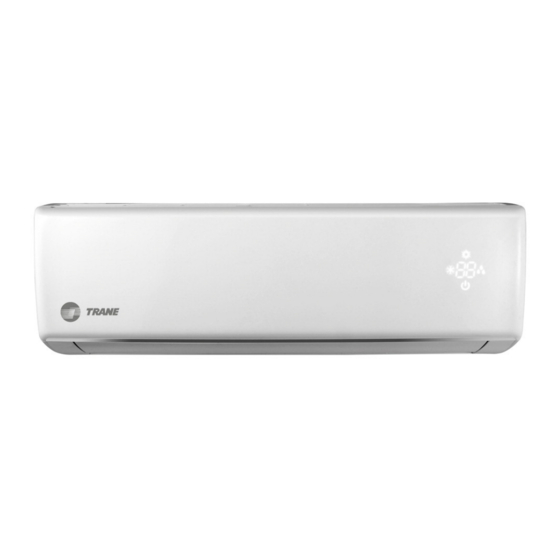

Trane R-410A Installer Manual
Inverter units 18 seer 36,000 btu/hr - 60 hz
Hide thumbs
Also See for R-410A:
- Technical & service manual (73 pages) ,
- Installation manual (36 pages) ,
- Owner's manual (27 pages)
Table of Contents
Advertisement
Quick Links
Installer's Manual
Split System (R-410A)
Inverter Units 18 SEER
36,000 BTU/Hr - 60 Hz
Cooling only
Heat pump
Only qualified personnel should install and provide service to this equipment. The installation, start-up and
service to air conditioning, ventilation and heating equipment could be dangerous and therefore requires
proper knowledge and specific training. The equipment installed inappropriately, or adjusted or altered by
untrained personnel, could result in death or severe injuries. While working on this equipment, adhere to all
indications of precaution contained in the literature, the tas, and other identification marks adhered to the
equipment.
September 13, 2018
Indoor Unit
4MYW8536A1
4MXW8536A1
WARNING
MS-SVN055B-EN
Outdoor Unit
4TYK8536A1
4TXK8536A1
Advertisement
Table of Contents
Related Manuals for Trane R-410A
Summary of Contents for Trane R-410A
- Page 1 Installer’s Manual Split System (R-410A) Inverter Units 18 SEER 36,000 BTU/Hr - 60 Hz Indoor Unit Outdoor Unit Cooling only 4MYW8536A1 4TYK8536A1 Heat pump 4MXW8536A1 4TXK8536A1 WARNING Only qualified personnel should install and provide service to this equipment. The installation, start-up and service to air conditioning, ventilation and heating equipment could be dangerous and therefore requires proper knowledge and specific training.
- Page 2 NOTICE equipment or property-damage only accidents. Use PVE Oil with R-410A Mini-Split Units! All R-410A mini-splits use a PVE oil (Polyvinyl Ether Trane has always recommended installing Trane approved Oil) that readily absorbs moisture from the matched indoor and outdoor systems.
- Page 3 Warnings and cautions Responsible Refrigerant Practices Trane believes that responsible refrigerant practices are important to the environment, our customers, and the air conditioning industry. All technicians who handle refrigerants must be certified. The Federal Clean Air Act (Section 608) sets forth the requirements for handling,...
-
Page 4: Table Of Contents
Content Content General information......................4 Accessories.......................... 6 Typical installation.........................8 Installation location.......................8 – Indoor Unit..........................8 – Outdoor Unit..........................8 Installation............................8 – Indoor Unit installation......................9 – Installing Outdoor Unit.......................11 – Vacuum Pump and Leak Inspection...................15 – Outdoor condensation drainage (heat pump type only)..........15 Check after Installation and Test Operation...... -
Page 5: General Information
Warranty is based on the general terms and conditions by country. The warranty is void if the equipment is modified or repaired without the written approval of The Trane Company, if the operating limits are exceeded or if the control system or the electrical wiring is modified. Damage due to inappropriate installation, lack of knowledge or failure to comply with the manufacturer’s... - Page 6 Installation Installation Accesories - Parts List MS-SVN055B-EN...
- Page 7 Installation Figure 1. Names and functions of components MS-SVN055B-EN...
- Page 8 Installation Figure 2. Installation dimensions Space to the wall Space to the wall At least 5 7/8 inch At least 5 7/8 inch Drain pipe MS-SVN055B-EN...
-
Page 9: Installation Location
Installation Installation Location Indoor Unit WARNING Adequate Support! Wall structure must be adequate to support the weight of the unit. Failure to ensure adequate structural support could result in unit falling from its location which could result in death, serious injury, or equipment or property-only damage. 1. -
Page 10: Indoor Unit Installation
Installation Indoor Unit Installation WARNING Hazardous Service Procedures The maintenance and troubleshooting procedures recommended in this section of the manual could result in exposure to electrical, mechanical or other potential safety hazards. Always refer to the safety warnings provided throughout this manual concerning these procedures. When possible, disconnect all electrical power including remote disconnect and discharge all energy storing devices such as capacitors before servicing. - Page 11 Installation Figure 5. Wall sleeve Indoor Outdoor Wall sleeve Seal pad NOTICE When a wall sleeve is not used, it is then necessary to drill a straight hole in the wall. If the hole is not straight and uniform, this could result in water leaking from condensation, resulting in property damage.
-
Page 12: Connection Pipe
Installation 3. With the use of tape, wrap piping and wiring together forming a bundle and direct this bundle through the wall perforation for this purpose. Figure 8. Piping and wiring bundle Connection wiring Gas side piping Liquid side piping Insulation gas side piping Insulation... - Page 13 Installation Tabla 1. Tightening Torque Table Hex nut diameter Tightening torque (N-m) 6mm - 1/4” 15-20 9.5mm - 3/8" 31-35 12mm - 1/2" 50-55 16mm - 5/8" 60-65 Note: First connect the connection pipe to the indoor unit and then to the outdoor unit. Pay attention to avoid bending the pipe.
- Page 14 Installation Evacuation and leak testing WARNING Danger of Explosion! Never use an open flame to detect gas leaks. Explosive conditions may occur. Use a leat test solution or other approved methods for leak testing. Failure to follow recommended safe leak test procedures could result in death or serious injury or equipment or property-only damage.
- Page 15 Installation Figure 11. Vacuum pump and leak inspection. 9. The gas valve can now be opened. Open the gas valve by removing the shut-off valve cap and turning the valve stem 1/4 turn counterclockwise using 1/4” Open End or Adjustable wrench. 10.
- Page 16 Installation verification and operation test Installation verification and operation test Items to check: Possible problems: Has the indoor unit been firmly installed? The unit may drop, shake o emit noise Have a refrigerant leak test been performed? It may cause insufficient cooling/heating capacity Is heat insulation sufficient? It may cause condensation and leaking Does water drain properly?
- Page 17 Connecting Pipe- 60 Hz Connecting Pipe- 60 Hz 4MYW8536A1 18 SEER 4TYK8536A1 60Hz (Cooling only and 4MXW8536A1 Heat Pump) 4TXK8536A1 Refrigerant charge (kg) R410A/2.60 Length (m) Additional gas charge (g/m) Liquid pipe (mm) φ6 (1/4”) Outer diameter Gas pipe (mm) φ16 (5/8”) Height (m) Maximum distance...
-
Page 18: Wiring Diagrams
Wiring diagrams Wiring diagrams WARNING Hazardous Voltage! Disconnect all electric power, including remote disconnects before servicing. Follow proper lockout/tagout procedures to ensure the power cannot be inadvertently energized. Failure to disconnect power before servicing could result in death or serious injury. WARNING Electrocution Hazard! Aññ... - Page 19 Wiring diagrams 4TYK8536A1 (outdoor unit cooling only) 4TXK8536A1 (outdoor unit heat pump) MS-SVN055B-EN...
- Page 20 HVAC systems, comprehensive building services and parts. For more information visít www.Trane.com. Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.. © 2018 Trane All rights reserved We are committed to using environmentally conscious print practices that reduce waste.
