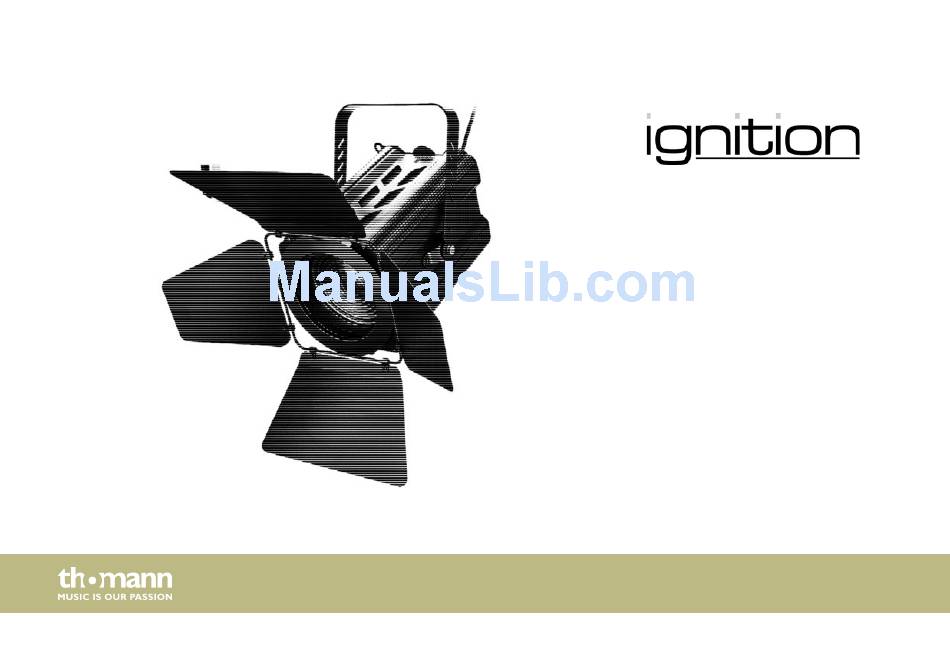

  • Page 1 Romeo 650/1000 Fresnel/PC theatre spotlight user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 09.08.2017, ID: 391663...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 14 Installation..............................15 Connections and controls........................17 Maintenance.............................. 19 6.1 Installing / replacing the illuminant..................19 6.2 Changing the lens..........................

  • Page 4: General Information

    General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.

  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð...
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 8 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. theatre spotlight...

  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used as an illumination effect. The device is designed for profes‐ sional use and is not suitable for use in households. Use the device only as described in this user manual.
  • Page 10 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 11 Safety instructions DANGER! Electric shock caused by short-circuit Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. WARNING! Eye damage caused by high light intensity Never look directly into the light source.
  • Page 12 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
  • Page 13 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 14: Features

    Features Features The professional theatre spotlight is suitable for almost all applications, for example in clubs, bars, small stages and theatres. It is characterized by compact dimensions, solid construction and enormous performance. Special features of the device: Suitable for halogen stage lamps with GX9.5 socket, 230 V, maximum power consumption 1000 W (not included) Manually adjustable large zoom range Robust metal housing with colour filter frame holder and bracket...

  • Page 15: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 16 Installation NOTICE! Fire and overheating hazard The distance between the light source and flammable materials must be greater than 12 m. The distance to non-inflammable materials must be greater than 2 m. Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and...

  • Page 17: Connections And Controls

    Connections and controls Connections and controls Rear panel Romeo 650/1000 Fresnel/PC...
  • Page 18 Connections and controls 1 Bracket for floor placement or hanging. 2 Safety cable eyelet. 3 Star knob screw for the upper housing cover. 4 Guiding bracket. 5 Power cord. 6 Locking screw for focus. Loosen the screw and position the slider for optimum illumination. 7 Holder for barn doors, colour films or filters.

  • Page 19: Maintenance

    Maintenance Maintenance 6.1 Installing / replacing the illuminant DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Completely disconnect the device from the power supply before you open or remove covers.
  • Page 20 Maintenance WARNING! Risk of burns at the surface and inside of the device The surface and the inner parts of the device can become very hot during opera‐ tion. After switching off the device wait for at least 15 minutes before you start any maintenance activities.
  • Page 21 Maintenance NOTICE! Possible damages due to wrong type of lamp Any attempt to use the device with a lamp other than those specified in this manual can result in severe damages to the device. Only use a lamp of the specified type. Notes on the illuminant The device may only be operated using an illuminant with an GX9.5 socket, maximum power consumption 1000 W, for use in stage and theatre area.
  • Page 22 Maintenance Carefully pull the old illuminant out of the socket on the bottom of the unit. Be careful not to touch the hollow mirror behind the socket. Insert the new illuminant firmly into the socket. Check the secure fit. Slide the upper housing cover all the way to the front. Tighten the star knob screw completely.

  • Page 23: Changing The Lens

    Maintenance 6.2 Changing the lens DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Completely disconnect the device from the power supply before you open or remove covers. Mount all covers and attach them firmly before connecting the device again.
  • Page 24 Maintenance WARNING! Risk of burns at the surface and inside of the device The surface and the inner parts of the device can become very hot during opera‐ tion. After switching off the device wait for at least 15 minutes before you start any maintenance activities.
  • Page 25 Maintenance Reattach the retaining ring in its original position and tighten the knurled screw. Check the lens for firm fit. Slide the upper housing cover all the way to the front. Tighten the star knob screw completely. Check that the upper housing cover is properly seated. Romeo 650/1000 Fresnel/PC...

  • Page 26: Technical Specifications

    Technical specifications Technical specifications Illuminant Halogen stage lamps with GX9.5 socket, 230 V, maximum power consumption 1000 W, like item # 129143 (650 W) or item # 146984 (1000 W) Zoom range 10°…60° Power consumption depends on the inserted illuminant Operating supply voltage 230 V 50 Hz...

  • Page 27: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 28: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 29 Notes Romeo 650/1000 Fresnel/PC...
  • Page 30 Notes theatre spotlight...
