Placing The Antenna - Delphi MyFi User Manual

XM
ANT
Made in Malaysia
TO FM
RADIO

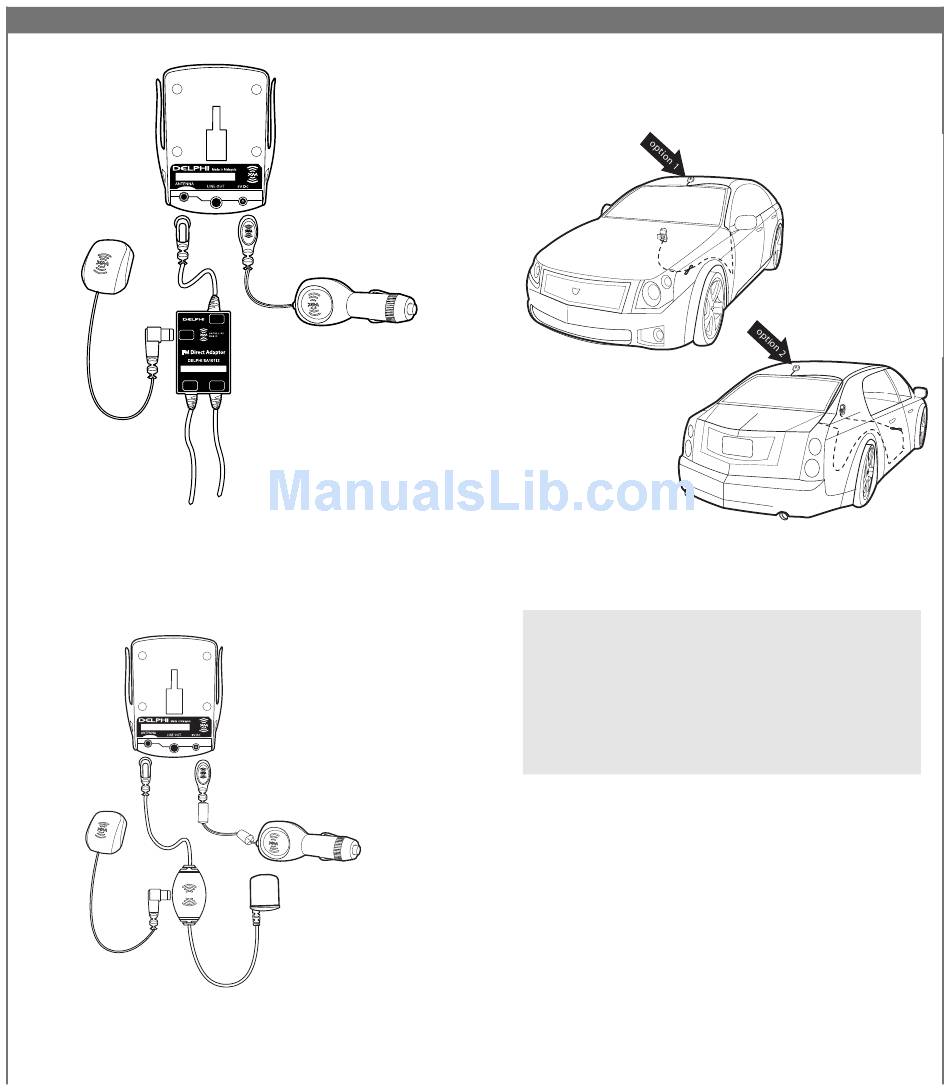

For a neat, fully integrated installation, use the DELPHI
FM DIRECT ADAPTER (model SA10112, sold separately).
We recommend that you consult a professional installer.
Self Install (XM SureConnect), See the XM SureConnct
Installation Guide for more information.
30
TO XM
RADIO
TO FM
ANT

Placing the antenna

Your XM antenna should be mounted on the vehicle's
metallic roof, at least 6" from any window or sunroof.
Avoid crimping,
twisting, or chafing
the XM antenna
cable. Try to use
existing holes, body
grommets, and other
wiring channels.
If the vehicle is a
hard- or soft-top
convertible, you may mount the antenna on the metal
trunk lid. It should be at least 4" from the rear window.
Ensure that the antenna and cable don't interfere with the
opening or closing of the convertible top and the trunk lid.
TIP: If you route the antenna cable through the trunk
seal, use the lowest part of the weather seal. This should
minimize any water leaks.
TIP: Don't install the XM antenna inside your vehicle or
on a nonmetallic surface. Doing so will likely degrade
the signal and you will probably experience more signal
interruptions.
Keep excess cable
behind or under the
dashboard.
31
