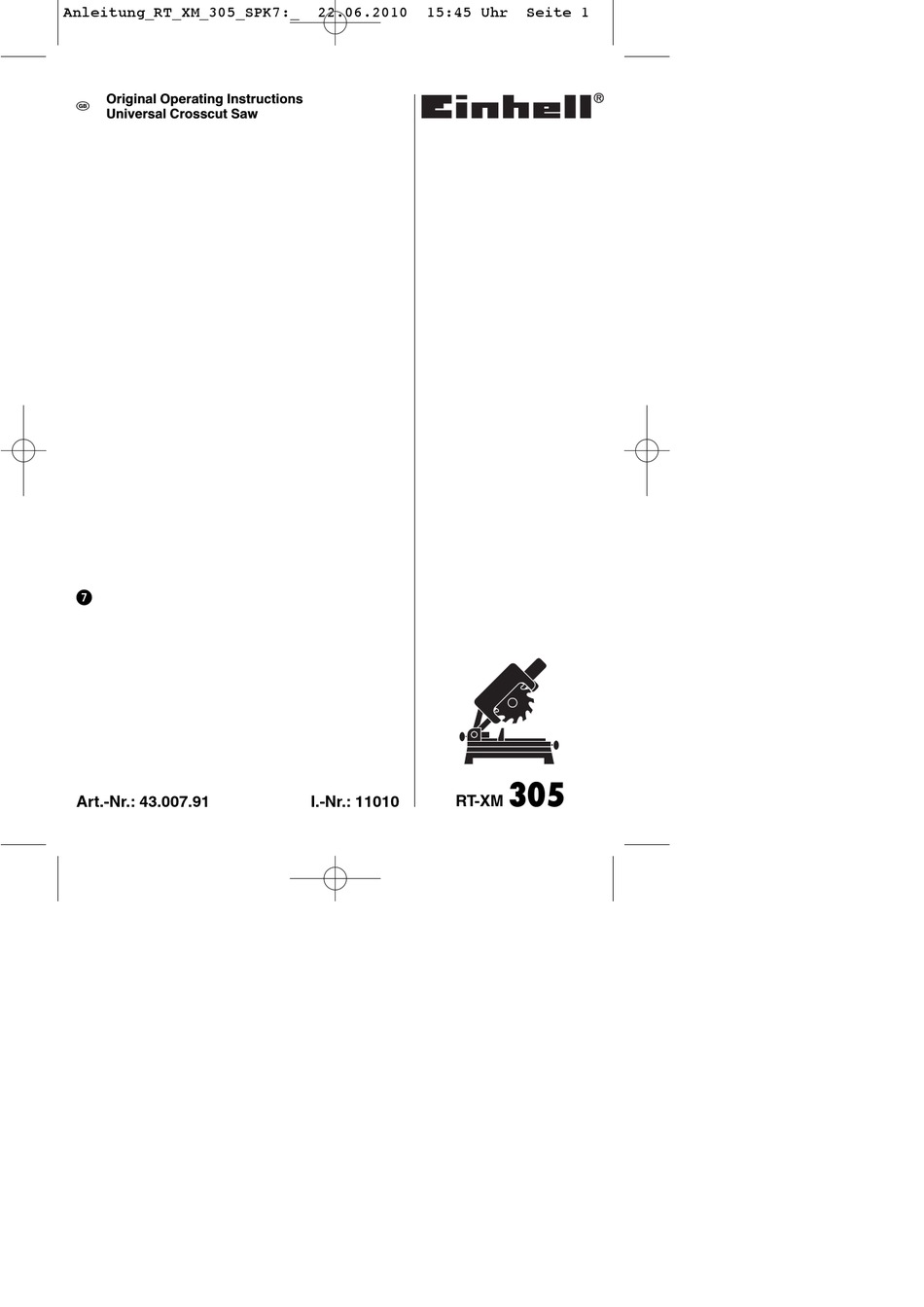

  • Page 1 Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:45 Uhr Seite 1 Original Operating Instructions Universal Crosscut Saw Art.-Nr.: 43.007.91 I.-Nr.: 11010 RT-XM...
  • Page 2 Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:45 Uhr Seite 2 Read and follow the operating instructions and safety information before using the equipment for the first time.
  • Page 3 Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:45 Uhr Seite 3 30 18...
  • Page 4 Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:45 Uhr Seite 4...
  • Page 5 Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:46 Uhr Seite 5...
  • Page 6 Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:46 Uhr Seite 6...
  • Page 7 Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:46 Uhr Seite 7...

  • Page 8: Table Of Contents

    Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:46 Uhr Seite 8 Table of contents: Page 1. Safety Information 2. Layout 3. Items supplied 4. Intended use 9 - 10 5. Technical data 10 - 11 6. Before starting the equipment 7. Operation as wood/plastics saw 11 - 13 8.

  • Page 9: Safety Information

    Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:46 Uhr Seite 9 26. Guard Important. 27. Fastening bolt When using the equipment, a few safety precautions 28. Locking screw for the horizontal clamping device must be observed to avoid injuries and damage. 29. Locking screw for the vertical clamping device Please read the complete operating instructions and 30.

  • Page 10: Technical Data

    Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:46 Uhr Seite 10 All persons who use and service the equipment have Sound and vibration to be acquainted with this manual and must be informed about the machine’s potential hazards. It is Sound and vibration values were measured in also imperative to observe the accident prevention accordance with EN 61029.

  • Page 11: Before Starting The Equipment

    Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:46 Uhr Seite 11 the equipment is used over a prolonged period or tilt the machine head (4) to the left by up to 45°. is not properly guided and maintained. The foot (32) will prevent the saw from tipping forwards during operation.
  • Page 12 Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:46 Uhr Seite 12 Push down the release lever (3) to release the 7.4 Miter cut 0°- 45° and turntable 0°- 45° machine head (4). (Fig. 1-3, 15) Press the ON/OFF switch (2) to start the motor. The crosscut saw can be used to make miter cuts to With the drag guide (24) fixed in place: Use the the left of 0°- 45°...

  • Page 13: Operation As Metal Saw

    Anleitung_RT_XM_305_SPK7:_ 22.06.2010 15:46 Uhr Seite 13 rotate the flange bolt (39) in clockwise direction. Important: The integral resetting springs will The saw shaft lock (5) engages after no more automatically lift the machine head. Do not simply than one rotation. let go of the handle (1) after cutting but allow the Now, using a little more force, slacken the flange machine head (4) to rise slowly, applying slight...

  • Page 14: Disposal And Recycling

    ID number of the equipment Spare part number of the required spare part For our latest prices and information please go to www.einhell.com.au 12. Disposal and recycling The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled.
  • Page 15 The Einhell Express Guarantee is valid for a period of 2 years starting from the purchase date of the product. Claims made under the Einhell Express Guarantee should be submitted before the end of this guarantee period and within two weeks of the defect being noticed.
