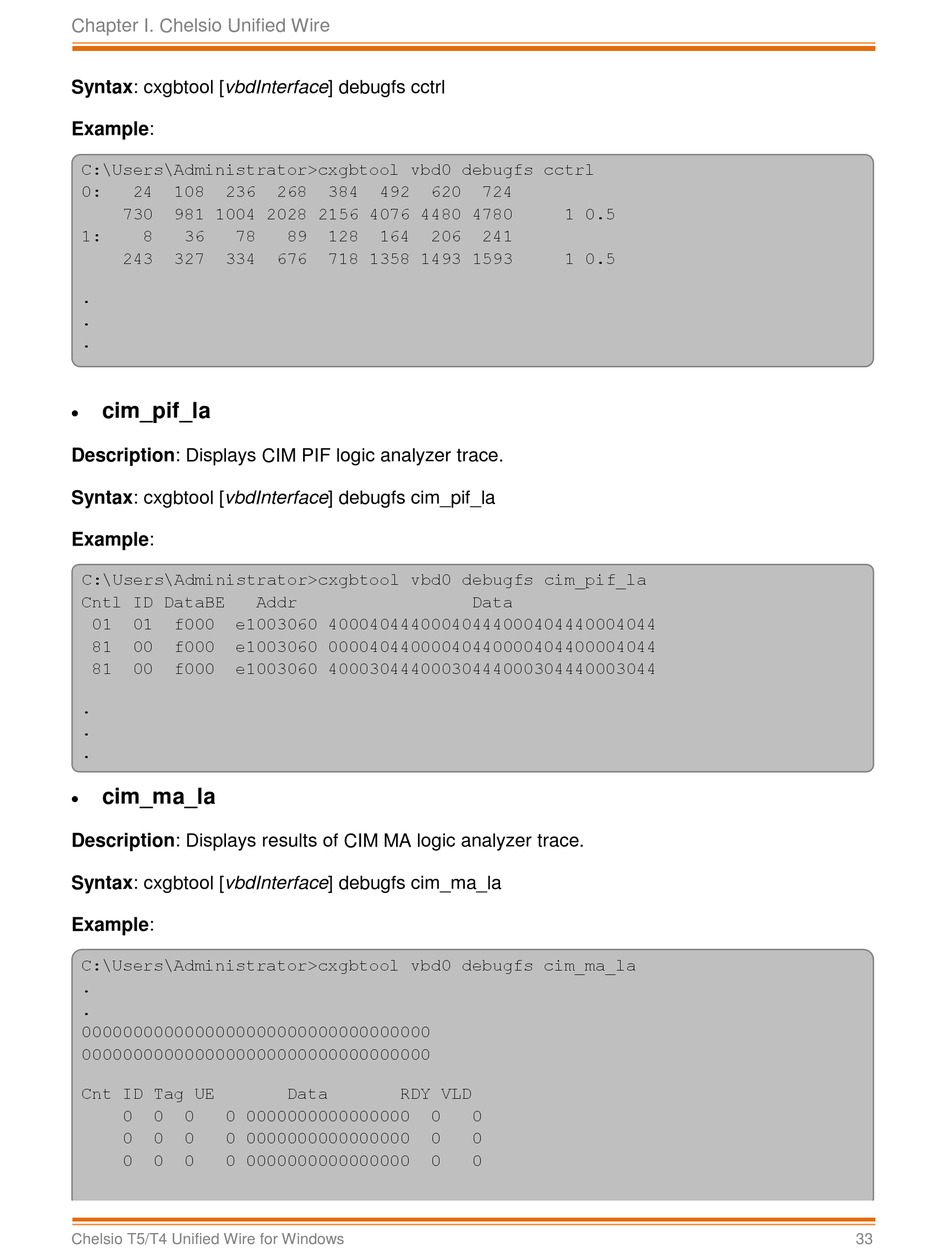

Chelsio Communications T4 Installation And User Manual page 33

Chapter I. Chelsio Unified Wire
Syntax: cxgbtool [vbdInterface] debugfs cctrl
Example:
C:\Users\Administrator>cxgbtool vbd0 debugfs cctrl
0: 24 108 236
730 981 1004 2028 2156 4076 4480 4780
1: 8 36 78
243 327 334
.
.
.

cim_pif_la
Description: Displays CIM PIF logic analyzer trace.
Syntax: cxgbtool [vbdInterface] debugfs cim_pif_la
Example:
C:\Users\Administrator>cxgbtool vbd0 debugfs cim_pif_la
Cntl ID DataBE
01 01 f000 e1003060 40004044400040444000404440004044
81 00 f000 e1003060 00004044000040440000404400004044
81 00 f000 e1003060 40003044400030444000304440003044
.
.
.

cim_ma_la
Description: Displays results of CIM MA logic analyzer trace.
Syntax: cxgbtool [vbdInterface] debugfs cim_ma_la
Example:
C:\Users\Administrator>cxgbtool vbd0 debugfs cim_ma_la
.
.
0000000000000000000000000000000000
0000000000000000000000000000000000
Cnt ID Tag UE
0 0 0 0 0000000000000000
0 0 0 0 0000000000000000
0 0 0 0 0000000000000000
Chelsio T5/T4 Unified Wire for Windows
268 384 492 620
89 128 164 206
676 718 1358 1493 1593
Addr
Data RDY VLD
0
0
0
724
1 0.5
241
1 0.5
Data
0
0
0
33
