Chapter III. Unified Wire Manager (UM)
8.8.7. T5/T4 Boot Configuration
This module can be used to view and configure PXE and FCoE Option ROM settings for
Chelsio T5 and T4 cards.
PXE physical functions and order of ports for PXE boot can be selected here. The same module
can be used to configure FCoE Option ROM. Here port order for target discovery and discovery
timeout can be set. Under the Boot section, LUN can be configured as boot device from the
discovered FCoE targets.
Enable the Option ROM only if you are planning to boot the system via PXE or install the
operating system on FCoE LUN.

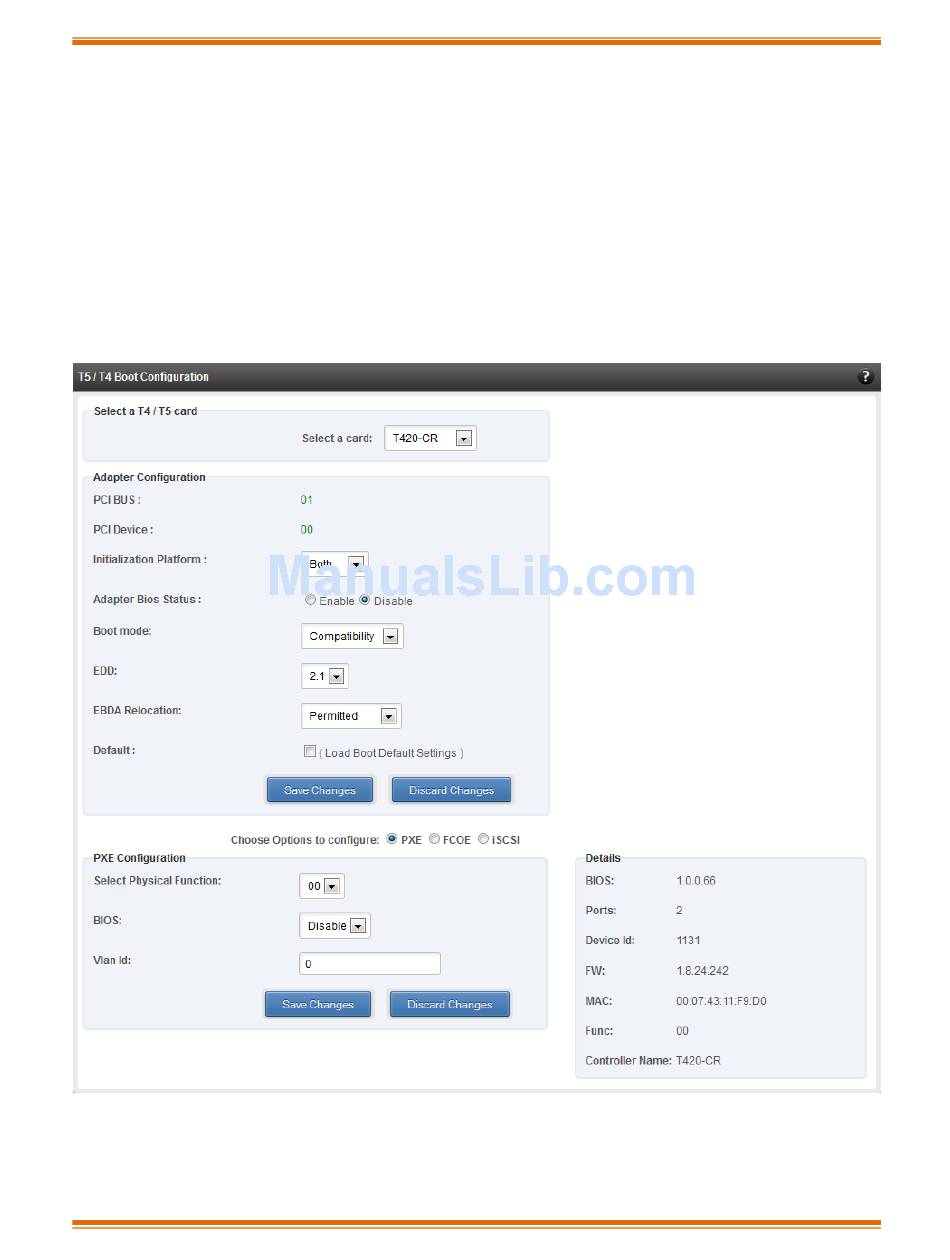

Figure 8.8.7 (a) - PXE Boot configuration for T4 CNAs
