T4 Filtering configuration
T4 Filtering options can be set only when offload driver (t4_tom) is not loaded.
A list of pre-defined filter selection combinations is displayed. The combination fragmentation,
mpshittype, protocol, vlan, port, fcoe is active by default. To select a different combination,
highlight it in the Combinations list by clicking and click "Set Active Combination".
You can create filter rules for any combination in the list. However, filter rule created only for the
Active Combination will apply. To create a new rule, select a combination and click "Add a filter
rule". The FILTERID and T4 CARD fields are mandatory. After providing appropriate values for
the parameters click "Save Changes".
For a detailed explanation regarding different fields, please refer cxgbtool
Note
manual by running
Chelsio T5/T4 Unified Wire for Windows
man cxgbtool

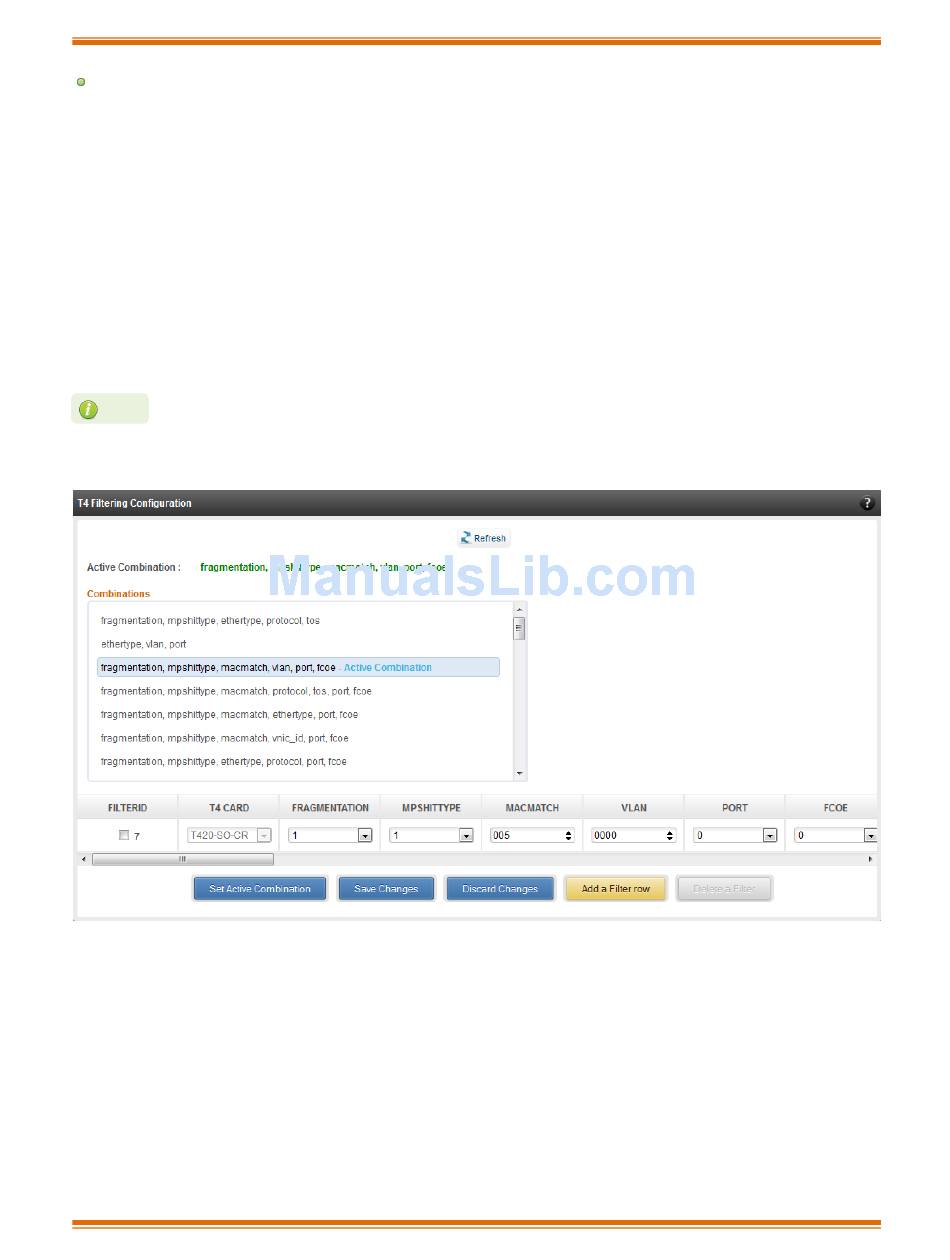

Figure 8.8.1(b) - T4 Filtering Configuration module
command on Management Agent CLI.
