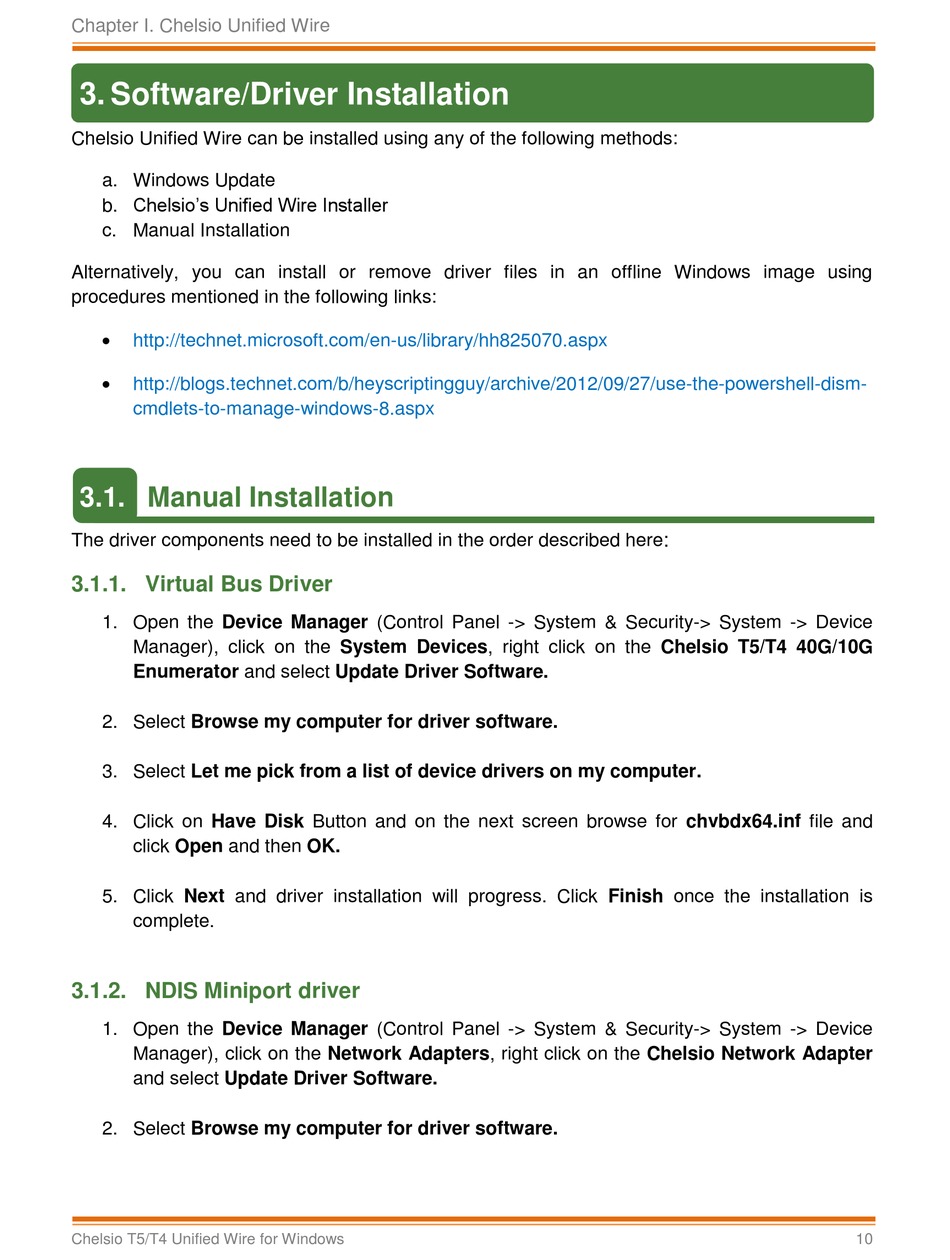

Software/Driver Installation; Manual Installation - Chelsio Communications T4 Installation And User Manual

Chapter I. Chelsio Unified Wire

3. Software/Driver Installation

Chelsio Unified Wire can be installed using any of the following methods:
a. Windows Update
b. Chelsio‟s Unified Wire Installer
c. Manual Installation
Alternatively, you can install or remove driver files in an offline Windows image using
procedures mentioned in the following links:

http://technet.microsoft.com/en-us/library/hh825070.aspx

http://blogs.technet.com/b/heyscriptingguy/archive/2012/09/27/use-the-powershell-dism-
cmdlets-to-manage-windows-8.aspx
3.1.

Manual Installation

The driver components need to be installed in the order described here :
3.1.1. Virtual Bus Driver
1. Open the Device Manager (Control Panel -> System & Security-> System -> Device
Manager), click on the System Devices, right click on the Chelsio T5/T4 40G/10G
Enumerator and select Update Driver Software.
2. Select Browse my computer for driver software.
3. Select Let me pick from a list of device drivers on my computer.
4. Click on Have Disk Button and on the next screen browse for chvbdx64.inf file and
click Open and then OK.
5. Click Next and driver installation will progress. Click Finish once the installation is
complete.
3.1.2. NDIS Miniport driver
1. Open the Device Manager (Control Panel -> System & Security-> System -> Device
Manager), click on the Network Adapters, right click on the Chelsio Network Adapter
and select Update Driver Software.
2. Select Browse my computer for driver software.
Chelsio T5/T4 Unified Wire for Windows 10
