INSTALLATION

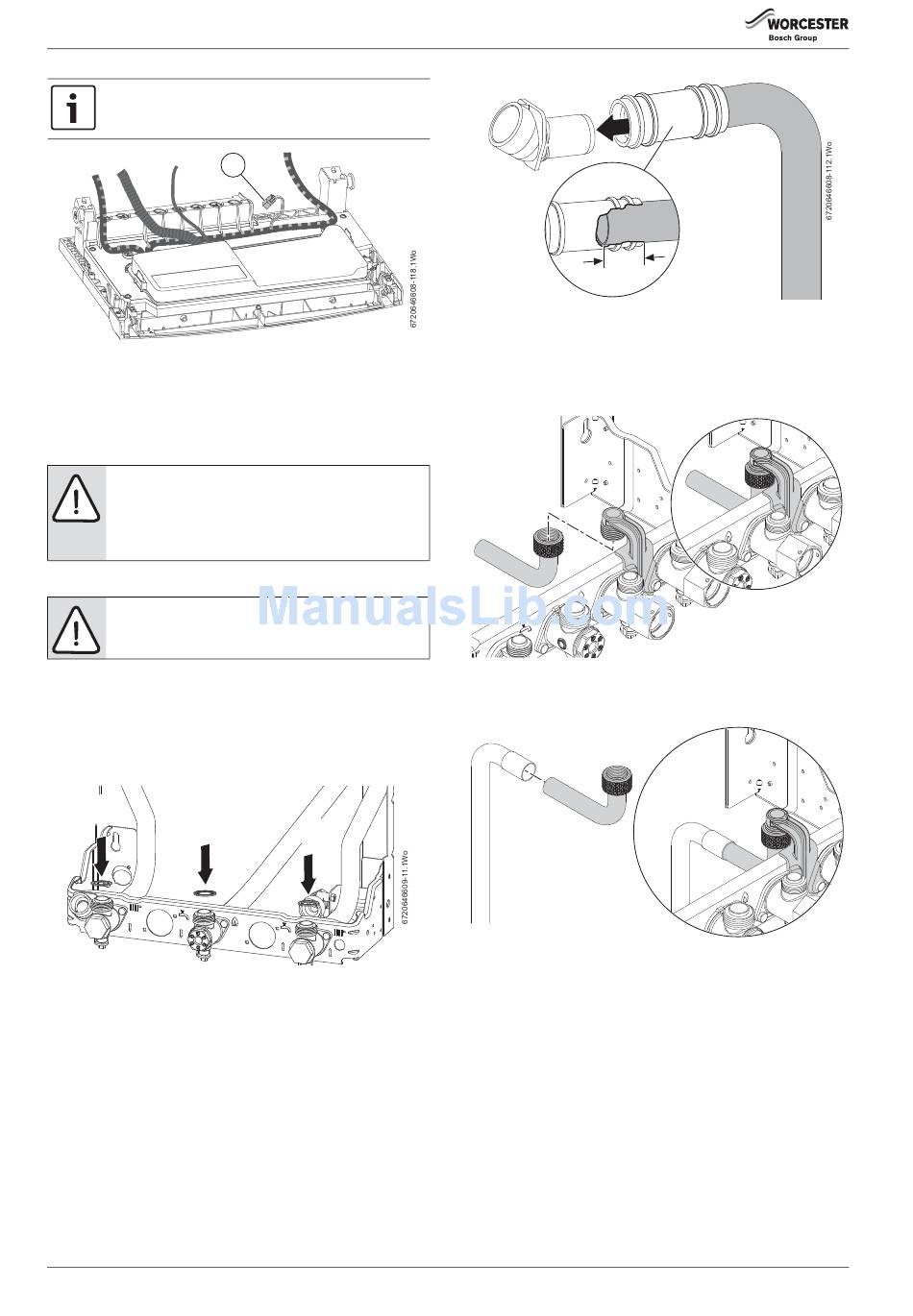

Refer to Figure 26. The connector (1) in the wiring
harness is for use on other appliances and does not
provide a function on this Greenstar iSystem Compact
Fig. 26 Unused connector
▶ Remove any packaging within the boiler and the packaging base (3).
▶ Leave the V shaped support (5) in place until the boiler is ready to be
hung on the wall frame, then remove.
5.4

PRE-PLUMBING BOILER CONNECTIONS

CAUTION:
▶ Isolate the mains gas supply before starting any work
and observe all relevant safety precautions.
▶ Be aware of plastic components when using a naked
flame on pipework.
GAS AND WATER CONNECTIONS
WARNING: Bonded washer for gas
▶ The bonded washer must be used on the gas pipe
isolating valve connection.
▶ Connect the system pipes using the compression nuts and olives
supplied in the Literature/Hardware pack.
1. CH flow (22mm)
2. Gas inlet - bonded washer (22mm)
3. CH return (22mm)
▶ Fit sealing washers to service valves before hanging boiler.
1.
2.
Fig. 27 Sealing washers
PLUMBING THE CONDENSATE DRAIN PIPE
▶ Fit the condensate discharge pipe as far back as possible to the wall to
ensure easy fitting of the boiler bottom panel.
▶ Route the condensate pipe to an appropriate discharge point, refer to
section 4.4.
▶ Plumb up to the wall frame with 22mm pipe.
▶ Ensure that there is enough pipe to insert 25mm into the rubber hose
connector.
▶ Attach the connector to the condensate drain pipe.
26
ErP
1
3.
25mm
Fig. 28 Condensate connection
PRV PRE-PLUMBING CONNECTION
1. Fit the PRV pre-plumbing connector to the PRV locator bracket as
shown in the figure below.
The elbow is supplied in the Hardware/Literature pack.
1.
Fig. 29 PRV pipe connection
Once the wall frame has been mounted the PRV discharge pipe can be
fitted.
Fig. 30 PRV elbow fitting
▶ Connect the PRV discharge pipe to the pre-plumbing connector.
▶ The discharge pipe can be routed as described in section 4.5.
▶ The pre-plumbing connector must be removed before the boiler is
hung on the wall frame.
