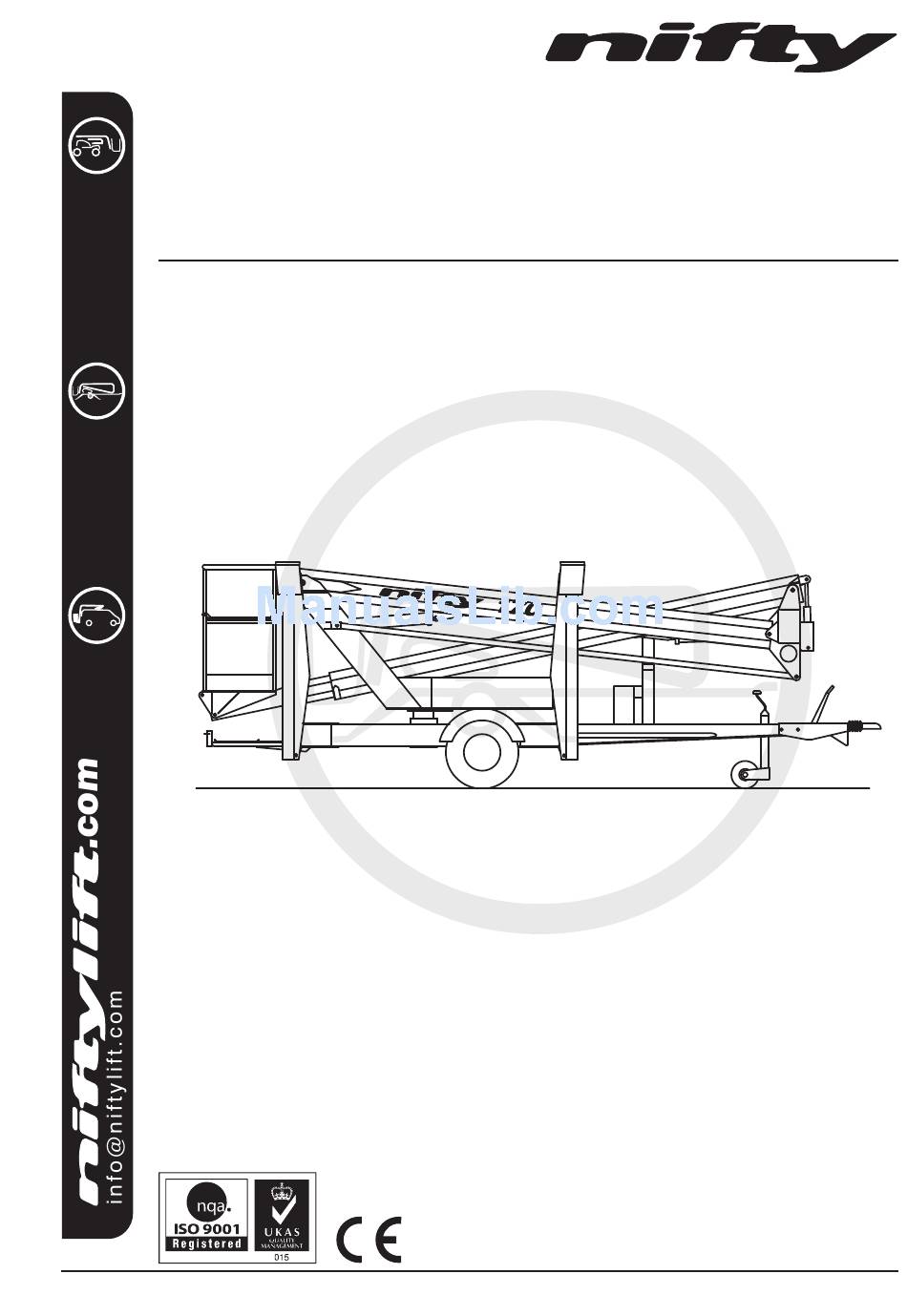

- Page 1 170/TM50 Operating and Safety Instructions MODEL 170 (TM50) SERIES Manufactured by: Niftylift Limited Fingle Drive Stonebridge Milton Keynes MK13 0ER England www.niftylift.com e-mail: info@niftylift.com Tel: +44 (0)1908 223456 Fax: +44 (0)1908 312733 M50151/08...
-
Page 3: Table Of Contents
TM Series Operating & Safety Instructions Table of Contents INTRODUCTION AND GENERAL INFORMATION PAGE 1.1 Foreword 1.2 Scope 1.3 Introducing the 170 Trailer Mount (TM) Series 1.4 General Specification 1.5 Identification 1.6 EC Decleration of Conformity SAFETY 2.1 Mandatory Precautions 8-10 2.2 Environmental Limitations 2.3 Noise &... -
Page 4: Introduction And General Information Page
TM Series Operating & Safety Instructions Introduction and General Information FOREWORD The purpose of these manuals is to provide the customer with appropriate safety operating and maintenance instructions essential for proper machine operation. All information in these manuals should be READ and fully UNDERSTOOD before any attempt is made to operate the machine. -
Page 5: Scope
Niftylift Inc, 32 Concourse Way, Greer, SC 29651 USA Tel: +01 864 968 8881 Fax: +01 864 968 8836 Nifty Pty Ltd, 11 Kennington Drive, Tomago, NSW 2322, Australia Tel: +61 (0) 2 4964 9765 Fax: +61 (0) 2 4964 9714 The Niftylift 170 trailer mount is an extremely versatile articulated boom platform of unique and simple design. -
Page 6: General Specification
TM Series Operating & Safety Instructions GENERAL SPECIFICATION FEATURE 170 (TM50) MAXIMUM HEIGHT - WORKING 56ft MAXIMUM HEIGHT - PLATFORM 15.2m 50ft MAXIMUM HEIGHT - STOWED 1.9m 6ft 3in MAXIMUM OUTREACH 8.7m 28ft 5in MAXIMUM WIDTH - TOWING 1.6m 5ft 3in JACK SPREAD 4.37m 14ft 4in... -
Page 7: Identification
TM Series Operating & Safety Instructions IDENTIFICATION (UK PLATE) IFTYLIFT LTD. FI GLE DRIVE, STO EBRIDGE MILTO KEY ES MK13 0ER E GLA D TEL 01908 223456 : FAX 01908 312733 e-mail : info@niftylift.com SERIAL o TYPE YEAR OF MA UFACTURE WEIGHT RATED LOAD PERSO S... -
Page 8: Identification
TM Series Operating & Safety Instructions 1.5a IDENTIFICATION (USA PLATE) IFTYLIFT LTD. FI GLE DRIVE, STO EBRIDGE MILTO KEY ES MK13 0ER GREAT BRITAI TEL (01144)1908 223456 : FAX (01144) 1908 312733 e-mail : info@niftylift.com THIS WORK PLATFORM COMPLIES WITH A SI STA DARD A 92- MODEL SERIAL O YEAR OF MA UFACTURE... -
Page 9: Ec Decleration Of Conformity
TM Series Operating & Safety Instructions EC DECLARATION OF CONFORMITY (Typical) EC DECLARATION OF CONFORMITY MANUFACTURER AND NIFTYLIFT LTD PERSON RESPONSIBLE MALCOLM NORTH FOR DOCUMENTATION: ADDRESS: FINGLE DRIVE, MACHINE TYPE: MOBILE ELEVATING WORK PLATFORM MODEL TYPE: SERIAL NUMBER: NOTIFIED BODY: RWTUV Anlagentechnik GmbH NOTIFIED BODY NUMBER: 0044 ADDRESS:... -
Page 10: Safety
TM Series Operating & Safety Instructions 2 Safety MANDATORY PRECAUTIONS When operating your Niftylift, your safety is of utmost concern. In order to fully appreciate all aspects of the machines operation it should be ensured that each operator has READ and fully UNDERSTOOD the relevant manual covering machine use, maintenance and servicing. - Page 11 TM Series Operating & Safety Instructions 2.1.9 Never position any part of the Niftylift within 4.0m, (12ft) of any electrical power line, conductor or similar not exceeding 66kV. (Minimum span 125m) Other distances for increased voltages and different spans are given in NZECP 34:1993 THIS MACHINE IS NOT INSULATED.
- Page 12 TM Series Operating & Safety Instructions 2.1.22 The operator shall immediately report to his superior any problems or malfunctions of the Niftylift, which becomes evident during operation. Any problems or malfunctions that affect the safety of operation shall be repaired prior to continued use. 2.1.23 The boom and platform of the Niftylift shall not be used to jack the wheels off the ground.
-
Page 13: Environmental Limitations
TM Series Operating & Safety Instructions ENVIRONMENTAL LIMITATIONS All Niftylift Trailer Mounts are limited to operation as previously described and any slopes must be adjusted by use of the outriggers and jacks. Unless specifically configured otherwise, the machine will have short time rating for operation in extreme temperatures, i.e. reduced battery cycle times for low temperatures such as freezers, food storage etc. -
Page 14: Preparation And Inspection
TM Series Operating & Safety Instructions Preparation and Inspection UNPACKING Since the manufacturer has no direct control over the shipping or carriage of any Niftylift it is the responsibility of the dealer and/or owner and/or leaser to ensure the Niftylift has not been damaged in transit and a Pre-operational Report has been carried out by a qualified engineer before the aerial platform is put into service. -
Page 15: Pre-Operational Safety Check Schedules
TM Series Operating & Safety Instructions PRE-OPERATIONAL SAFETY CHECK SCHEDULES Before use at the beginning of the work shift, the aerial platform shall be given a visual inspection and functional tests including, but not limited to the following. It is recommended that these be performed at regular intervals as indicated on each checklist. - Page 16 TM Series Operating & Safety Instructions 3.3.3 MONTHLY SAFETY CHECKS Check the engine oil level (if applicable). Check the wheel nuts (torque 110ft lbs/150Nm or 117ft lbs/160Nm Traction Drive Option). Check outriggers for condition, security and operation. Check that the slew worm is secure and correctly in mesh. Clean and re-grease. Inspect brakes for operation and wear.
-
Page 17: Placard, Decals And Installation
Manual Hand Pump P14864 If E-Stop disabled… P18672 General Warning P14921 Head Protection P15383 Serial Plate P14801 SWL 200kg Nifty 170 P26440 P14390 Niftylift.com Cage levelling P10853 P14926 Hydraulic Controls – 3 lever P14927 Hydraulic Controls – 5 lever Base Control... - Page 18 TM Series Operating & Safety Instructions ITEM DESCRIPTION NUMBER Cage Control (D/DE) Cage weigh P17213 Non cage weigh P16684 P14892 Operating Instructions P18848 Overload Warning P17123 Noise Warning 73dB P18890 Traction Drive – Engage P14782 Hand Crush P15634 Cage Rotate P16190 Blank Axle Plate P18975...
- Page 19 TM Series Operating & Safety Instructions English/USA – 01/10...
-
Page 20: Placard, Decals And Installation
P14864 If E-Stop disabled… Tilt alarm P18842 Cage Gate Warning P18432 P14782 General Crush P14965 Point Load - 13.0kN P15010 Rotating Machinery Nifty TM50 P14614 P14390 Niftylift.com Cage levelling P10853 P14841 Outriggers - Hydraulic Boom Clamp P14836 P14896 Coupling instructions... - Page 21 TM Series Operating & Safety Instructions ITEM DESCRIPTION NUMBER P15634 Cage Rotate P14892 Operating Instructions P17123 Noise Warning 73dB P14782 Hand Crush P18890 Traction Drive - Engage P16636 Traction Drive – Release P18976 Traction Drive – On slope English/USA – 01/10...
- Page 22 TM Series Operating & Safety Instructions English/USA – 01/10...
-
Page 23: Torque Requirements
TM Series Operating & Safety Instructions TORQUE REQUIREMENTS SCREW QUALITY/SIZE Tightening torque in ft lbs (Nm) GRADE 10.9 (10) (14) 18.5 (25) (35) M 10 (49) (69) M 12 (86) (120) M 14 (135) (190) M 16 (210) (295) M 18 (290) (405) WHEEL NUTS... -
Page 24: Operation
TM Series Operating & Safety Instructions Operation CONTROL CIRCUIT COMPONENTS 4.1.1 CONTROL BOARD: - Situated under the canopy, the control board comprises a PCB (printed circuit board) design that incorporates all of the relays to control the machine operation. The control board is common between models with the same power source, and will contain, where appropriate, discrete fuses for the circuits concerned. -
Page 25: Setting-Up Procedures
TM Series Operating & Safety Instructions SETTING UP PROCEDURES FAILURE TO DEPLOY THE OUTRIGGERS CORRECTLY COULD RESULT IN DEATH OR SERIOUS INJURY. ALL MODELS Read and fully comply with all safety precautions and operating instructions in the Operating and Safety manual and the warning decals on the machine. Position Niftylift on firm ground, bearing in mind range of boom movement so that any overhead obstructions or possible hazards such as, but not limited to, power cables, telephone lines, drains, manhole covers, etc. - Page 26 TM Series Operating & Safety Instructions HYDRAULIC OUTRIGGERS (170H) MODELS Ensure that the key switch at the ground control station is turned to the “ON” position (i.e. clockwise). At the outrigger control station press down and hold the power lever on the right hand side. This activates the power and diverts hydraulic flow to the legs for setting up.
-
Page 27: Ground Control Operation
TM Series Operating & Safety Instructions GROUND CONTROL OPERATION ALWAYS ALLOW THE ENGINE TO WARM UP BEFORE OPERATING. 4.3.1 GROUND CONTROL INSTRUCTIONS ALL MODELS Check below, above and around the platform for any obstructions or hazards before operating any function. Ensure all red emergency stops are out. - Page 28 TM Series Operating & Safety Instructions EMERGENCY PROCEDURES Push in red emergency stop to shut down all functions. Use manual hand pump to provide motive power and manoeuvre the machine as normal using the hand levers (Platform or Base). 4.3.2 BOOM FUNCTIONS Push and hold green power button.
-
Page 29: Platform Control Operation
TM Series Operating & Safety Instructions PLATFORM CONTROL OPERATION NEVER START THE NIFTYLIFT IF YOU SMELL PETROL (GASOLINE), LIQUID PROPANE OR DIESEL. THESE FUELS ARE FLAMMABLE. BEFORE OPERATING THE NIFTYLIFT ENSURE THAT EACH OPERATOR HAS READ AND FULLY UNDERSTOOD THE OPERATING MANUAL. FAILURE TO DO SO MAY RESULT IN DEATH OR SERIOUS INJURY. - Page 30 TM Series Operating & Safety Instructions ALL MODELS Push and hold green power button. Select the boom function required and operate hand levers in full accordance with manufacturers Operating and Safety manual. When not in use return machine to stowed position, fully raise and stow all outriggers, turn the key to the “OFF”...
-
Page 31: Cage Weigh System
TM Series Operating & Safety Instructions CAGE WEIGH SYSTEM 4.5.1 MECHANICAL VERSION The Niftylift range of machines are available fitted with mechanical cage weigh systems. These are configured to sense a vertical cage overload, which when detected will halt the machine movement. No further use of the platform is then permitted until the overload has been removed. - Page 32 TM Series Operating & Safety Instructions 4.5.4 CALIBRATION If a closer examination of the system is required, typically for testing and approval, the safe working load should be placed in the cage, carefully weighing the test load to ensure accuracy. The addition of a 5kg weight, to any of the four corners of the cage, should sound the alarm.
-
Page 33: Cage Weigh System
TM Series Operating & Safety Instructions The failure signal is generated if either relay fails to respond to the ‘safe’ cage weigh signal from the safety micro-switch, either due to a coil or contacts failing or if a contact sticks in place due to welding. -
Page 34: Batteries And Charging
TM Series Operating & Safety Instructions BATTERIES AND CHARGING BATTERIES MUST BE RECHARGED IN A WELL-VENTILATED AREA FREE OF FLAME, SPARKS OR OTHER HAZARDS THAT MAY CAUSE EXPLOSION. HIGHLY EXPLOSIVE HYDROGEN GAS IS PRODUCED DURING THE CHARGING PROCESS. Recharge batteries at the end of every working day or shift. (Note: To recharge batteries fully from flat takes approx. - Page 35 TM Series Operating & Safety Instructions Note: If the charger is reconnected to the power supply shortly after it has gone through its full charging cycle, the transformer type charger may show a Red light although the batteries may be fully charged. Alternatively, the digital charger will show a Green 50% lamp, immediately followed by the Green 75% lamp.
- Page 36 TM Series Operating & Safety Instructions current carrying capacity, which will again lead to a reduction in the chargers efficiency. Both of these can result in over-heating of the cable increasing the risk of fire, short circuits or damage to the components themselves.
-
Page 37: Transporting, Towing, Craneage, Storage And Setting To Work
TM Series Operating & Safety Instructions TRANSPORTING, TOWING, STORAGE AND SETTING TO WORK 4.7.1 TRANSPORTING If a work platform is to be moved over a longer distance, whether the machine is trailer mounted, vehicle mounted, self propelled or tracked, the following procedure should be read before restraints are attached to the machine. - Page 38 TM Series Operating & Safety Instructions 4.7.2 TOWING THE MAXIMUM RECOMMENDED TOWING SPEED OF A NIFTYLIFT IS 45 MPH (72 KMPH) WITH A VEHICLE THAT COMPLIES WITH ALL ROAD TRAFFIC REGULATIONS. SPEEDING MAY RESULT IN DEATH OR SERIOUS INJURY. It is recommended that the maximum towing speed of 45mph (72kmph) be adhered to for the greatest safety.
- Page 39 TM Series Operating & Safety Instructions 4.7.3 CRANEAGE Observe all of the limitations relating to straps and chains stated above under ‘Transporting’. (Section 4.7.1) When utilising the designated lifting points never apply a ‘snatch’ load, i.e. lift slowly to take up the load before raising.
- Page 40 TM Series Operating & Safety Instructions Ensure that all safety devices and controls operate in accordance with the instructions. If necessary, perform a load test to establish the machine stability before putting the machine to work. On completion of an extended period of road transport, the machine might need additional inspection to identify any transit degradation, which could render the machine unsafe.
-
Page 41: Traction Drive
TM Series Operating & Safety Instructions TRACTION DRIVE On those trailer machines equipped primarily with fixed width axles, a traction drive system is an available option. This function allows the machine to be manoeuvred by one man, and provides the machine with the capability of ascending or descending a slope of 10% (5.7 degrees). -
Page 42: Traction Drive
TM Series Operating & Safety Instructions 4.8.2 DISENGAGING DRIVE Unless the machine has been manoeuvred to allow it to be coupled to a towing vehicle (as described in the appropriate section of this handbook), before disengaging the traction drive system the parking handbrake must be fully engaged. On no account disengage the traction drive system unless the handbrake is engaged, the wheels are securely chocked or the machine is connected to a towing vehicle. -
Page 43: Emergency Controls
TM Series Operating & Safety Instructions Emergency Controls GENERAL CHECKING THE OPERATION OF THE EMERGENCY CONTROLS EVERY DAY AND/OR BEFORE EACH SHIFT IS AN ESSENTIAL PART OF THE OPERATOR'S DUTIES The operator and all ground personnel must be thoroughly familiar with the location and operation of the EMERGENCY CONTROLS. -
Page 44: Responsibilities
TM Series Operating & Safety Instructions Responsibilities CHANGES IN OWNERSHIP When a change of ownership of a Niftylift occurs, it shall be the responsibility of the seller to notify Niftylift direct of the unit, model and serial number and the name and address of the new owner within 60 days. -
Page 45: Inspection/ Service Check List
TM Series Operating & Safety Instructions Inspection/Service/Pre-Hire Check list MACHINE SERIAL NO TOWING PASS FAIL Operation of tow coupling Operation of handbrake Operation of jockey wheel STABILISERS Micro-switches secure Locating pins operating freely and oiled Stabilisers operate smoothly Operation of each micro-switch and klaxon (if fitted) Operation of jack control valve and buttons Operation of each hydraulic jack Operation of each micro-switch including siren... - Page 46 TM Series Operating & Safety Instructions SLEWING PASS FAIL Slew assembly and motor are secure Worm/wheel mesh correct, no excessive wear No end float of worm in housing Slew wheel bolts secured Slew guards secure PLATFORM Operation of control valve and buttons Operation of all booms over full range Cylinders are silent Platform levelling over full range...
