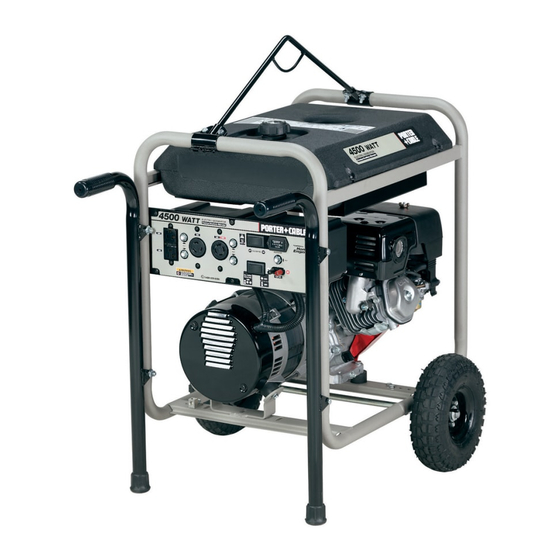

Porter-Cable H450IS Instruction Manual

Porter-cable generator instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction
Model
H450IS
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2003 Porter-Cable Corporation
manual
ESPAÑOL: PÁGINA 25
FRANÇAIS: PAGE 49
Generator
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the frame.
Record these numbers in the spaces below and retain for
future reference.
Model No.
Type
Serial No.
Part No. D28512-032-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H450IS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Porter-Cable H450IS

Summary of Contents for Porter-Cable H450IS

  • Page 1 Instruction manual Model H450IS To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Copyright © 2003 Porter-Cable Corporation ESPAÑOL: PÁGINA 25 FRANÇAIS: PAGE 49 Generator IMPORTANT Please make certain that the person who is to use this equipment carefully reads and understands these instructions before starting operations.

  • Page 2: Safety Guidelines - Definitions

    SAFETY GUIDELINES / DEFINITIONS This manual contains information that is important for you to know and understand. This infor- mation relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these sections.
  • Page 3 RISK OF ELECTROCUTION AND FIRE (Continued) HAZARD Attempting to connect to the in- Attempting to coming utility service could result connect generator in electrocution. directly to the Restoration of electrical service electrical system while the generator is connected of any building to the incoming utility could structure.
  • Page 4 RISK OF ELECTROCUTION AND FIRE (Continued) HAZARD Operation of unit Attempting to use the unit when damaged, when it has been damaged, or or with guards or when it is not functioning panels removed. normally could result in fire or electrocution.
  • Page 5 RISK OF FIRE (Continued) HAZARD Overfilling the fuel Spilled fuel and its vapors can tank – fuel become ignited from hot spillage. surfaces or sparks. RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING GENERATOR HAZARD Fuel or oil can leak or spill and Fire, Inhalation, could result in fire or breathing Damage to...

  • Page 6: Risk Of Unsafe Operation

    RISK OF UNSAFE OPERATION HAZARD All sources of energy include the Operation of potential for injury. Unsafe generator in operation or maintenance of your careless manner generator could lead to serious injury or death to you or others. Any gasoline operated Operation of household generator will incur voltage...

  • Page 7: Risk Of Hot Surfaces

    RISK OF HOT SURFACES HAZARD Contact with hot surfaces, such Contact with hot as engines exhaust components, engine and could result in serious burns. generator components. RISK OF MOVING PARTS HAZARD The generator contains parts Contact with which rotate at high speed during moving parts operation.

  • Page 8: Specifications

    MODEL HORSE POWER RATED/SURGE WATTS VOLTAGE AMPERAGE PHASE HERTZ ENGINE SPEED MAX. AMBIENT TEMP. FUEL CAPACITY RUN TIME @ 50%/100% D28512 SPECIFICATIONS H450IS 4500/5500 120/240V 37.5A/18.8 A SINGLE 60 Hz 3600 RPM 104° F 7 GALLON 13.4/8.7 HOURS 8- ENG...

  • Page 9: Grounding The Generator

    Read this manual. Do not attempt to operate equipment until you have read this Manual for Safety, Operation, and Maintenance Instructions. NOTE: This manual is a general manual. Information in this manual may or may not pertain to your model. Please read carefully. NOTE: Left and right describes the location of a part with the operator facing the outlet panel.

  • Page 10: Extension Cords

    OBTAINING ELECTRICITY FROM THE GENERATOR There are basically 2 ways to obtain electricity from a generator: Use of extension cords directly from the generator to the appliance, lights, tools, etc. Use of a double-throw transfer switch installed directly to the main electrical supply outside of house.
  • Page 11 ASSEMBLE SKYHOOK Tools needed: 1 - 1/2” socket or open end wrench 1 - Torque wrench Parts bag contains: 1 - Skyhook 2 - Upper brackets 4 - Bolts, 5/16-18 x 7/8” 4 - Lockwashers, 5/16” 4 - Nuts, Whizlock 5/16” Place skyhook under frame as shown.

  • Page 12: Operation

    Torque four bolts to 11-12 ft.-lbs. (132-144 in.-lbs.) IMPORTANT: DO NOT substitute hardware when assembling the skyhook. KNOW YOUR GENERATOR Read this General Manual and Safety Rules before operation of your Generator. Compare the illustration in your parts manual with your generator to familiarize yourself with the location of various controls and adjustments.

  • Page 13: Idle Control

    IDLE CONTROL Choose the correct application. For normal application such as power tools, small electric appliances, light bulbs, and radios: Place the idle control switch in the ON position. The generator will idle down when there is no load. This lowers the engine noise, saves on fuel consumption, and engine life.

  • Page 14: To Start The Engine

    Never run engine indoors or in enclosed, poor ventilated areas, engine exhaust contains carbon monoxide, an odorless and deadly gas. Make sure generator is grounded in accordance with local requirements. All electrical loads MUST be disconnected. The idle control switch MUST be in the OFF position. Make sure skyhook bolts are tightened and torqued to 11-12 ft.-lbs.

  • Page 15: Stopping Engine

    Grasp handle on rope starter and pull slowly until resistance is felt. Let the rope rewind slowly. Pull rope with a rapid full arm stroke. Let rope rewind slowly. Repeat if necessary. NOTE: IF ENGINE OIL LEVEL IS TOO LOW, ENGINE WILL NOT START.
  • Page 16 Overloading the generator will cause power fluctuations and can damage equipment and appliances. Porter-Cable Corporation will only be responsible for damage to customer's equipment when the generator is determined to be defective. This determination will only be made by an authorized representative of Porter-Cable Corporation and this decision will be final.

  • Page 17: Maintenance

    CUSTOMER RESPONSIBILITIES TABLE MAINTENANCE TASK Check oil level Change oil Clean Air Filter Assembly Check Spark Plug Prepare Unit for Storage Note 1: Change oil after first two (2) operating hours and every 50 operating hours thereafter, more often if operated in extreme dusty or dirty conditions. Note 2: Check oil after 5 hours of operation.

  • Page 18: Engine Preparation

    If you are going to store your generator for more than 30 days, use the following information as a guide to prepare the generator for storage. Never store generator with fuel in the tank indoors or in enclosed, poorly ventilated areas, where fumes can reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or other gas appliances.

  • Page 19: Wattage Calculations

    WATTAGE CALCULATIONS Never exceed the rated capacity of your generator. Serious damage to the generator or appliance could result from an overload. 1. Starting and running wattage requirements should always be calculated when matching a generators wattage capacity to the appliance or tool. 2.
  • Page 20 STARTING WATTAGE REQUIREMENTS Some appliances and tools will list on the motor nameplate the starting and running voltage and amperage requirements. Use the following formula to convert voltage and amperage to wattage: Volts X Amp = Watts Example: 120 volts x 10 amps = 1200 watts To determine the approximate starting wattage requirement for most appliances and tools with inductive type motors, multiply the wattage that was calculated by 2 to 4 times to assure adequate generator capacity.
  • Page 21 HOUSEHOLD WATTAGE CALCULATOR DEVICES WITH HIGH STARTING (INDUCTIVE)LOADS RUN WATTS TIMES (X) START FACTOR 2400 1000 1000 CAUTION !! DO NOT CONNECT VOLTAGE SENSITIVE ELECTRONIC EQUIPMENT (TV SET, COMPUTER, ETC.) DIRECTLY TO YOUR GENERATOR. IF YOU USE THE GENERATOR TO POWER SENSITIVE EQUIPMENT YOU MUST USE A U.L.

  • Page 22: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM Engine will not Low on fuel or oil. start Ignition switch in "Off" position. Choke in wrong position. Fuel shut-off valve in closed position Unit loaded during start- Spark plug wire loose. Faulty receptacle. No electrical output Circuit breaker kicked out.

  • Page 23: Limited Warranty

    • Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s). • Deliver or ship the product to the nearest Porter-Cable Authorized Warranty Service Center. Freight costs, if any, must be paid by the purchaser.

  • Page 24: Quick Facts

    CALL 1-888-559-8550 TO FIND A LOCAL AUTHORIZED SERVICE CENTER NEAR YOU FOR REPAIRS AND SERVICE PART PURCHASES ENGINE Use clean, fresh gasoline with a minimum 87 octane rating. Do not add gasoline during or immediately after use. Refer to engine owner's manual for oil recommendations. ENGINE OIL Most generators are equipped with a low-oil shutdown.
