Porter-Cable generator H650IS-W Instruction Manual

Porter-cable generator instruction manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction
manual
Model
H650IS-W
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2003 Porter-Cable Corporation
ESPAÑOL: PÁGINA 25
FRANÇAIS: PAGE 49

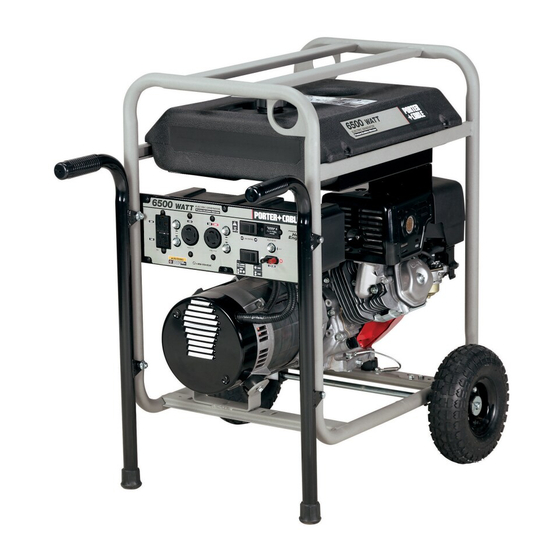

Generator
Shown with optional portability kit
IMPORTANT
Please make certain that the person who is
to use this equipment carefully reads and
understands these instructions before
starting operations.
The Model and Serial No. plate is located on the frame.
Record these numbers in the spaces below and retain for
future reference.
Model No.
Type
Serial No.
Part No. D28453-032-0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the generator H650IS-W and is the answer not in the manual?

Questions and answers

Related Manuals for Porter-Cable generator H650IS-W

Summary of Contents for Porter-Cable generator H650IS-W

  • Page 1 Instruction manual Model H650IS-W To learn more about Porter-Cable visit our website at: http://www.porter-cable.com Copyright © 2003 Porter-Cable Corporation ESPAÑOL: PÁGINA 25 FRANÇAIS: PAGE 49 Generator Shown with optional portability kit IMPORTANT Please make certain that the person who is...

  • Page 2: Consumer Safety Information

    CONSUMER GENERAL AND SERVICE INFORMATION • Please read and follow these instructions for proper use and maintenance. • If you experience any problems and need assistance, please call us at our toll free number 1-888-559-8550, Monday through Saturday, 8:00 a.m. To 6:00 p.m.

  • Page 3: Safety Guidelines - Definitions

    SAFETY GUIDELINES / DEFINITIONS This manual contains information that is important for you to know and understand. This infor- mation relates to protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the symbols below. Please read the manual and pay attention to these sections.
  • Page 4 RISK OF ELECTROCUTION AND FIRE (Continued) HAZARD Operation of Water is an excellent conductor generator in rain, of electricity! Water which comes wet, icy, or in contact with electrically flooded charged components can conditions. transmit electricity to the frame and other surfaces, resulting in electrical shock to anyone con- tacting them.

  • Page 5: Risk Of Fire

    RISK OF FIRE HAZARD Gasoline and gasoline vapors Attempting to can become ignited by coming fill the fuel tank in contact with hot components while the engine such as the muffler, engine is running. exhaust gases, or from an electrical spark. Sparks, fire, hot Cigarettes, sparks, fires, or objects...

  • Page 6: Risk Of Unsafe Operation

    RISK OF INJURY AND PROPERTY DAMAGE WHEN TRANSPORTING GENERATOR HAZARD Fuel or oil can leak or spill and Fire, Inhalation, could result in fire or breathing Damage to hazard, serious injury or death Vehicle Surfaces can result. Fuel or oil leaks will damage carpet, paint or other surfaces in vehicles or trailers.

  • Page 7: Risk Of Hot Surfaces

    RISK OF UNSAFE OPERATION (Continued) HAZARD Any gasoline operated Operation of household generator will incur voltage voltage variations causing sensitive appli- damage to voltage sensitive ap- ances without a pliances or could result in fire. voltage surge protector Generator could fall causing Raising or serious injury or death to you or suspending...

  • Page 8: Risk Of Moving Parts

    RISK OF MOVING PARTS HAZARD The generator contains parts Contact with which rotate at high speed during moving parts operation. These parts are can result in covered by guarding to prevent serious injury. injury. RISK FROM LIFTING HAZARD Lifting a very Serious injury can result from at- heavy object.

  • Page 9: Grounding The Generator

    Read this manual. Do not attempt to operate equipment until you have read this Manual for Safety, Operation, and Maintenance Instructions. NOTE: This manual is a general manual. Information in this manual may or may not pertain to your model. Please read carefully. NOTE: Left and right describes the location of a part with the operator facing the outlet panel.

  • Page 10: Extension Cords

    OBTAINING ELECTRICITY FROM THE GENERATOR There are basically 2 ways to obtain electricity from a generator: Use of extension cords directly from the generator to the appliance, lights, tools, etc. Use of a double-throw transfer switch installed directly to the main electrical supply outside of house.

  • Page 11: Operation

    KNOW YOUR GENERATOR Read this General Manual and Safety Rules before operation of your Generator. Compare the illustration in your parts manual with your generator to familiarize yourself with the location of various controls and adjustments. Save all manuals for future references. GENERATOR CAPACITY IMPORTANT: Exceeding the rated capacity of your generator can result in serious damage to your generator and connected electrical devices.

  • Page 12: Before Start-Up

    12V DC OUTLET IMPORTANT: Allow generator to run at no load for 5 minutes upon each initial start-up to allow engine to stabilize. IMPORTANT: When the unit is running the battery will charge. DO NOT connect the 12V DC cables to the generator’s battery. To charge battery: Using the 12V DC cables supplied, connect the red positive (+) 12V DC cable to the battery's positive (+) terminal.

  • Page 13: To Start The Engine

    TO START THE ENGINE Never run engine indoors or in enclosed, poor ventilated areas, engine exhaust contains carbon monoxide, an odorless and deadly gas. Open the fuel shut-off valve on tank and engine. Move the choke control located on the engine to "CHOKE" position. NOTE: No choke is required on warm engines.

  • Page 14: Stopping Engine

    Overloading the generator will cause power fluctuations and can damage equipment and appliances. Porter-Cable Corporation will only be responsible for damage to customer's equipment when the generator is determined to be defective. This determination will only be made by an authorized representative of Porter-Cable Corporation and this decision will be final.
  • Page 15 CONNECTING PROCEDURE FOR RAISING OR SUSPENDING GENERATORS Failure to properly connect lifting cables, chains, or straps can cause property damage, serious injury or death, and void the manufacturer's warranty. Always use cables, chains, or straps rated at 2000 lbs. working load or more to raise or suspend generator.

  • Page 16: Maintenance

    CUSTOMER RESPONSIBILITIES TABLE MAINTENANCE TASK Check oil level Change oil Clean Air Filter Assembly Check Spark Plug Prepare Unit for Storage Note 1: Change oil after first two (2) operating hours and every 50 operating hours thereafter, more often if operated in extreme dusty or dirty conditions. Note 2: Check oil after 5 hours of operation.

  • Page 17: Engine Preparation

    If you are going to store your generator for more than 30 days, use the following information as a guide to prepare the generator for storage. Never store generator with fuel in the tank indoors or in enclosed, poorly ventilated areas, where fumes can reach an open flame, spark or pilot light as on a furnace, water heater, clothes dryer or other gas appliances.

  • Page 18: Wattage Calculations

    WATTAGE CALCULATIONS Never exceed the rated capacity of your generator. Serious damage to the generator or appliance could result from an overload. 1. Starting and running wattage requirements should always be calculated when matching a generators wattage capacity to the appliance or tool. 2.
  • Page 19 STARTING WATTAGE REQUIREMENTS Some appliances and tools will list on the motor nameplate the starting and running voltage and amperage requirements. Use the following formula to convert voltage and amperage to wattage: Volts X Amp = Watts Example: 120 volts x 10 amps = 1200 watts To determine the approximate starting wattage requirement for most appliances and tools with inductive type motors, multiply the wattage that was calculated by 2 to 4 times to assure adequate generator capacity.
  • Page 20 HOUSEHOLD WATTAGE CALCULATOR DEVICES WITH HIGH STARTING (INDUCTIVE)LOADS RUN WATTS TIMES (X) START FACTOR 2400 1000 1000 CAUTION !! DO NOT CONNECT VOLTAGE SENSITIVE ELECTRONIC EQUIPMENT (TV SET, COMPUTER, ETC.) DIRECTLY TO YOUR GENERATOR. IF YOU USE THE GENERATOR TO POWER SENSITIVE EQUIPMENT YOU MUST USE A U.L.

  • Page 21: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM Engine will not Low on fuel or oil. start Ignition switch in "Off" position. Choke in wrong position. Fuel shut-off valve in closed position Unit loaded during start- Spark plug wire loose. Faulty receptacle. No electrical output Circuit breaker kicked out.

  • Page 22: Limited Warranty

    • Use reasonable care in the operation and maintenance of the product as described in the Owners Manual(s). • Deliver or ship the product to the nearest Porter-Cable Authorized Warranty Service Center. Freight costs, if any, must be paid by the purchaser.
  • Page 23 NOTES 23- ENG D28453...

  • Page 24: Quick Facts

    CALL 1-888-559-8550 TO FIND A LOCAL AUTHORIZED SERVICE CENTER NEAR YOU FOR REPAIRS AND SERVICE PART PURCHASES ENGINE Use clean, fresh gasoline with a minimum 87 octane rating. Do not add gasoline during or immediately after use. Refer to engine owner's manual for oil recommendations. ENGINE OIL Most generators are equipped with a low-oil shutdown.
