PRE-REQUISITES
If you are using a voice service on the same line as the DSL service, you will need a DSL line
filter for each handset or back-to-base home alarm system on the line. If you have a Naked
DSL service, line filters are not required.

INSTALLING THE DEVICE

1.
Connect the supplied RJ11 cable to the "modem" port of your DSL line filter and then

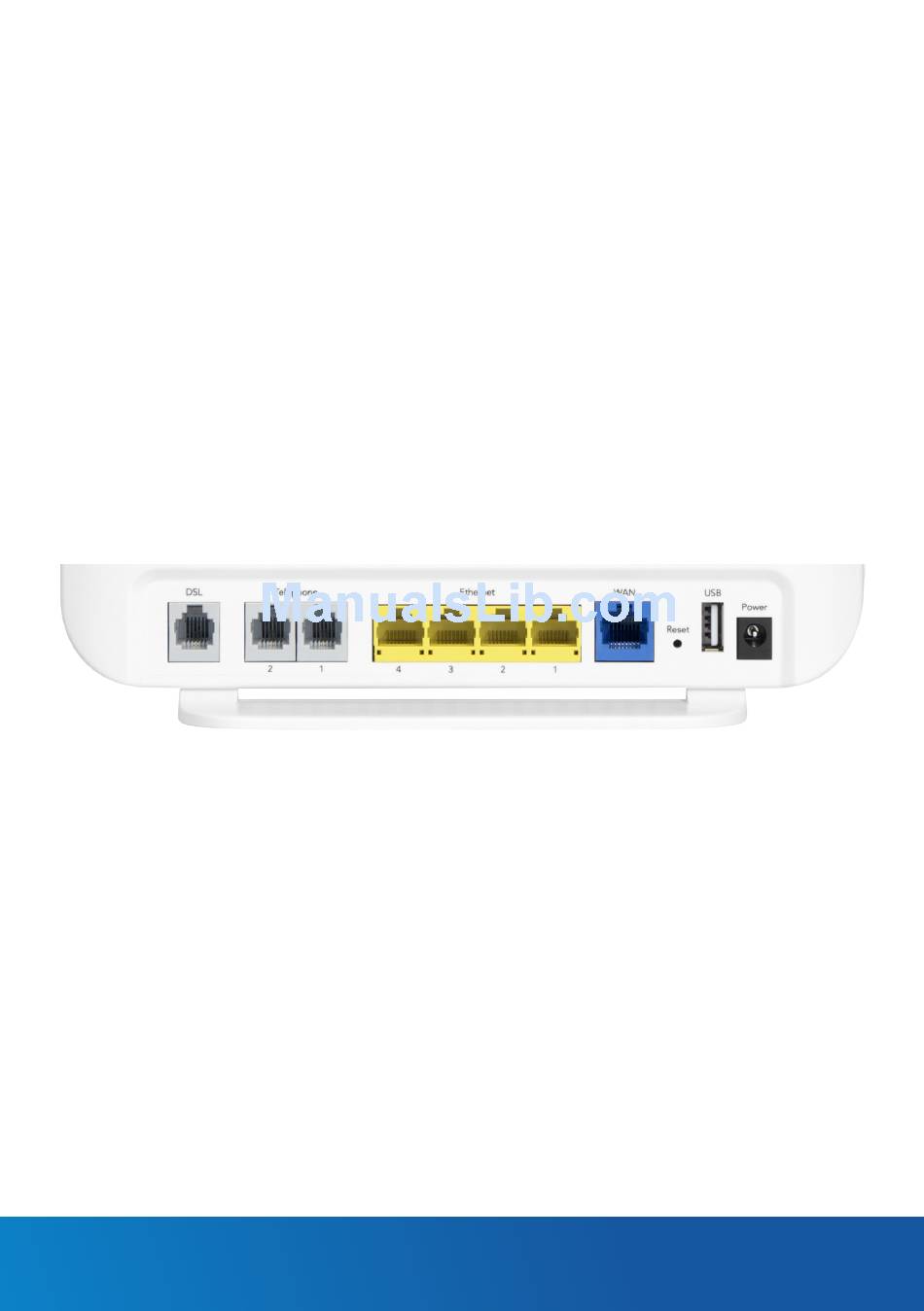

connect the other end to the DSL port on the back of the NF18ACV. Connect the DSL
line filter (not included) to the wall socket and then connect your handset to the "phone"
port of the filter. If you have a Naked DSL service, simply connect the included RJ11 cable
from the DSL port of the NF18ACV to the wall socket. If you have a VoIP service, connect
your handset to one of the Telephone ports on the back of the router.
2. Connect the supplied RJ45 Ethernet cable from one of the yellow Ethernet ports (1-4) on
the back of the NF18ACV to your computer.
3. Connect the included power adapter to the Power jack of the NF18ACV and then plug it into
an available wall socket. Press the ON/OFF button to power the router on. The Power light
illuminates in red. When the NF18ACV has finished booting up, the Power light turns green.
