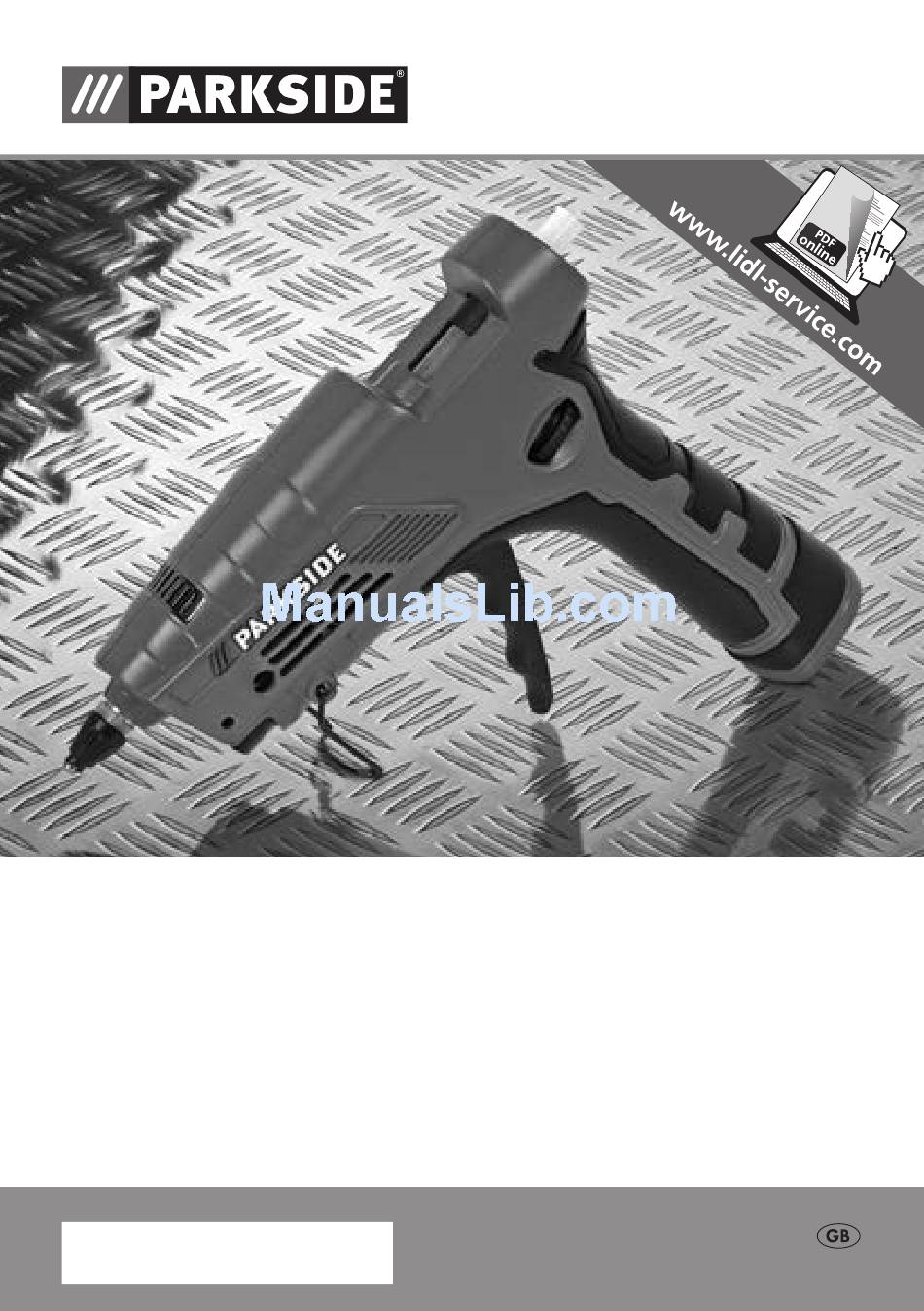

- Page 1 GAS HOT GLUE GUN PHKPG 150 A1 Operating and safety instructions IAN 285747...
-
Page 3: Table Of Contents
Table of contents 1. Scope of delivery / parts list ....................Description of the parts ................................2. General .............................. Symbols used ..................................... 3. Safety ..............................Appropriate use ....................................Safety instructions ..................................4. Before Use ............................Checking the product and scope of delivery ...................... -
Page 4: Scope Of Delivery / Parts List
1. Scope of delivery / parts list Description of the parts Gas hot glue gun Glue port Gas regulator marking Gas supply regulator Handle Gas refilling valve Trigger Stand Piezo ignition Nozzle Inspection glass for heating chamber Ventilation opening 2 Glue sticks Butane refill cartridge Art. -
Page 5: Safety
Read the manual WARNING! Hot surface 3. Safety Appropriate use This product is only suitable for private use in the hobby and craft area for the following purposes: • For gluing wood, cardboard and similar materials over a short time period and exclusively with 11 mm Ø... - Page 6 a. Always keep the hot glue gun out of reach of children. b. Keep the hot glue gun away from your face and away from your clothing when lighting. c. The nozzle and other accessible parts are very hot even after the flame has gone out.
- Page 7 Do not use the hot glue gun in surroundings where flammable fumes, flammable liquids or explosive materials are present. Otherwise there is risk of fire or explosion. Do not light the hot glue gun near your face, hands, clothing or flammable materials.
-
Page 8: Before Use
4. Before Use Checking the product and scope of delivery • Take the hot glue gun and accessories out of the packaging • Check whether the delivery is complete (see chapter "Scope of delivery / parts list") • Check the hot glue gun and accessories for damages. •... -
Page 9: Usage
5. Usage Lighting the hot glue gun (Fig. C) • Push the gas supply regulator (4) upwards and turn it to the right using your thumb until the valve is completely open. • Now press the piezo ignition (9) immediately. •... -
Page 10: Gluing Applications
Gluing applications Before gluing • The surfaces to be glued must be clean, dry and free of grease. Clean the gluing surfaces before applying the glue if necessary. • Polished or shiny surfaces should be roughened before gluing. Gluing Note! Practice before you start working with the glue gun. Carry out trials on waste material. -
Page 11: Storage And Transport
7. Storage and transport • Clean the hot glue gun before storage. • If the hot glue gun is not being used, keep it in a safe, cool, dry and well-ventilated place, out of the reach of children. • Store the hot glue gun and accessories in its original packaging or similar suitable packaging. -
Page 12: Troubleshooting
10. Technical specifications Model: PHKPG 150 A1 Device category: Direct pressure butane Rated power: 128 W Consumption: approx. 10 g / h Operating temperature: +10°c –... -
Page 13: Disposal
11. Disposal Disposing of the used device If the product can no longer be used, then all the consumers are required by law to bring the old device to a separate waste collection point, for example in their community or district, and not to dispose of it in the household waste. - Page 14 repaired or replaced free of cost at our discretion. Within the three year period the warranty requires the defective product and the purchase document (sales receipt) to be provided with a brief written description of where the defect lies and when it occurred. If the defect is covered by our warranty, the repaired product or a new product shall be returned to you.
- Page 15 Service Walter Tools (GB) Ltd. E-Mail: service@walteronline.com Tel.: 00800 925 837 88 IAN 285747 Supplier: Please note that the following address is not a service centre address Please contact the above-mentioned service centre first. Walter Werkzeuge Salzburg GmbH Gewerbeparkstrasse 9 5081 Anif Austria...
- Page 16 Walter Werkzeuge Salzburg GmbH Gewerbeparkstrasse 9 5081 Anif, Austria V. 1.0 Last Information Update: 06/2017 IAN 285747...
Need help?
Do you have a question about the PHKPG 150 A1 and is the answer not in the manual?
Questions and answers
how do I get the gas into the gun
To fill the gas in the Parkside PHKPG 150 A1 hot glue gun:
1. Make sure the flame is off and the glue gun is completely cool.
2. Go to a well-ventilated area, away from flames, ignition sources, and other people. Do not smoke during filling.
3. Use only butane refill cartridges (like cigarette lighter gas). Do not use pure isobutane or propane-butane mixes.
4. Place the nozzle of the gas canister against the gas refill valve (part 6) and press it in. Use an adapter if needed.
5. Remove the nozzle before gas begins to escape.
6. Wait at least one minute before igniting the gun to allow the gas to stabilize.
