ISL8011xEVAL1Z Evaluation Board User Guide
Description
The ISL8011xEVAL1Z provides a simple platform to evaluate
performance of the ISL8011x family of split supply LDOs.
Jumpers are provided to easily set popular output voltages.
The ISL80111, ISL80112 and ISL80113 are single-output
LDOs specified for 1A, 2A, 3A of output current and are
optimized for less than 2.5V and less output voltage
conversions. The ISL8011x supports V
provided a standard legacy 2.9V or 5.5V is applied on the
V
pin. The output voltage is adjustable from 0.8V to 3.3V.
BIAS

Specifications

This board has been configured and optimized for the following
operating conditions:
• V
range of 1V to 3.6V
IN
• V
adjustable from 0.8V to 3.3V
OUT
• Convenient power connection
• Popular output voltages can easily set by jumpers

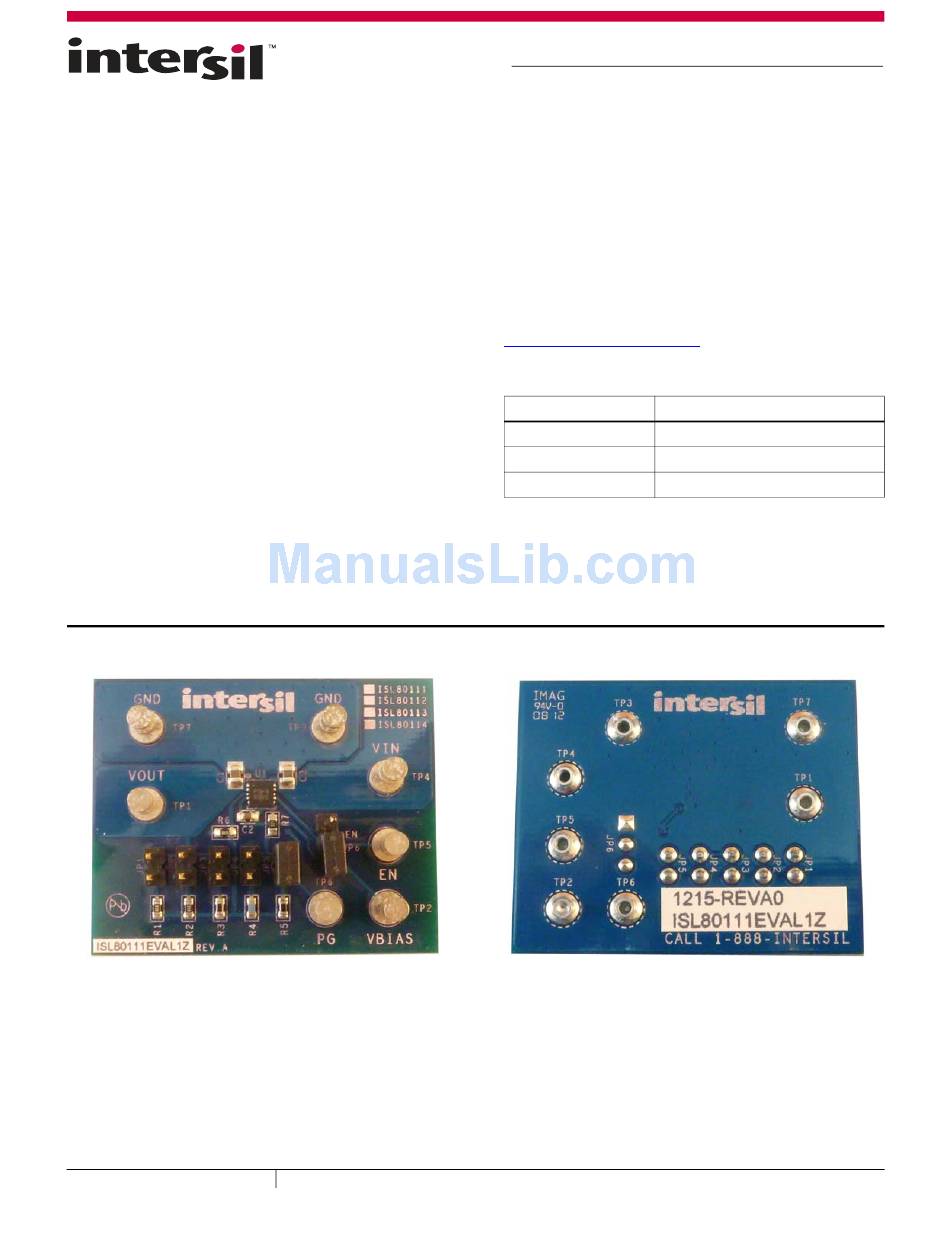

FIGURE 1. ISL80111EVAL1Z TOP SIDE
October 30, 2014
UG009.0
voltages down to 1V,
IN
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774

Key Features

• Ultra low dropout: 75mV at 3A, (typ)
• Excellent V
PSRR: 70dB at 1kHz (typ)
IN
• ±1.6% guaranteed V
OUT
• Very fast load transient response
References
ISL80111, ISL80112, ISL80113

Ordering Information

PART NUMBER
ISL80111EVAL1Z
ISL80112EVAL1Z
ISL80113EVAL1Z
FIGURE 2. ISL80111EVAL1Z BOTTOM SIDE
|
Copyright Intersil Americas LLC 2014. All Rights Reserved
Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.
User Guide 009
accuracy for -40ºC < T
< +125ºC
J
Datasheet
DESCRIPTION
1A, Split Supply LDO Evaluation Board
2A, Split Supply LDO Evaluation Board
3A, Split Supply LDO Evaluation Board
