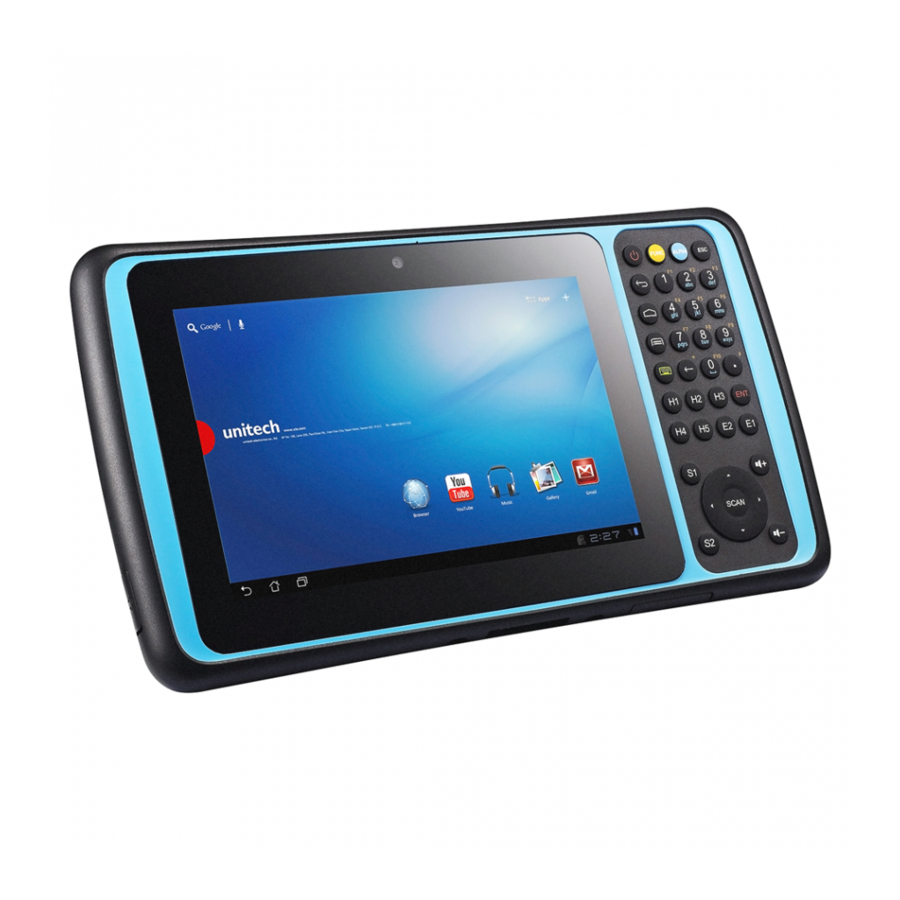

Rugged Handheld Computer
- TB128 -
User's Manual
Version 1.0
© 2017 unitech Electronics Co., Ltd. All rights reserved.
unitech is a registered trademark of unitech Electronics Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TB128 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unitech TB128

Summary of Contents for Unitech TB128

  • Page 1 Rugged Handheld Computer - TB128 - User's Manual Version 1.0 © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 2: Revision History

    Revision History Date Change Description Version © 2017 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 3: Preface

    –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 4 Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada. © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 5: Rohs Statement

    European Conformity Statement unitech Electronics co., Ltd herewith declares that the unitech product is in compliance with the essential requirements and all other provisions of the R&TTE 1999/5/EC directive, the EMC 2014/30/EU directive and the Low Voltage 2014/35/EU directive. The declaration of conformity is available for download at : https://portal.unitech.eu/public/Safetyregulatorystatement...
  • Page 6 Laser Information The unitech product is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The unitech product contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations.
  • Page 7 It may not be functional anymore. Please only use the original battery from unitech. Using a third party battery can damage our products. Please note that when such damage occurs, it is not covered by unitech’s warranty policy.
  • Page 8 If the connector is damaged, please ensure the connector is being fully repaired before use the unit to avoid causing short circuited. © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 9 Please remove the power adapter when the battery is fully recharged. The bundled power adapter that comes with your unitech product is not meant to be used outdoors. An adapter exposed to water or rain, or a very humid environment can cause damage to both the adapter and the product.
  • Page 10 Alternatively, the entire warning may be given through the equipment display during use, when the user is asked to acknowledge activation of the higher level. © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 11: Worldwide Support

    Worldwide Support unitech’s professional support team is available to quickly answer questions or assist with technical-related issues. Should an equipment problem occur, please contact the nearest unitech regional service representative. For complete contact information please visit the Web sites listed below: Taipei, Taiwan –...

  • Page 12: Warranty Policy

    The warranty period is varied from each country. Please consult with your supplier or unitech local office for actual length of warranty period to your purchased product. Warranty becomes void if equipment is modified, improperly installed or used, damaged by accident or neglect, or if any parts are improperly installed or replaced by the user.

  • Page 13: Table Of Contents

    Warranty Policy ..................xii Overview ......................1 1.1 Package ....................1 1.2 Product Detail..................2 1.3 Specifications ..................5 1.4 Getting Started ..................10 xiii © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 14: Regulatory Compliance Statements

    TB128 User’s Manual Overview 1.1 Package Please make sure the following contents are in the TB128 gift box. If something is missing or damaged, please contact your unitech representative. The standard package contents  TB128  Battery  Hand Strap ...

  • Page 15: Product Detail

    4. Cradle connector 9. Speaker 5. Physical keyboard (37 keys) 10. Mounting screw for battery cover 11. Bar code Scan Engine © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 16 TB128 User’s Manual 12. 13. 12. Micro USB port 13. DC-IN port 14. Earphone jack 15. Cradle connector © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 17 5. Soft keypad on/off key 12. Volume up/down keys 6. Function keys to enter F1-F10 13. 4 directional keys 7. Alpha key 14. Scan key © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 18: Specifications

     Decode UPC/EAN/JAN Supplementals   Transmit UPC‐A Check Digit   Transmit UPC‐E Check Digit   Transmit UPC‐E1 Check Digit   UPC‐A Preamble   UPC‐E Preamble   UPC‐E1 Preamble   Convert UPC‐E to A   Convert UPC‐E1 to A   EAN‐8/JAN‐8 Extend   UCC Coupon Extended Code  © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 19  UPC‐A   UK Postal   UPC‐E   Transmit UK   UPC‐E1  Postal   EAN‐8  Check Digit   EAN‐13   Japan Postal  Booklan EAN   Australian  © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 20 Scan Repetition Rate : Nominally 50 scans/second Print Contrast : 20% (minimum print contrast) Ambient Light Immunity Light Source: 4845(lux) ± 5% © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 21 Main Battery 3.7V Li-Polymer battery pack , Support hot swap. Weight 735g with 2D SE4750 Engine version (with Battery) Dimension 264.5x143.7x18.8 (mm) © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 22 1.2 meter Concrete Environmental IP65 Sealing Vibration and Shock MIL-STD-810G test Mobile Device Management Software and Service MoboLink® FCC ID HLETB128BTNF © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 23: Getting Started

    2. Put battery into battery compartment and put back cover. 3. Lock the two screws on the battery cover by turning clockwise. © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 24: Charging The Battery

    Dispose of used batteries according to local recycling guidelines in your area. 1.4.2 Charging the Battery Connect TB128 to the charger, it will be charged automatically. 1. Plug the power adapter into the DC-IN port at the bottom. 2. Plug the power adapter into a wall outlet. If needed, attach a plug converter onto the power adapter.

  • Page 25: Checking The Led Status

    Lights Red The battery is charging. The battery level is between low and full Power Solid Green light Fully charged Good Read © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 26: Checking The Battery Status

    To check the battery level and to access the battery usage menu 1. From your Home screen, tap 2. Find and tap Settings. 3. Find and tap Battery. © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
  • Page 27 TB128 User’s Manual 1.4.5 Using the SD/SIM Card The TB128 has SD/SIM card slots inside the battery compartment. Inserting a SD/SIM Card 1. Using a proper tool (ex. a coin) to loosen the two screws on the battery cover by turning anticlockwise.
  • Page 28 Put the battery back into the battery cover. Replace the battery cover. To tighten the two screws on the battery cover by turning clockwise. © 2016 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.
