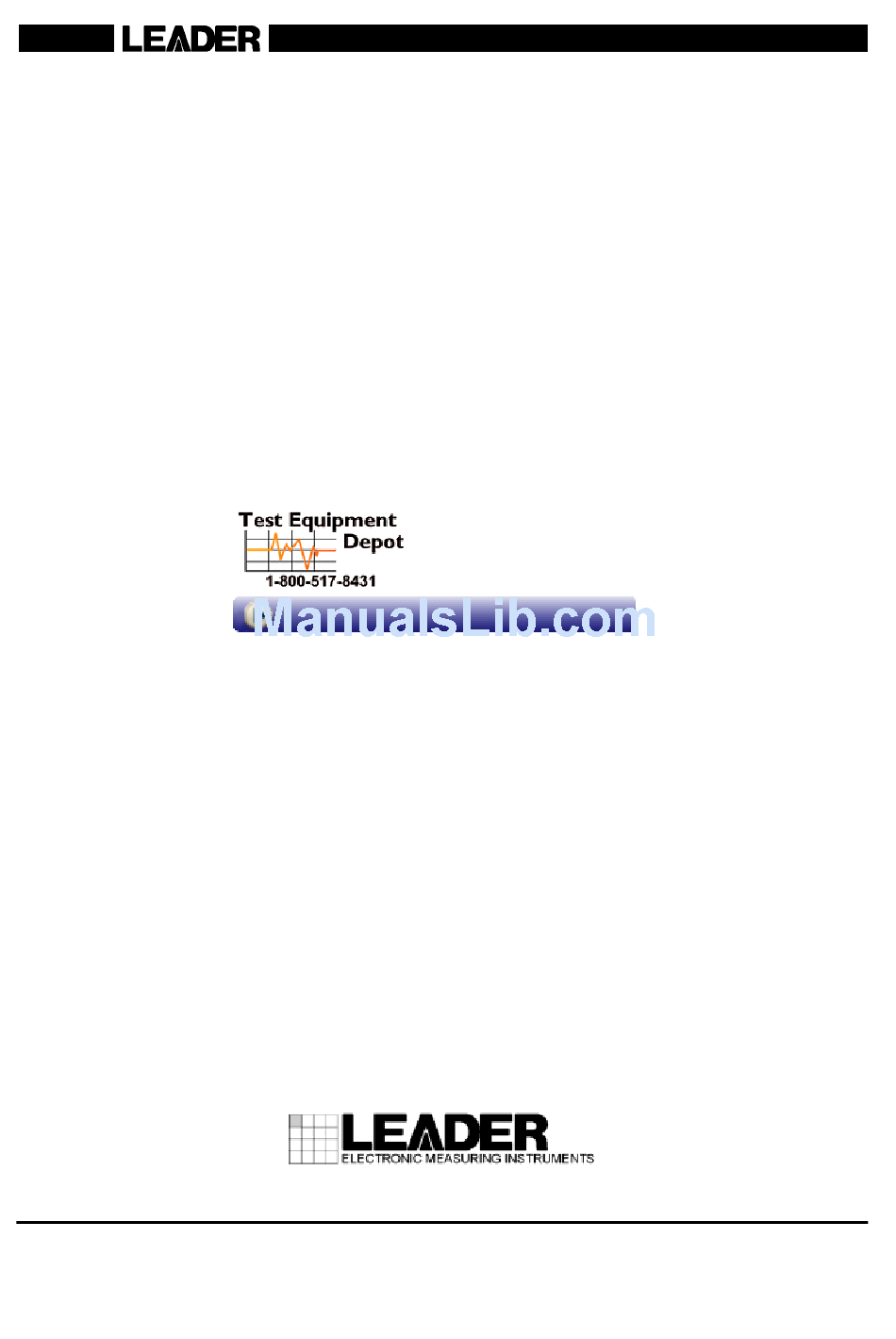

INSTRUCTION MANUAL
Visit us at www.TestEquipmentDepot.com
MULTI SDI MONITOR
BATTERY ADAPTER V MOUNT
BATTERY ADAPTER QR GOLD MOUNT
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LV 5333 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leader LV 5333

Summary of Contents for Leader LV 5333

  • Page 1 LV 5333 MULTI SDI MONITOR LV 5333 OP70 BATTERY ADAPTER V MOUNT LV 5333 OP71 BATTERY ADAPTER QR GOLD MOUNT INSTRUCTION MANUAL 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS GENERAL SAFETY SUMMARY ..........I 1. INTRODUCTION ............1 Scope of Warranty ............... 1 Handling Precautions ............. 1 1.2.1 Power Supply Voltage ............1 1.2.2 Maximum Allowable Input Voltage ..........1 1.2.3 Mechanical Shock ............2 1.2.4 Electrostatic Damage ............2 1.2.5 Warming Up ..............
  • Page 3 Attaching a Tripod ..............22 Installing a VESA Stand ............22 About Options ..............23 Turning the Instrument On and Off ..........23 Connecting a USB Memory Device ..........24 Signal I/O ..............24 4.6.1 SDI Signal Input ............24 4.6.2 SDI Signal Output ............
  • Page 4 Deleting Presets ..............49 Copying Presets ..............50 Copying All Presets from the LV 5333 to a USB Memory Device ....... 51 Copying All Presets from a USB Memory Device to the LV 5333 ....... 52 PICTURE SCREEN ............53 Picture Screen Description ............
  • Page 5 10.1 Selecting the Display Format ............. 77 10.2 CINEZONE Display ............. 78 10.2.1 Selecting the Display Colors ..........79 10.2.2 Displaying the %DISPLAY............. 79 10.2.3 Configuring the %DISPLAY Settings ........... 80 10.2.4 Selecting the Display Colors ..........80 10.3 Level Search Display ............81 10.3.1 Setting the Search Level .............
  • Page 6 12.1 Selecting the Display Format ............ 102 12.2 Vector Screen Description ............102 12.3 Displaying the VE Mode Menu ........... 103 12.4 Configuring the Intensity and Scale Settings ........103 12.4.1 Adjusting the Waveform Intensity ..........103 12.4.2 Adjusting the Scale Intensity ..........103 12.4.3 Turning the I and Q Axes On and Off .........
  • Page 7 13.4.2 Selecting the Displayed Channel ..........130 13.5 Displaying the Ancillary Packets..........131 13.5.1 Ancillary Packet Screen Description .......... 131 13.5.2 Displaying EDH Packets ............ 133 13.5.3 Displaying Payload IDs ............. 135 13.5.4 Displaying Closed Caption Packets ........... 137 13.5.5 Displaying the Inter-Stationary Control Signal ........
  • Page 8 16.2.3 TELNET Commands ............170 16.3 FTP ................177 16.3.1 Procedure ..............177 16.3.2 How to Enter Commands ........... 178 16.3.3 FTP Commands ............178 16.4 SNMP ................ 179 16.4.1 SMI Definitions ............179 16.4.2 Procedure ..............179 16.4.3 Standard MIB .............. 180 16.4.4 Enterprise MIB ............
  • Page 9 ■ Note about Reading This Manual The contents of this manual contain specialized terminology and may be difficult to understand. If you have any questions about the contents of this manual, please contact your local LEADER agent. ■ Symbols and Terms The following symbols and terms are used in this instruction manual and on the instrument to indicate important warnings and notes.
  • Page 10 Failing to do so could lead to fire. Turn OFF the power switch, and remove the power cord from the outlet. After making sure that fire has not spread anywhere, contact your local LEADER agent.
  • Page 11 Using a power cord that does not meet the standards could lead to fire. If the power cord is damaged, stop using it, and contact your local LEADER agent. Using a damaged power cord could lead to electrical shock or fire.
  • Page 12 To ensure stable performance, we recommend that you have the instrument calibrated regularly. Also, if the instrument malfunctions, repairs are necessary. For repairs and calibration, contact your local LEADER agent. ■ Routine Maintenance When you clean the instrument, remove the power plug from the outlet.

  • Page 13: Introduction

    1. INTRODUCTION INTRODUCTION Thank you for purchasing this LEADER instrument. To use this instrument safely, read this instruction manual thoroughly, and make sure that you know how to use the instrument properly. If some point about the operation of this instrument is still unclear after you have read this instruction manual, refer to the contact information on the back cover of the manual to contact LEADER, or contact your local LEADER agent.

  • Page 14: Mechanical Shock

    Terminology Used in This Manual ● 1-Screen Display The state that the LV 5333 enters when any of the following keys is pressed: PICTURE, CINELITE, CINEZONE, WFM, VECTOR, STATUS, AUDIO A single measurement mode is displayed.

  • Page 15: Specifications

    SPECIFICATIONS General The LV 5333 is a multi SDI monitor that supports triple-rate SDI (3G, HD, and SD). It is a small, light-weight, low-power-consuming device designed for use in video content production sites. It features not only picture display, video signal waveform display, vectorscope display, and audio level display but also data analysis, equivalent cable length meter function, and frequency deviation measurement function for SDI signals.
  • Page 16 ● Tripod and VESA Mounting There are 75 mm VESA compliant mounting holes on the back of the LV 5333, so it can be mounted on a stand. In addition, the tripod adapter attached to the bottom of the LV 5333 can be used to mount the LV 5333 on a camera tripod or arm.

  • Page 17: Specifications

    2. SPECIFICATIONS Specifications 2.3.1 Video Signal Formats and Standards Table 2-1 SDI interface and compliant standards SDI Format Bit Rate Compliant Standard 270Mbps SMPTE ST 259 1.485 Gbps, 1.485/1.001 Gbps SMPTE ST 292 2.970 Gbps, 2.970/1.001 Gbps SMPTE ST 424 SMPTE ST 425 Table 2-2 SD image format and compliant standards Color System...
  • Page 18 2. SPECIFICATIONS Table 2-5 3G-B-DL image format and compliant standards Color System Quantization Image Frame (Field) Frequency/Scanning Compliant Standard 4:2:2 10bit 1920×1080 60/59.94/50 /P SMPTE ST 274 12bit 1920×1080 60/59.94/50 /I 30/29.97/25/24/23.98 /P 30/29.97/25/24/23.98 /PsF 4:4:4 10bit 1920×1080 60/59.94/50 /I 30/29.97/25/24/23.98 /P 30/29.97/25/24/23.98 /PsF 12bit...

  • Page 19: Video Format Settings

    2. SPECIFICATIONS 2.3.2 Video Format Settings Format Setting Mode Automatic and manual Automatic Detects the format information within the payload ID (SMPTE ST 352) and automatically sets the format HD, SD Determines the format from the input signal's synchronization information and automatically sets the format.

  • Page 20: Control Connectors

    TTL level (low active) Control Connectors 15-pin D-sub (female) Locking Screws Inch screws (No.4-40UNC) Ethernet Port Function Control the LV 5333 from a PC and monitor errors and other events Compliant Standard IEEE802.3 Supported Protocols TELNET, FTP, SNMP I/O Connector...

  • Page 21: Display Format

    2. SPECIFICATIONS time. 2.3.7 Display Format 1-Screen Display Picture display, CINELITE display, CINEZONE display, video signal waveform display, vectorscope display, status display, audio display 2-Screen Display Picture display and video signal waveform display (vertical, horizontal, overlapped) Picture display and vectorscope display (overlapped) Video signal waveform display and vectorscope display (horizontal) Video signal waveform display and audio display...

  • Page 22: Vectorscope Display

    2. SPECIFICATIONS Sweep Modes H, V Vertical Axis Gain ×1, ×5 Variable Gain ×0.2 to ×2.0 Amplitude Accuracy ×1 ±0.5% ×5 ±0.2% Frequency response of 1080 format and 720p format other than 1080p/60, 59.94, 50 Y Signal ±0.5% (1 to 30 MHz) Signal ±0.5% (0.5 to 15MHz) Low-Pass Filter Attenuation ≥...

  • Page 23: Bar Display

    2. SPECIFICATIONS Scale Color Bar Saturation 75%, 100% IQ Axis Show or hide Color 7 colors to choose from Marker Displays the position, hue, and distance of the selected marker Displays the C position as a percentage Displays the C position as a percentage Displays the hue in degrees.

  • Page 24: Cinelite Display

    2. SPECIFICATIONS Error Indication Displays gamut, luminance, and chroma level error locations over the picture Superimpose Displays English closed captions over the picture. Compliant Standard EIA/CEA-608-B (EIA-708-B) SMPTE ST 334 EIA/CEA-608-B (EIA/CEA-608-B) SMPTE ST 334 VBI (EIA/CEA-608-B Line21) CIA/EIA-608-B Histogram Displayed at the bottom of the picture display.

  • Page 25: Cinezone Display

    2. SPECIFICATIONS Displays the hue in degrees. Displays the distance from the center as a percentage 2.3.14 CINEZONE Display CINEZONE Display Function Adds colors to the display in accordance with luminance levels Color Linear (1024 colors), step (12 colors) Upper Limit -6.3 to 109.4% (values equal to or greater than the upper limit are displayed in white) Lower Limit...
  • Page 26 2. SPECIFICATIONS are converted to composite signals Detection Range Upper Limit 90.0 to 135.0% Detection Range Lower Limit -40.0 to -20.0% Filter 1 MHz LPF,2.8MHz LPF (HD only) (removes transient errors; can be turned on and off) Level Error Detects level errors in luminance and chroma signals of SD/HD signals Parity Error Detects ancillary data header parity errors...

  • Page 27: Screen Capture

    Screen captures can be saved to a USB memory device or over Ethernet in bitmap format or in a file format that can be loaded into the LV 5333. Data Input Data saved to a USB memory device can be loaded and displayed on the LV 5333.

  • Page 28: Front Panel

    Last Memory Backs up the panel settings to memory (*1) If the backup battery is empty, the message “BACKUP DATA LOST” appears when the power is turned on, and the LV 5333 starts with the default settings. 2.3.21 Rear Panel...

  • Page 29: Panel Description

    Figure 3-1 Front panel Table 3-1 Front panel description Name Description Handle Use this to carry the LV 5333. SDI A/B Switches the SDI signal input channel. See section 4.6.1, “SDI Signal Input.” REFE Switches between the internal sync signal and an external sync signal.
  • Page 30 3. PANEL DESCRIPTION Name Description Power Press this switch to turn the instrument on. Hold this switch down to turn the Switch instrument off. See section 4.4, “Turning the Instrument On and Off.” Power LED The LED lights when the power is on and turns off when the power is off. F•1 to F•7 Carries out the corresponding function menu operation.

  • Page 31: Rear Panel

    3. PANEL DESCRIPTION Rear Panel Figure 3-2 Rear panel Table 3-2 Rear panel description Name Description EXT REF External reference input connector. They are loop-through connectors. See section 4.6.3, “External Sync Signal Input.” OUTPUT Audio signal output connectors. It outputs the audio embedded in the SDI DIGITAL AUDIO signal.
  • Page 32 3. PANEL DESCRIPTION Name Description Cooling fan for the instrument.

  • Page 33: Bottom Panel

    3. PANEL DESCRIPTION Bottom Panel Figure 3-3 Bottom panel Table 3-3 Bottom panel description Name Description Tripod adapter Used to attach a tripod. The adapter can be moved to the top panel. See section 4.1, “Attaching a Tripod.”...

  • Page 34: Before You Begin Measuring

    Attaching a Tripod A tripod can be attached to the tripod adapter on the bottom panel of the LV 5333. The adapter can be moved to the top panel. To do so, you will need a hex key (2 mm). Please use your own hex key.

  • Page 35: About Options

    When power is applied, the internal microcomputer is in standby mode, and some power is consumed even if the power switch is turned off. If you do not intend to use the LV 5333 for an extended period of time, disconnect the power supply.

  • Page 36: Connecting A Usb Memory Device

    To turn on the power, press the power switch. The LED next to the power switch and the instrument will turn on. When you turn on the power, the LV 5333 starts up with the same panel settings that were set when it was last turned off.

  • Page 37: Sdi Signal Output

    4. BEFORE YOU BEGIN MEASURING 4.6.2 SDI Signal Output Figure 4-4 SDI output connectors Of the signal received through INPUT SDI A and B, the reclocked signal of the signal selected with the SDI A/B key is transmitted through these connectors. 4.6.3 External Sync Signal Input Figure 4-5 External sync signal input connectors...
  • Page 38 4. BEFORE YOU BEGIN MEASURING External sync signals that are compatible with each input signal are indicated with a check mark in the following table. Proper measurement is possible only for combinations that are indicated with check marks. Table 4-3 External sync signal formats (SD, HD) Input Signal Format NTSC with 10 field ...

  • Page 39: Digital Audio Output

    4. BEFORE YOU BEGIN MEASURING Table 4-4 External sync signal formats (3G) Input Signal Format NTSC with 10 field        ID (59.94Hz)(*1) NTSC (59.94Hz)      PAL (50Hz)    ...

  • Page 40: Headphone Output

    4. BEFORE YOU BEGIN MEASURING 4.6.5 Headphone Output Figure 4-8 Headphone Output Jack Of the audio signals embedded in the SDI signal, two channels selected with PHONES L CH and PHONES R CH of the AUDIO menu are transmitted through these connectors. Reference 14.6, “Configuring the Headphone Settings”...

  • Page 41: Measurement Screen Description

    4. BEFORE YOU BEGIN MEASURING Measurement Screen Description This section explains the common elements in all measurement screens. Figure 4-10 Measurement screen description Table 4-5 Measurement screen description Name Description Input format The input signal format is indicated. You can also choose to hide this information.
  • Page 42 This appears when there is no input signal. It...stops. This appears when the temperature inside the instrument exceeds 80°C. If this appears, contact your nearest LEADER agent. FAN ALARM This appears when the fan malfunctions. If this appears, contact your nearest LEADER agent.

  • Page 43: System Settings

    SYSTEM → F•1 FORMAT → F•1 MODE: AUTO / MANUAL 5.1.2 Selecting the Display Format Even if you set F•1 MODE to AUTO, the LV 5333 will be unable to distinguish between the following formats. • 1080i/60 and 1080sF/30 • 1080i/59.94 and 1080sF/29.97 • 1080i/50 and 1080sF/25 When F•1...

  • Page 44: Setting The Format

    5. SYSTEM SETTINGS 5.1.4 Setting the Format When F•1 MODE is set to MANUAL, to set the input format, follow the procedure below. If a signal with a format different from the one specified here is received, an error will occur. Procedure SYSTEM →...

  • Page 45: Setting The Ve Mode

    5. SYSTEM SETTINGS F•2 SDI F•3 IMAGE F•4 COLOR F•5 PIXEL F•6 FIELD RATE FORMAT FORMAT FORMAT DEPTH F•6 FRAME RATE 3G-B(DL) HD1080i YCbCr422 12bit 60/59.94/50 YCbCr444 10bit/12bit 60/59.94/50 RGB444 10bit/12bit 60/59.94/50 HD1080p YCbCr422 10bit 60/59.94/50 12bit 30/29.97/25/24/23.98 YCbCr444 10bit/12bit 30/29.97/25/24/23.98 RGB444 10bit/12bit...

  • Page 46: Configuring The Display Settings

    5. SYSTEM SETTINGS Configuring the Display Settings To configure the display settings, press F•3 DISPLAY on the SYSTEM menu. SYSTEM F•3 → DISPLAY → Figure 5-3 DISPLAY menu 5.3.1 Displaying the Format To display the format, press F•1 INFORMATION on the DISPLAY menu. F•3 SYSTEM →...

  • Page 47: Displaying The Time

    5. SYSTEM SETTINGS 5.3.3 Displaying the Time To select the display format of the time shown at the top of the screen, follow the procedure below. The time is also displayed on the event log screen and USB memory screen. Procedure SYSTEM →...

  • Page 48: Selecting The Color Temperature

    5. SYSTEM SETTINGS 5.3.8 Selecting the Color Temperature To select the monitor's color temperature, follow the procedure below. If THROUGH is selected, the color temperature will not be corrected. Procedure SYSTEM → F•3 DISPLAY → F•2 COLOR: 3200 / 6500 / 9300 / THROUGH 5.3.9 Displaying the Battery Level (OP70, OP71) To display the battery level when an OP70 or OP71 is installed, follow the procedure below.

  • Page 49: Configuring The External Interface

    Configuring Ethernet Settings To configure the Ethernet settings, press F•2 ETHERNET on the INTRFACE&LICENSE menu. The setting configured here is valid after you restart the LV 5333. They are not reset even if you initialize the settings. SYSTEM → F•4 INTRFACE&LICENSE →...

  • Page 50: Configuring Snmp

    5. SYSTEM SETTINGS To select DHCP or IP, follow the procedure below. Procedure SYSTEM → F•4 INTRFACE&LICENSE → F•2 ETHERNET → F•1 DHCP/IP SELECT: DHCP / IP Settings DHCP: DHCP is enabled. IP_ADDRESS, SUBNET_MASK, and GATEWAY are assigned automatically. IP_ADDRESS, SUBNET_MASK, and GATEWAY are assigned manually. To set IP_ADDRESS, SUBNET_MASK, and GATEWAY, follow the procedure below.

  • Page 51: Configuring License Settings

    5. SYSTEM SETTINGS 5.4.4 Configuring License Settings To configure the license settings, press F•6 LICENSE SETUP on the INTRFACE&LICENSE menu. In addition to installing licensed options, you can also view the MAC address, firmware version, and the status of registered options. Options installed here are not initialized even when you initialize the settings.

  • Page 52: Setting The Date And Time

    5. SYSTEM SETTINGS Setting the Date and Time To configure the display settings, press F•5 DATE&TIME on the SYSTEM menu. The settings that you specify here will not be initialized even if you initialize the LV 5333. SYSTEM F•5 → DATE&TIME →...

  • Page 53: Initialization

    There are two methods of initializing the LV 5333 settings: “standard initialization” executed from the SYSTEM menu and “factory default initialization” executed by restarting the LV 5333 in a special way. The two methods differ in the items that are initialized as shown below. In the following table, items that are initialized are marked as “Yes”...

  • Page 54: Screen Capture Feature

    The screen capture feature acquires the current screen as still image data and stores the data in the LV 5333. You can save the captured data to a USB memory device or overlay it on the input signal on the LV 5333 display.

  • Page 55: Saving To A Usb Memory Device

    TYPE SELECT to select the file format. BMP&BSX: Files are saved to a USB memory device in BMP and BSX formats. You can view the saved files on a PC or redisplay it on the LV 5333. BMP: Files are saved to a USB memory device in BMP format. You can view the saved files on a PC.

  • Page 56: Displaying Screen Capture Data From A Usb Memory Device

    (Screen capture data that has been saved in BMP format and screen capture data that has been saved in BSX format on a different model cannot be displayed on the LV 5333.) Connect a USB memory device to the LV 5333.

  • Page 57: Deleting Screen Capture Data From A Usb Memory Device

    Deleting Screen Capture Data from a USB Memory Device To delete screen capture data from a USB memory device, follow the procedure below. (You can also delete the data on the PC.) Connect a USB memory device to the LV 5333. Press CAPTURE. The CAPTURE menu appears.

  • Page 58: Preset Settings

    7. PRESET SETTINGS PRESET SETTINGS The preset feature stores up to 30 sets of panel settings. It can be used to easily recall fixed settings. Also, you can use the same settings on multiple LV 5333s by copying presets to USB memory.
  • Page 59 7. PRESET SETTINGS Press F•1 COMMENT INPUT. The comment input screen appears. Figure 7-2 Comment input screen Enter a comment of up to 16 characters. You can use the following keys on the comment input screen. F•1 CLEAR ALL Deletes all characters F•2 DELETE Deletes the character at the cursor F•3 INSERT...

  • Page 60: Recalling Presets

    7. PRESET SETTINGS Recalling Presets To recall a preset, follow the procedure below. Note that you can recall a preset simply by pressing the SHORT CUT key if you set SHORTCUT KEY SET on the SYSTEM menu to DIRECT_K. Reference SHORTCUT KEY SET →...

  • Page 61: Deleting Presets

    7. PRESET SETTINGS Deleting Presets To delete a preset, follow the procedure below. Press MEMORY. The preset registration screen appears. Figure 7-5 Preset registration screen Turn the function dial (F•D) to select the file that you want to delete. Press F•3 DELETE.

  • Page 62: Copying Presets

    7. PRESET SETTINGS Copying Presets To copy a preset, follow the procedure below. Press MEMORY. The preset registration screen appears. Figure 7-7 Preset registration screen Turn the function dial (F•D) to select the file that you want to copy from. Press F•4 RECALL.

  • Page 63: Copying All Presets From The Lv 5333 To A Usb Memory Device

    7. PRESET SETTINGS Copying All Presets from the LV 5333 to a USB Memory Device To copy all the presets from the LV 5333 to a USB memory device, follow the procedure below. Connect a USB memory device to the LV 5333.

  • Page 64: Copying All Presets From A Usb Memory Device To The Lv 5333

    7. PRESET SETTINGS Copying All Presets from a USB Memory Device to the LV 5333 To copy all the presets from a USB memory device to the LV 5333, follow the procedure below. Connect a USB memory device to the LV 5333.

  • Page 65: Picture Screen

    8. PICTURE SCREEN PICTURE SCREEN Picture Screen Description To display the picture, press PICTURE. Figure 8-1 Picture screen description Table 8-1 Picture screen description Item Description Aspect marker You can display a selected aspect ratio marker in the frame. Reference 8.3.1, “Shading the Area Outside of an Aspect Marker”...

  • Page 66: Setting The Brightness And Contrast

    8. PICTURE SCREEN Setting the Brightness and Contrast Use the BRIGHT and CONT knobs to adjust the picture brightness and contrast. You can adjust these at any of the picture display levels. The values are displayed in the lower right of the screen.

  • Page 67: Configuring The Marker Settings

    8. PICTURE SCREEN Configuring the Marker Settings To configure the marker settings, press F•1 MARKER on the PICTURE menu. This menu item appears when SIZE is set to FIT and CC is set to OFF. The markers that you set here do not appear on the multi-screen display. Reference SIZE →...

  • Page 68: Displaying The Safe Action Marker

    8. PICTURE SCREEN 8.3.2 Displaying the Safe Action Marker To display the safe action marker, follow the procedure below. Procedure PICTURE → F•1 MARKER → F•2 SAFE ACTION: 95% / 93% / 90% / OFF Settings 95%: A safe action marker is displayed at the 95% position relative to the frame (or the aspect marker when it is displayed).

  • Page 69: Turning The Aspect Shadow On And Off

    To shade the area outside of an aspect marker, follow the procedure below. Procedure PICTURE → F•1 MARKER → F•5 SHADOW: ON / OFF Settings The LV 5333 shades the area outside of the aspect marker. This setting is not valid when F•1 ASPECT is set to OFF.

  • Page 70: Configuring The Line Selection Settings

    8. PICTURE SCREEN Configuring the Line Selection Settings To configure the line selection settings, press F•2 LINE SELECT on the PICTURE menu. This menu item appears when SIZE is set to FIT. The marker specified here do not appear on the CINELITE display or CINEZONE display.

  • Page 71: Other Settings

    8. PICTURE SCREEN Settings (the examples are for the selectable ranges when the signal is 1080i/59.94) FIELD1: A line from field 1 can be selected. (Example: 1 to 563) FIELD2: A line from field 2 can be selected. (Example: 564 to 1125) FRAME: All lines can be selected.

  • Page 72: Selecting The Closed Caption Format

    8. PICTURE SCREEN 8.5.2 Selecting the Closed Caption Format To select the English SMPTE closed caption format, follow the procedure below. Procedure PICTURE → F•3 ETC → F•1 CC SUPER IMPOSE → F•1 SYSTEM: 608(708) / 608(608) / Settings 608(708): CEA/EIA-608-B closed caption data that is embedded in EIA-708-B CDP packets is displayed.

  • Page 73: Displaying The Histogram

    8. PICTURE SCREEN 8.5.3 Displaying the Histogram To display the histogram, press F•3 HIST on the ETC menu. This menu item appears when SIZE is set to FIT. PICTURE → F•3 ETC → F•3 HIST → Figure 8-10 HIST menu A histogram shows the image data distribution for the luminance signal and GBR signals by plotting the luminance level on the horizontal axis and the number of pixels at each luminance level on the vertical axis.

  • Page 74: Selecting The Scale Unit

    8. PICTURE SCREEN 8.5.4 Selecting the Scale Unit To select the scale unit, follow the procedure below. Procedure PICTURE → F•3 ETC → F•3 HIST → F•3 SCALE UNIT: % / 3FF / 1023 Settings The scale shows percentages. 3FF: 0 to 100% is displayed as 040 to 3C0.

  • Page 75: Selecting The Scale Color

    8. PICTURE SCREEN 8.5.5 Selecting the Scale Color To select the scale color, follow the procedure below. Procedure PICTURE → F•3 ETC → F•3 HIST → F•4 SCALE COLOR: WHITE / YELLOW / CYAN / GREEN / MAGENTA / RED / BLUE 8.5.6 Selecting the Display Format To select the display format, follow the procedure below.

  • Page 76: Configuring The Display Settings

    8. PICTURE SCREEN Configuring the Display Settings To configure the display settings, press F•4 DISPLAY on the PICTURE menu. PICTURE → F•4 DISPLAY → Figure 8-14 DISPLAY menu 8.6.1 Selecting the Display Size To select the picture display size, follow the procedure shown below. Regardless of the setting specified here, the picture is displayed using the FIT setting on the CINELITE display, CINEZONE display, and multi-screen displays.

  • Page 77: Turning The Rgb Signals On And Off

    8. PICTURE SCREEN SIZE = FIT SIZE = x1 SIZE = x2 SIZE = FULL Figure 8-15 Selecting the display size 8.6.2 Turning the RGB Signals On and Off To turn the individual R, G, and B signals on or off, follow the procedure below. You cannot turn all the signals off.

  • Page 78: Turning The Squeeze Display On And Off

    8. PICTURE SCREEN 8.6.3 Turning the Squeeze Display On and Off To horizontally expand and display squeezed images, follow the procedure below. This setting is valid when the input signal is SD and SIZE is set to FIT. Regardless of the setting specified here, the picture is displayed using the OFF setting on the CINELITE and CINEZONE displays.

  • Page 79: Adjusting The Chroma Gain

    8. PICTURE SCREEN Adjusting the Chroma Gain To adjust the chroma gain, follow the procedure below. Press the function dial (F•D) to return the setting to its default value (100). Regardless of the setting specified here, the picture is displayed with the chroma gain set to 100 on the CINELITE and CINEZONE displays.

  • Page 80: Cinelite Display

    9. CINELITE DISPLAY CINELITE DISPLAY To display CINELITE, press CINELITE. CINELITE is a feature that displays luminance levels of video signals on the picture. CINELITE → Figure 9-1 CINELITE menu f Stop Display Description To display the f Stop display, follow the procedure below. Procedure CINELITE →...

  • Page 81: Procedure For Displaying The F Stop Display

    9. CINELITE DISPLAY REF(f 0) Luminance level when F•5 REF_SET is pressed Cursor You can set up to three cursors. The f Stop value relative to the reference point is displayed at each point. P2-P1, P3-P1 f Stop difference Coordinates The cursor coordinates are indicated here with both line and sample numbers.

  • Page 82: Display Screen Description

    9. CINELITE DISPLAY %DISPLAY Screen Description To display the %DISPLAY screen, follow the procedure below. Procedure CINELITE → F•2 %DISPLAY On the %DISPLAY screen, you can display luminance levels using LEVEL%, RGB%, or RGB 255. Press F•5 %/RGB to select the display format. ●...
  • Page 83 9. CINELITE DISPLAY ● RGB% Display Each of the R, G, and B levels is indicated using a percentage. The levels are also indicated using bars on the left side of the display (the order is R, G, and then B). Figure 9-4 RGB% display ●...

  • Page 84: Selecting The Measurement Points

    9. CINELITE DISPLAY Selecting the Measurement Points You can set up to three measurement points. To select the measurement point to move with the cursor, follow the procedure below. Procedure CINELITE → F•1 f_Stop DISPLAY → F•2 MEAS POS: P1 / P2 / P3 →...

  • Page 85: Setting The Measurement Size

    9. CINELITE DISPLAY Setting the Measurement Size To select the measurement size, follow the procedure below. This setting is applied to P1 to P3 and REF. Procedure CINELITE → F•1 f_Stop DISPLAY → F•3 MEAS SIZE: 1X1 / 3X3 / 9X9 →...

  • Page 86: Configuring User-Defined Correction Tables

    User-defined correction tables are not deleted even if you initialize the LV 5333. You can create and store up to three user-defined correction tables.
  • Page 87 9. CINELITE DISPLAY Press F•1 DELETE YES. To cancel the initialization of the user-defined correction table, F•3 DELETE NO. Place the cursors over the 18 % gray chart. F•5 CAL_F to 5.6. Press F•4 CAL SET. The luminance level when the camera f Stop value is F5.6 is input into Lev in the user-defined correction table.

  • Page 88: Displaying Link Markers

    9. CINELITE DISPLAY Displaying Link Markers To synchronize the markers on the vector screen and video signal waveform screen to measurement points P1 to P3 and REF that you specify on the CINELITE screen, follow the procedure below. Markers cannot be displayed on the video signal waveform in the following situations. •...

  • Page 89: 10. Cinezone Display

    10. CINEZONE DISPLAY 10. CINEZONE DISPLAY To display CINEZONE, press CINEZONE. The CINEZONE display has a CINEZONE display mode—in which the picture luminance levels are converted into colors and displayed—and a level search display mode—in which the specified luminance level is displayed in green. 10.1 Selecting the Display Format To switch between the CINEZONE display and level search display modes, follow the...

  • Page 90: Cinezone Display

    10. CINEZONE DISPLAY 10.2 CINEZONE Display In CINEZONE display, the luminance levels of the picture are displayed using RGB colors. Luminance levels above F•5 UPPER% are displayed in white, and levels below F•6 LOWER% are displayed in black. You can see what colors correspond to what luminance levels by looking at the scale on the right of the display.

  • Page 91: Selecting The Display Colors

    10. CINEZONE DISPLAY 10.2.1 Selecting the Display Colors When F•1 MODE is set to ZONE, to set the color levels, follow the procedure below. Procedure CINEZONE → F•2 ZONE DISPLAY: LINEAR / STEP Settings LINEAR: 0 to 100% is displayed using 1024 color levels. STEP: 12 color levels assigned to less than 0%, 0 to 100% (in steps of 10), and greater than 100% are used.

  • Page 92: Configuring The %Display Settings

    10. CINEZONE DISPLAY 10.2.3 Configuring the %DISPLAY Settings To configure the settings of %DISPLAY overlaid on CINEZONE, press F•4 DISPLAY on the CINEZONE menu. For instructions, see chapter 9, “CINELITE Display.” This menu appears when F•3 %DISPLAY is set to ON. F•4 CINEZONE →...

  • Page 93: Level Search Display

    10. CINEZONE DISPLAY 10.3 Level Search Display In level search display, the specified luminance level range is displayed with gradations. Also, luminance levels greater than or equal to the specified range are displayed in white, and levels less than equal to the specified range are displayed in black. Figure 10-5 Level search display 10.3.1 Setting the Search Level...

  • Page 94: 11. Video Signal Waveform Display

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11. VIDEO SIGNAL WAVEFORM DISPLAY 11.1 Video Signal Waveform Screen Description To display the video signal waveform, press WFM. Figure 11-1 Video signal waveform screen description Table 11-1 Video signal waveform screen description Item Description Filter Appears when the low-pass filter is enabled.

  • Page 95: Setting The Display Position

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.2 Setting the Display Position Use the V POS and H POS knobs to adjust the display position of the video signal waveform. ● Adjusting the Vertical Position Use the V POS knob to adjust the vertical position of the video signal waveform. Pressing the knob returns the display position to its default position.

  • Page 96: Adjusting The Scale Intensity

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.4.2 Adjusting the Scale Intensity To adjust the scale intensity, follow the procedure below. Regardless of this setting, in the multi-screen display, the intensity set with MULTI WFM is used to display the waveform. Note that SCALE INTEN set with MULTI WFM is linked to SCALE INTEN set with MULTI VEC.

  • Page 97: Configuring The Gain And Filter Settings

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.5 Configuring the Gain and Filter Settings To configure the gain and filter settings, press F•2 GAIN/FILTER on the WFM menu. → F•2 GAIN FILTER → Figure 11-4 GAIN FILTER menu 11.5.1 Selecting the Fixed Gain To select the fixed video signal waveform gain, follow the procedure below.

  • Page 98: Selecting The Filter

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.5.3 Selecting the Filter To select the filter, follow the procedure below. The filters that you can select vary depending on the COLOR MATRIX setting. Reference COLOR MATRIX → section 11.9.1, “Selecting the Color Matrix.” Procedure WFM →...

  • Page 99: Configuring The Sweep Settings

    11. VIDEO SIGNAL WAVEFORM DISPLAY FILTER = FLAT FILTER = FLAT+LUM FILTER = LUM+CHRM FILTER = LUMA Figure 11-7 Selecting the filter (pseudo-composite) 11.6 Configuring the Sweep Settings To configure the sweep settings, press F•3 SWEEP on the WFM menu. →...
  • Page 100 11. VIDEO SIGNAL WAVEFORM DISPLAY SWEEP = H SWEEP = V Figure 11-9 Selecting the sweep method...

  • Page 101: Selecting The Line Display Format

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.6.2 Selecting the Line Display Format To select the sweep time in line display, follow the procedure below. This menu item appears when F•1 SWEEP is set to H and COLOR MATRIX is set to COMPOSIT or when F•1 SWEEP is set to H and MODE is set to OVERLAY.

  • Page 102: Selecting The Field To Display

    11. VIDEO SIGNAL WAVEFORM DISPLAY V_SWEEP = 1V V_SWEEP = 2V Figure 11-11 Selecting the field display format 11.6.4 Selecting the Field to Display To select the displayed field in field display, follow the procedure below. This menu item appears when F•1 SWEEP is set to V and the input signal is interlace or segmented frame.
  • Page 103 11. VIDEO SIGNAL WAVEFORM DISPLAY Procedure WFM → F•3 SWEEP → F•4 SWEEP MAG: X1 / X10 / X20 / X40 / ACTIVE / BLANK Settings The video signal waveforms are displayed so that they fit on the screen. X10: The video signal waveforms are magnified from the center of the display to 10 times the size of ×1.

  • Page 104: Configuring The Line Selection Settings

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.7 Configuring the Line Selection Settings To configure the line selection settings, press F•4 LINE SELECT on the WFM menu. This menu item appears when SWEEP is set to H. Reference SWEEP → Section 11.6.1, “Selecting the Sweep Method” F•4 →...

  • Page 105: Configuring The Cursor Settings

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.8 Configuring the Cursor Settings To configure the cursor settings, press F•5 CURSOR on the WFM menu. → F•5 CURSOR → Figure 11-15 CURSOR menu 11.8.1 Turning Cursors On and Off To display cursors, follow the procedure shown below. The REF cursor is displayed in blue, and the DELTA cursor is displayed in green.

  • Page 106: Selecting The Measurement Unit

    11. VIDEO SIGNAL WAVEFORM DISPLAY Procedure WFM → F•5 CURSOR → F•4 FD VAR: REF / DELTA / TRACK Settings REF: The REF cursor (blue) is selected. DELTA: The DELTA cursor (green) is selected. TRACK: The REF cursor and DELTA cursor are selected. 11.8.4 Selecting the Measurement Unit To select the units used in cursor measurement, follow the procedure below.

  • Page 107: Configuring The Color System Settings

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.9 Configuring the Color System Settings To configure the color system settings, press F•6 COLOR SYSTEM on the WFM menu. → F•6 COLOR SYSTEM → Figure 11-17 COLOR SYSTEM menu 11.9.1 Selecting the Color Matrix To select the video signal waveform display format, follow the procedure below.

  • Page 108: Turning The Luminance Signal On And Off

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.9.2 Turning the Luminance Signal On and Off When F•1 COLOR MATRIX is set to GBR or RGB, to turn the luminance signal on and off, follow the procedure below. Procedure WFM → F•6 COLOR SYSTEM →...

  • Page 109: Selecting The Waveform Colors

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.9.3 Selecting the Waveform Colors When F•1 COLOR MATRIX is set to GBR or RGB, to display waveforms according to GBR colors, follow the procedure below. Procedure WFM → F•6 COLOR SYSTEM → F•3 GBR COLOR: ON / OFF →...

  • Page 110: 11.10 Setting The Scale

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.10 Setting the scale To set the scale, press F•1 SCALE on the WFM menu. → F•7 next menu → F•1 SCALE → Figure 11-21 SCALE menu 11.10.1 Selecting the Scale Unit To select the scale unit, follow the procedure below. This menu item appears when COLOR MATRIX is set to an option other than COMPOSIT.
  • Page 111 11. VIDEO SIGNAL WAVEFORM DISPLAY SCALE UNIT = HDV,SDV SCALE UNIT = HD%,SD% SCALE UNIT = HEX SCALE UNIT = DEC SCALE UNIT = FS DEC Figure 11-22 Selecting the scale unit...

  • Page 112: Turning The 75% Color Bar Scale On And Off

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.10.2 Turning the 75% Color Bar Scale On and Off When COLOR MATRIX is set to YCbCr, to turn on and off a scale on which a 75% color bar signal input is mapped to the peak level of the chrominance, follow the procedure below. Reference COLOR MATRIX →...

  • Page 113: 11.12 Selecting The Display Mode

    11. VIDEO SIGNAL WAVEFORM DISPLAY 11.12 Selecting the Display Mode To select the display mode, follow the procedure below. Procedure WFM → F•7 next menu → F•3 MODE: OVERLAY / PARADE Settings OVERLAY: Component signals are overlaid. PARADE: Component signals are displayed side by side. MODE = OVERLAY MODE = PARADE Figure 11-25 Selecting the display mode...

  • Page 114: 12. Vectorscope Display

    12. VECTORSCOPE DISPLAY 12. VECTORSCOPE DISPLAY To display vectors, press VECTOR. You can press F•6 DISPLAY to switch from vectorscope to 5 bar or phase difference display. 12.1 Selecting the Display Format To switch between vectorscope, 5 bar, and phase difference displays, follow the procedure below.

  • Page 115: Displaying The Ve Mode Menu

    12. VECTORSCOPE DISPLAY 12.3 Displaying the VE Mode Menu When VE MODE is on, pressing VECTOR displays a dedicated video-engineer station menu. Press F•7 next menu to display the menu that appears when VE MODE is set to OFF. The dedicated video-engineer station menu contains commands that are used often. Only a single action is needed to select the menu item.

  • Page 116: Turning The I And Q Axes On And Off

    12. VECTORSCOPE DISPLAY 12.4.3 Turning the I and Q Axes On and Off When DISPLAY is set to VECTOR, to turn the I and Q axes on and off, follow the procedure below. If the input signal is 625i/50, the axes will not be displayed even when this is set to ON. Reference DISPLAY →...

  • Page 117: Turning The Aspect Marker On And Off

    12. VECTORSCOPE DISPLAY 12.4.5 Turning the Aspect Marker On and Off When DISPLAY is set to VECTOR, to display a marker on the vectors, follow the procedure below. You can move the marker horizontally using the H POS knob and vertically using the V POS knob.

  • Page 118: Setting The Gain

    12. VECTORSCOPE DISPLAY 12.5 Setting the Gain To set the gain, press F•2 GAIN on the VECTOR menu. This menu is displayed when DISPLAY is set to VECTOR. Reference DISPLAY → 12.1, “Selecting the Display Format” F•2 VECTOR → GAIN → Figure 12-6 GAIN menu 12.5.1 Selecting the Fixed Gain...

  • Page 119: Configuring The Line Selection Settings

    12. VECTORSCOPE DISPLAY GAIN MAG = ×1 GAIN MAG = IQ-MAG GAIN VAR = VAR GAIN VAR = CAL Figure 12-7 Setting the variable gain 12.6 Configuring the Line Selection Settings To configure the line selection settings, press F•3 LINE SELECT on the VECTOR menu. This menu is displayed when DISPLAY is set to VECTOR or 5BAR.

  • Page 120: Setting The Line Selection Range

    12. VECTORSCOPE DISPLAY 12.6.2 Setting the Line Selection Range When the input signal is interlace or segmented frame, to set the line select range, follow the procedure below. Changing this setting will also change the picture display and video signal waveform display line selection ranges.

  • Page 121: Configuring The Color System Settings

    12. VECTORSCOPE DISPLAY 12.7 Configuring the Color System Settings To configure the color system settings, press F•4 COLOR SYSTEM on the VECTOR menu. This menu is displayed when DISPLAY is set to VECTOR. Reference DISPLAY → 12.1, “Selecting the Display Format” F•4 VECTOR →...

  • Page 122: Selecting The Setup Level

    12. VECTORSCOPE DISPLAY 12.7.2 Selecting the Setup Level When F•1 COLOR MATRIX is set to COMPOSIT and the composite display format is NTSC, to select the setup level, follow the procedure below. Procedure VECTOR → F•4 COLOR SYSTEM → F•2 SETUP: 0% / 7.5% 12.7.3 Displaying a Scale for 75% Color Bars To display a scale for 75 % color bars, follow the procedure below.

  • Page 123: Bar Display

    12. VECTORSCOPE DISPLAY 12.8 5 Bar Display 12.8.1 5 Bar Screen Description To display the 5 bar screen, set DISPLAY to 5BAR. F•6 On the 5 bar screen, the positive and negative peak levels are displayed simultaneously. The levels are typically displayed in cyan, but portions that exceed their limits are displayed in red.

  • Page 124: Selecting The Display Unit

    12. VECTORSCOPE DISPLAY 12.8.2 Selecting the Display Unit To select the display unit, follow the procedure below. The display unit is set using UNIT on the STATUS menu. Procedure STATUS → F•5 ERROR CONFIG → F•4 ERROR LEVEL → F•6 UNIT: % / mV Settings The display unit for YGBR is percentage, and the display unit for CMP is IRE.

  • Page 125: Phase Difference Display

    12. VECTORSCOPE DISPLAY 12.9 Phase Difference Display 12.9.1 Phase Difference Screen Description To display the phase difference, set DISPLAY to EXTPHASE. F•6 On the phase difference screen, the phase difference between an SDI signal and an external sync signal is displayed. To configure the phase difference screen, press F•5 EXTREF PHASE.
  • Page 126 12. VECTORSCOPE DISPLAY Table 12-3 Phase difference screen description Item Description V PHASE The phase difference in lines is displayed. H PHASE The phase difference is displayed in microseconds (us). TOTAL PHASE The total of the V PHASE and H PHASE differences is displayed in microseconds (us).
  • Page 127 12. VECTORSCOPE DISPLAY Table 12-4 Delay and Advance axis display ranges Displayed on the Advance Axis Displayed on the Delay Axis Format V PHASE H PHASE V PHASE H PHASE V PHASE H PHASE [Lines] [us] [Lines] [us] [Lines] [us] 1080p/59.94 -562 -14.829...

  • Page 128: Selecting The Memory Number

    LEADER signal generator and an SDI signal are received. (Depending on the output accuracy of the signal generator and measurement accuracy of the LV 5333, there may be an offset of around ±3 clocks in the display.) Procedure VECTOR →...

  • Page 129: 13. Status Display

    13. STATUS DISPLAY 13. STATUS DISPLAY 13.1 Status Screen Description To display the status, press STATUS. Figure 13-1 Status screen description Table 13-1 Status screen description Item Display Description SIGNAL Whether or not an SDI signal is being received through one of the SDI input connectors is displayed.
  • Page 130 The line number error detection result is displayed. An error occurs when the line number embedded in the input signal does not match the line number that has been counted by the LV 5333. This is not displayed when the input signal is SD.
  • Page 131 13. STATUS DISPLAY Item Display Description Reference 13.6.5, “Configuring Gamut Error Settings” NORMAL Normal ERROR Error Blank When GAMUT ERROR is set to OFF Reference 13.6.3, “Configuring Error Detection Settings” COMP.GAMUT The composite gamut error detection result is displayed. An error occurs when the pseudo-composite signal exceeds the detection level set with COMPOSIT GAMUT in ERROR CONFIG.

  • Page 132: Configuring Event Log Settings

    F•1 LOG on the STATUS menu. The LV 5333 can log various events. Logged events can also be saved in text format to a USB memory device. Events include signal reception, error occurrence, and error recovery. An event log contains both channel A and channel B events regardless of the input channel settings.
  • Page 133 13. STATUS DISPLAY Figure 13-2 Event log screen description Table 13-2 Event log screen description Item Description SAMPLE No. The total number of events (a number from 0 to 1000) is displayed. Logging Status “NOW LOGGING” is displayed when events are being logged.

  • Page 134: Starting The Event Log

    USB memory device. This is especially useful when multiple events occur at the same time and you cannot view all of them on the LV 5333 screen. The displayed events are listed below. If the detection of a particular error has been disabled, the event that corresponds to that error will not be logged.

  • Page 135: Clearing The Event Log

    To clear the event log that is displayed on the screen, follow the procedure below. The event log is also cleared when you perform the following operations. • Initialize the LV 5333 • Perform an error reset • Turn off the power Procedure STATUS →...

  • Page 136: Saving To A Usb Memory Device

    13. STATUS DISPLAY 13.2.5 Saving to a USB Memory Device To save the event log in text format to a USB memory device, follow the procedure below. You can view saved event logs on a PC. The file name is automatically set to “LOG+the date and time set on the SYSTEM menu.” The date is in the display format set on the SYSTEM menu.

  • Page 137: Configuring The Data Dump Settings

    13. STATUS DISPLAY 13.3 Configuring the Data Dump Settings 13.3.1 Data Dump Screen Description To display a data dump, press DATA DUMP on the STATUS menu. F•2 Figure 13-3 Data dump screen description Table 13-3 Data dump screen description Item Description LINE No.

  • Page 138: Selecting The Display Mode

    13. STATUS DISPLAY Item Description can select the data display format by pressing F•2 DISPLAY. Reference 13.3.3, “Selecting the Display Format” 13.3.2 Selecting the Display Mode To set the data dump display mode, follow the procedure below. Procedure STATUS → F•2 DATA DUMP → F•1 MODE: RUN / STOP Settings RUN: The input signal data is automatically updated and displayed.

  • Page 139: Selecting The Display Start Position

    13. STATUS DISPLAY 13.3.4 Selecting the Display Start Position To make EAV the data dump display start position, follow the procedure below to press F•3 EAV JUMP. To make SAV the display start position, press F•4 SAV JUMP. Procedure STATUS → F•2 DATA DUMP →...

  • Page 140: Saving To A Usb Memory Device

    13. STATUS DISPLAY 13.3.6 Saving to a USB Memory Device To save the data of the selected line in text format to a USB memory device, follow the procedure below. You can view the saved data dump on a PC. The file name is automatically set to “DAT+the date and time set on the SYSTEM menu.”...

  • Page 141: Configuring The Audio Status Screen

    13. STATUS DISPLAY 13.4 Configuring the Audio Status Screen 13.4.1 Audio Status Screen Description To display the audio status, press AUDIO on the STATUS menu. F•3 You can display the data of the selected channel on this screen. Figure 13-6 Audio status screen description Table 13-4 Audio status screen description Item Display...

  • Page 142: Selecting The Displayed Channel

    13. STATUS DISPLAY Item Display Description EMPHASIS The audio signal emphasis setting is displayed. Not_indicated No emphasis setting No emphasis 50/15us Emphasis time constant 50/15us CCIT_J17 CCITT J.17 (800 Hz insertion loss 6.5 dB) Reserved Undefined data received SIGNAL LOCK The lock status of the sampling frequency is displayed.

  • Page 143: Displaying The Ancillary Packets

    13. STATUS DISPLAY 13.5 Displaying the Ancillary Packets 13.5.1 Ancillary Packet Screen Description To display ancillary packets, press ANC PACKET on the STATUS menu. F•4 On this screen you can display and analyze ancillary packets embedded in the input signal. If an ancillary packet is detected, “DETECT”...
  • Page 144 13. STATUS DISPLAY Table 13-5 Ancillary packet screen description Item Description Compliant Standard Embedded Line AUDIO Control packet for embedded audio. 9, 571 (HD) CONTROL Embedded audio consists of four channels 12, 275 (SD) PACKET per group, and for each group, a control packet is embedded.

  • Page 145: Displaying Edh Packets

    The CRC display shows the results of comparing the CRCs in the EDH packets to the CRCs computed by the LV 5333 from the received data. Because SDI output is only transmitted through the serial reclock circuit, packets are not rewritten even if an error occurs in RECEIVED CRC.
  • Page 146 Whether the connected device supports EDH packets is displayed. The connected device supports EDH packets. The connected device does not support EDH packets. Data transmission error in a device before the LV 5333 is detected. Normal Error Data transmission error in the previous device is detected.

  • Page 147: Displaying Payload Ids

    13. STATUS DISPLAY 13.5.3 Displaying Payload IDs To show the payload IDs, follow the procedure below. The payload ID is an ancillary packet for identifying the video signal format. Procedure STATUS → F•4 ANC PACKET → F•2 PAYLOAD ID To select the payload ID type, follow the procedure below. Procedure STATUS →...
  • Page 148 13. STATUS DISPLAY Figure 13-10 Displaying payload IDs (SMPTE) Figure 13-7 Displaying payload IDs Item Description BYTE1 to 4 Displays the format ID in binary. VERSION ID Displays the format ID version. PAYLOAD ID Displays the video format. DIGITAL INTERFACE Displays the input signal bit rate.

  • Page 149: Displaying Closed Caption Packets

    13. STATUS DISPLAY 13.5.4 Displaying Closed Caption Packets When the input signal is SD or HD, to display closed caption packets defined in the ARIB standard, follow the procedure below. In the ARIB standard, up to four types of closed caption packets can be embedded. Here the selected one is displayed.
  • Page 150 13. STATUS DISPLAY ● Selecting the Closed Caption Type To select the closed caption packet type, follow the procedure below. The values are arranged in the order that they are embedded: HD, SD, ANALOG, and CELLULAR. Procedure STATUS → F•4 ANC PACKET → F•3 V-ANC ARIB → F•1 CLOSED CAPTION → F•2 CAPTION TYPE: HD / SD / ANALOG / CELLULAR ●...

  • Page 151: Displaying The Inter-Stationary Control Signal

    13. STATUS DISPLAY 13.5.5 Displaying the Inter-Stationary Control Signal When the input signal is SD or HD, to display the content of the inter-stationary control signal defined in the ARIB standard, follow the procedure below. You can set the display format to text or dump format. Procedure STATUS →...
  • Page 152 13. STATUS DISPLAY ● Selecting the Display Format To select the inter-stationary control signal display format, follow the procedure below. On the dump display, you can view the entire content by using the function dial (F•D). Procedure STATUS → F•4 ANC PACKET → F•3 V-ANC ARIB → F•2 NET-Q → F•1 DISPLAY: TEXT / DUMP Settings TEXT:...

  • Page 153: Displaying Eia-708 Data

    CDP packets. If the time code is present, its value is also displayed. Displays whether the EIA-708 ccdata_section is present or not. The LV 5333 checks whether the ccdata_section is present or not by examining the ccdata_present field in the header of CDP packets.

  • Page 154: Displaying Eia-608 Data

    13. STATUS DISPLAY 13.5.7 Displaying EIA-608 Data When the input signal is SD or HD, to display data defined in the EIA-608 standard, follow the procedure below. You can set the display format to text or dump format. If you select the dump format, turn function dial (F•D) to view all the data.

  • Page 155: Displaying Vbi Data

    13. STATUS DISPLAY 13.5.9 Displaying VBI Data When the input signal is SD or HD, to display VBI data, follow the procedure below. Procedure STATUS → F•4 ANC PACKET → F•4 V-ANC SMPTE → F•5 VBI Figure 13-18 Displaying VBI data 13.6 Configuring Error Settings To configure the error settings, press...

  • Page 156: Selecting The Error Count Rate

    13. STATUS DISPLAY 13.6.2 Selecting the Error Count Rate If an error occurs in an item whose detection has been enabled with F•3 ERROR DETECT, an error count is displayed next to ERROR COUNT on the status screen. To select the error count rate displayed next to ERROR COUNT, follow the procedure below. Procedure STATUS →...
  • Page 157 13. STATUS DISPLAY Procedure STATUS → F•5 ERROR CONFIG → F•3 ERROR DETECT → F•1 TRS ERROR: INTERNAL / INT&TRAP / INT&RMT / ALL ON / OFF ● Detecting Line Number Errors To detect line number errors, follow the procedure below. This setting is valid when the input signal is HD or 3G.
  • Page 158 13. STATUS DISPLAY ● Detecting Gamut Errors To detect gamut errors, follow the procedure below. When set to ON, error information is displayed next to GAMUT on the status screen. To set the threshold for detecting gamut errors, press ERROR LEVEL. F•4 Procedure STATUS →...

  • Page 159: Selecting The Level Unit

    13. STATUS DISPLAY Procedure STATUS → F•5 ERROR CONFIG → F•3 ERROR DETECT → F•6 next menu → F•6 next menu → F•1 CABLE ERROR: INTERNAL / INT&TRAP / INT&RMT / ALL ON / OFF ● Detecting Cable Warnings To detect cable warnings, follow the procedure below. When set to ON, warning information is displayed next to CABLE LENGTH on the status screen.

  • Page 160: Configuring Gamut Error Settings

    13. STATUS DISPLAY 13.6.5 Configuring Gamut Error Settings To configure the gamut error settings, press F•1 GAMUT on the STATUS menu. The settings that you specify here also apply to the R, G, and B bars on the 5 bar display. The unit for setting the level is the same as the unit that was specified with F•6 UNIT.

  • Page 161: Configuring The Composite Gamut Error Settings

    13. STATUS DISPLAY Procedure STATUS → F•5 ERROR CONFIG → F•4 ERROR LEVEL → F•1 GAMUT → F•4 GAMUT DURATION: 1 - 50 ● Selecting the Gamut Filter If you are detecting gamut errors or composite gamut errors, you can set a low-pass filter to remove transient errors such as overshoot.

  • Page 162: Configuring Cable Error Settings

    13. STATUS DISPLAY detected when the level after converting the input signal to a pseudo-composite signal falls below the specified value. Press the function dial (F•D) to return the setting to its default value (-40.0, -285.6, or -280.0). Procedure STATUS →...
  • Page 163 13. STATUS DISPLAY ● Selecting the SD-SDI Cable To select the cable for measuring cable lengths, follow the procedure below. This setting is valid when the input signal is SD. Procedure STATUS → F•5 ERROR CONFIG → F•4 ERROR LEVEL → F•3 CABLE ERROR →...

  • Page 164: Configuring The Luminance Level Error Settings

    13. STATUS DISPLAY Procedure STATUS → F•5 ERROR CONFIG → F•4 ERROR LEVEL → F•3 CABLE ERROR → F•6 next menu → F•2 HD WARN LENGTH m: 5 - 80 - 130 ● Setting the SD Error Upper Limit To set the upper limit of cable errors, follow the procedure below. If this value is exceeded, an error will occur, and the measured value on the status screen will be displayed in red.
  • Page 165 13. STATUS DISPLAY Procedure STATUS → F•5 ERROR CONFIG → F•4 ERROR LEVEL → F•4 LUMA → F•1 LUMA UPPER %: -7.2 - 109.4 → F•1 LUMA UPPER mV: -50.4 - 765.8 ● Setting the Lower Limit To set the lower limit of luminance level errors, follow the procedure below. An error is detected when the input signal luminance level falls below the specified value.

  • Page 166: Configuring The Chrominance Level Error Settings

    13. STATUS DISPLAY 13.6.9 Configuring the Chrominance Level Error Settings To configure the chrominance level error settings, press F•5 CHROMA on the STATUS menu. F•5 F•4 F•5 STATUS → ERROR CONFIG → ERROR LEVEL → CHROMA → Figure 13-_25 CHROMA menu ●...

  • Page 167: Resetting Errors

    13. STATUS DISPLAY 13.7 Resetting Errors To reset errors, follow the procedure below. When you reset errors, the status screen changes as follows. • ERROR COUNT is reset to 0. • FROM RESET is reset to 00:00:00. • The event log is cleared. Procedure STATUS →...

  • Page 168: 14. Audio Display

    14. AUDIO DISPLAY 14. AUDIO DISPLAY 14.1 Audio Screen Description To display the audio screen, press AUDIO. In the audio display, the levels of the eight selected channels are displayed numerically and with meters. The meters are normally displayed in green, but levels that exceed the reference level are displayed in red.

  • Page 169: Selecting The Display Mode

    14. AUDIO DISPLAY 14.2 Selecting the Display Mode In 1-screen display, audio levels are displayed numerically and with meters, but in multi-screen display, only one of them is displayed. To select the audio display mode in multi-screen display, follow the procedure below. Reference MODE →...

  • Page 170: Selecting The Channels To Measure

    14. AUDIO DISPLAY 14.3 Selecting the Channels to Measure In audio display, audio levels for eight channels can be measured and displayed. To select the channels to measure, press F•2 SDI GROUP on the AUDIO menu. AUDIO F•2 → SDI GROUP → Figure 14-_3 SDI GROUP menu To select a group of eight channels to show on the audio display, follow the procedure below.

  • Page 171: Selecting The Audio Output Channels

    14. AUDIO DISPLAY 14.4 Selecting the Audio Output Channels To select the audio output channels, follow the procedure below. You can select the audio output channels from those selected with SDI GROUP. Reference SDI Group → 14.3, “Selecting the Channels to Measure” Procedure AUDIO →...

  • Page 172: Selecting The Scale

    14. AUDIO DISPLAY The amount of time it takes for the meter to show -20 dB when a -20 dB/1 kHz sine-wave signal is applied with no input preceding it. The amount of time it takes for the meter to show -40 dB when the application of a -20 dB/1 kHz sine-wave signal is stopped.

  • Page 173: Configuring The Headphone Settings

    14. AUDIO DISPLAY 14.6 Configuring the Headphone Settings To configure the headphone settings, press F•5 PHONES on the AUDIO menu. AUDIO F•5 → PHONES → Figure 14-6 PHONES menu 14.6.1 Adjusting the Volume To adjust the headphone volume, follow the procedure below. Press the function dial (F•D) to return the setting to its default value (64).

  • Page 174: 15. Multi-Screen Display

    15. MULTI-SCREEN DISPLAY 15. MULTI-SCREEN DISPLAY The LV 5333 has five measurement modes: picture display, CINELITE display, CINEZONE display, video signal waveform display, vector display, audio display, and status display. The display that only shows one mode at a time is referred to as the 1-screen display. The display that shows combinations of different modes at the same time is referred to as the multi-screen display.
  • Page 175 15. MULTI-SCREEN DISPLAY MODE = 4SCREEN MODE = PIC_WFM MODE = WFM_VEC MODE = WFM_PIC MODE = WFM_AUD MODE = PIC+WFM MODE = PIC+VECT Figure 15-2 Selecting the display format...

  • Page 176: Setting The Measurement Mode

    15. MULTI-SCREEN DISPLAY 15.2 Setting the Measurement Mode The multi-screen display inherits the 1-screen display settings with a few exceptions. For video-signal-waveform, CINELITE, vector, status, and audio displays, the display settings can also be configured from the multi-screen display by following the procedure below. Such settings are linked to the settings in 1-screen display.

  • Page 177: 16. External Interface

    Remote Control Feature You can use the remote connector on the rear panel to load presets, transmit alarm signals, and perform other operations. Use the supplied 15-pin D-sub connector to control the LV 5333. ● Pinout This section contains a diagram of the remote control connector, displayed as it appears on the rear panel, and a table that describes the connector's pinout.
  • Page 178 16. EXTERNAL INTERFACE ● Control The input connectors respond to active-low signals. Do not apply negative voltages or voltages that exceed +5 V. The active-low signal must be stable for at least 350 ms. After that, wait at least 1 second before applying the next signal. Figure 16-2 Control timing 1 After a setting is made, it may take about 3 seconds for the operation to finish.
  • Page 179 16. EXTERNAL INTERFACE The control table when REMOTE is set to BINARY is shown below. Table 16-3 Loading presets (BINARY) Preset...
  • Page 180 CINEZONE. Figure 16-4 Tally display ● Alarm output The LV 5333 outputs an alarm from pin 14 (ALARM) when any of the conditions below is true. To select the alarm output polarity, press REMOTE on the STATUS menu. • When an error occurs in the item that you have set to INT&RMT or ALL ON using ERROR DETECT on the STATUS menu •...

  • Page 181: Telnet

    16. EXTERNAL INTERFACE 16.2 TELNET From a PC connected to the same network as the LV 5333, you can remotely control most of the operations that can be controlled from the panel. 16.2.1 Procedure Set the IP address, subnet mask, and gateway on the LV 5333.

  • Page 182: How To Enter Commands

    ● Querying the Vector Intensity LV5333> VECTOR:INTEN:VECTOR ? 16.2.3 TELNET Commands TELNET commands follow the LV 5333 menu structure. For explanations of each command, see the explanations of their corresponding menu items in this manual. Table 16-4 TELNET Commands Command...
  • Page 183 16. EXTERNAL INTERFACE Command Parameter SYSTEM:DISPLAY:LIGHT AUTO / ON / ? SYSTEM:DATE 2000 to 2200, 1 to 12, 1 to 31, 0 to 23, 0 to 59, 0 to 59 / ? (Enter the year, month, day, hour, minute, and second, in that order, separated by commas.) SYSTEM:INIT SYSTEM:VE_MODE...
  • Page 184 16. EXTERNAL INTERFACE Command Parameter CINELITE:FSTOP:REF_SET CINELITE:DISPLAY:%/RGB LEVEL% / RGB% / RGB255 / ? CINELITE:ADVANCE OFF / P+V / P+W / P+V+W / ? CINELITE:GAMMA 0.45 / USER-1 / USER-2 / USER-3 / ? CINELITE:CAL:TABLE_CLEAR CINELITE:CAL:DATA_CLEAR CINELITE:CAL:SET CINELITE:CAL:CAL_F 22.0 / 16.0 / 11.0 / 8.0 / 5.6 / 4.0 / 2.8 / 2.0 / ? CINELITE:P1 CINELITE:P2 CINELITE:P3...
  • Page 185 16. EXTERNAL INTERFACE Command Parameter WFM:MODE OVERLAY / PARADE / ? WFM:DISPLAY:CH1 ON / OFF / ? WFM:DISPLAY:CH2 ON / OFF / ? WFM:DISPLAY:CH3 ON / OFF / ? VECTOR -128～127 / ? VECTOR:INTEN:VECTOR -8～7 / ? VECTOR:INTEN:SCALE VECTOR:INTEN:IQ ON / OFF / ? VECTOR:INTEN:MARKER ON / OFF / ? VECTOR:GAIN:VAR...
  • Page 186 16. EXTERNAL INTERFACE Command Parameter MAKE DUMP (See section 16.3, “FTP”) STATUS:AUDIO STATUS:AUDIO:CH 1ST-1 / 1ST-2 / 1ST-3 / 1ST-4 / 2ND-1 / 2ND-2 / 2ND-3 / 2ND-4 / ? STATUS:EDH STATUS:ANC:PAYLOADID STATUS:ANC:PAYLOADID:PACKET SMPTE / ARIB / ? STATUS:ANC:VANC:CCAP STATUS:ANC:VANC:CCAP:DISPLAY TEXT / DUMP / ? STATUS:ANC:VANC:CCAP:CAP_NUMBER HD / SD / ANALOG / CELLULAR / ?
  • Page 187 16. EXTERNAL INTERFACE Command Parameter STATUS:ANC:VANC:NETQ8:Q32 ON / OFF / ? STATUS:ANC:VANC:EIA708 STATUS:ANC:VANC:EIA708:DISPLAY TEXT / DUMP / ? STATUS:ANC:VANC:EIA608 STATUS:ANC:VANC:EIA608:DISPLAY TEXT / DUMP / ? STATUS:ANC:VANC:PROGRAM STATUS:ANC:VANC:VBI STATUS:ERROR:REMOTE_ERR OFF / POSITIVE / NEGATIVE / ? STATUS:ERROR:RATE V_RATE / 1SEC / ? STATUS:ERROR:DETECT:TRS INTERNAL / INT&TRAP / INT&RMT / ALL_ON / OFF / ? STATUS:ERROR:DETECT:LINE...
  • Page 188 16. EXTERNAL INTERFACE Command Parameter -7.2～109.4 / ? (when UNIT is %) STATUS:ERROR:LEVEL:LUMA:UPPER -50.4～765.8 / ? (when UNIT is mV) -7.2～109.4 / ? (when UNIT is %) STATUS:ERROR:LEVEL:LUMA:LOWER -50.4～765.8 / ? (when UNIT is mV) -57.0～57.0 / ? (when UNIT is %) STATUS:ERROR:LEVEL:CHROMA:UPPER -399.0～399.0 / ? (when UNIT is mV) -57.0～57.0 / ? (when UNIT is %)

  • Page 189: Ftp

    16. EXTERNAL INTERFACE 16.3 The files that are generated by the LV 5333 can be transferred to a PC connected to the same network. 16.3.1 Procedure Configure the LV 5333 Ethernet settings, and connect an Ethernet cable. For more detailed instructions, see steps 1 through 3 in section 16.2.1, “Procedure.”...

  • Page 190: How To Enter Commands

    Examples of how to enter commands are shown below. ● Transferring a Data Dump 1. Use the following TELNET command to save a data dump in the LV 5333 internal memory. LV5333> MAKE DUMP 2. Use the following FTP command to transfer the data dump to “DUMP.TXT” on the PC's D drive.

  • Page 191: Snmp

    16. EXTERNAL INTERFACE 16.4 SNMP By using SNMP (Simple Network Management Protocol), you can control an LV 5333 from SNMP managers. Additionally, you can notify the SNMP managers of errors that the LV 5333 generates. The LV 5333 supports SNMPv1. 16.4.1...

  • Page 192: Standard Mib

    16. EXTERNAL INTERFACE 16.4.3 Standard MIB The LV 5333 uses the following standard MIB: •RFC1213 (MIB-II) •RFC1354 (IP Forwarding Table MIB) In the tables, “ACCESS” and “SUPPORT” indicate the following: Display Description ACCESS Information that can be read from the SNMP managers.
  • Page 193 16. EXTERNAL INTERFACE SYNTAX ACCESS SUPPORT ifInUnknownProtos ifEntry.15 Counter ○ ifOutOctets ifEntry.16 Counter ○ ifOutUcastPkts ifEntry.17 Counter ○ ifOutNUcastPkts ifEntry.18 Counter ○ ifOutDiscards ifEntry.19 Counter ○ ifOutErrors ifEntry.20 Counter ○ ifOutQLen ifEntry.21 Gauge ○ ifSpecific ifEntry.22 ObjectID ○ ● ip group SYNTAX ACCESS SUPPORT...
  • Page 194 16. EXTERNAL INTERFACE SYNTAX ACCESS SUPPORT ipForwardNumber ipForward .1 Gauge ○ ipForwardTable ipForward .2 Aggregate ○ ipForwardDest ipForwardTable.1 IpAddress ○ ipForwardMask ipForwardTable.1 IpAddress ○ ipForwardPolicy ipForwardTable.1 INTEGER × ipForwardNextHop ipForwardTable.1 IpAddress ○ ipForwardIfIndex ipForwardTable.1 INTEGER ○ ipForwardType ipForwardTable.1 INTEGER × ipForwardProto ipForwardTable.1 INTEGER...
  • Page 195 16. EXTERNAL INTERFACE icmpOutAddrMaskReps icmp.26 Counter ○ ● tcp group SYNTAX ACCESS SUPPORT tcpRtoAlgorithm tcp.1 INTEGER ○ tcpRtoMin tcp.2 INTEGER ○ tcpRtoMax tcp.3 INTEGER ○ tcpMaxConn tcp.4 INTEGER ○ tcpActiveOpens tcp.5 Counter ○ tcpPassiveOpens tcp.6 Counter ○ tcpAttemptFails tcp.7 Counter ○...
  • Page 196 16. EXTERNAL INTERFACE ● snmp group SYNTAX ACCESS SUPPORT snmpInPkts snmp.1 Counter ○ snmpOutPkts snmp.2 Counter ○ snmpInBadVersions snmp.3 Counter ○ snmpInBadCommunityNames snmp.4 Counter ○ snmpInBadCommunityUses snmp.5 Counter ○ snmpInASNParseErrs snmp.6 Counter ○ snmpInTooBigs snmp.8 Counter ○ snmpInNoSuchNames snmp.9 Counter ○...

  • Page 197: Enterprise Mib

    ● Enterprise Number The Enterprise Number of LEADER ELECTRONICS CORP. is 20111. iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).leader(20111) ● Enterprise MIB File Retrieve the enterprise MIB file from the LV 5333 using FTP. The file name is "lv5333.my." (Example: GET LV5333.MY D:\LV5333.MY) ● Enterprise MIB Structure lv5333...
  • Page 198 16. EXTERNAL INTERFACE ●l34panelTBL(1) group SYNTAX ACCESS VALUE/RANGE l34plSDI l34panelTBL.2 INTEGER l34plReference l34panelTBL.3 INTEGER 0=int 1=ext l34plDisplay l34panelTBL.6 INTEGER 0=wfm 1=vector 2=audio 3=picture 4=multi 5=status 6=capture 7=system 8=memory 10=recall 13=cinelite 14=cinezone ●l34wfmTBL(2) group SYNTAX ACCESS VALUE/RANGE l34wfmIntenTBL l34wfmTBL.1 Aggregate -128～127 l34wfmIntenWfm l34wfmIntenTBL.1 INTEGER...
  • Page 199 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 2=x20 3=active 4=blank l34wfmSweepVMAG l34wfmSweepTBL.6 INTEGER 0=x1 1=x20 2=x40 l34wfmLineSelectTBL l34wfmTBL.4 Aggregate l34wfmLineSelect l34wfmLineSelectTBL.1 INTEGER 0=off 1=on 1～1125 l34wfmLineSelectNumber l34wfmLineSelectTBL.2 INTEGER l34wfmLineSelectField l34wfmLineSelectTBL.3 INTEGER 0=field1 1=field2 2=frame l34wfmColorTBL l34wfmTBL.5 Aggregate l34wfmColorMatrix l34wfmColorTBL.1 INTEGER 0=ycbcr 1=gbr 2=rgb 3=composite...
  • Page 200 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 1=on l34wfmEavSav l34wfmTBL.7 INTEGER 0=remove 1=pass l34wfmMode l34wfmTBL.8 INTEGER 0=overlay 1=parade l34wfmDisplayTBL l34wfmTBL.9 Aggregate l34wfmDisplayCH1 l34wfmDisplayTBL.1 INTEGER 0=off 1=on l34wfmDisplayCH2 l34wfmDisplayTBL.2 INTEGER 0=off 1=on l34wfmDisplayCH3 l34wfmDisplayTBL.3 INTEGER 0=off 1=on ●l34vectorTBL(3) group SYNTAX ACCESS VALUE/RANGE l34vecIntenTBL l34vectorTBL.1 Aggregate...
  • Page 201 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 1=yellow 2=cyan 3=green 4=magent a 5=red 6=blue l34vecScaleIQAXIS l34vecScaleTBL.2 INTEGER 0=off 1=on l34vecScaleMarker l34vecScaleTBL.3 INTEGER 0=off 1=on l34vecSelect l34vectorTBL.6 INTEGER 0=vector 1=bar 2=extphase l34vecExtPhaseTBL l34vectorTBL.7 Aggregate l34vecExtPhaseSdiNumber l34vecExtPhaseTBL.1 INTEGER 0=n1 1=n2 2=n3 3=n4 4=n5 5=n6 6=n7 7=n8...
  • Page 202 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 4=sd14-9 5=sd13-9 6=off l34picMarkerSafeAction l34picMarkerTBL.3 INTEGER 0=sa95 1=sa93 2=sa90 3=off l34picMarkerSafeTitle l34picMarkerTBL.4 INTEGER 0=st88 1=st80 2=off l34picMarkerCenter l34picMarkerTBL.5 INTEGER 0=off 1=on l34picMarkerShadow l34picMarkerTBL.6 INTEGER 0=off 1=on l34picLineSelectTBLl 5pictureTBL.2 Aggregate l34picLineSelect l34picLineSelectTBL.1 INTEGER 0=off 1=on 1～1125 l34picLineSelectNumber l34picLineSelectTBL.2...
  • Page 203 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 6=blue l34picHistDisplay l34picHistTBL.3 INTEGER 0=yrgb 1=y1023 l34picDisplayTBL l34pictureTBL.4 Aggregate l34picSize l34picDisplayTBL.1 INTEGER 0=fit 2=x2 3=full l34picRgb l34picDisplayTBL.2 INTEGER 0=rgb 1=mono 2=rg 3=rb 4=gb l34picSqueeze l34picDisplayTBL.3 INTEGER 0=off 1=on l34picGamutErr l34picDisplayTBL.4 INTEGER 0=dispon 1=dispoff 0～150 l34picChroma l34pictureTBL.5 INTEGER...
  • Page 204 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 5=p2 6=p3 l34cineliteDisplayRGB l34cineliteDisplayTBL.7 INTEGER 0=level 1=rgb 2=rgb255 l34cineliteFstopRefSet l34cineliteDisplayTBL.8 INTEGER 0=FstopRefSet l34cineliteGamma l34cineliteTBL.4 INTEGER 0=gO45 1=user-1 2=user-2 3=user-3 l34cineliteCalTBL l34cineliteTBL.5 Aggregate l34cineliteCalTableClear l34cineliteCalTBL.1 INTEGER 0=CalTableClear l34cineliteCalDataClear l34cineliteCalTBL.2 INTEGER 0=CalDataClear l34cineliteCalSet l34cineliteCalTBL.3 INTEGER 0=CalSet l34cineliteCalCalF l34cineliteCalTBL.4 INTEGER...
  • Page 205 16. EXTERNAL INTERFACE ●l34audioTBL(8) group SYNTAX ACCESS VALUE/RANGE l34audMode l34audioTBL.1 INTEGER 0=level 1=value l34audSdiTBL l34audioTBL.2 Aggregate l34audSdi1St l34audSdiTBL.1 INTEGER 0=group1 1=group2 2=group3 3=group4 l34audSdi2nd l34audSdiTBL.2 INTEGER 0=group1 1=group2 2=group3 3=group4 l34audMeterTBL l34audioTBL.3 Aggregate l34audMeterRef l34audMeterTBL.1 INTEGER 0=minus20dB 1=minus18dB 2=minus12dB 3=minus9dB l34audMeterRange l34audMeterTBL.2 INTEGER...
  • Page 206 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 3=ch1st4 4=ch2nd1 5=ch2nd2 6=ch2nd3 7=ch2nd4 l34audAesEbuOut l34audioTBL.5 INTEGER 0=ch1st1and2 1=ch1st3and4 2=ch2nd1and2 3=ch2nd3and4- ●l34multiTBL(9) group SYNTAX ACCESS VALUE/RANGE l34mulMode l34multiTBL.1 INTEGER 0=m4SCREEN 1=picWFM 2=wfmVEC 3=wfmPIC 4=wfmAUD 5=picpluswfm 6=picplusvect l34mulLower l34multiTBL.2 INTEGER 0=statusDisp 1=audLVLDisp 2=fiveBarDisp ●l34statusTBL(10) group SYNTAX ACCESS VALUE/RANGE...
  • Page 207 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 2=stream12 1～1125 l34staDumpLineNumber l34staDumpTBL.3 INTEGER 0～4124 l34staDumpSample l34staDumpTBL.4 INTEGER l34staDumpEav l34staDumpTBL.5 INTEGER 0=DumpEav l34staDumpSav l34staDumpTBL.6 INTEGER 0=DumpSav l34staDumpFD l34staDumpTBL.7 INTEGER 0=line 1=sample l34staAudioTBL l34statusTBL.4 Aggregate l34staAudioChSEL l34staAudioTBL.1 INTEGER 0=ch1st1 1=ch1st2 2=ch1st3 3=ch1st4 4=ch2nd1 5=ch2nd2 6=ch2nd3 7=ch2nd4 l34staAncPacketTBL...
  • Page 208 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE l34staAncVanNetqQ5 l34staAncVanNetqTBL.7 INTEGER 0=off 1=on l34staAncVanNetqQ6 l34staAncVanNetqTBL.8 INTEGER 0=off 1=on l34staAncVanNetqQ7 l34staAncVanNetqTBL.9 INTEGER 0=off 1=on l34staAncVanNetqQ8 l34staAncVanNetqTBL.10 INTEGER 0=off 1=on l34staAncVanNetqQ9 l34staAncVanNetqTBL.11 INTEGER 0=off 1=on l34staAncVanNetqQ10 l34staAncVanNetqTBL.12 INTEGER 0=off 1=on l34staAncVanNetqQ11 l34staAncVanNetqTBL.13 INTEGER 0=off 1=on l34staAncVanNetqQ12 l34staAncVanNetqTBL.14...
  • Page 209 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 1=on l34staAncVanNetqQ28 l34staAncVanNetqTBL.30 INTEGER 0=off 1=on l34staAncVanNetqQ29 l34staAncVanNetqTBL.31 INTEGER 0=off 1=on l34staAncVanNetqQ30 l34staAncVanNetqTBL.32 INTEGER 0=off 1=on l34staAncVanNetqQ31 l34staAncVanNetqTBL.33 INTEGER 0=off 1=on l34staAncVanNetqQ32 l34staAncVanNetqTBL.34 INTEGER 0=off 1=on l34staAncpacVancsmpteTBL l34staAncPacketTBL.3 Aggregate l34staEia708TBL l34staAncpacVancsnpteT Aggregate BL.1 l34staEia708 l34staEia708TBL.1 INTEGER l34staEia708Display...
  • Page 210 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE l34staErrDetectCRC l34staErrDetectTBL.3 INTEGER 0=internal 1=intTrap 2=intRmt 3=allOn 4=0ff l34staErrDetectEDH l34staErrDetectTBL.4 INTEGER 0=internal 1=intTrap 2=intRmt 3=allOn 4=0ff l34staErrDetectParity l34staErrDetectTBL.6 INTEGER 0=internal 1=intTrap 2=intRmt 3=allOn 4=0ff l34staErrDetectCheckSum l34staErrDetectTBL.7 INTEGER 0=internal 1=intTrap 2=intRmt 3=allOn 4=0ff l34staErrDetectGamut l34staErrDetectTBL.9 INTEGER 0=internal 1=intTrap...
  • Page 211 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 1=intTrap 2=intRmt 3=allOn 4=0ff l34staErrDetectBCH l34staErrDetectTBL.15 INTEGER 0=internal 1=intTrap 2=intRmt 3=allOn 4=0ff l34staErrDetectAudCrc l34staErrDetectTBL.16 INTEGER 0=internal 1=intTrap 2=intRmt 3=allOn 4=0ff l34staErrLevTBL l34staErrTBL.4 Aggregate l34staErrLevGamutTBL l34staErrLevTBL.1 Aggregate 90.8～109.4(%) l34staErrLevGamutUpper l34staErrLevGamutTBL.1 Display 635.6～765.8 String (mV) -7.2～6.1(%) l34staErrLevGamutLower l34staErrLevGamutTBL.2 Display...
  • Page 212 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 10～105 l34staErrLevCableErr3GErrLen l34staErrLevCableErrTBL. INTEGER 10～105 l34staErrLevCableErr3GWarnLen l34staErrLevCableErrTBL. INTEGER 5～130 l34staErrLevCableErrHDErrLen l34staErrLevCableErrTBL. INTEGER 5～130 l34staErrLevCableErrHDWarnLen l34staErrLevCableErrTBL. INTEGER 50～300 l34staErrLevCableErrSDErrLen l34staErrLevCableErrTBL. INTEGER 50～300 l34staErrLevCableErrSDWarnLen l34staErrLevCableErrTBL. INTEGER l34staErrLevLumaTBL l34staErrLevTBL.4 Aggregate -7.2～109.4(%) l34staErrLevLumaUpper l34staErrLevLumaTBL.1 Display -50.4～765.8 String (mV) -7.2～109.4(%) l34staErrLevLumaLower l34staErrLevLumaTBL.2...
  • Page 213 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE l34filMakeLog l34filMakeTBL.2 INTEGER 0=MakeLog l34filMakeDump l34filMakeTBL.3 INTEGER 0=MakeDump l34filMakeCapture l34filMakeTBL.4 INTEGER 0=MakeCapture 1～30 l34filRecall l34filesTBL.2 INTEGER ●l34systemTBL(13) group SYNTAX ACCESS VALUE/RANGE l34sysFormatTBL l34systemTBL.1 Aggregate l34sysFormatMode l34sysFormatTBL.1 INTEGER 0=auto 1=manual l34sysFormatIPSF l34sysFormatTBL.2 INTEGER 0=interlac 1=segFram l34sysFormatSDI l34sysFormatTBL.3 INTEGER...
  • Page 214 16. EXTERNAL INTERFACE SYNTAX ACCESS VALUE/RANGE 2=off l34sysDispInfoTime l34sysDispInfoTBL.2 INTEGER 0=real 1=timecode 2=off l34sysDispInfoDate l34sysDispInfoTBL.3 INTEGER 0=ymd 1=mdy 2=dmy 3=off l34sysDispInfoColor l34sysDispInfoTBL.4 INTEGER 0=off 1=on l34sysDispInfoTimeCode l34sysDispInfoTBL.5 INTEGER 0=ltc 1=vitc 2=dvitc l34sysDispDisplayBackLight l34sysDispTBL.2 INTEGER 0=high 1=low l34sysDispDisplayAutoOff l34sysDispTBL.3 INTEGER 0=off 1=min5 2=min30 3=min60...
  • Page 215 16. EXTERNAL INTERFACE ●l34trapTBL(15) group SYNTAX ACCESS VALUE/RANGE l34trapStrTBL l34trapTBL.1 Aggregate l34trapManagerIp l34trapTBL.2 IpAddress l34trapID l34trapTBL.3 IpAddress...

  • Page 216: Specific Trap

    16. EXTERNAL INTERFACE 16.4.5 Specific Trap Specific Trap Type Description Fan stop detection Fan restart detection No input signal detection Format error detection TRS error detection Line number error detection CRC LUMA error detection CRC CHROMA error detection Checksum error detection BCH error detection EDH error detection Parity error detection...

  • Page 217: Variable Binding List

    16. EXTERNAL INTERFACE 16.4.6 Variable Binding List ●index 1 OID : leader(20111).lv5333(34).lv5333ST1(1).l34trapTBL(15).l34trapStrTBL(1).1.0 Syntax : Counter Range: 1 to 4294967295 (overflow occurs if this range is exceeded) Description: The total number of enterprise traps sent after starting up ●index 2 OID : leader(20111).lv5333(34).lv5333ST1(1).l34trapTBL(15).l34trapStrTBL(1).2.0...
  • Page 218 This chapter shows the menu trees that correspond to each key. The default settings are underlined. The menus that are displayed vary depending on the LV 5333 settings and whether a USB memory device is connected to the LV 5333.
  • Page 219 17.2 CINELITE Menu f_Stop CINELITE ( LINE / SAMPLE ) DISPLAY MEAS ( P1 / P2 / P3 MEAS ( 1X1 / 3X3 / 9X9 SIZE MEAS ( P1P2P3 / P1P2-- / P1--P3 / --P2P3 / DISP P1---- / --P2-- / ----P3 REF_SET menu %DISPLAY...

  • Page 220: Cinezone Menu

    17.3 CINEZONE Menu CINEZONE MODE ( ZONE / SEARCH ) ZONE DISPLAY ( LINEAR / STEP ) %DISPLAY ( OFF / ON ) LEVEL% ( -7.3 - 50.0 - 109.4 ) RANGE% ( 0.5 - 12.0 - 100.0 ) DISPLAY ( LINE / SAMPLE ) MEAS ( P1 / P2 / P3...
  • Page 221 INTEN ( -128 - 0 - 127 INTEN SCALE ( -8 - 4 - 7 INTEN menu GAIN GAIN FILTER ( CAL / VAR ) GAIN ( X1 / X5 ) FILTER ( FLAT / LOW PASS / FLAT+LUM / LUM+CHRM / LUMA menu SWEEP SWEEP...

  • Page 222: Vector Menu

    SCALE SCALE ( HDV,SD% / HDV,SDV / HD%,SD% / HEX / DEC / FS DEC UNIT 75%COLOR ( ON / OFF ) SCALE SCALE ( WHITE / YELLOW / CYAN / GREEN / MAGENTA / RED / BLUE COLOR menu EAV-SAV ( REMOVE / PASS ) MODE...
  • Page 223 VECTOR INTEN/ ( -128 - 0 - 127 ) SCALE INTEN SCALE ( -8 - 4 - 7 ) INTEN IQ AXIS ( ON / OFF ) SCALE ( WHITE / YELLOW / CYAN / GREEN / MAGENTA / RED / BLUE COLOR MARKER ( ON / OFF )

  • Page 224: Multi Menu

    17.6 MULTI Menu MULTI MODE ( 4SCREEN / PIC_WFM / WFM_VEC / WFM_PIC / WFM_AUD / PIC+WFM / PIC+VECT MULTI MULTI CINELITE MULTI MULTI STATUS MULTI AUDIO LOWER ( STATUS / AUDIO / 5BAR 17.7 STATUS Menu ( START / STOP ) STATUS CLEAR LOG MODE...
  • Page 225 up menu PACKET PACKET ( SMPTE / ARIB ) PAYLOAD SELECT up menu CLOSED DISPLAY ( TEXT / DUMP ) CAPTION V-ANC ARIB TYPE ( HD / SD / ANALOG / CELLULAR DUMP ( HEX / BINARY ) MODE menu NET-Q DISPLAY ( TEXT / DUMP )
  • Page 226 V-ANC EIA-708 DISPLAY ( TEXT / DUMP ) SMPTE SYSTEM ( 608(708) ) ( 608(708) ) menu EIA-608 DISPLAY ( TEXT / DUMP ) SYSTEM ( 608(608) ) ( 608(608) ) menu PROGRAM menu SYSTEM ( VBI ) ( VBI ) menu menu up menu...
  • Page 227 ERROR GAMUT ( 90.8 - 109.4 ) GAMUT UPPER % LEVEL GAMUT ( -7.2 - 6.1 ) LOWER % GAMUT ( 635.6 - 765.8 ) UPPER mV GAMUT ( -50.4 - 42.7 ) LOWER mV GAMUT ( 0.0 - 5.0 ) AREA % GAMUT ( 1 - 50 )

  • Page 228: Audio Menu

    CHROMA ( -57.0 - 57.0 ) CHROMA UPPER % CHROMA ( -57.0 - 57.0 ) LOWER % CHROMA ( -399.0 - 399.0 ) UPPER mV CHROMA ( -399.0 - 399.0 ) LOWER mV menu UNIT ( % / mV ) menu ERROR ( REFRESH / HOLD )

  • Page 229: Capture Menu

    17.9 CAPTURE Menu CAPTURE HOLD DISPLAY ( REAL / HOLD / BOTH ) STORE TYPE ( BMP&BSX / BMP / BSX SELECT FILE DELETE MEMORY DELETE DELETE RECALL menu 17.10 SYSTEM Menu FORMAT MODE ( AUTO / MANUAL ) SYSTEM i/PsF ( INTERLAC / SEG.FRM ) SELECT...
  • Page 230 LIGHT ( AUTO / ON ) menu INTRFACE REMOTE ( BIT / BINARY ) &LICENSE DHCP/IP ETHERNET ( DHCP / IP ) SELECT IP ADRS SUBNET MASK GATEWAY ← → menu SNMP ( OFF / RD ONLY / RD/WR LICENSE CLEAR SETUP CLEAR...

  • Page 231: Memory Menu

    17.11 MEMORY Menu COMMENT CLEAR MEMORY INPUT DELETE INSERT ← → CHAR menu STORE STORE STORE DELETE DELETE DELETE RECALL ALL COPY COPY FROM USB COPY ALL COPY COPY TO USB COPY RECALL ( RCLL No. / FUNCTION ) MODE...

  • Page 232: Recall Menu

    17.12 RECALL Menu RECALL more ・ ・ ・ NO. 25 NO. 26 NO. 27 NO. 28 NO. 29 NO. 30 more...

  • Page 233: 18. Firmware Update History

    18. FIRMWARE UPDATE HISTORY This manual is written for firmware version 1.20. You can view the firmware version by pressing INTRFACE&LICENSE and then F•6 F•4 LICENSE SETUP on the SYSTEM menu.
  • Page 234 Index %/RGB ............... 70 C.GAMUT AREA % ..........150 %DISPLAY ............70, 79 C.GAMUT DURATION ..........150 C.GAMUT ERROR ...........146 C.GAMUT LOWER % ..........149 C.GAMUT LOWER mV ..........149 C.GAMUT UPPER % ..........149 1st GROUP .............. 158 C.GAMUT UPPER mV ..........149 CABLE ERROR..........146, 150 CABLE WARNING ...........
  • Page 235 CRC ERROR ............145 GAIN VAR ............85, 106 CURSOR ..............93 GAMMA..............69, 74 GAMUT ..............148 GAMUT AREA % ............148 GAMUT DURATION ........... 148 GAMUT ERROR..........66, 146 DATA CLEAR ............. 74 GAMUT FILTER ............149 DATA DUMP ............125 GAMUT LOWER % ..........148 DATE ..................34 GAMUT LOWER mV ..........
  • Page 236 LUMA ............... 152 RECALL USB ............44 LUMA ERROR ............146 REF DEFAULT ..............116 LUMA LOWER % ..........153, 154 REF LEVEL ............. 159 LUMA LOWER mV .......... 153, 154 REF SET ..............94 LUMA UPPER % ............. 152 REF_SET ..............
  • Page 237 TIMECODE ..............35 TRS ERROR ............144 TYPE ............... 138 WFM ................82 TYPE SELECT ............43 WFM INTEN .............. 83 UNIT ..............112, 147 X UNIT ............... 94 UPPER% ..............80 XY SEL ..............93 USB MEMORY ..........124, 128 USER REF SET............
  • Page 238 Following information is for Chinese RoHS only 所含有毒有害物质信息 部件号码: LV 5333 此标志适用于在中国销售的电子信息产品,依据2006年2月28日公布的 《电子信息产品污染控制管理办法》以及SJ/T11364-2006《电子信息产品污染 控制标识要求》，表示该产品在使用完结后可再利用。数字表示的是环境保护使 用期限，只要遵守与本产品有关的安全和使用上的注意事项，从制造日算起在数 字所表示的年限内，产品不会产生环境污染和对人体、财产的影响。 产品适当使用后报废的方法请遵从电子信息产品的回收、再利用相关法令。 详细请咨询各级政府主管部门。 产品中有毒有害物质或元素的名称及含量 有毒有害物质或元素 Hazardous Substances in each Part 部件名称 Parts 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(Ⅵ)) (PBB) (PBDE) 实装基板...
  • Page 239 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...

This manual is also suitable for:

Lv 5333 op70Lv 5333 op71

Table of Contents
