Summary of Contents for Leader LV5307

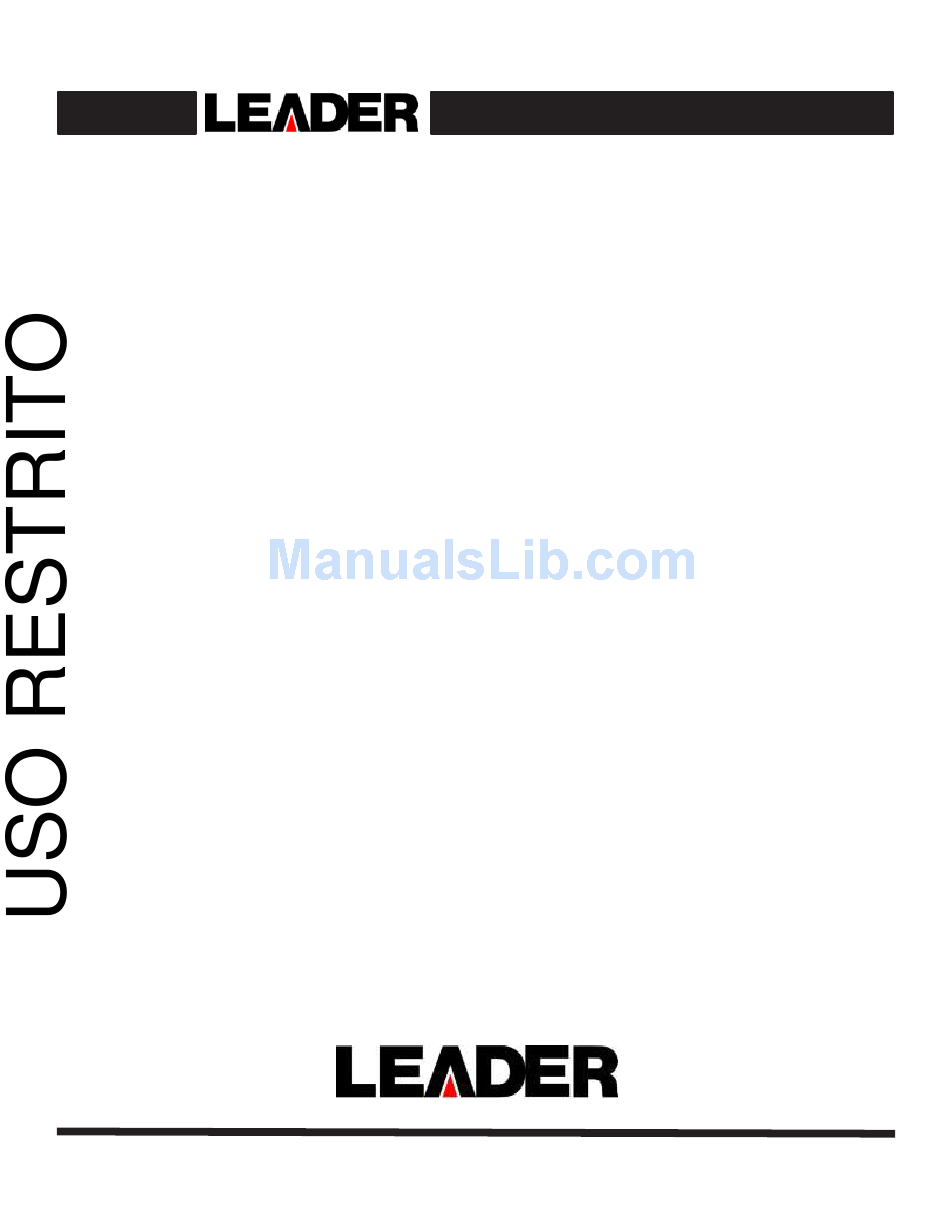

  • Page 1 LV5307 SDI/HDMI Monitor Instruction Manual...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS GENERAL SAFETY SUMMARY ������������������������������������������������������������������������������������������������������ INTRODUCTION Scope of Warranty ���������������������������������������������������������������������������������������������������������������������1 1�1 Operating Precautions ���������������������������������������������������������������������������������������������������������������1 1�2 ����������������������������������������������������������������������������������������������������������������� 1�2�1 About Standby Mode Mechanical Shock ���������������������������������������������������������������������������������������������������������������������� 1�2�2 ���������������������������������������������������������������������������������������������������������������� 1�2�3 Electrostatic Damage ������������������������������������������������������������������������������������������������������������������������������� 1�2�4 Warming Up �������������������������������������������������������������������������������������������������������������������������� 1�2�5 Backup Battery ����������������������������������������������������������������������������������������������������������������� 1�2�6 About the LCD Panel About Trademarks and Licenses �����������������������������������������������������������������������������������������������2 1�3...
  • Page 4 ����������������������������������������������������������������������������������������������������������������������� 4�4�3 Bklight Dimming ����������������������������������������������������������������������������������������������������������������������������������������� 4�4�4 Misc Advanced Menu �����������������������������������������������������������������������������������������������������������������������14 4�5 ����������������������������������������������������������������������������������������������������������������������������� 4�5�1 Input Output ��������������������������������������������������������������������������������������������������������������������������������� 4�5�2 Timecode Source Alias ����������������������������������������������������������������������������������������������������������������������������� 4�5�3 UMD ����������������������������������������������������������������������������������������������������������������������������������������� 4�5�4 ������������������������������������������������������������������������������������������������������������������������������ 4�5�5 System Info ��������������������������������������������������������������������������������������������������������������������������������������� 4�5�6 H Flip Test Pattern ������������������������������������������������������������������������������������������������������������������������������ 4�5�7 Function Keys ��������������������������������������������������������������������������������������������������������������������������15 4�6 Marker ��������������������������������������������������������������������������������������������������������������������������������������16 4�7...
  • Page 5: General Safety Summary

    ■ he contents of this manual contain specialized terminology and may be difficult to understand. If you have any questions about the contents of this manual, please contact your local LEADER agent. ■ Symbols and Terms The following symbols and terms are used in this instruction manual and on the instrument to indicate important warnings and notes�...
  • Page 6 Failing to do so could lead to fire. Turn off the power switch, and remove the power cord from the outlet. After making sure that fire has not spread anywhere, contact your local LEADER agent.
  • Page 7 Using a power cord that does not meet the standards could lead to fire. If the power cord is damaged, stop using it, and contact your local LEADER agent. Using a damaged power cord could lead to electrical shock or fire.
  • Page 8 Precautions are also contained in various other sections of this instruction manual� To use the instrument correctly, be sure to follow those precautions as well. If you have any questions or comments about this instruction manual, please contact your local LEADER agent�...
  • Page 9: Introduction

    Scope of Warranty This LEADER instrument has been manufactured under the strictest quality control guidelines� LEADER shall not be obligated to furnish the following free services during the warranty period: Repair of malfunction or damages resulting from fire, natural calamity, or improper voltage applied by the user�...
  • Page 10: 1�2�5 Backup Battery

    To continually use the last-memory feature, we recommend that you replace the backup battery with a new one every five years after you purchase the instrument. You cannot replace the backup battery yourself� Contact your local LEADER agent� 1�2�6 About the LCD Panel The LCD panel used in this product is made of glass.
  • Page 11: Product Features

    12-Bit Internal Processing to be implemented quickly� Active Video Looping supports full 1080p/60 frames on the HDMI output� 2K content can be displayed on this Leader monitor 2K Input Capability without the loss of HD signal by converting and downscaling the content�...
  • Page 12: Control Panel

    2�2 Control Panel FRONT Mount Speaker Tally display Source select Function key F1 Rato scan choice Function key F2 Main menu open Function key F3 EXIT Function key F4 Function key F5 DOWN Function key F6 Power LED Menu control Jog REAR Component [ Pr ], CVBS SDI signal in...
  • Page 13: Basic Information

    2�3 Basic Information 2�3�1 Initial Setup When the monitor is initially turned on and connected to your source, follow the instructions below: • Selecting a source: To select your source, please press the SOURCE button. Turn the main control jog to make your choice, and click the jog to lock the selection. Factory default is HDMI (Please keep this step if you are connected to a HDMI source)�...
  • Page 14: Connections

    CONNECTIONS 3�1 Connecting to SDI signals (3Gbps ~ 270 Mbps) SIGNAL FORMATS INPUT OUTPUT 1080 60p SMPTE 425M (3G) 4:2:2 1080 50p 720 24p 720 25p 720 50p 720 60p 1080 23�98p SMPTE 425M (3G) 1080 23�98psf 4:4:4 1080 24p 1080 25p 1080 30p 1080 50i...
  • Page 15: 3�2 Connecting To Hdmi Signals

    3�2 Connecting to HDMI signals SIGNAL FORMATS INPUT OUTPUT 1080 60p 1080 50p 720 24p 720 25p 720 50p 720 60p 1080 24p 1080 25p 1080 30p 1080 50i 1080 60i 1035 60i 1080 24psf 1080 24p 1080 25p 1080 30p 1080 50i 1080 60i 720 60p...
  • Page 16: Connecting To Component Input Signals (1�0 Vpp - Y With Sync; 0�7 Vpp - Pb

    3�3 Connecting to Component Input Signals (1�0 Vpp - Y with Sync; 0�7 Vpp - Pb Pr) INPUT SIGNAL FORMATS LV5307 MONITOR 480 60p 576 50i 576 50p 720 50p 720 60p 1080 50i 1080 60i 1080 50p 1080 60p 3�4...
  • Page 17: Menu Features

    MENU FEATURES 4�1 Video 4�1�1 Color Temp Main Video Color Temp Select your preferred color temperature settings [ User, 9300K, 7500K, 6500K ] RED Gain, GREEN Gain, BLUE Gain Adjusts R, G, B gain Selectable level between [ 0min ~ 100max ] RED Bias, GREEN Bias, BLUE Bias Adjusts R, G, B Bias or Offset Selectable between [-50min ~ 50max ]...
  • Page 18: 4�1�5 Color Only

    4�1�5 Color Only Main Video Color Only Select your preferred color type [ Red, Green, Blue, Mono ] 4�1�6 NTSC Setup Main Video NTSC Setup Adjusts IRE value under NTSC mode between OFF (0 IRE) and ON (7�5 IRE)� 4�1�7 Max Bright Main Video...
  • Page 19: Anamorphic

    Used to magnify the image up to 230% of the original display between [ zoom, Pixel to Pixel, Disable ] PIXEL TO PIXEL: If the resolution of the input signal is greater than the LV5307, then only the area equivalent to the monitor resolution will be displayed in this mode� ZOOM:...
  • Page 20: H/V Delay

    * IMPORTANT: When Zoom Mode is activated, the main control jog operates for zoom feature. Shortcut for brightness, contrast and color by clicking the jog once. Two clicks or three clicks change to zoom ratio, H position, and V position. 4�2�5 H/V Delay Main...
  • Page 21: 4�3�6 Scope Blend

    4�3�6 Scope Blend Main A/V Scope Audio Level Meter Used to control the transparency level of scopes [ On, Off ]. When OSD is on and overlaps with scopes, scope blend automatically turns on even if it is off. when users exit OSD, scope blend option goes back to user’s original setting�...
  • Page 22: Timecode

    4�5 Advanced Menu 4�5�1 Input Output Main Advanced Input Output Used to control the input and output signal including embedded converter� HDMI OUTPUT Source: Selects the output signal [ Disable, SDI, Display, HDMI/ADC ] Color Format: Selects the color space [ RGB, 4:2:2, 4:4:4 ] RGB Range: Selects the color range of RGB color format [ 0~255, 16~235 ] YCbCr Range: Selects the color range of 4:2:2 or 4:4:4 color...
  • Page 23: System Info

    4�5�4 Main Advanced Used to turn on/off UMD and control UMD options at the bottom of the monitor� UMD Type: Off, Signal (information about input/output sources), Function (information about programmable key setting)� Color: UMD Color Selection [ white, red, green, blue ]. Blend: UMD Transparency [ On/Off ].
  • Page 24: Peaking

    4�7 Marker Main Marker Used to activate marker feature� Marker Type: Marker Type selection [ Off, 16:9, 4:3, 15:9, 14:9, 13:9, 1.85:1, 2.35:1 ]. Safety Area: Select input of the Safety Resolution rate [ Off, 95%, 93%, 90%, 88%, 85%, 80%, EBU Action, EBU Graphic]. Center Marker: On / Off Center Marker 4�8 Handheld...
  • Page 25: False Color U/L

    different color to indicate exact areas of under or over exposure� [ On, Off ] 4�8�7 False Color U/L Main Handheld False Color U/L Used to control the upper level of false color feature� [ 0min ~ 100max ] 4�8�8 False Color L/L Main Handheld...
  • Page 26: Other Information

    OTHER INFORMATION 5�1 Accessories 19” Rack Mount Wallmount Hardware Camera Mount Protective Carrying Protective Sun Visor Battery Mount AC Power Cable ND Filter AR Glass AC Adaptor...
  • Page 27 5�2 Specifications PRODUCT Screen Size 7 inches Max� Resolution 1024 x 600 (16:9) Back Light Type Color Depth 16�7M (8-bit) Viewing Angle (H/V) (H) / 170 Luminance (Max�) 400 cd/m Contrast Ratio 800:1 INTERFACE SDI In / Out HDMI In / Out Component (Y, Pb, Pr) in (RCA jack) AV (Composite) In / Out...
  • Page 28 LEADER INSTRUMENTS CORPORATION www.LeaderAmerica.com Sales@LeaderAmerica.com Revision 11/14...
