6) PROTECTION AND ERRORS.

6) PROTECTION AND ERRORS.
6) PROTECTION AND ERRORS. 6) PROTECTION AND ERRORS.
OVERCURRENT
ERROR
SHORT-CIRCUIT
ERROR
TEMPERATURE
ERROR
LACK LEVEL
ERROR
VOLTAGE
ERROR
PRESS TRANSD.
ERROR

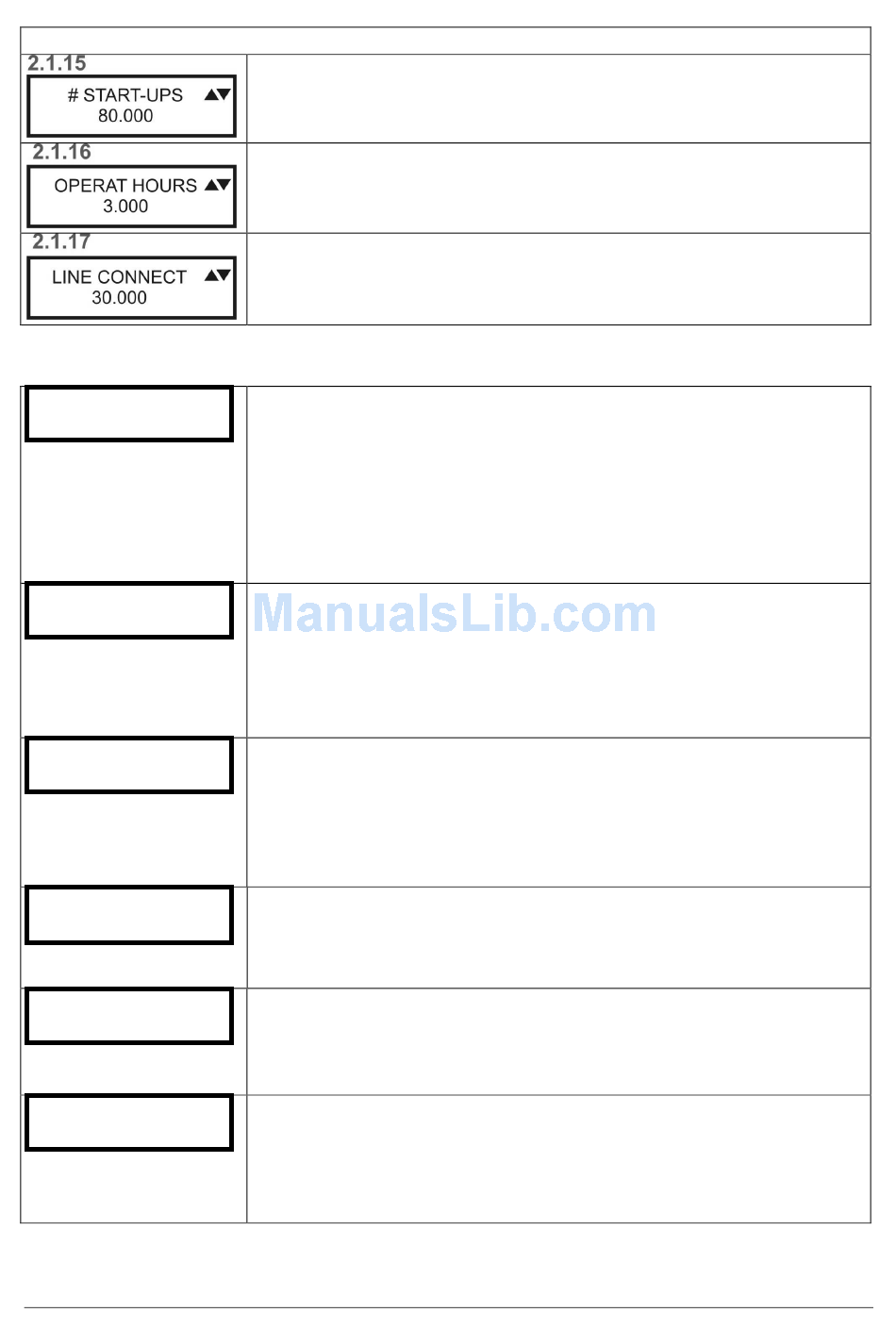

NUMBER OF START- - - - UPS NUMBER OF START UPS
NUMBER OF START NUMBER OF START UPS UPS
Number of pump start-ups.
OPERATING HOURS OPERATING HOURS
OPERATING HOURS OPERATING HOURS
Number of hours of operation of the pump.
LINE CONNECTION LINE CONNECTION LINE CONNECTION LINE CONNECTION
Number of hours of connection to the line, even when the pump is stopped.
OVERCURRENTS OVERCURRENTS
OVERCURRENTS OVERCURRENTS
The circuit permanently controls the motor's current consumption. If the current
exceeds the values established in parameter "MAXIMUM MOTOR CURRENT" at any
moment, the system will stop.
The reset is automatic. If the error is not solved 4 new attempts* are performed.
If the error is still present after the fourth attempt, the system will be set to a
permanent fault.
Press OK to reset. The start screen (#2) will appear.
SHORT SHORT SHORT SHORT- - - - CIRCUIT CIRCUIT CIRCUIT CIRCUIT
The state of connections will be diagnosed upon the motor's start-up.
The system will stop when a short-circuit is detected in the motor.
The reset is automatic. If the error is not solved 4 new attempts* are performed.
If the error is still present after the fourth attempt, the system will be set to a
permanent fault.
MODULE TEMPERATURE MODULE TEMPERATURE MODULE TEMPERATURE MODULE TEMPERATURE
The module's (T models) or circuit's (M models) temperature is monitored at all
times.
If the limit values established (not configurable) are exceeded in each circuit, the
system will stop.
The reset is automatic when the normal temperature is reinstated.
LACK OF WATER LEVEL IN TANK LACK OF WATER LEVEL IN TANK LACK OF WATER LEVEL IN TANK LACK OF WATER LEVEL IN TANK
If you have installed a float level in the inlet water tank (see apt. 3.5, n º 2), the
water level is below the minimum.
The reset is automatic when the water level recovered.
VOLTAGE VOLTAGE VOLTAGE VOLTAGE
The input voltage of the system will be monitored constantly.
The system will stop if the ±10% limits are exceeded.
The reset is automatic when the nominal voltage is reinstated.
PRESSURE TRANSDUCER PRESSURE TRANSDUCER PRESSURE TRANSDUCER PRESSURE TRANSDUCER
The pressure transducer connected to the unit is not working properly
The system will stop.
(For booster sets, if other transducers are connected to Speedrive slaves, the
booster will not stop and automatically switch to another transducer)
